40C Cryogenic Cooling System Laboratory Circulating Chiller

Share on (62092994701):


Price:$2,550.00 - $2,650.00

Quantity:


Product Overview

Description



Product Description

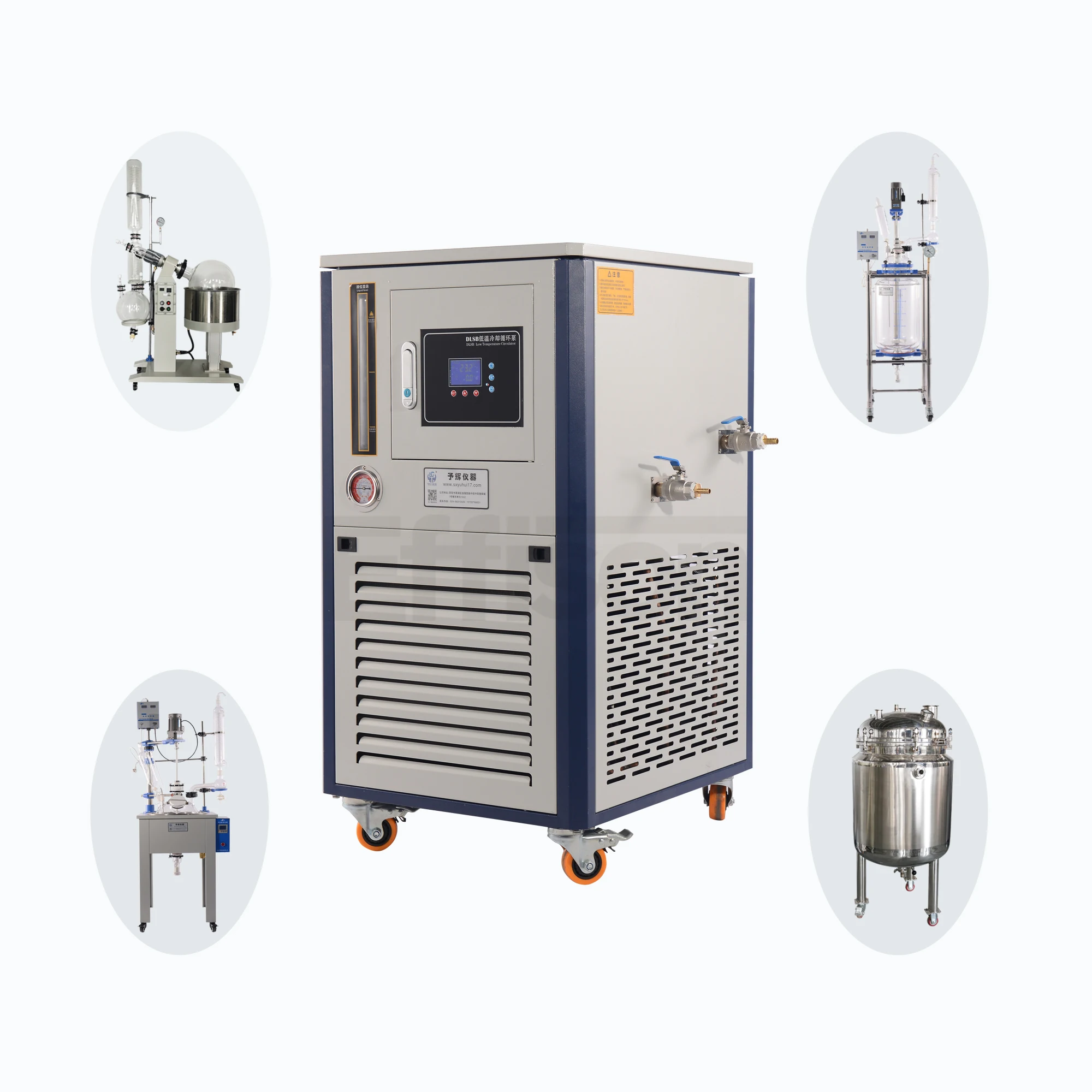

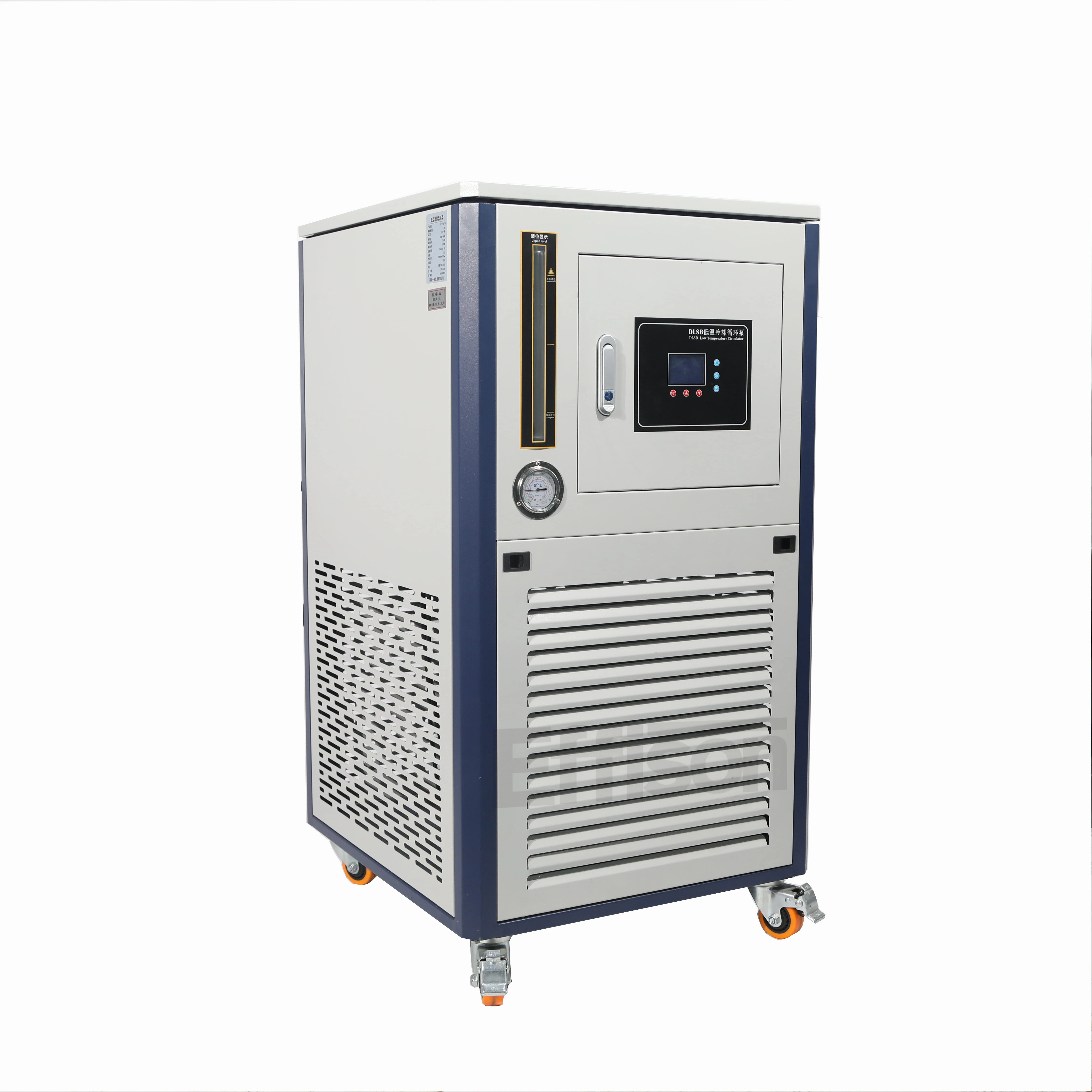

-40C Cryogenic Cooling System Laboratory Circulating Chiller





-40c circulating chiller 20 Years Experience Laboratory Instruments, these closed laboratory chillers are ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching and jacketed reactors. This system can also be used as a replacement to tap water cooling in laboratory applications.





-40c circulating chiller are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.








Features of -40c circulating chiller:


--No dry ice or liquid nitrogen needed


--Advanced PID digital temp controller


--Built-in chilling fluid filter protects the recirculating pump and prevent blockage


--All steel construction for durability


--Cost saving as the water consumption is completely eliminated


--Built-in casters for mobility


--Eco-friendly R404A refrigerant


--Insulated tubing included





Specifications of -40c circulating chiller:






































































































Model



DLSB 10/40



DLSB 50/40



DLSB 100/40



DLSB 200/40



DLSB 300/40



Capacity of liquid storage tank



7L



17L



35L



100L



100L



Temperature range



-40℃~RT



Cooling capacity(W)



2800~600



10950~1500



15330~900



22500~1800



24375~2100



Refrigerating unit






Power



1400W



4400W



5000W



6750W



9750W



Electricity



7.3A



20A



17A



20A



33A



Refrigerating fluid



R404



Circulating pump



Power



100W



250W



370W



Flow



20L/min



35L/min



40L/min



Lift



6m



11m



18m



Voltage/Frequency



Single Phase 220V/50HZ or 220V/60HZ



Single Phase 220V/50HZ or 220V/60HZ



Three Phase 460V/60HZ or 380V/50HZ



Three Phase
460V/60HZ or 380V/50HZ



Three Phase 460V/60HZ or 380V/50HZ



External dimension(mm)



620*540*920



770*670*1180



970*800*1350



1400*970*1760



1400*970*1760



Weight



75kg



180kg



220kg



480kg



500kg



Mark



-10C, -20C, -30C, -60C, -80C, -120C is also available, customized chiller is also available






Detailed Images





recirculating chiller .jpg
