SAGA European quality CE heavy duty four side moulder 6 or 8 spindle wood 4 side planer industrial wood planer
- Category: >>>
- Supplier: Foshan Saga Machinery Co. Ltd.
Share on (62093100316):
Product Overview
Description
Product Description

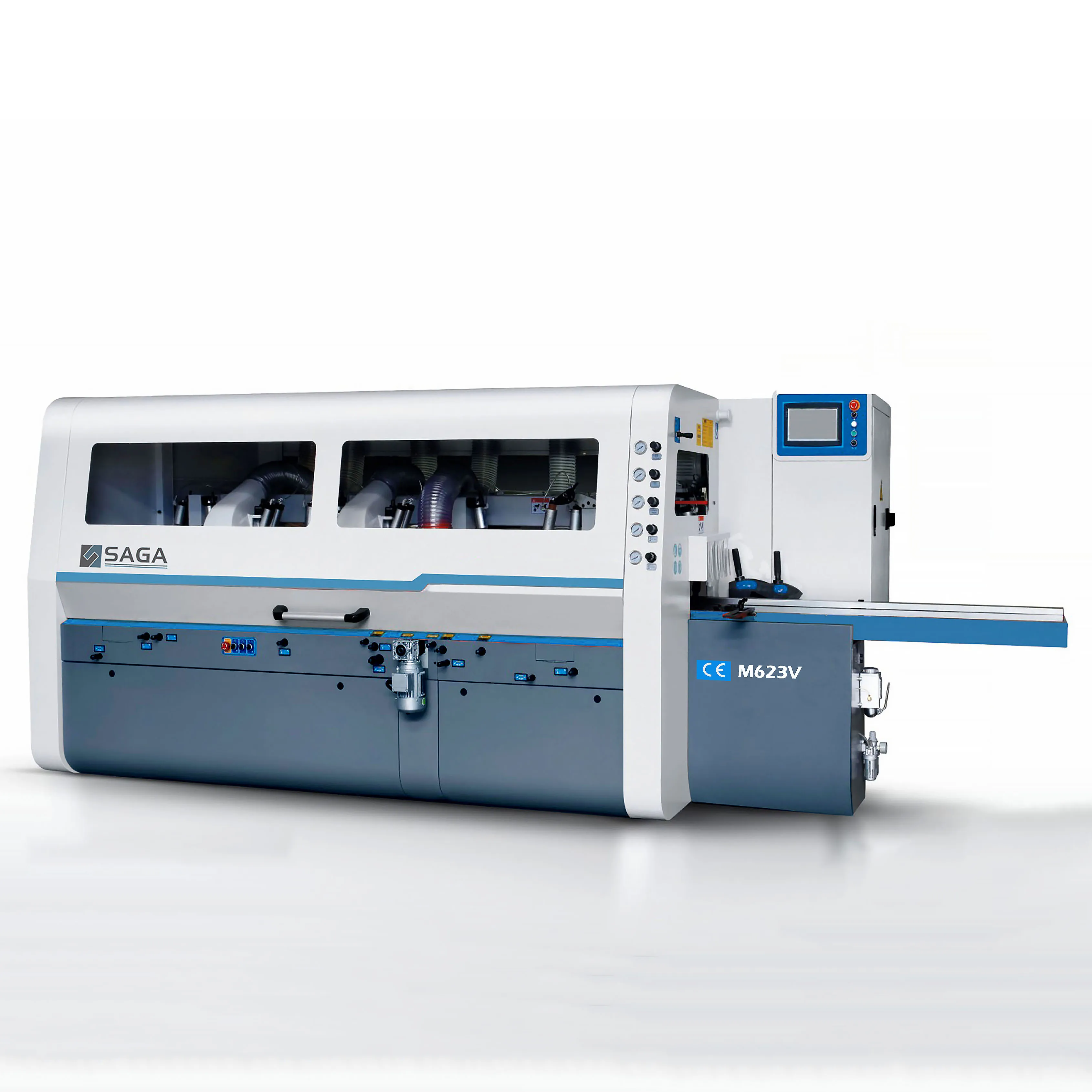

6spindle 623V auto setting model
6spindle 633 Extreme heavy auto setting model
7 spindle 721 with 2 universal spindle
8 spindle 823 professional
SAGA professional Four Side Moulder 6/7/9 spindle industrial model
This is Chinese TOP grade, higest standard premium 4 side moulder, it meets all your expectation of a European planer moulder. It suitable for even all range of bussiness like wood floor, wall panel, wooden house construction material, wood beam, wood profilling as well as all other moulding work.
CE certified machine, with all high grade fittings: whole heavy cast iron structure to reduce vibration, european standard motor with speed variable feeding, high precision fine processed high speed spindle, all Europe electric spare. We strict control every detail process all to offer you best.
If you need a moulder with high precision life long use, SAGA is your wise choice.

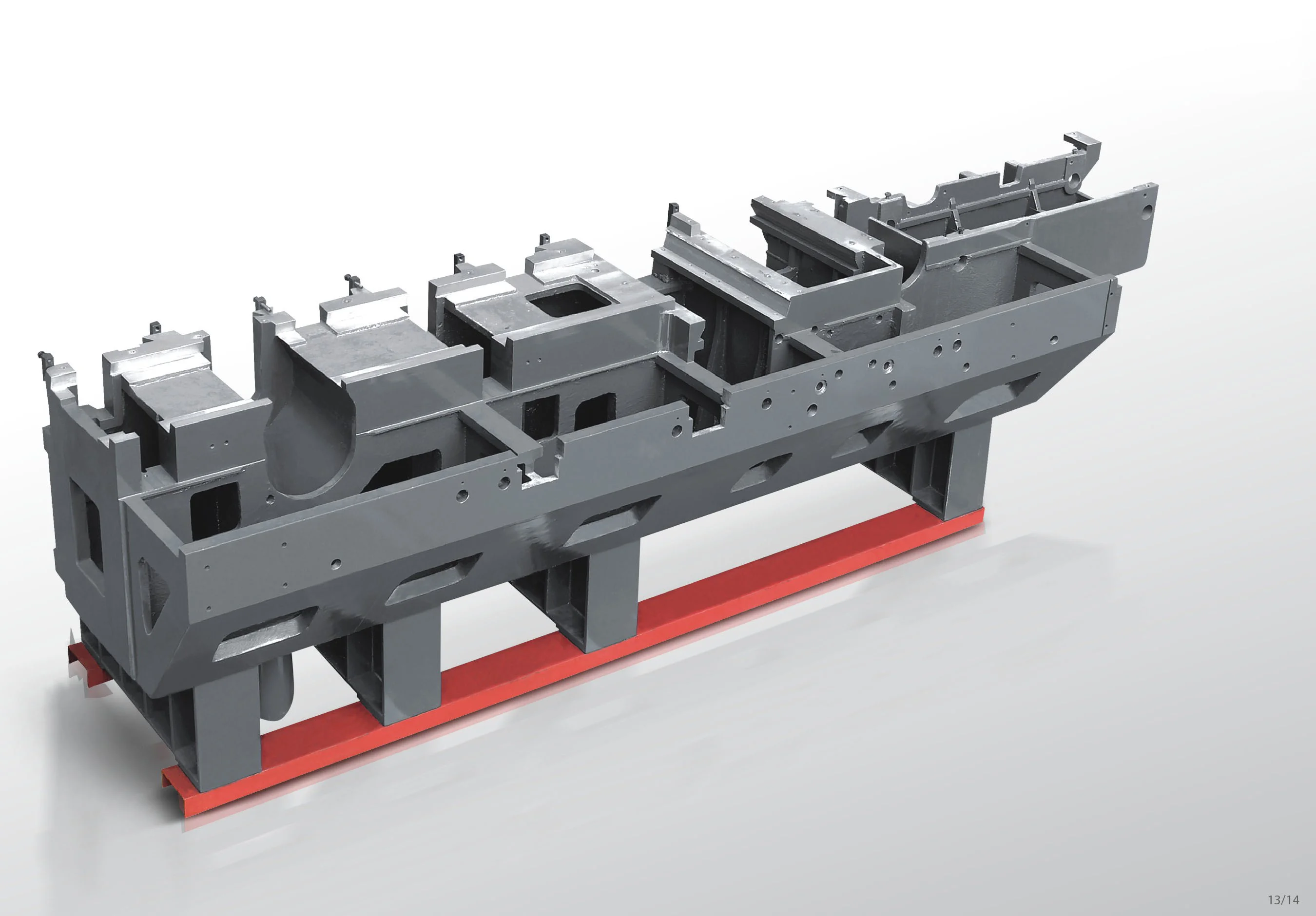

Heavy cast iron structure .
This is the key point of a life long moulder stable running without and vibration and where precision comes out.

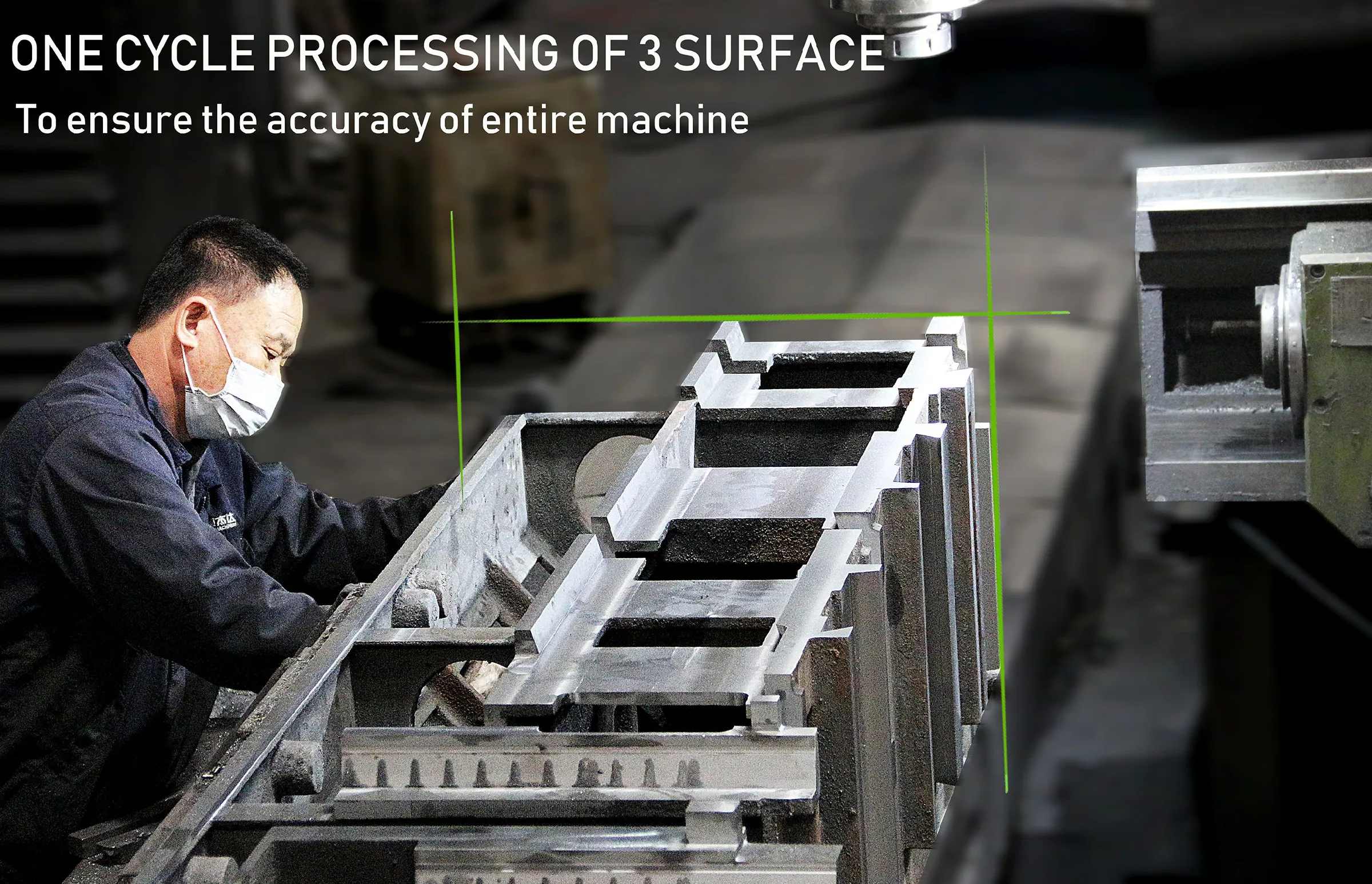

High precision processing.
This is the secret behind all precision, we process all the refference on whole body 1 time without move it.
Max Plan width | 230/330mm |
Max Plan height | 160/200mm |
Total power | 42kW |
Spindle number | 6/7/8 by choice |

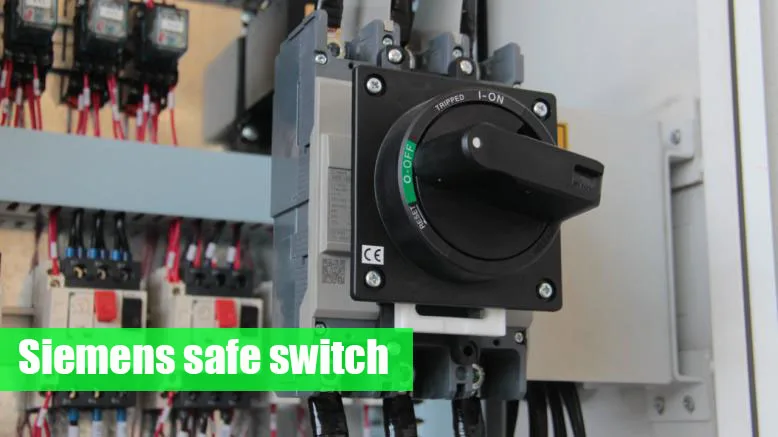

All European electrial
CE passed European electro spare parts world universal high quality should be the standard fitting of a perfect moulder
Customer Cases

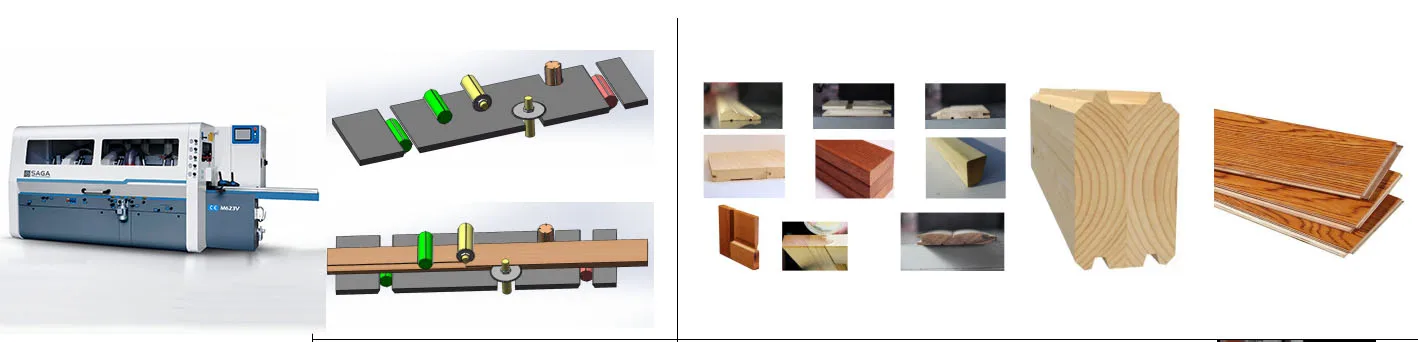

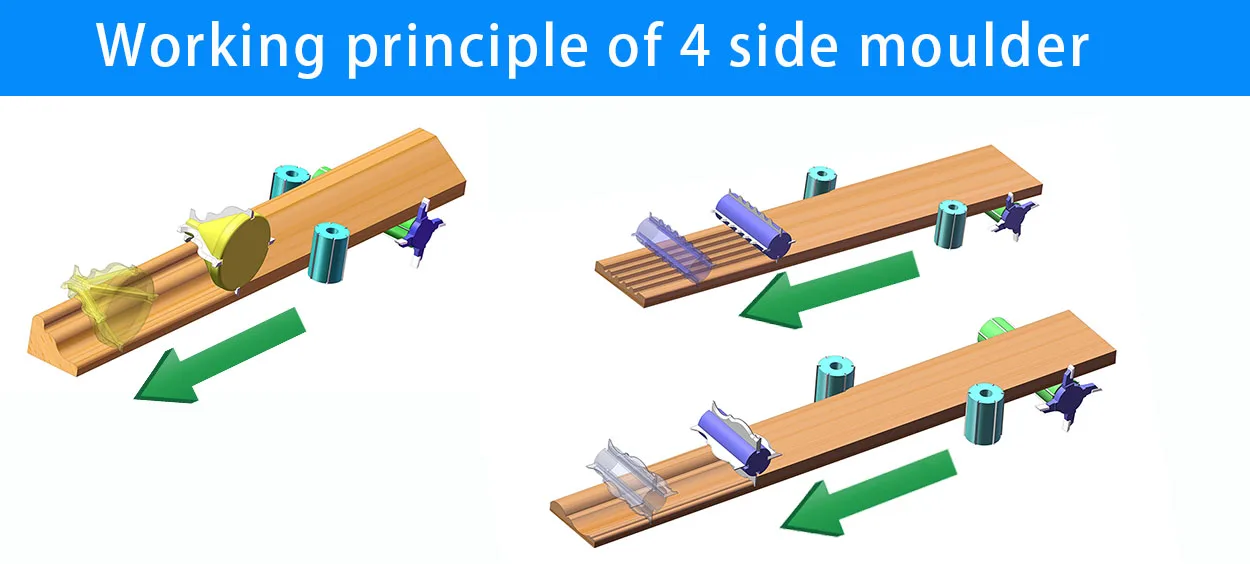

What can be done by a 4-5 spindle model moulder
Profile, solid wood floor, door or cabinet, corner rounding, squaring etc
What can be done by 6-7 heavy duty moulder
All the products of 4/5 spindle moulder can do, plus wooden house material ,laminated click joint floor and even all common moulding work.
What can be done by professional High speed 8-10 spindle
All the products of 4/5 spindle can do plus rubber sealing door frame, Euro style windows as well as other complex works, flexible to use cutter or blade

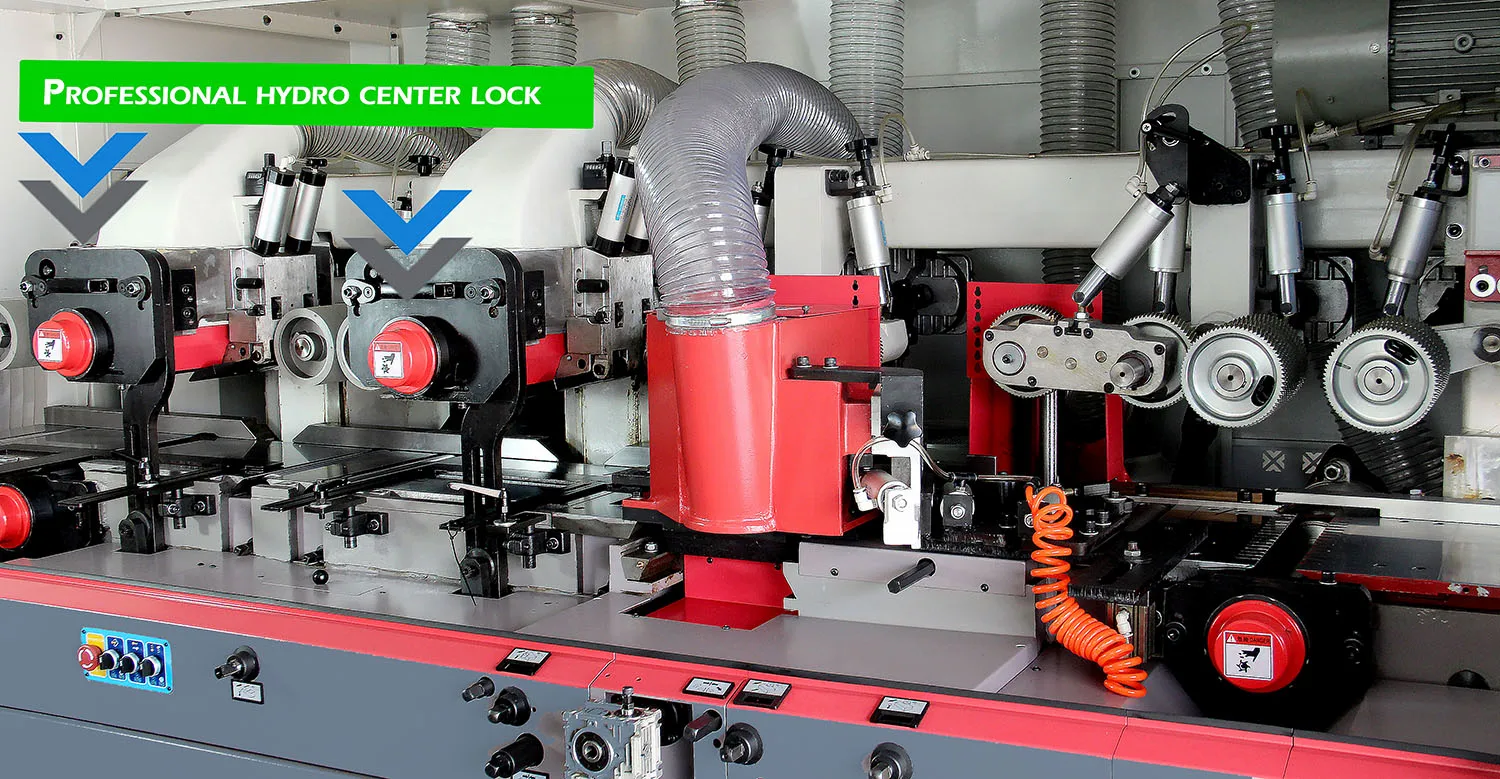

Detailed Images
Tunning easy.
All knobs concentrate on front for easy tunning, even there is emergency stop and beam up and down button, very friendly design
Control all at front.
All control is on front, clear to see and covenient to use.
Optional automatic control.
All models of SAGA moulder can be upgrade to automatic control.
Silent Running.
All the running cabinet is coverd with noise consumption material for a good working condition.
Clear measure.
Measurement near control panel makes the adjust mesure so clear .
Central lubration.
To make machine running in good conditional all the time.
All neccessary tools.
All professional tools is included.

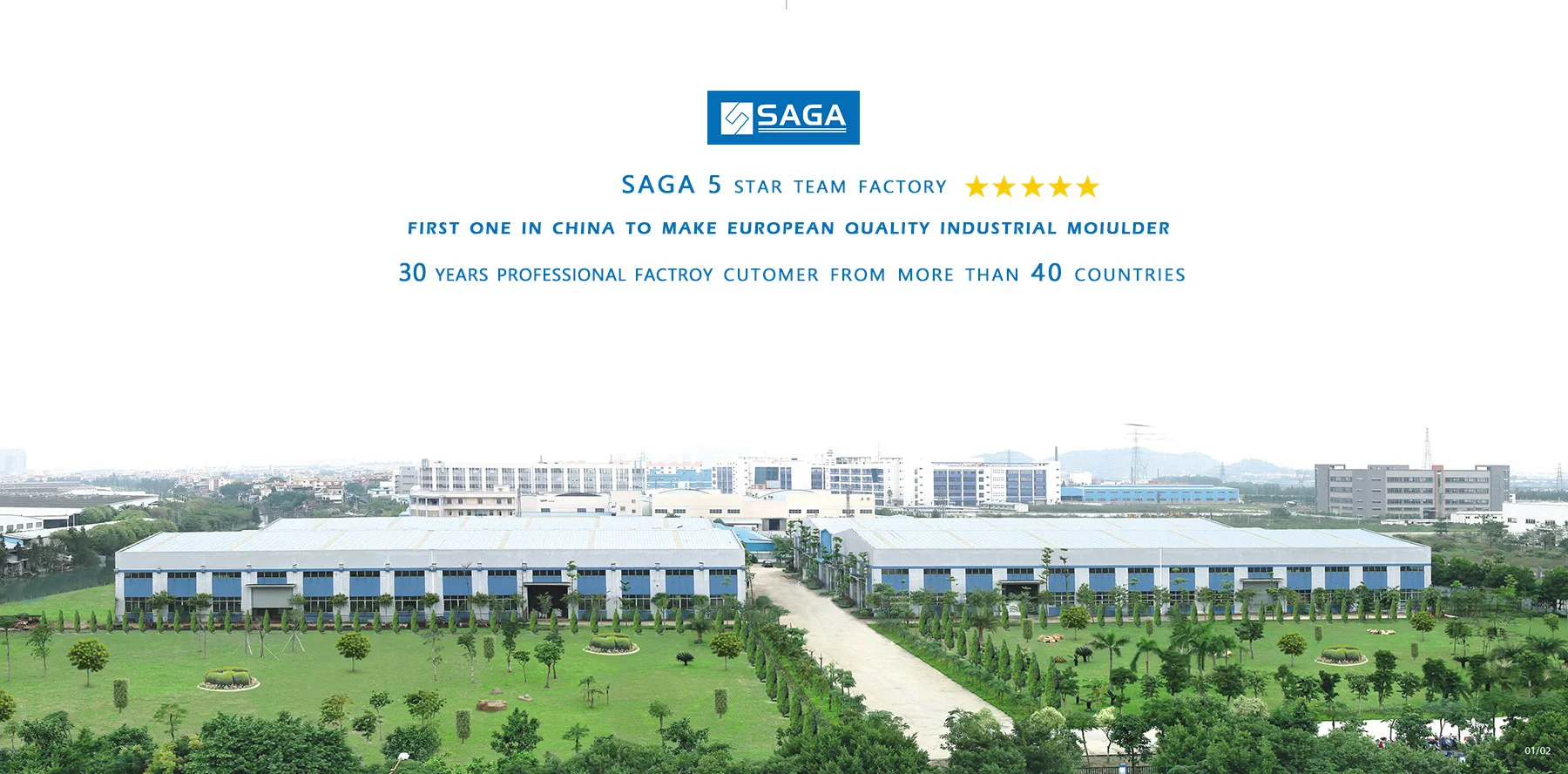

Factory&equipments
Certifications
FAQ
How to chose a 4 side moulder
How many spindle I need

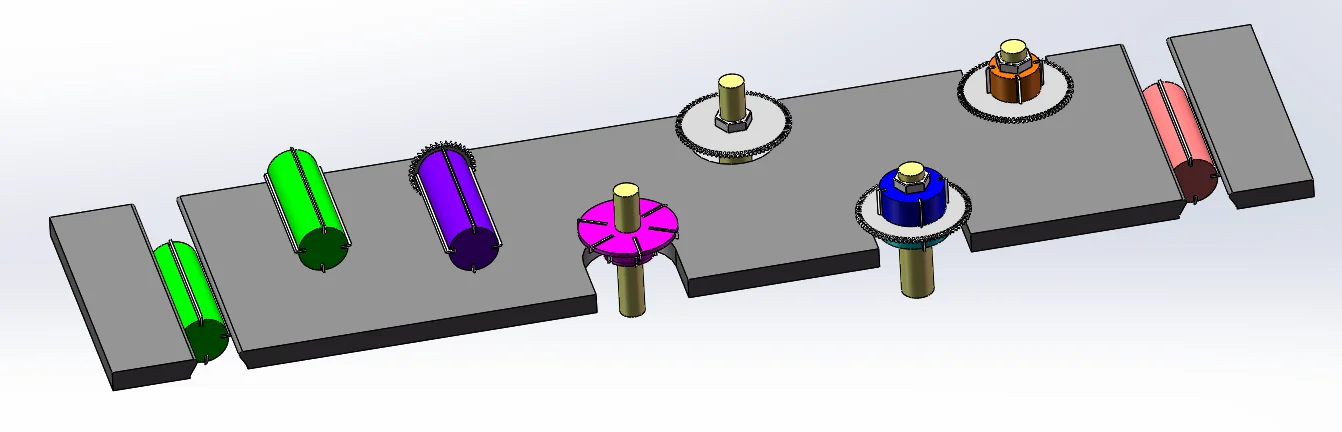

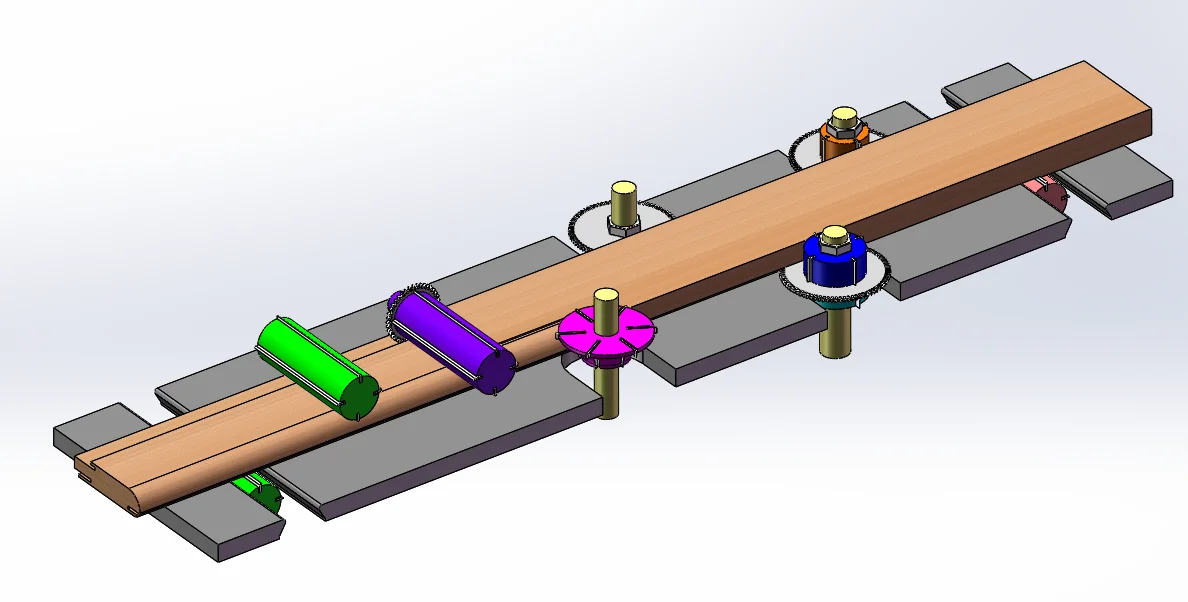

Firstly 4 side moulder not mean only 4 spindle, it can be 4/5/6/7or even 8 spindle, and it depens on different products: for example, if you want to produce solid wood floor, just plan 2 surface and 2 side male and famale groove a 4 spindle model is suitable, but if you want to plan 2 times on floor surface, then you need a 5 spindle, plan 5 times on visable surface.
If you just do corner rounding a basic 4 spindle is ok, but if you do European wooden windown, you may need even 8
So many models what is meaning
416/418/421/521/523/621/623/633or even 721 or 723 there are more than 15 models, it make me puzzle
Let me explain: firstly the number on first like 4/5/6/7 means numbers of spindle, and after is 16/18/21/23/30/33 all this number means for max plan width, then for example model 416 means 4 spindle max 160mm plan width, 623 means 6 spindle max 230mm planing width, roughly say16-33 the number is bigger, the machine is more heavy duty.
Just tell me what model I need
For floor: pine wood not so strict on finish of visible surface 4 spindle model is ok, then if your floor is max 180mm width you can chose 421 model, the capacity is better little bit bigger than finish width.
For hard floor need super perfect finish or even click lock joint: You need a 5 spindle then you can plan 2 times on visible surface, and for special click joint, you need even 7 spindle(2 tilting spindle)
For square plan 4 surface or corner rounding: you can chose basic 4 spindle model, but if you don't want to change tools every time you change material size you can chose 5 or even 7 spindle
For very big size construction wood beam: if size is more than 230mm, then you'd better chose 630 or 633 very heavy duty model
For decorative profile:If moulding surface to be good finish then chose 521 top 5 spindle, then you can plan 2 times on visible shaping surface, If you have 45 degree cross surface, you may even need a tilting spindle
I hope this information is useful for you, but if you still got questions, you can contact us
1.What is your price term and payment term?
We offer FOB, CIF, CNF EXW price, we accept TT/LC or other negotiate.
In stock: 100% payment Not in stock: 30-40% deposit for confirm the order, rest is paid before shipment, some customized machine may need 50% deposit.
2.How long for delivery?
Some standard machine or commercial machine, always in stock, for high value machine or customized machine, may takes 30-40days production.
3.After sale and warranty?
Most machine got 1 year warranty except some consumption spare, all spare within warranty period is free for change, in the condition that machine is running according to the manual book(saga got rights for explain).
4.Installation for complex machine
We have 20 years of experience for installation all over the world for big and complex machine, customer response for food and living as well as transport, some area may be served by our agent. For commercial machine, we will do our best to offer installation guiding video.
5.Free spare parts for change
Most of our machine use international standard, especially electric spare parts, if not, we offer free spare parts to avoid any urgent condition to minimize risk of downtime.
6.Safety for the machine and packing
We have mature experience for sea transport packing, for some irregular shape machine, we will do special fix and tight on container to avoid any risk of any broken.
