2022 top quality efficient steel roll cutter slitting line machine

Product Overview

Description

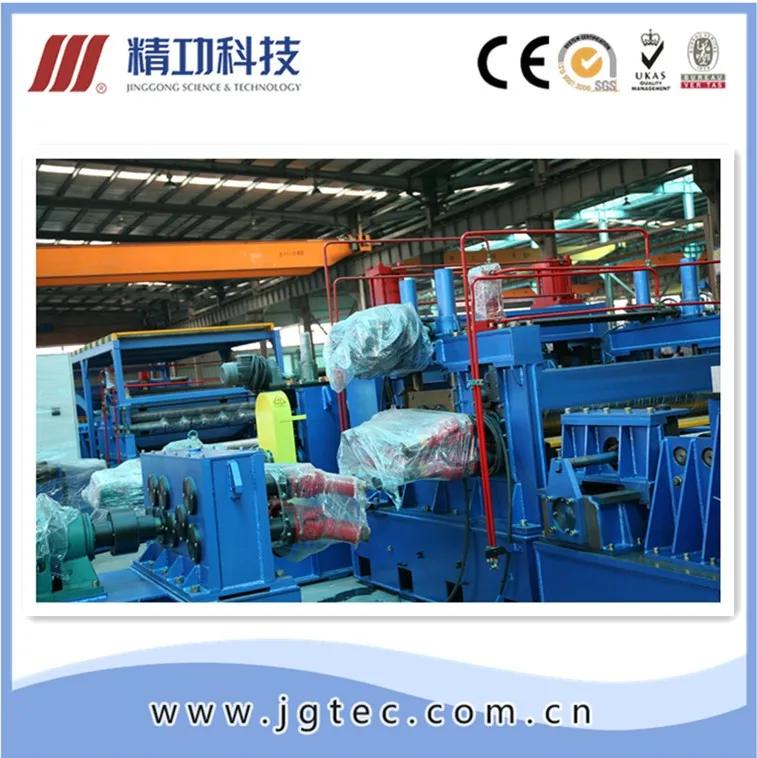

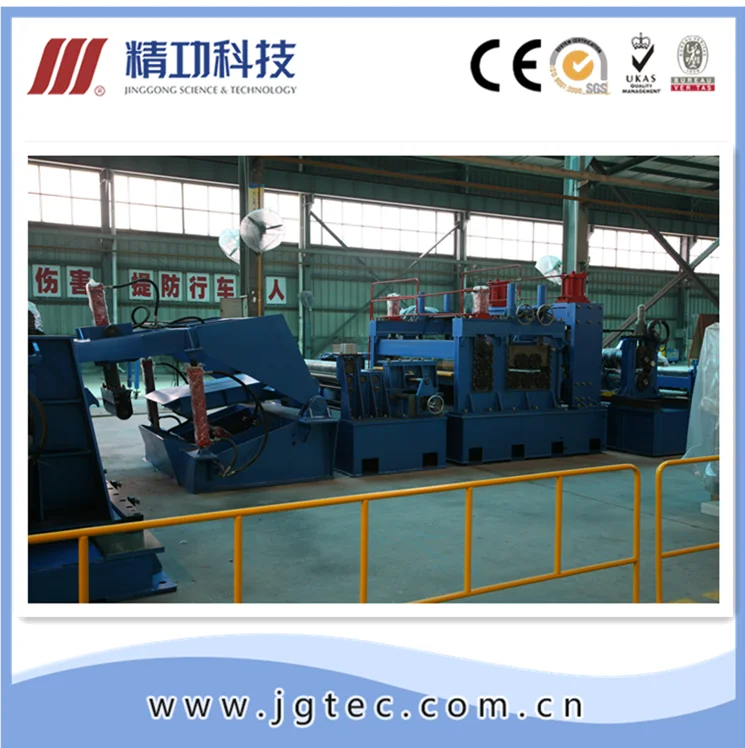

 JZ SLITTING LINE



General description

This machine is special equipment for uncoiling,slitting and recoiling the steel sheet according to the requirement of the client.

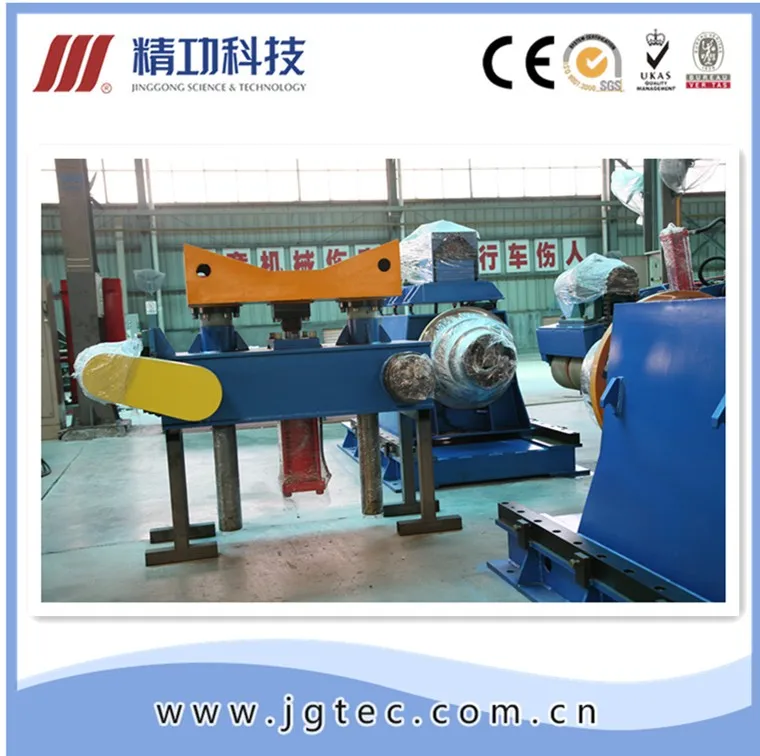

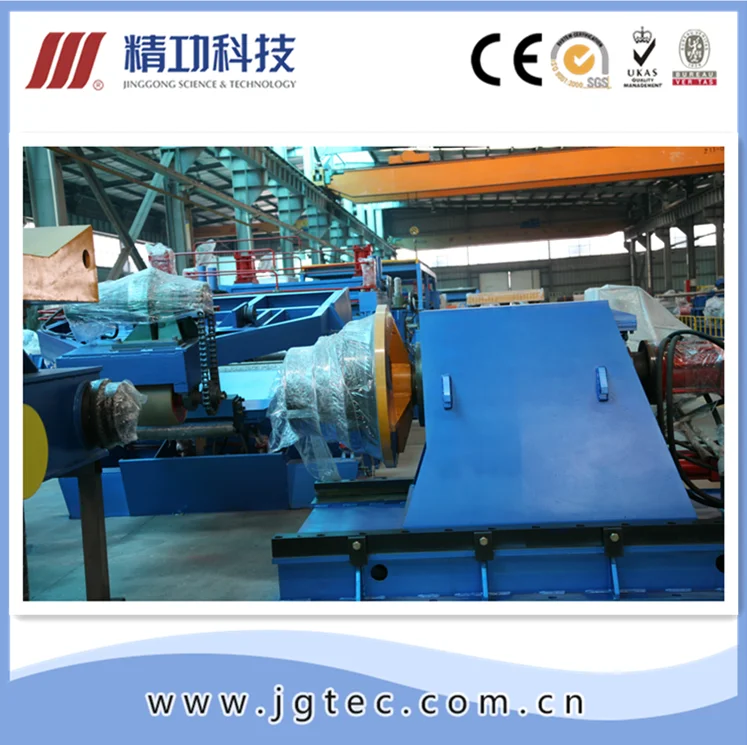

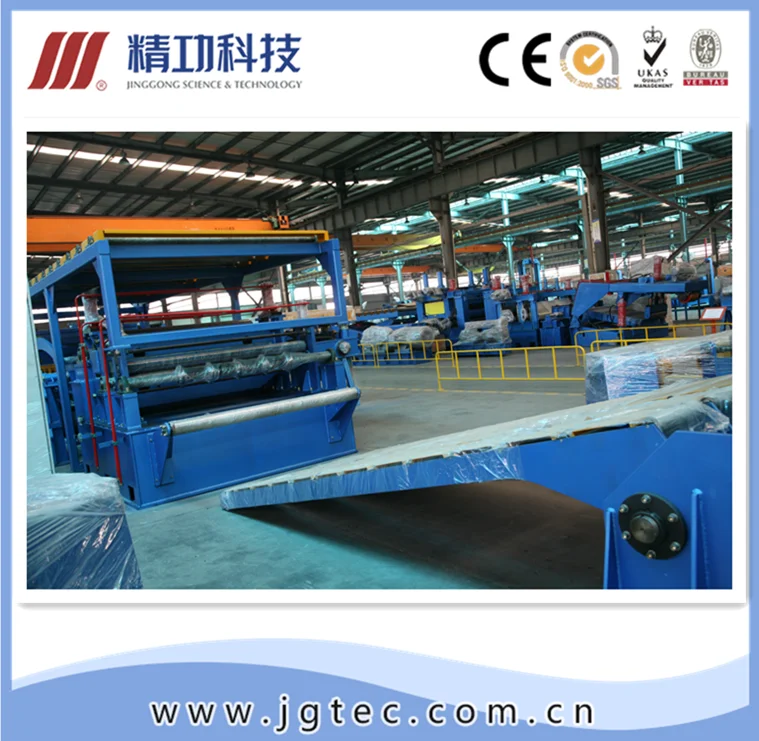

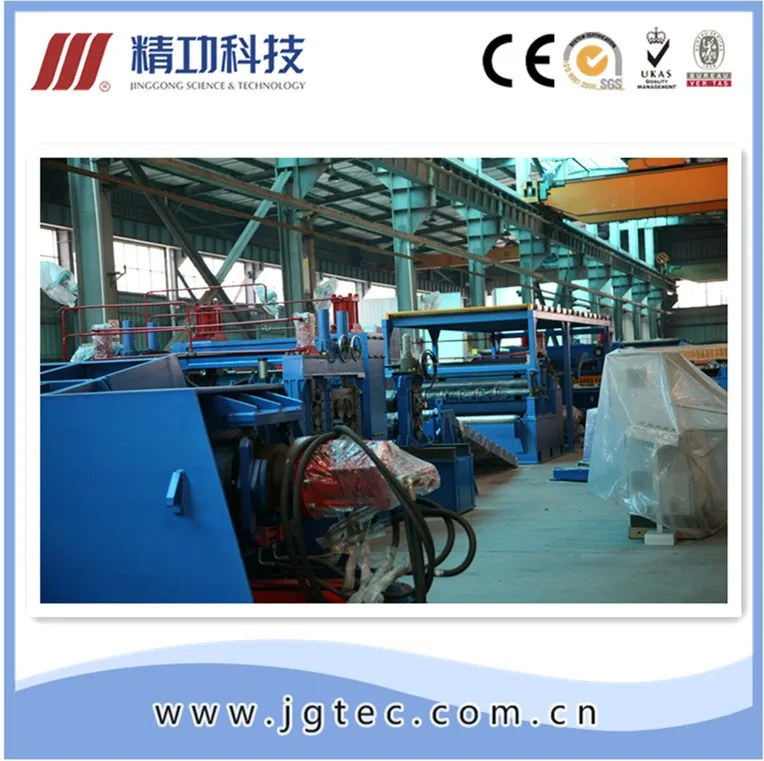

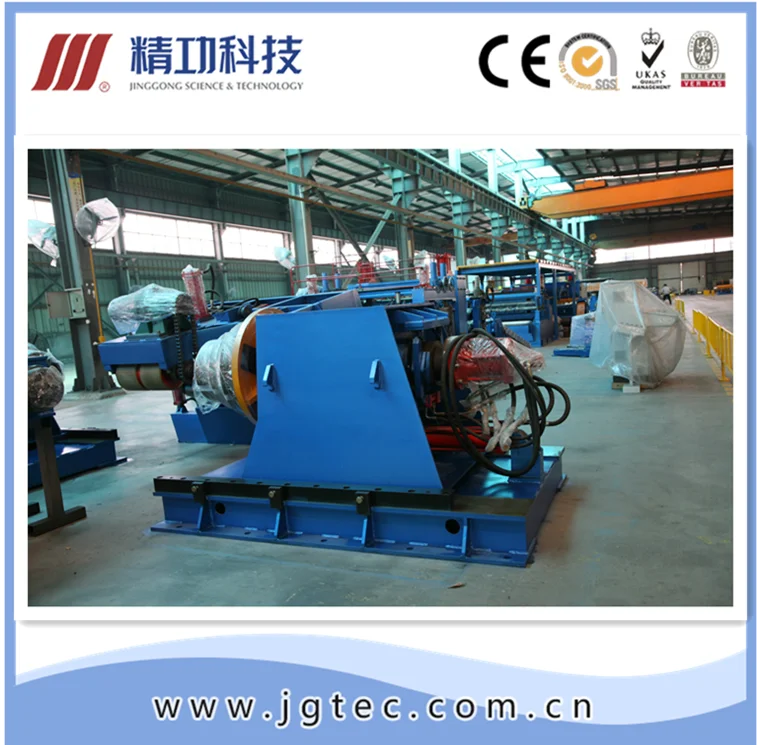

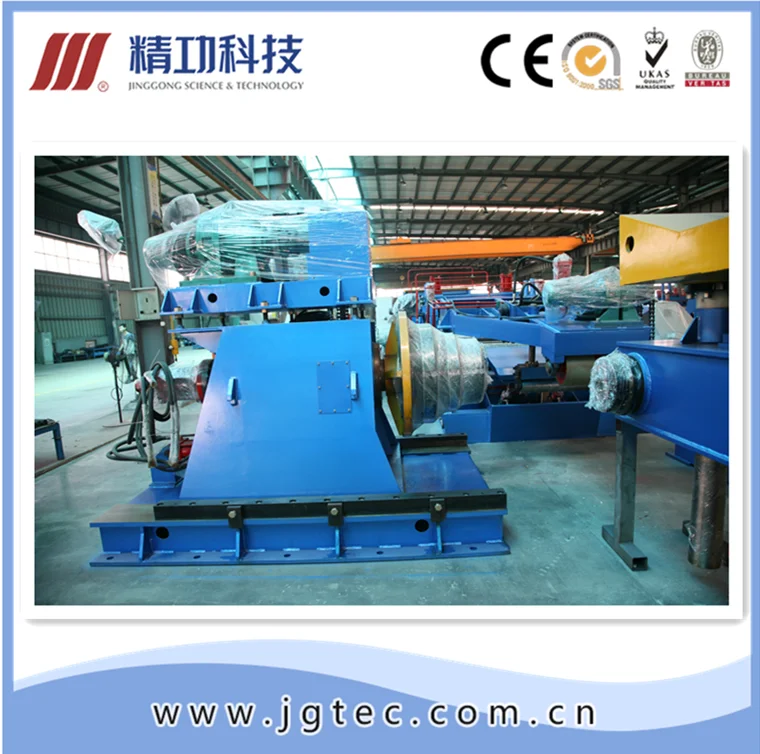

It mainly consist of uncoiler,leveling system,shearing system,slitting system,scrap recoiling system,damping structure,recoiling system,unloading system and so on.

We can design and manufacture different specification according to different requirement of the client.



Technical parameter



Item	Parameters
Model	JZ-3*1600	JZ-6*1600	JZ-8*1600	JZ-12*2200	JZ-16*2200
Thickness(MM)	0.3-3.0	1.0-6.0	2.0-8.0	2.0-12.0	3.0-16
Coil weight(T)	35	35	35	35	40
Width(MM)	800-1600	800-1600	800-1600	800-2200	1000-2200
Finished product min.Width(MM)	35	65	75	75	75
Line speed(M/MIN)	0-120	0-60	0-40	0-30	0-20
Power(KW)	200	220	160	130	150
Mechanical area(M)	8*22	10*28	10*30	10*35	13*30







Item	Parameters
Material specification	Material	Metal bard,stainless steel,special-purpose steel copper and all typs of matal
	Thickness(MM)	0.1-1.0	0.15-1.5	0.2-2.0	0.2-2.0
	Width(MM)	100-500	150-650	500-1000	600-1600
	Coilinner diameter(MM)	508	508	508	508/610
	Coiled material weight(T)	6T	6T	20T	20T
Slit quantity		14	16	24	32
Finshed product inner and outer diameter(mm)		508	508	508	508
Maximum slitting apeed(m/min)		240	180	150	150
Recoiling weight(T)		6	6	20	20
Power(KW)		80	96	160	240
Mechanical area(m)		3*8	4*11	6*12	7*22





























1.Does one machine can only produce one size?

Not exactly, it depends on the machine.



2.Do you have after sales support?

Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.



3.How to visit your company?

We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.



4.What can you do if the machine broken?

Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.



5.Can you be responsible for transport?

Yes, please tell us the destination port or address. we have rich experience in transport.



6.You are trade company or factory?

We are Manufacturer.



7.Why your price is higher than others?

As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.



8.Do you have overseas engineers?

Yes, we not only provide overseas engineers, but also provide technical training.



9.Do you provide customized?

Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
