XCMG XD103 double drum road vibration roller price for sale
- Category: Road Roller >>>
- Supplier: XCMG,E-Commerce,Inc.
Share on:
Product Overview
Description
Product Description

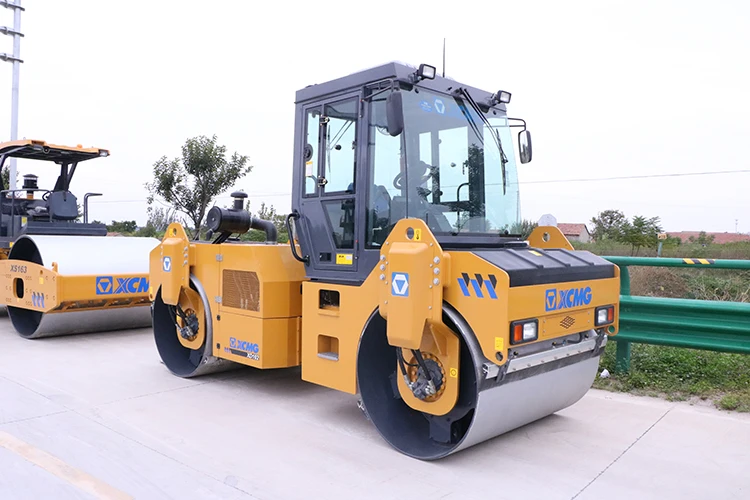

XCMG XD103 double drum road vibration roller price for sale
XD103 Vibratory roller is asphalt compaction machinery product which is independent researched and developed by XCMG road machinery business division based on years of experience in compaction machinery research and development. It is designed for the compaction of asphalt pavement, asphalt layer of different materials and different thickness, especially suitable for roads, parking lots, airports and other large engineering projects, can also be used for compaction of roadbed and sub-base material, wide application scope.
Performance Characteristics:
* The console can rotate about 35 degrees, improving the driving comfort.
* The steering wheel can adjust angle according to the need of the driver.
* Control handle, display, etc. are arranged on the right side to broaden the front view.
* Speed frequency management system guides the user to compaction operation.
* Guiding the user to improve operation efficiency.
* The vibration drum realizes the center of four-in-one combination.
* Preventing the over-compaction and less-compaction.
* The steering wheel can adjust angle according to the need of the driver.
* Control handle, display, etc. are arranged on the right side to broaden the front view.
* Speed frequency management system guides the user to compaction operation.
* Guiding the user to improve operation efficiency.
* The vibration drum realizes the center of four-in-one combination.
* Preventing the over-compaction and less-compaction.
Product Paramenters
Parameter | Unit | XD103 | ||
Weight distribution | Working weight | kg | 10000 | |
Front wheel distribution weight (kg) | 5000 | |||
Rear wheel distribution weight (kg) | 5000 | |||
Compaction performance | Static linear load | N/cm | 280/280 | |
Nominal amplitude | mm | 0.35/0.6 | ||
Vibration frequency | Hz | 58/48 | ||
Exciting force (high frequency/low frequency) | kN | 90/110 | ||
Vibration wheel size | mm | 1150*1750 | ||
Maneuverability | Speed range | km/h | 0~6/0~12 | |
Theoretical gradeability | % | 35 | ||
Minimum turning radius (in/out) | mm | 4070/5820 | ||
Swing angle | ° | ±10 | ||
Steering angle | ° | ±38 | ||
Engine | Rated power | kW | 74.9 | |
Rated speed | r/min | 2300 | ||
Product Show
Related Products To Choose
Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
A: The MOQ is 1 pcs.
