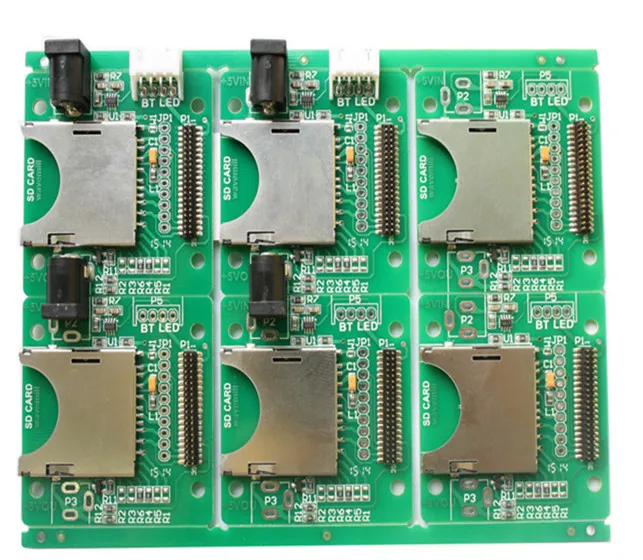

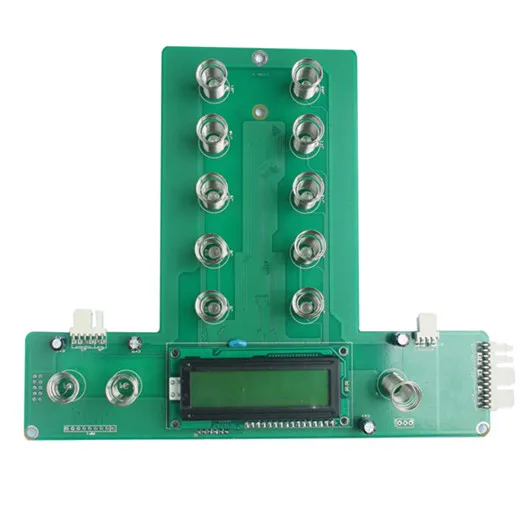

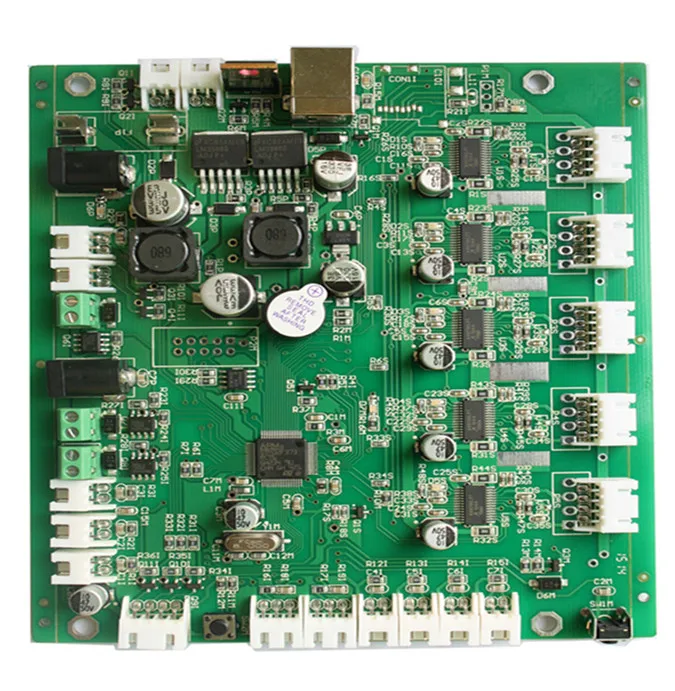

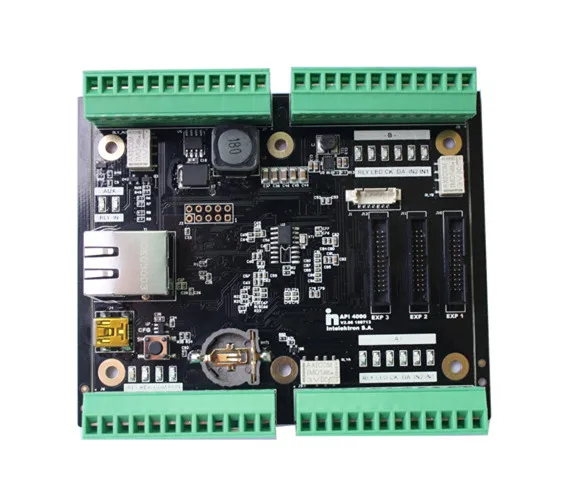

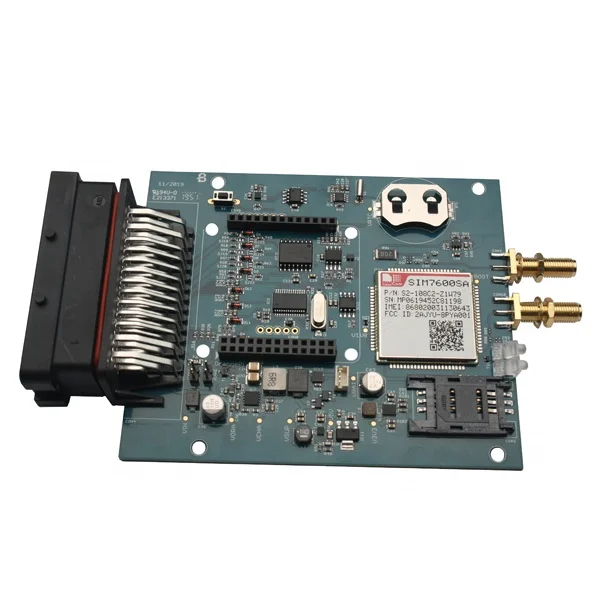

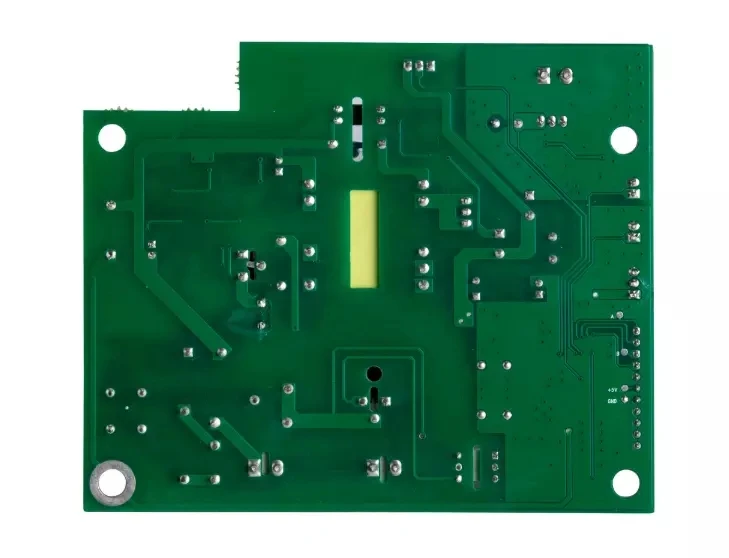

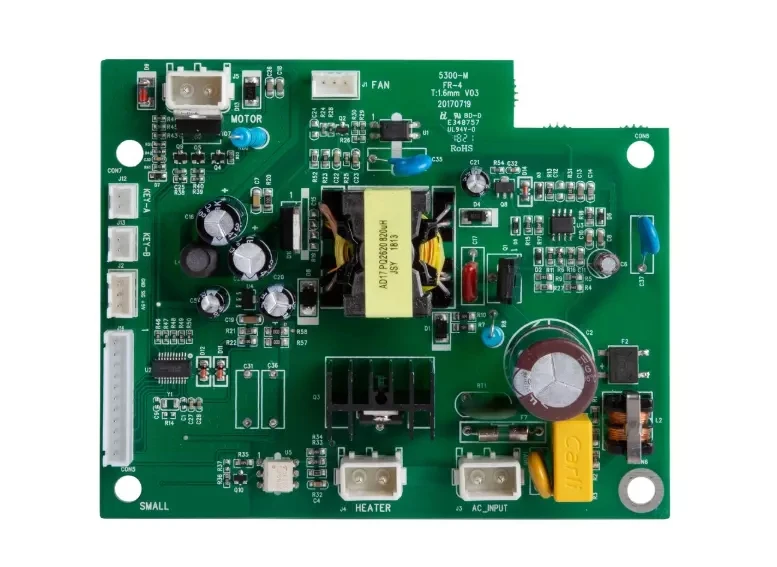

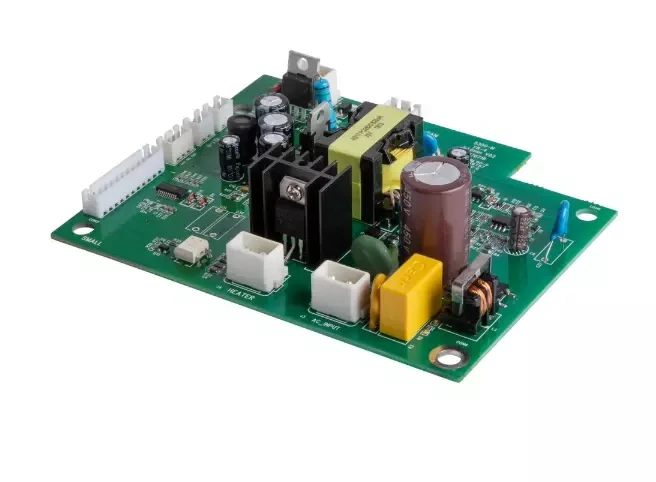

OEM PCB PCBA manufacture for smart home server

Product Overview

Description

OEM PCB PCBA manufacture for smart home server







Welcome To Moko



A professional EMS/OEM Manufacturer, MOKO TECHNOLOGY LTD could provide one-stop pcb assembly service,we also could offer:



- Contract Manufacturing

- Engineering Services

- PCB Assembly

- Component Procurement & Material Management

- Fast Track Prototyping

- Cable and Wire Assemblies

- Plastics and Molds

- Function Testing Service



As the Professional PCB Assembly and PCB Manufacturer in China, we pride ourselves on our Excellent Customer Service and Reliability! MOKO Technology Ltd also offers Exclusive Services to Help Our Customers with their PCB Projects.











Our PCB Sevices:

1. PCB fabrication.

2. Turnkey PCBA: PCB+components+SMT and through-hole assembly+enclosure molding&housing





Our Advantage:

1. Free programming and free functional test, free package.

2. High quality: IPC-A-610E standard, E-test, X-ray, AOI test, QC, 100% funtional test.

3. Professional service. ISO SMT and through hole assembly, over 10 years experience.

4. Certification for electronics: UL, 94v-0, CE, SGS, FCC, RoHS, ISO9001:2008, ISO14001

5. Warranty period for PCBA: 2 years.



PCBA Processing capability:



Turnkey PCBA	PCB+components sourcing+assembly+package
Assembly details	SMT and Thru-hole, ISO SMT and DIP lines
Lead Time	Prototype: 15 work days. Mass order: 20~25 work days
Testing on products	Flying Probe Test, X-ray Inspection, AOI Test, Functional test
Quantity	Min quantity: 1pcs. Prototype, small order, mass order, all OK
Files needed	PCB: Gerber files(CAM, PCB, PCBDOC)
	Components: Bill of Materials(BOM list)
	Assembly: Pick-N-Place file
PCB Panel Size	Min size: 0.25*0.25 inches(6*6mm)
	Max size: 20*20 inches(500*500mm)
PCB Solder Type	Water Soluble Solder Paste, RoHS lead free
Components details	Passive Down to 0201 size
	BGA and VFBGA
	Leadless Chip Carriers/CSP
	Double-sided SMT Assembly
	Fine Pitch to 0.8mils
	BGA Repair and Reball
	Part Removal and Replacement
Component package	Cut Tape,Tube,Reels,Loose Parts





PCB PROCESSING CAPABILITY:



Base Material	Normal Tg FR4, High Tg FR4, PTFE, Rogers, Low Dk/Df etc.
Solder Mask Color	Green, Red, Blue, White, Yellow, Purple, Black
Legend Color	white, yellow, black, red
Surface treatment type	ENIG, HASL, HAF, HAF LF, OSP, flash gold, gold finger, sterling silver
Max. layer-up(L)	50
Max. unit size (mm)	620*813 (24"*32")
Max. & Min. board thickness (mm)	0.3/12
Board thickness tolerance (mm)	T<1.0mm: +/-0.1mm;   T≥1.0mm: +/-10%
Min. mechanical drilling hole (mm)	0.15
Min. laser drilling hole diameter(mm)	0.075
Min. innerlay clearance(mm)	0.15
Min. hole edge to hole edge space(mm)	0.28
Max. finished copper thickness(um)	Outer Layer: 420 (12oz) Inner Layer: 210 (6oz)
Min. &  Min. trace width (mm)	0.075 (3mil)
Solder mask thickness (um)	line corner : >8 (0.3mil) upon copper: >10 (0.4mil)
BGA pad (mm)	≥0.25 (HAL or HAL Free:0.35)
V-CUT blade position tolerance (mm)	+/-0.10
Impedence tolerance (%)	+/-5%
Min. legend width (mm)	0.1
Fire flame calss	94v0





PCB Assembly Manufacturing Procedures:
* Program Management
PCB Files → DCC → Program Organizing → Optimization → Checking
* SMT Management
PCB Loader → Screen Printer → Checking → SMD Placement → Checking → Air Reflow → Vision Inspection → AOI → Keeping
* PCBA Management
THT→Soldering Wave (Manual Welding) → Vision Inspection → ICT → Flash → FCT → Checking → Package → Shipment





Files Requested For Quote of PCB Assembly Services

---In order to provide you with the most efficient and accurate quote on manufacturing the requested unit, we
ask that you provide us with the following information:

* Gerber file,PCB file,Eagle file or CAD file are all acceptable
* A detailed bill of materials (BOM)
* Clear pictures of PCB or PCBA sample for us
* Quantity and delivery required
* Test method for PCBA to guarantee 100% good quality products.
* Schematics file for PCB design if need to do function test.
* A sample if available for better sourcing
* CAD files for enclosure manufacturing if required
* A complete wiring and assembly drawing showing any special assembly instructions if required

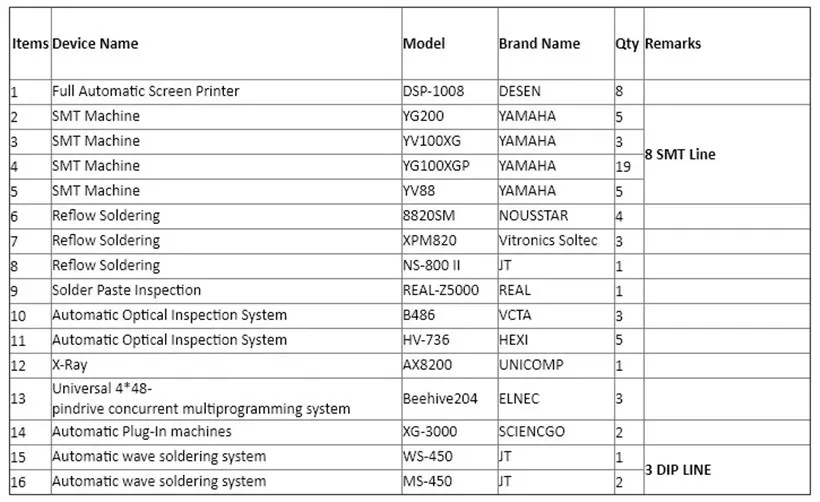

MACHINE LIST :







Q: What files do you use in PCBA fabrication?

A: Gerber or Eagle, BOM listing, PNP and Components Position



Q:Is it possible you could offer sample?

A: Yes, we can custom you sample to test before mass production



Q: When will I get the quotation after sent Gerber, BOM and test procedure?

A:  Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.



Q: How can I know the process of my PCBA production?

A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and Testing



Q: How can I make sure the quality of my PCBAs?

A: We ensure that each piece of PCBA products work well before shipping. We'll test all of them according to your test procedure. Also if there are any defect items during the shipping, we also can be free to repair  for you.
