Waterproof Pipe Inspection System Industrial Drain Pipeline Push Rod Borescope Pan Tilt Camera
- Category: >>>
- Supplier: Zhengzhou Jiutai Technology Co. Ltd.
Share on (62093393419):
Product Overview
Description
Waterproof Pipe Inspection System Industrial Drain Pipeline Push Rod Borescope Pan Tilt Camera
Product Description

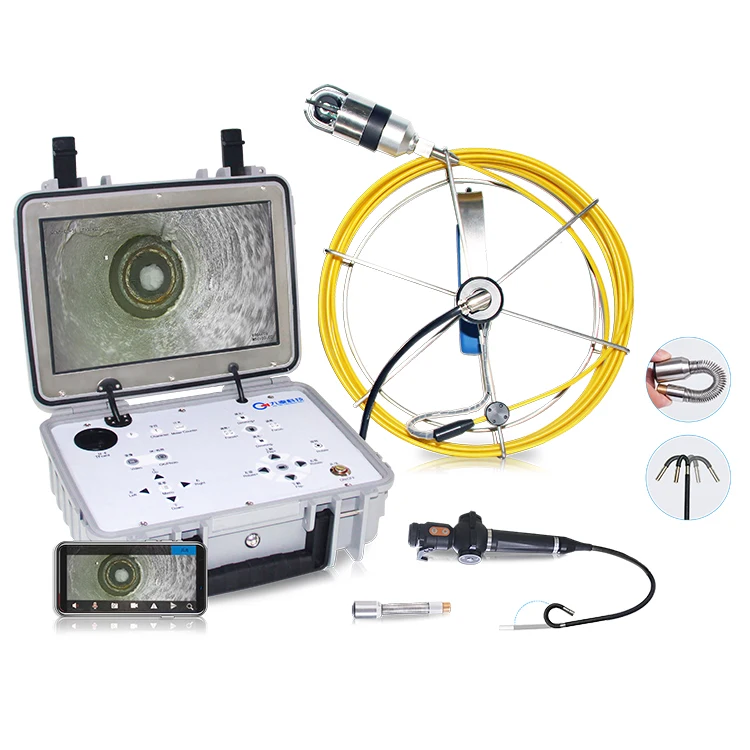

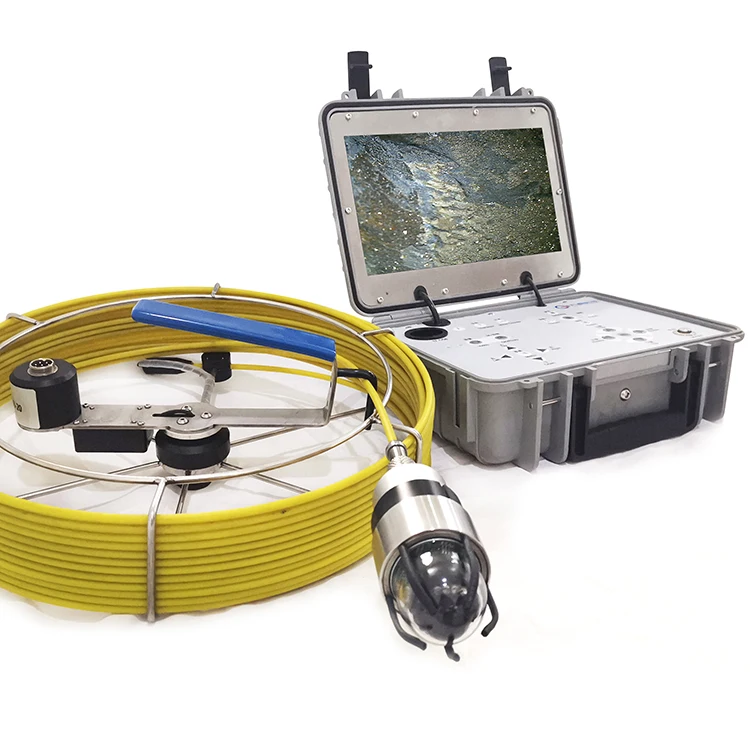

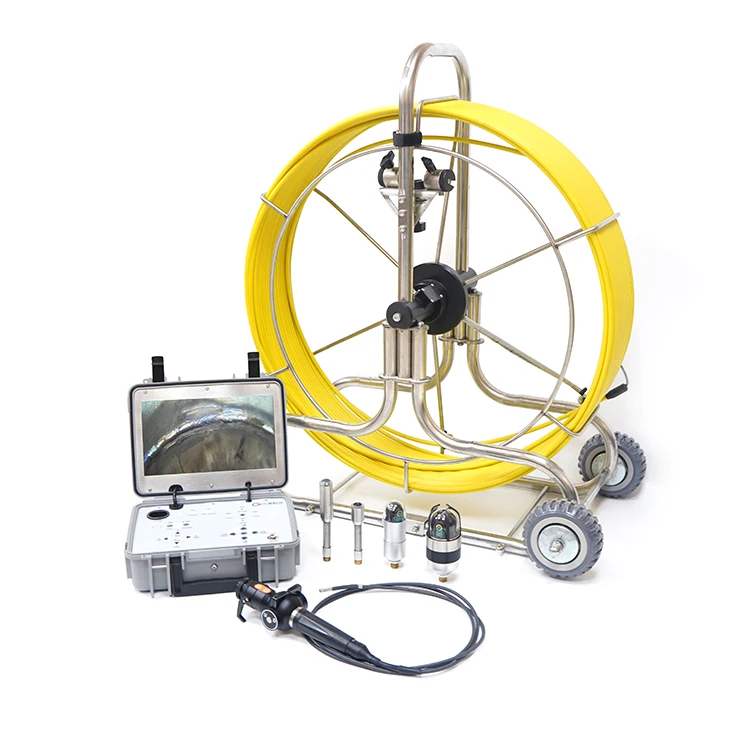

GT230 is a complete pipe inspection camera system. It includes 3 main parts:

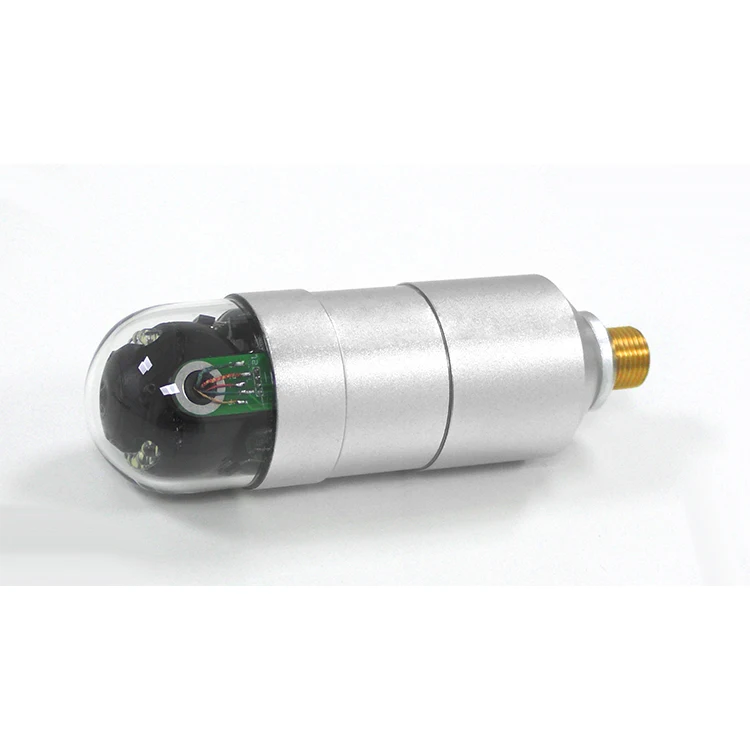

1pcs HD camera head
1pcs waterproof portable DVR control unit
1pcs fiberglass cable reel with meter counter It also includes some accessories, such as link cable ,charge daptor, camera skid ,16G USB flash dis, and user manual. It is used to inspect the sewer ,drain pipe,underwater pipe.
Industrial pixel: 2000000
Inspection Range: 56-400mm,
Inspection Range: 56-400mm,
Function:360degree endless rotation,220 degree flip,electric focusing

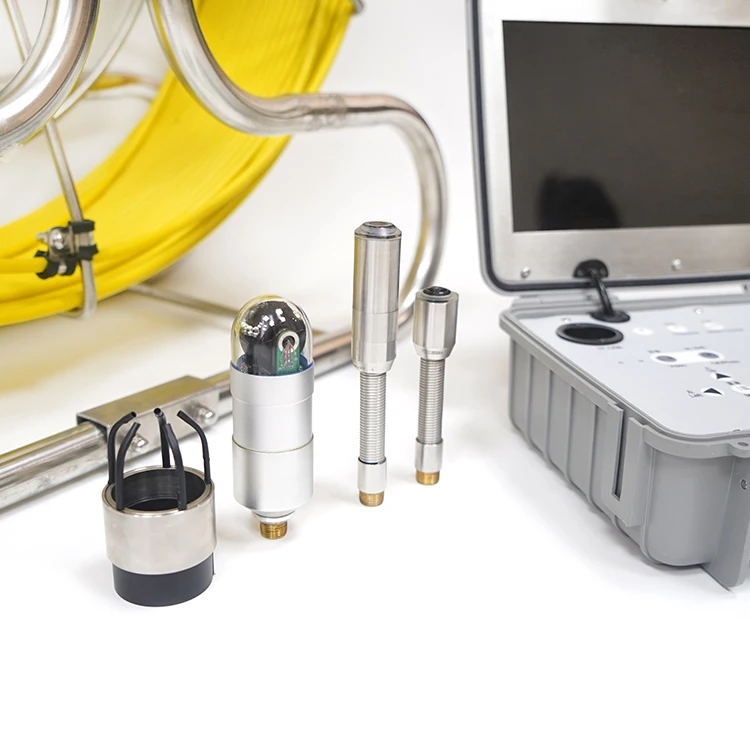

Optional camera: 16/21/37/51mm and 6/8mm videoscope
Optional Accessories:camera center,20-120 large wire coil 512HZ Locator
Optional Function: WIFI
Light Touch Button:
Simple Operation, complete functions, real-time recording,
Box operation more portable

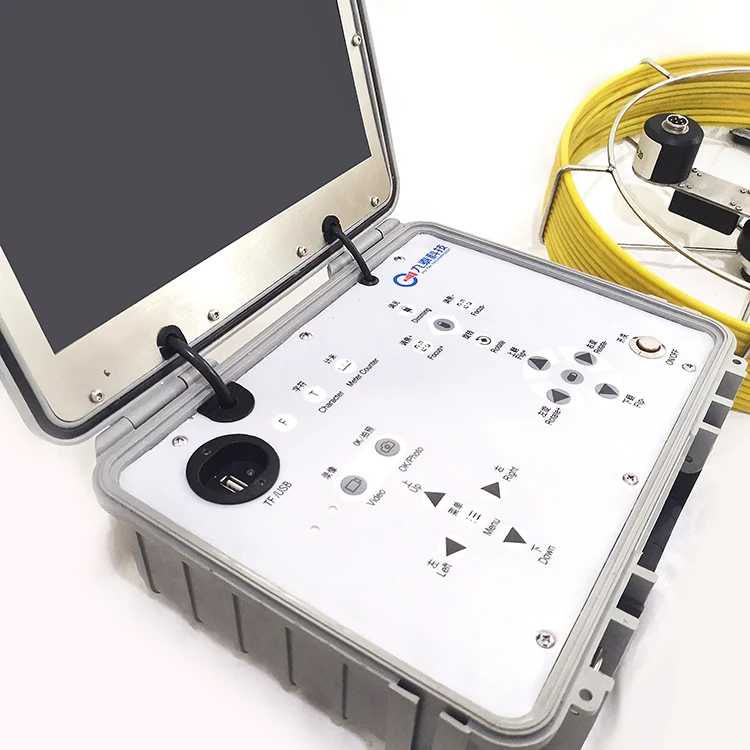

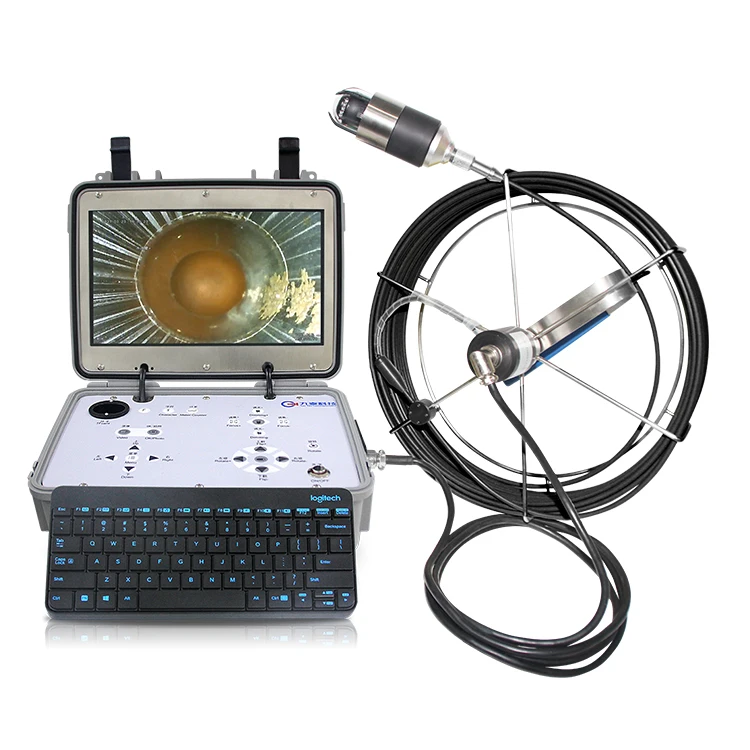

Waterproof DVR control unit
10.1"HD LCD Screen, 1920X1080 resolution
*HD DVR SYSTEM
*Audio ,video and screen capture function
*Waterproof LCD panel
*Waterproof LCD panel
*USB wireless Keyboard
* USB port to connect storage device ( 16G USB flash disk)
*Charging time 7 hours, Working time about 6 hours

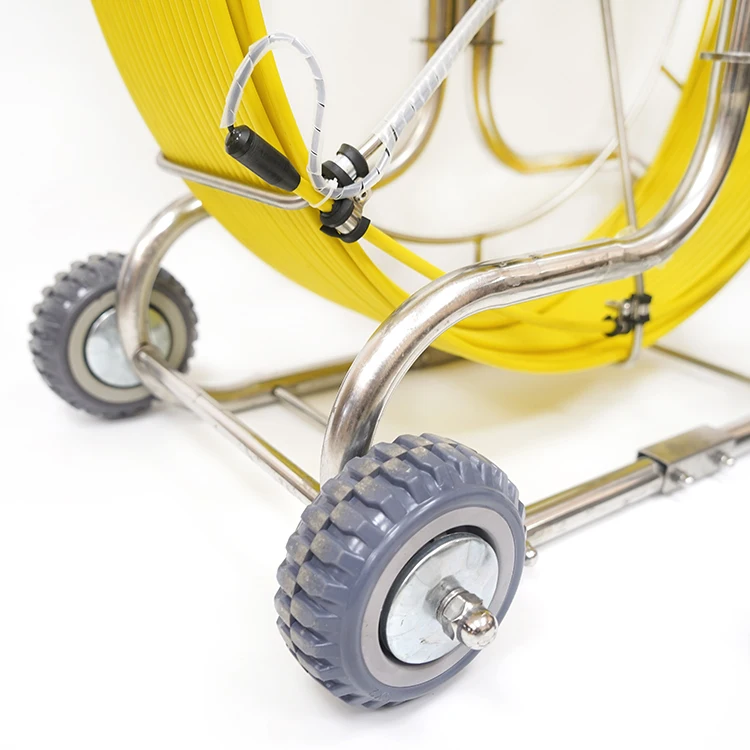

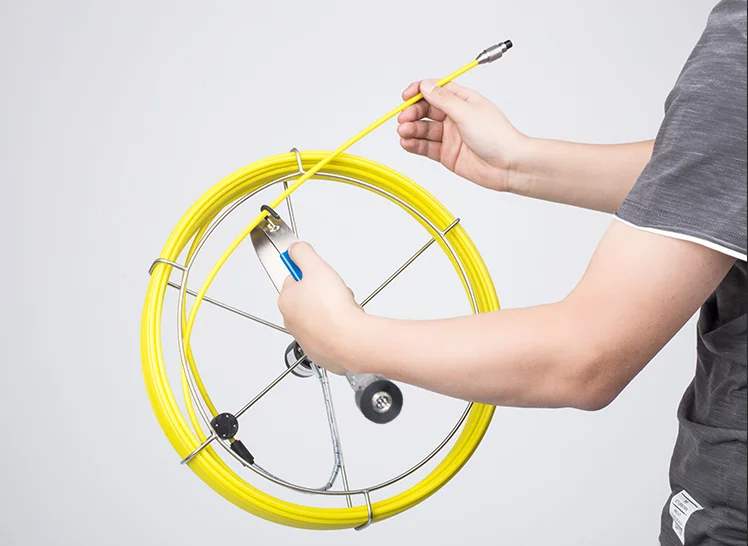

* Fibreglass push rod cable
* Cable diameter 7mm
* Cable length 20m to 60m
* Meter counter function
* Counter display on the screen, saved on the video
Product Parameter
Warranty | 1 Year | |
Certification | CE, ISO | |
Special Features | Waterproof / Weatherproof | |
Application | Outdoor | |
Customized support | OEM, ODM | |
Product name | Sewer Camera | |
Keyword | DVR Video Pipe Inspection Equipment | |
Lens | 51mm,37mm,21mm,16mm(optional) | |
Feature | IP68 Waterproof | |
screen | 10.1 inch | |
Lens(51mm/37mm lens/21mm lens/16mm lens) | ||
Pixel | 2000000 | |
Adapt to pipe diameter | 200mm/30-80mm/17-25mm | |
Rotate | 360degree endless rotation,220 degree flip,electric focusing | |
waterproof level | IP68/ | |
Function | Focus/Flip/Rotate/Front light | |
Controller part | ||
Display size | 10.1 inches | |
Display resolution | 1920*1080 | |
Languages | Chinese, English, French, Spanish, Russian | |
Display character content time | date, power, record meter on the wire reel, and display the status of the U disk when the U disk is inserted | |
Storage method | U disk | |
Window capacity | 1TB and below | |
Function | focus/flip/rotate/dimming/reel meter function | |
Company Profile
Zhengzhou JiuTai Technology Co.ltd is a high-tech enterprise specializing in research and development, production, sales of endoscopes in the industrial and providing customized solutions for customers , established in 2010. Our company focuses on the international high industrial technology,up to now company apply for more than 60 patents,many technology are in the leading position in the world.Get the certificate of high-tech enterprises in 2016.At same time company registrated many software copyrights.
Since the company established has been successful in many endoscope series, such as industrial pipe endoscope series, vessel endoscope series,car endoscope series,crawling robot series,Police endoscope series,wind power vane inspection series. Among these, Especially, GT series endoscopes and crawling robots are famous for their high technology, portable, easy operation,clear images, high efficiency and durability.it is very popular in customers at home and abroad, such as Sinopec, Petro China, China Five Power Generation Groups etc. Related industry such as technical supervision,energy
power,petrochemical,ship construction,rail traffic,food and drug,municipal administration etc.
Since the company established has been successful in many endoscope series, such as industrial pipe endoscope series, vessel endoscope series,car endoscope series,crawling robot series,Police endoscope series,wind power vane inspection series. Among these, Especially, GT series endoscopes and crawling robots are famous for their high technology, portable, easy operation,clear images, high efficiency and durability.it is very popular in customers at home and abroad, such as Sinopec, Petro China, China Five Power Generation Groups etc. Related industry such as technical supervision,energy
power,petrochemical,ship construction,rail traffic,food and drug,municipal administration etc.

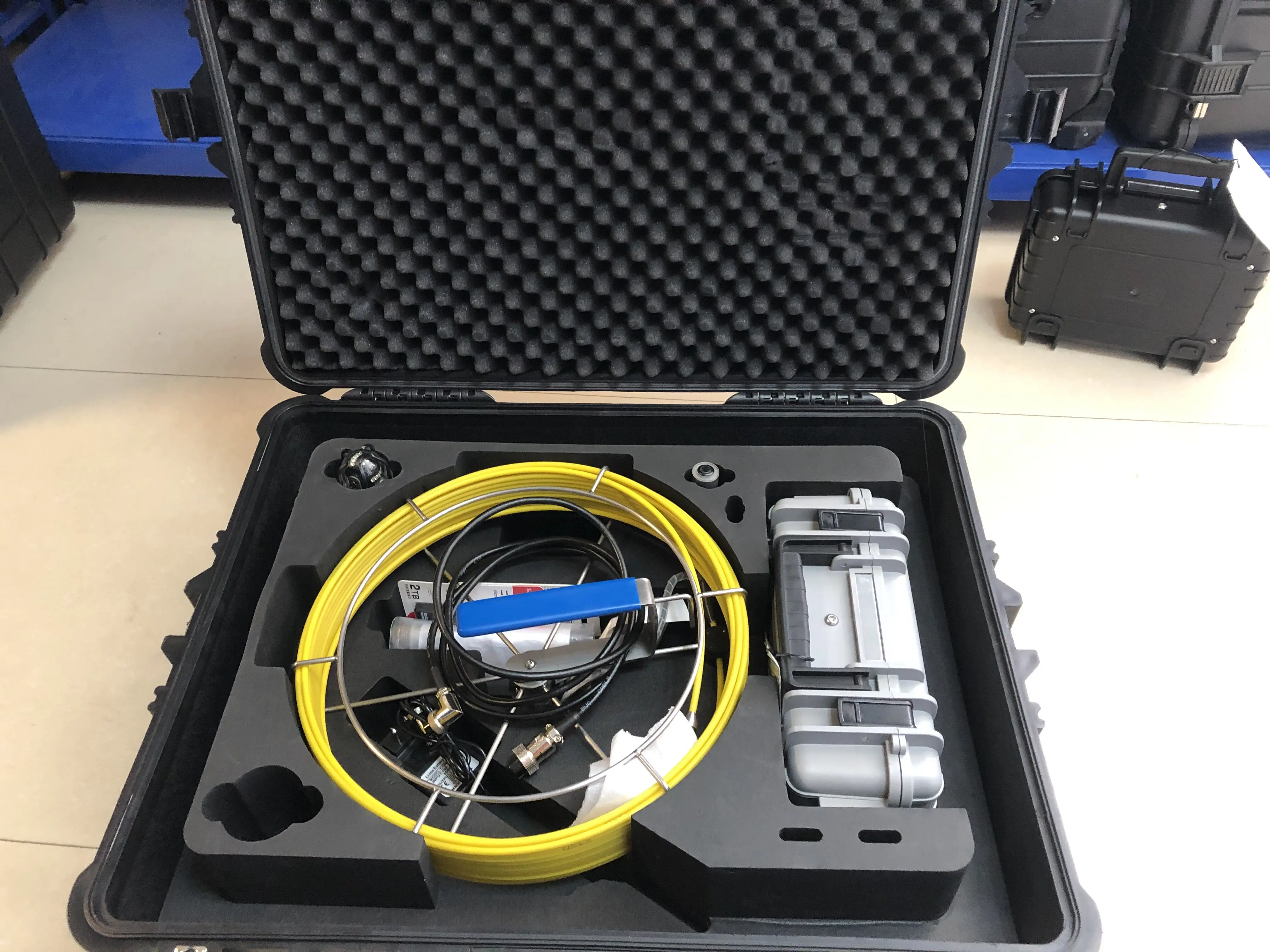

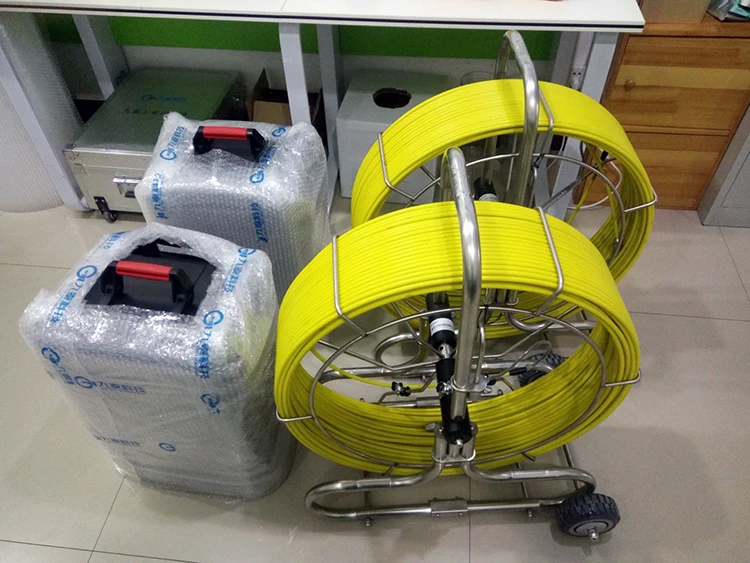

Product packaging
Exhibition & Customers
Our Customers
Our Advantages
FAQ
1. Why choose us?
We are factory directly sales,Set R & D, production, sales, warranty one-stop service.so we will give you the best price and aftersale service.
OEM&ODM. We can customize the products as your requirement.
We are factory directly sales,Set R & D, production, sales, warranty one-stop service.so we will give you the best price and aftersale service.
OEM&ODM. We can customize the products as your requirement.
2. What is the advantage of your products?
We are professional manufacturer in this field with lots of years R&D and market research experience.
We are professional manufacturer in this field with lots of years R&D and market research experience.
3. What can you buy from us?
Pipe inspection camera,CCTV Sewer crawling robot,Videoscope camera,Portable Push rod camera.
4. What is your MOQ?
No limited,Big order or sample all accepted in our company.
No limited,Big order or sample all accepted in our company.
5. What is the warranty?
We provide 1-2 years warranty after shipment date.
We provide 1-2 years warranty after shipment date.
6. What's your delivery time?
Around 7-20 working days according to exact order quality and stock situation.
Around 7-20 working days according to exact order quality and stock situation.
7. What's payment methods i can choose?
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
Paypal or T/T(Bank transfer) or western union also Ali trade assurance.
