Rate Durable Low Price Overload Protection Auto Range Professional Digital Multimeter

Product Overview

Description

Rate Durable Low Price Overload Protection Auto Range Professional Digital Multimeter



Features:

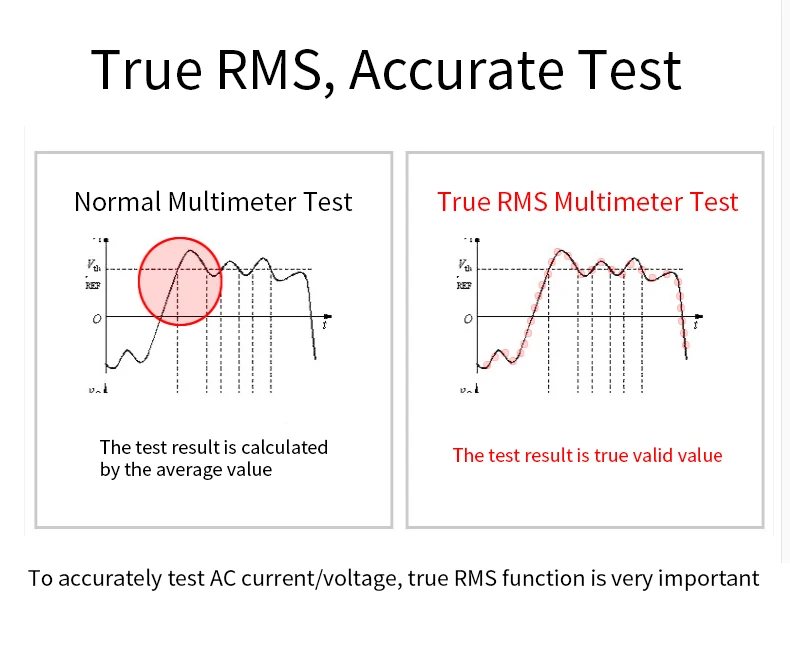

True RMS measurement
Resistance capacitance frequency file high voltage 550V protection
Large screen display, the maximum of 6000 words
LCD display
Max display:6000 counts
Polarity identification
Measurement mode:double-integral style A/D transform
Sample rate:3 times per second
Over range indication:OL
Low voltage indication
Auto Range
Sampling rate: about 3 times per second
Backlight display
Data retention
Polarity automatic recognition
Low voltage display
10A large current measurement, mA level small current measurement
Automatic shutdown

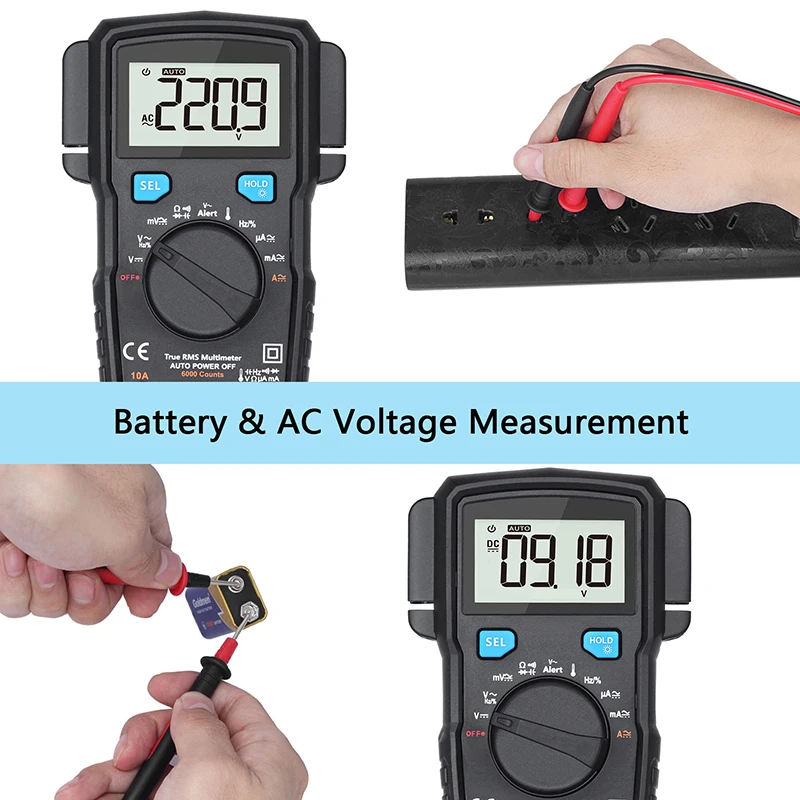

Main measurement: AC / DC voltage, AC / DC current, resistance, temperature,capacitance,
Diode / off measurement, frequency and duty ratio measurement.

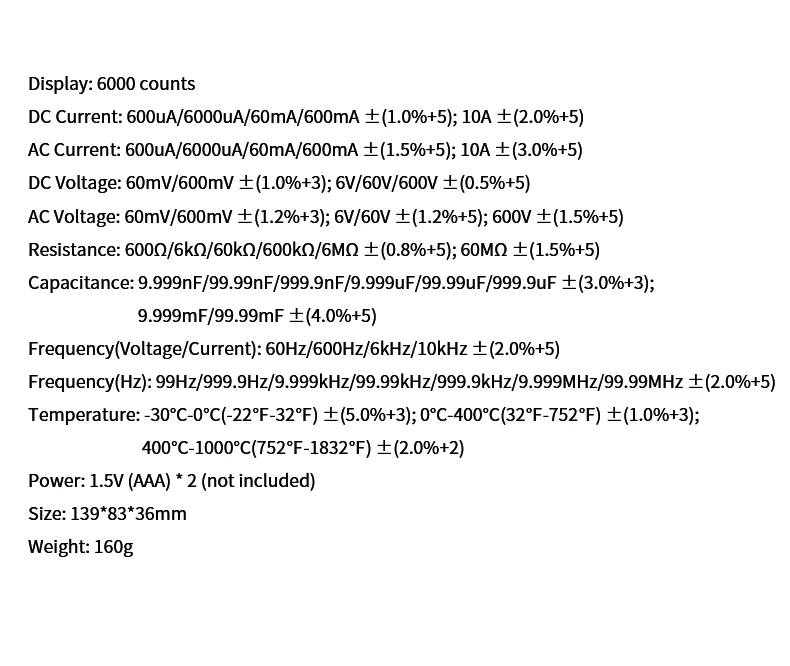

Specifications
Max Dispaly: 6000 counts
DC Current: 600uA/6000uA/60mA/600mA ±(1.0%+5); 10A ±(2.0%+5)
AC Current: 600uA/6000uA/60mA/600mA ±(1.5%+5); 10A ±(3.0%+5)
DC Voltage: 60mV/600mV ±(1.0%+3); 6V/60V/600V ±(0.5%+5)
AC Voltage: 60mV/600mV ±(1.2%+3); 6V/60V ±(1.2%+5); 600V ±(1.5%+5)
Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ ±(0.8%+5); 60MΩ ±(1.5%+5)
Capacitance: 9.999nF/99.99nF/999.9nF/9.999uF/99.99uF/999.9uF ±(3.0%+3); 9.999mF/99.99mF ±(4.0%+5)
Frequency(V/Current): 60Hz/600Hz/6kHz/10kHz ±(2.0%+5)
Frequency(Hz): 99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz/99.99M ±(2.0%+5)
Temperature: -30℃-0℃(-22℉-32℉) ±(5.0%+3); 0℃-400℃(32℉-752℉) ±(1.0%+3); 400℃-1000℃(752℉-1832℉) ±(2.0%+2)


Characteristics:

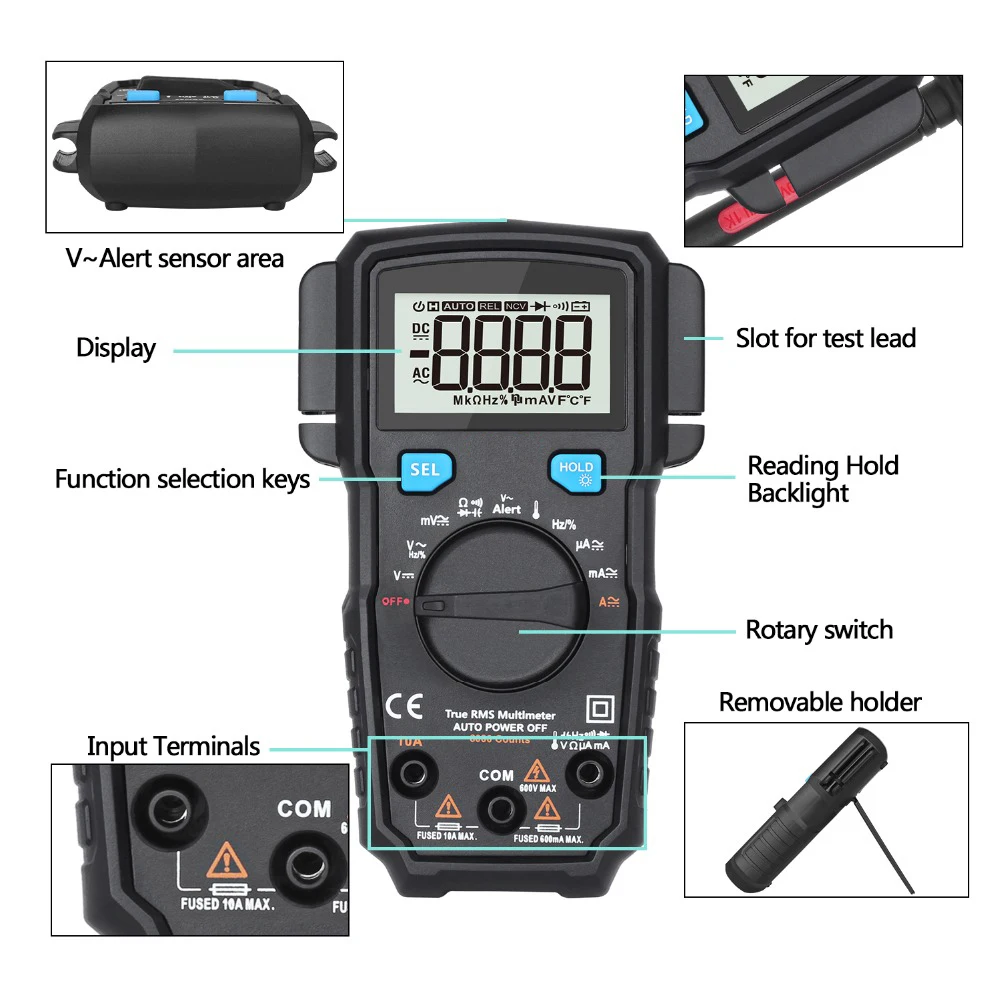

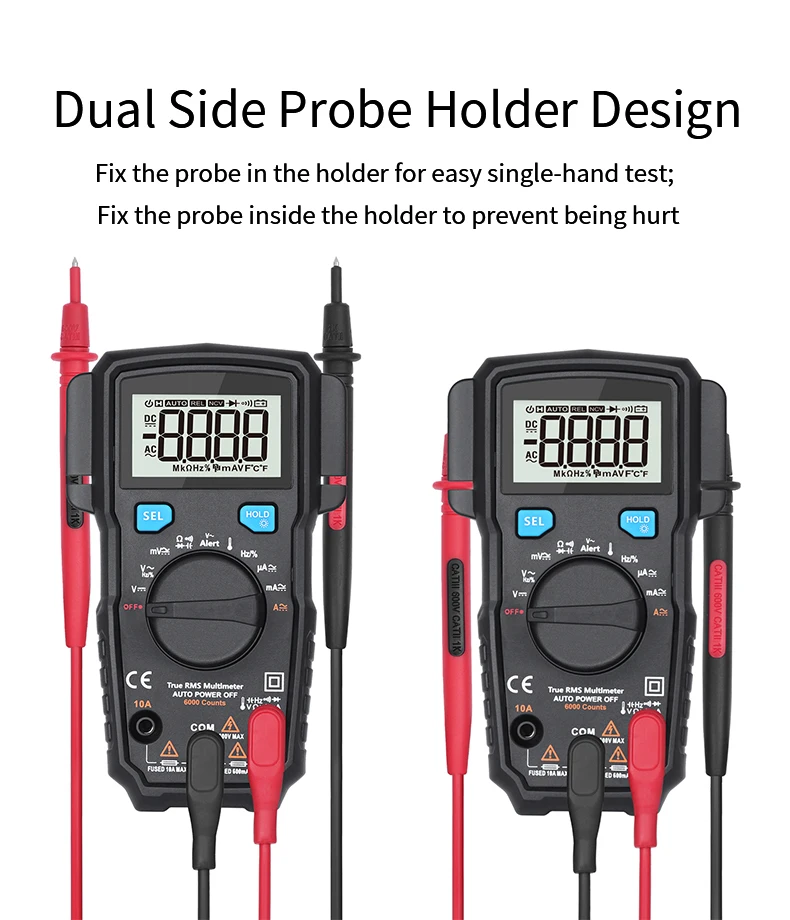

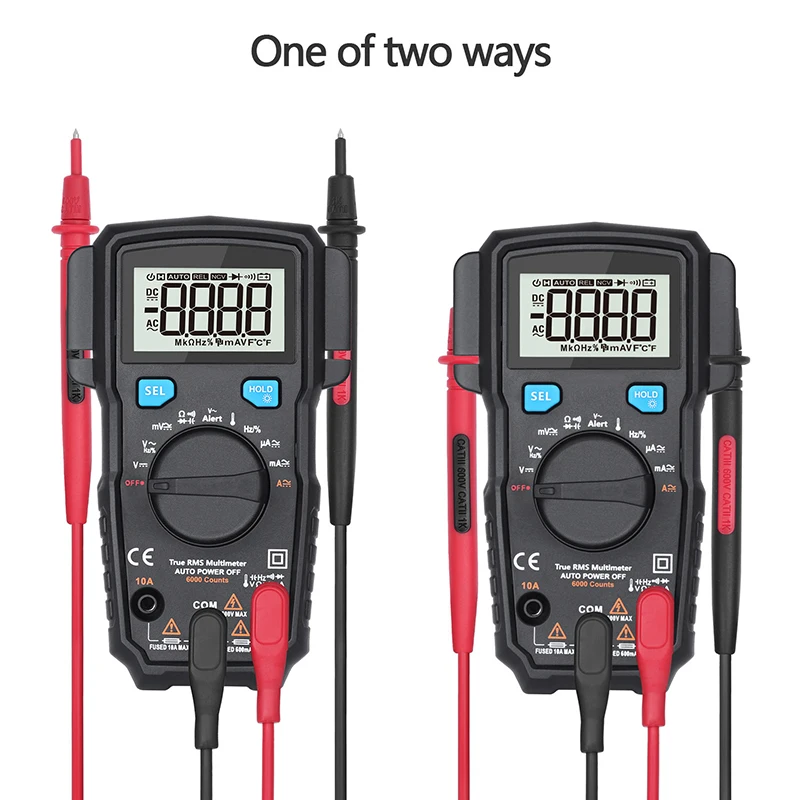

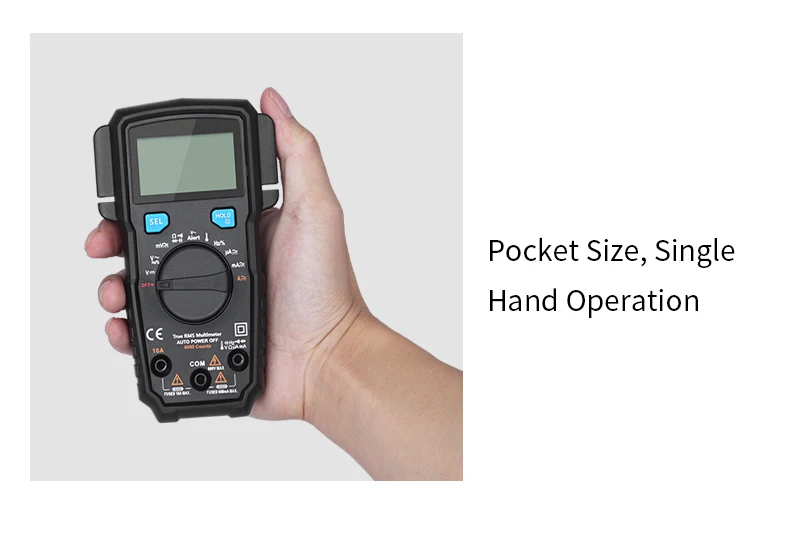

[Unique Dual Test Lead Slot Design]: Dual side probe holder design, the probe can be fixed in holder for single-hand measurement, or the probe tip is hidden in the holder to prevent being hurt, safe to carry and storage.

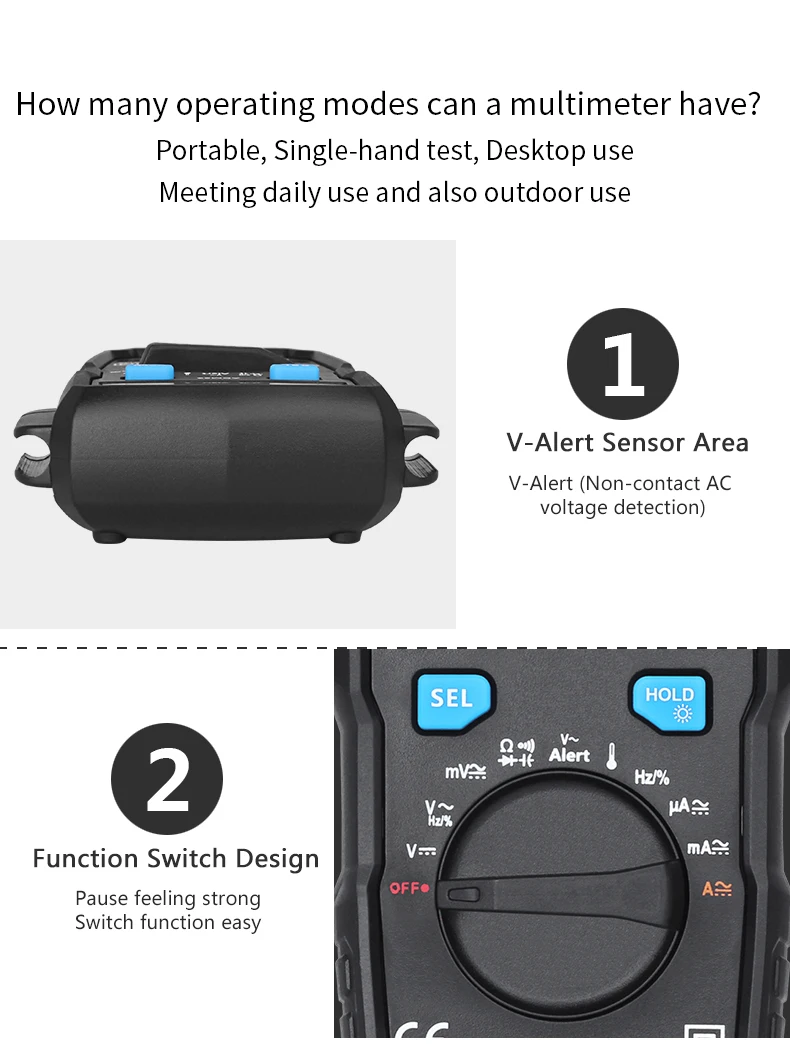

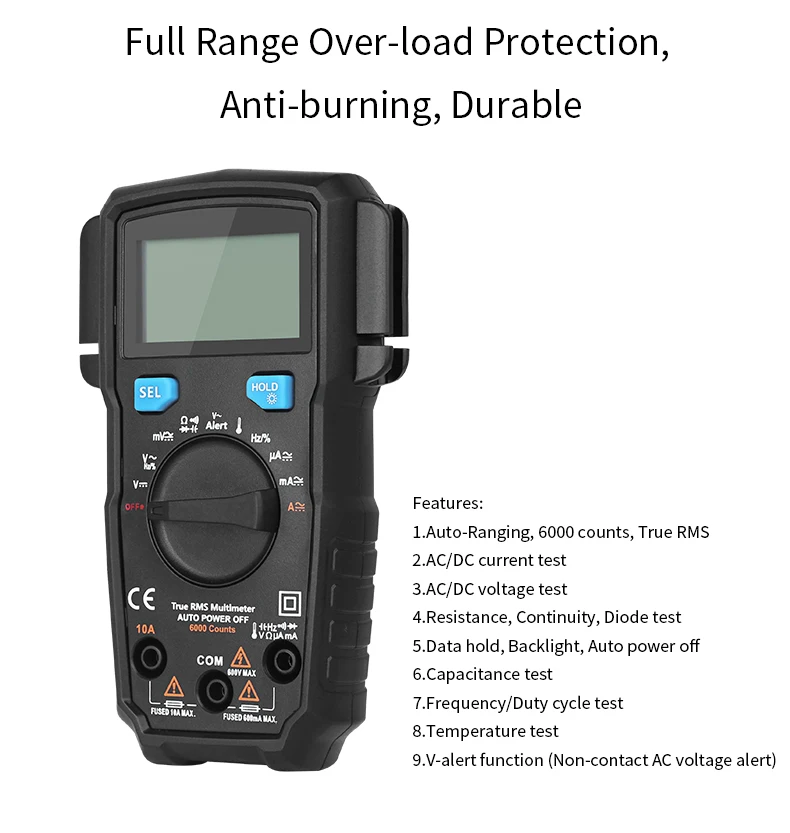

[Multi-Functions]: This 6000 counts true RMS auto-ranging multimeter can measure temperature, capacitance, diode, continuity, V-alert (non-contact AC voltage), frequency, duty cycle, AC/ DC current, AC/DC voltage, etc.

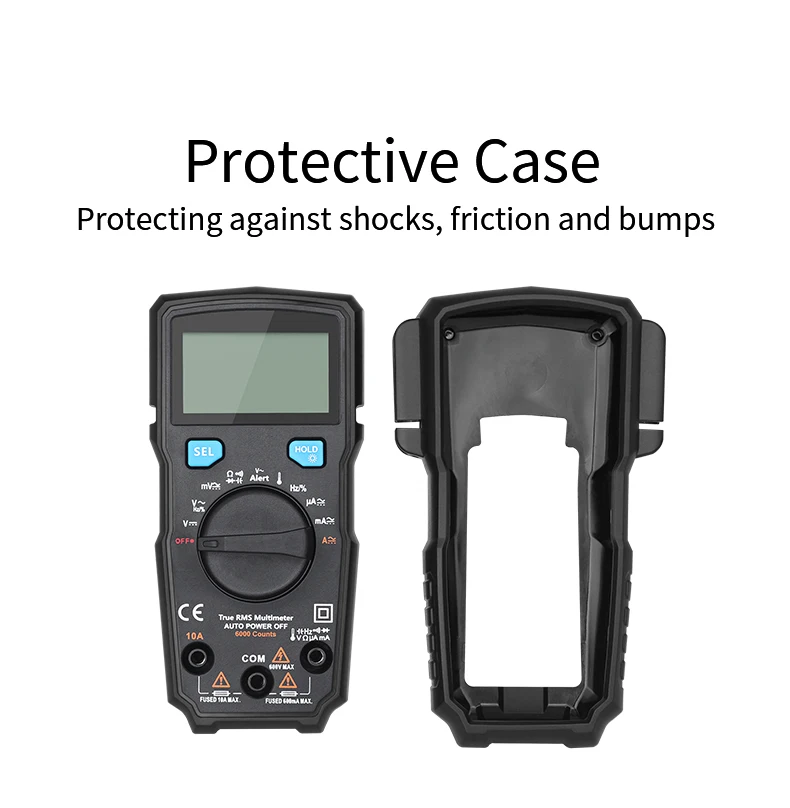

[Protective Case]: It features a protective case for protection against shocks, friction and bumps. This case is detachable and easy to replace.
[2 Fuses]: 2 fused fuses (10A Max, 600mA Max) design, double safety protection.
[Double Insulation Probe]: The probes are double insulated and 10A maximum, which conforms to the CAT III 600V safety standard.

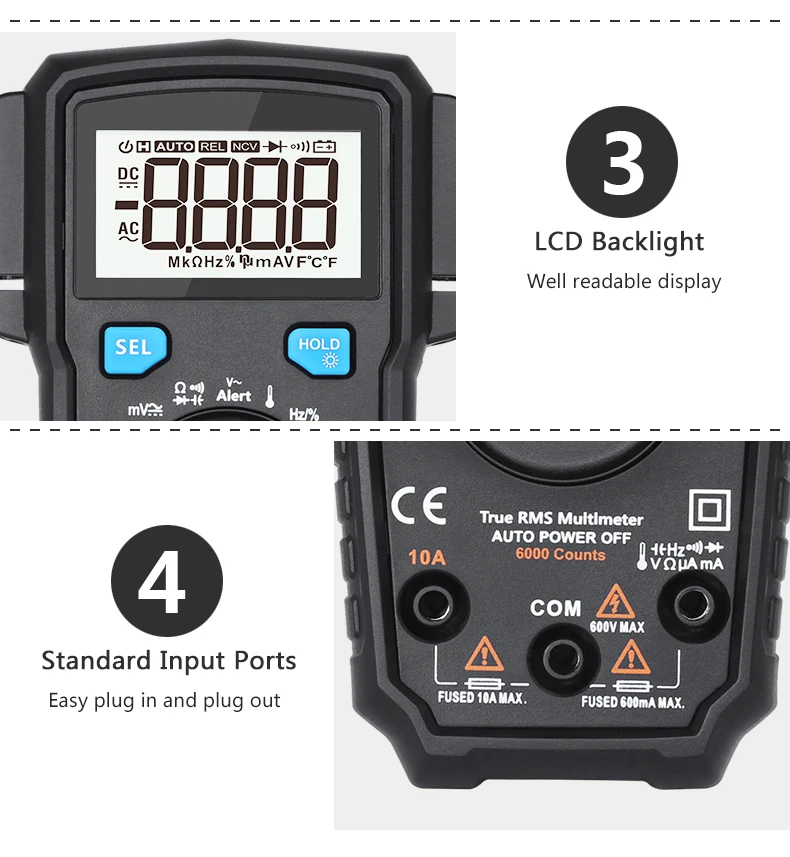

Large LCD with backlight for simple reading
Auto range, data hold, Auto power off, polarity and low battery indication
Widely reserved in schools, automotive maintenance, factories, etc. Ideal for home users, maintenance enthusiasts, electricians and technicians



Package Included:
1 * Digital Multimeter
1 * K-Type Thermometer Probe
1 * Test Lead
1 * User Manual
Power: 1.5V (AAA) * 2

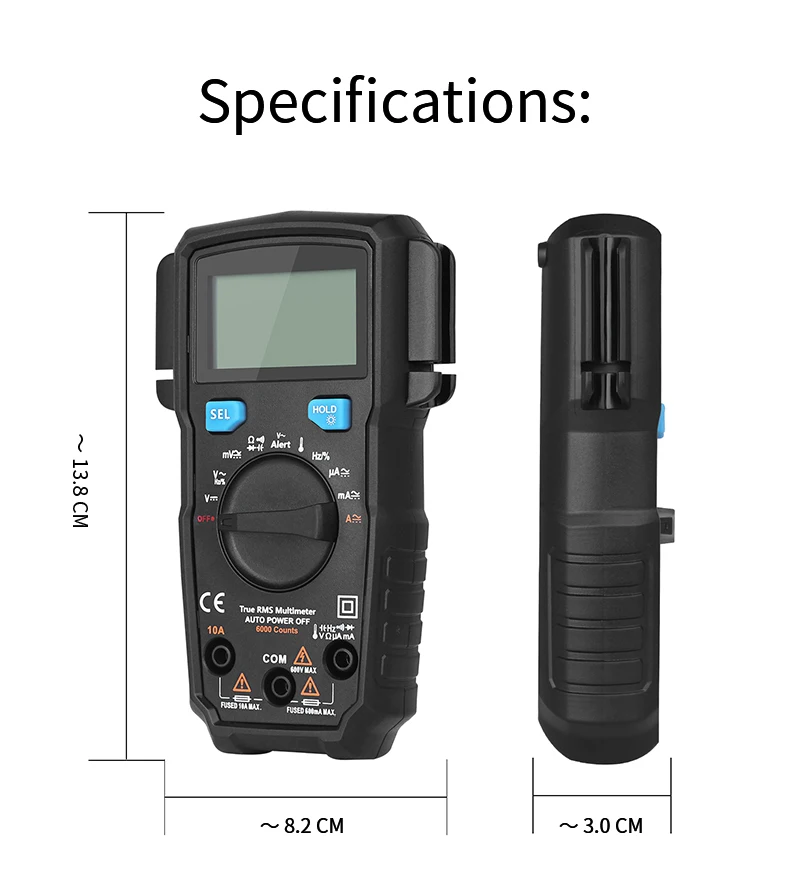

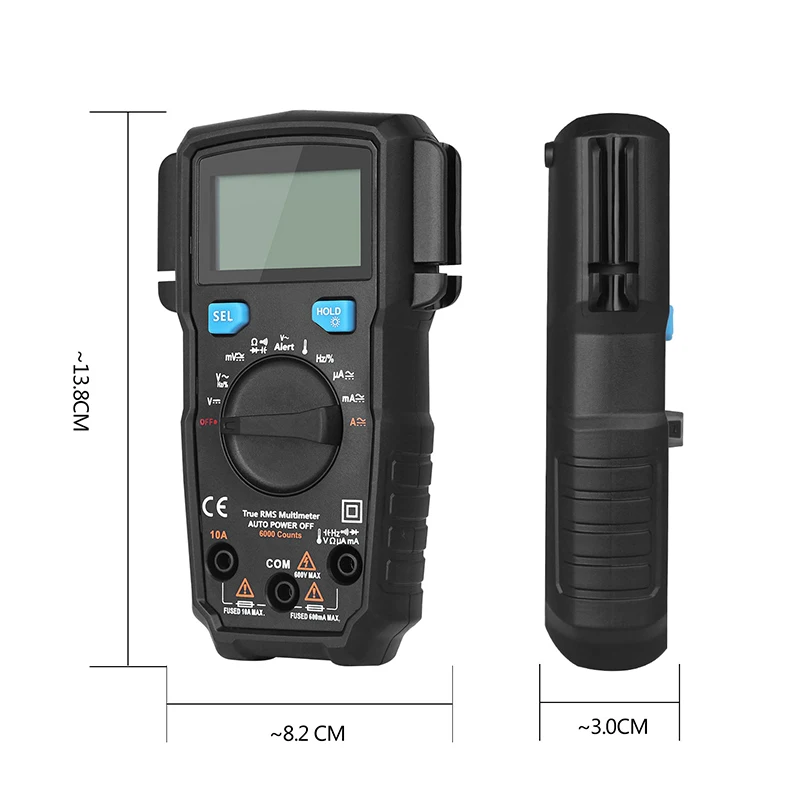

Size: 139*83*36mm
Weight: 160g
