ATC Spindle 9V drill function water cooling cnc router woodworking

Desctiption

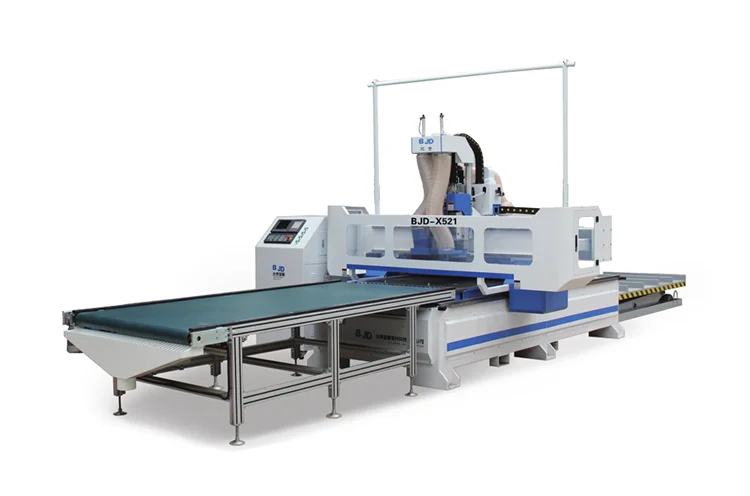

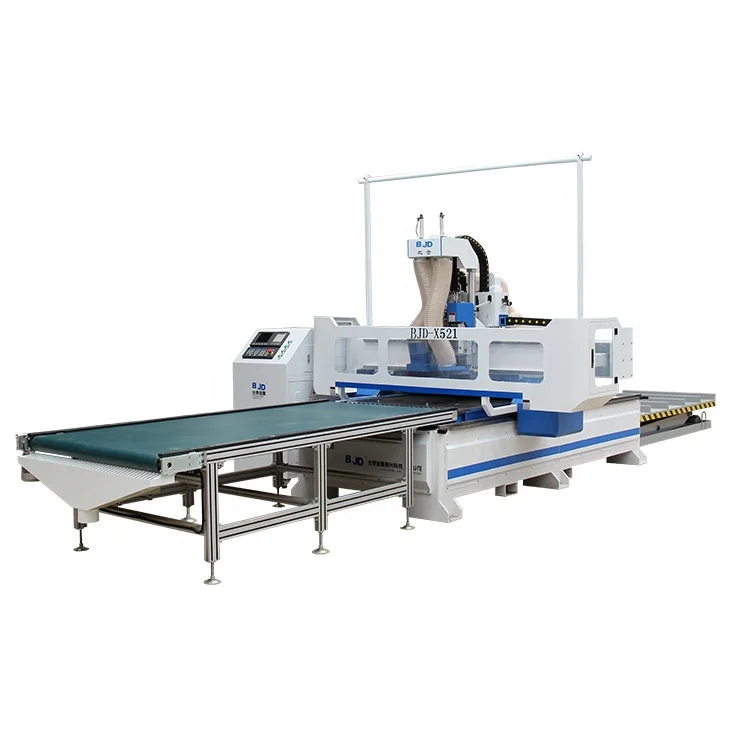

1. 1300*2500mm with automatic loading and unloading table, heavy duty

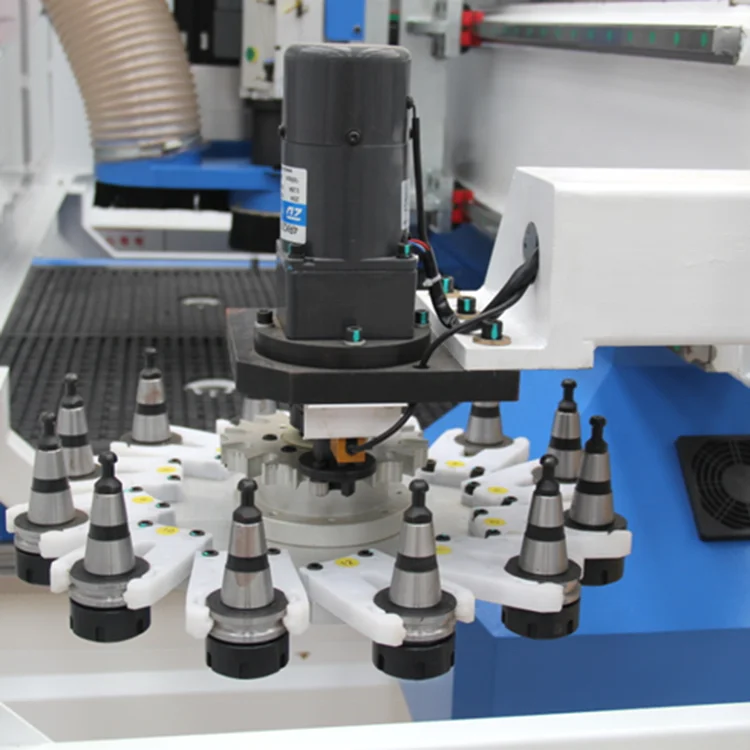

2. 9kw Italy Hitec ATC spindle
3. CC brand 9V driller(5+4)
3.Taiwan brand PMI MSA30 and MSA25 linear guide
4. High precision 2M helical racks
5.Taiwan Delta Servo motor and driver with reducer
6. Germany electric parts in control box
7. Taiwan Syntec 6MA control system
8. Vaccum table
9. 7.5kw vacuum pump
10. Automatic dust collect system
11. Germany IGUS cables

Machine features:
1. The machine can meet the demands of panel furniture, can make holes and slots, cut different shapes also can mill different patterns on doors .

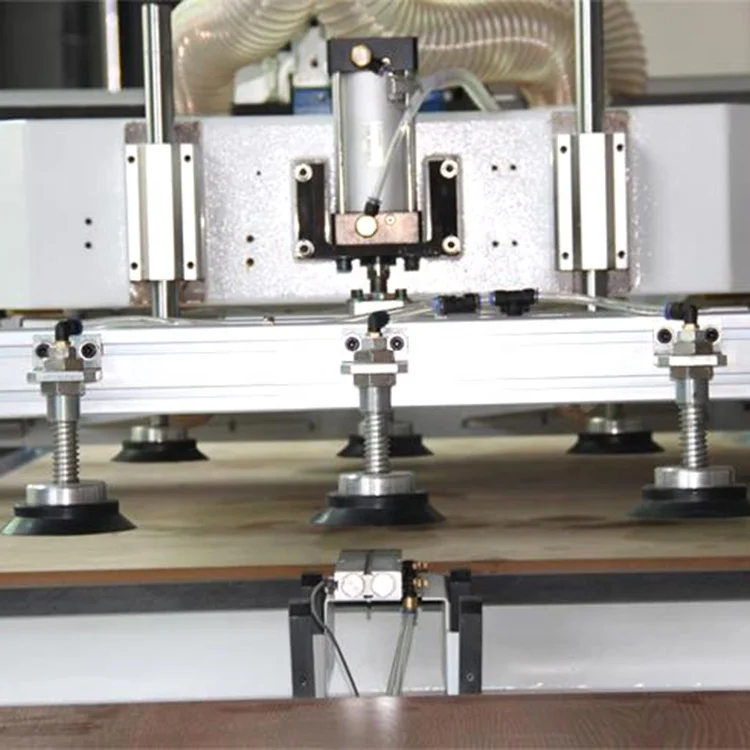

2. Auto pushing boards function, dust collection function, auto catch boards function, absorb boards function, position function , clamping function , hand wheel function etc .
3.We imported large five-side milling machines from Germany to make sure the machining accuracy of each parts of gantry , bed and machining parts to meet the demands of module machine level , to make the high grades furniture .
4. The bed structure is designed by Tsinghua University the most famous university in China, It can guarantee the balance and machining accuracy when the gantry is fast working.
5. We specially designed Z-axis load balancing system to ensure z-axis servo motor’s load is well proportioned to reduce damage and extend service life.
6. Adopt foreign famous brand electrical appliances to ensure the speed, accuracy, stability, service life, and low noise .also meet the demands of CE standards.
7. Protective cover reduces accidents and ensure workers’ safety
8. It is easy to operate.

Technical parameter
