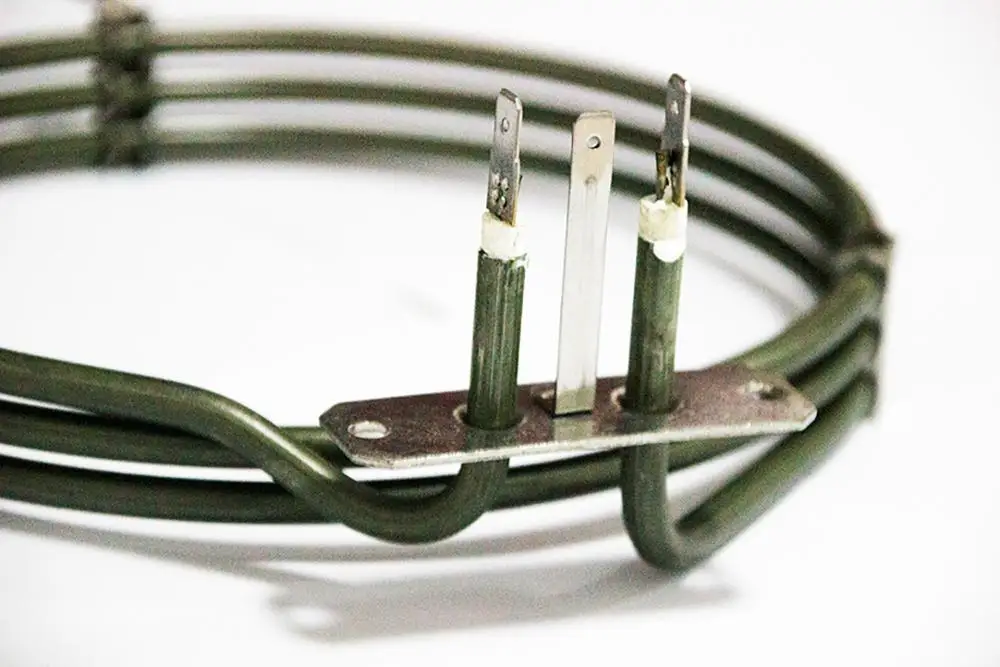

The popular XR brand electric tubular air heater heating element oven parts
Electrical heating tube for oven specifications
Specification
Detail
Remark
Product Name
Oven electrical heating element
Size
Product diamater: 18.9cm Height:2.3cm
Insulation resistance
≥50MΩ
Leak current
≤0.05mA(cold condition)≤0.75 mA (hot condition)
Tube Material
SUS304 /840/310S
Tube material can be customized
Voltage/wattage
220V-240V/1950W
Voltage/Wattage can be customized as required,and Wattage tolerance(our best):+4%-8%
Tube Diameter
6.5mm,6.6mm,8mm
Tube diameter can be changed to 6.5mm,6.6mm,8mm or others as requested
Resistance powder
Magnesium oxide
We can use other powder if requested
Wire Spec.
0.3,0.32,0.4,0.48…
Heating wire specification can be customized according to the requirement
Thermal fuse
Iron chromium
Material of thermal fuse can be nickel chromium wire if requested
Feature
1. Superior internal electrical insulation and heat conductivity
2. Durable and low cost
3. Easy to replace thus eliminating long shut-down periods
4. Configurable to virtually any shape
5. Excellent corrosion resistance
6. Easy installation
Application
Embedded Oven
Customized Service
· Please show us following important points when you need custom service:
· Used voltage(V), wattage(W) and frequency(Hz) .
· Quantity , shape and size(tube diameter, length,thread,etc)
· Heating tube material( Copper/Stainless steel).
· Do you need the flange and thermostat, what's the size.
· If you have drawing or product picture,or sample in hands,will be much better and helpful for exact price calculation.
FAQ
Q: Are you a manufacturer or a trade company? A: We are a manufacturer of heating element since 2008.
Q: What's your MOQ? A: Normally we accept order with 100 pcs each model.
Q: What's your delivery time?
A: Below 3000 pcs, about 15-20 days after deposit.
Q:Where is your factory located? How can I visit there?
A: Our factory is located in Cixi city,Zhejiang Province,China,about 2-3 hours from Shanghai and about 1 hour from Ningbo .All our clients,from home or abroad, are warmly welcome to visit us!
Q: How long will it take to arrive?
A: 20-25 days by sea,about 5-7 days by air,3-5 days by express after deposit paid.
Q: Can I get sample before order? A: Yes. The sample fee and freight should be paid at your side. We will return the sample fee if order.
Q: Is it possible to print my logo on the product?
A: Yes. We offer OEM&ODM services. We can print your own logo on product.
Q: How do you guarantee quality?
A: For certificate, we have ISO9001, CQC, CE, ROHS, TUV. For practical, we will do 100% inspection during production and before shipment.
Q: What if there is any defective goods in my order?
A: We will take the responsibility of products with quality problems if they are caused by us.
