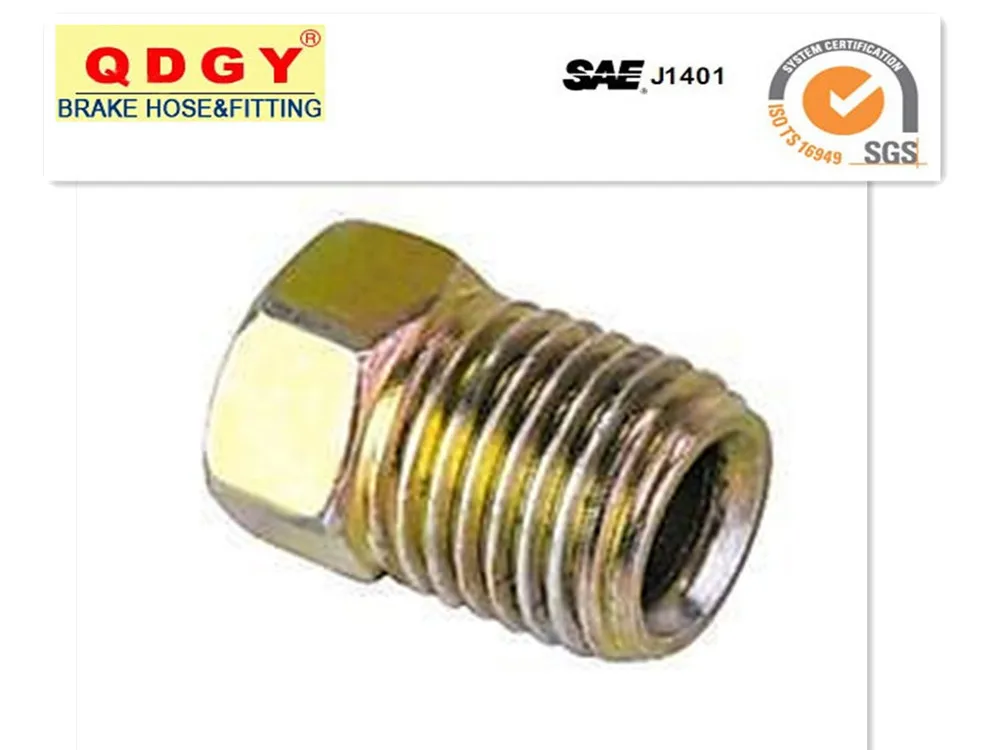

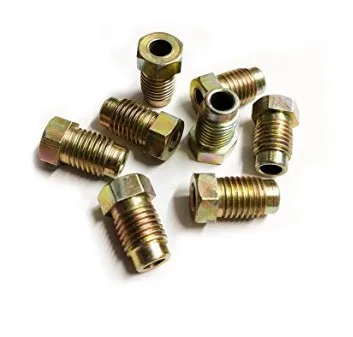

1/4 brake line hardline Inverted Flare Nuts 1/2 20 thread screw Gold
- Category: >>>
- Supplier: Qingdao Guosong Machinery Parts Co. Ltd.
Share on (62093681365):
Product Overview
Description

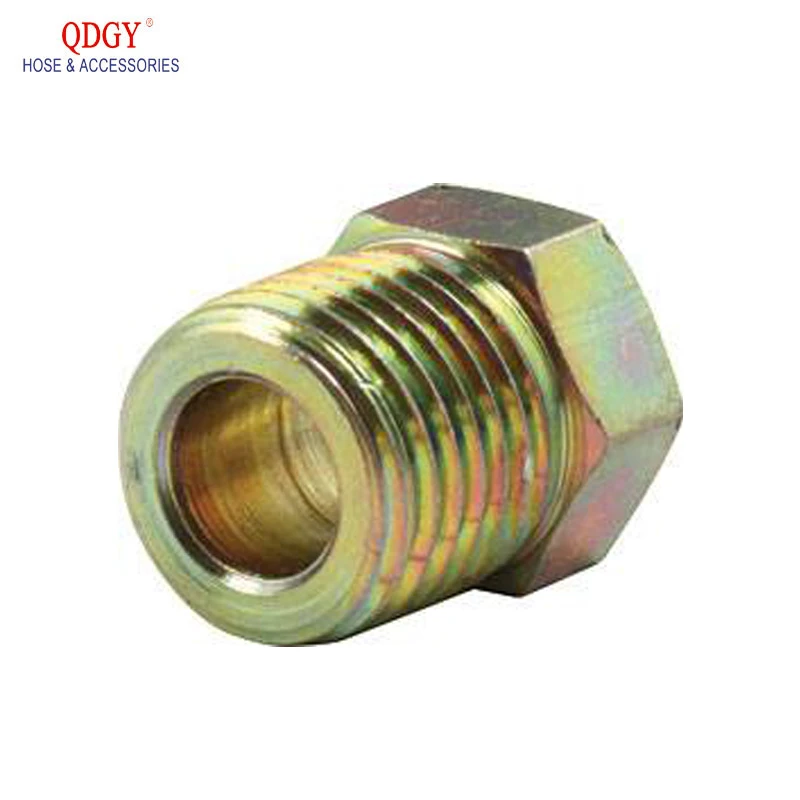

1/4 brake line hardline Inverted Flare Nuts 1/2-20 thread screw Gold
Product Description
Product Description
Part Number | Thread | Type | Tube Size | Stud Length | Hex | Material |
GSGF-153 | 3/8-24 UNF | -3 JIC | 3/16” | 12.2mm | 7/16” | Steel |
GSGF-170 | 9/16-18 UNF | -6 JIC | 3/8” | 14.1mm | 5/8” | Aluminum |
GSGF-171 | 5/8-18 UNF | 45° inverted | 3/8” | 15.7mm | 11/16” | Aluminum |
GSGF-172 | 3/4-16 UNF | -8 JIC | 1/2” | 16.7mm | 13/16” | Aluminum |
GSGF-173 | 7/8-14 UNF | -10 JIC | 5/8” | 22.6mm | 15/16” | Aluminum |
GSGF-174 | 1 1/16-14 UNS | 45° inverted | 3/4” | 25.4mm | 1 1/16” | Aluminum |
GSGF-226 | 9/16-18 UNF | -6 JIC | 3/8” | 14.1mm | 5/8” | Steel |
GSGF-227 | 9/16-18 UNF | -6 JIC | 10mm | 14.1mm | 5/8” | Steel |
GSGF-228 | 9/16-18 UNF | -6 JIC | 1/2 ” | 14.1mm | 11/16” | Steel
|
1. Type:hexagonal fittings; banjo fitting; bolt; nuts; sleeve; cooper ring;
2. Material: low carbon steel(Q235);ASTM standard; stainless steel ; brass
3. Surface treatment: Color Zinc,White Zinc,Olive Green Zinc,Chrome,White Zinc(CR3 passivation),Nickel,Trivalent Chrome
4. Galvanize thickness:8 micro meter
5. Certificate: ISO/TS16949
6. Standard: DOT; FMVSS106; DINIS03996; ASTM 1020
7. Techinical: 100% cold forging and CNC
8. Test:100%
9. Salt Spray: more than 72 hours
2. Material: low carbon steel(Q235);ASTM standard; stainless steel ; brass
3. Surface treatment: Color Zinc,White Zinc,Olive Green Zinc,Chrome,White Zinc(CR3 passivation),Nickel,Trivalent Chrome
4. Galvanize thickness:8 micro meter
5. Certificate: ISO/TS16949
6. Standard: DOT; FMVSS106; DINIS03996; ASTM 1020
7. Techinical: 100% cold forging and CNC
8. Test:100%
9. Salt Spray: more than 72 hours

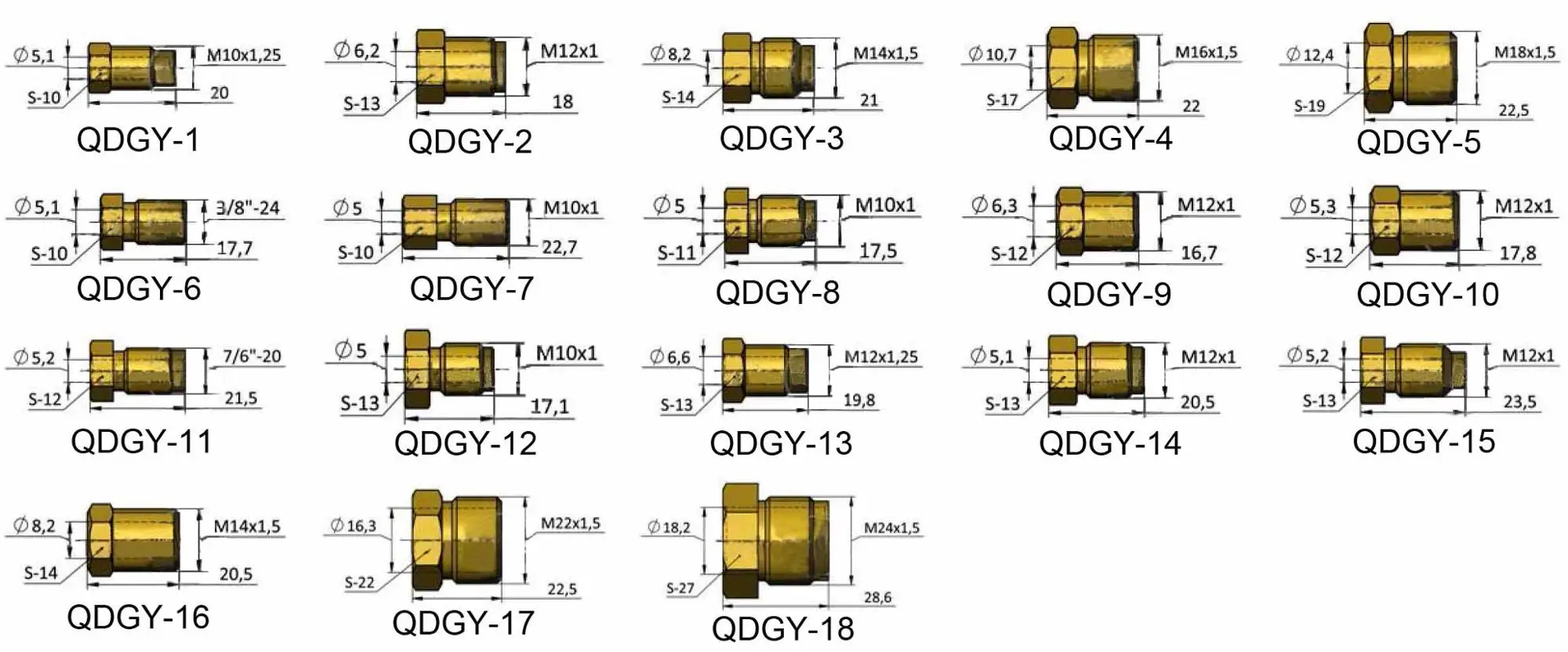

fitting spec.:
Misc. Hose Fittings
Banjo Fittings
Imperial Female Fittings
Metric Female Fittings
Imperial Male Fittings
Metric Male Fittings
Center Fittings
Brackets
Fitting description:
Fitting--A part that connects a line or a line in a hydraulic system, which is a generic term for a connecting piece that can be mounted in a fluid passage.
Fttting Type:
| Fitting type | Shape | Sealing face | Fitting Material | Thread | Surface treatment |
Rubber brake hose 3.2X10.5(mm) fitting | Male fitting | plane/concave/convex | Steel , Stainless Steel, Brass, Aluminum... | English screw Metric thread America screw
M10x1,M10x1.25, M11x1.25M12x1, M12x1.25,M20x1.25... 1/8NPT,1/2NPT, 1/8x28BSPP, 1/4x19 BSPP, 1/2x14 BSPP,3 /8x19 BSPP... G1/8,1/8BSPT... 318x24,7/16x20, 7/16x24,3/8x19... | Yellow zinc, White zinc, Blue-White zinc, Olive Green zinc, Nickel, Chrome, Zn-Ni Alloy |
Female fitting | concave/convex | ||||
| Banjo fitting | plane | ||||
| Special fitting | plane/concave/convex | ||||
Nylon/Teflon stainless steel braided hose 3.2X6.5/7.5(mm) fitting | Male fitting | plane/concave/convex | |||
| Female fitting | concave/convex | ||||
Banjo fitting | concave/convex | ||||
| Special fitting | plane/concave/convex | ||||
| Bolt & Nuts | Single hole bolt | plane /concave | |||
| Double hole bolt | plane/concave | ||||
| Deflated bolt | convex | ||||
| Pipe bolt | convex/concave | ||||
| Adaptor | 2 way | concave/convex | |||
| 3 way | concave/convex | ||||
| 4 way | concave/convex |
Available Material
Available Material
Available Material :
Fitting Type | Female ,Male fitting,Banjo fitting,Bolt and Nuts,Welding fitting,Special fitting,brake adapter fitting... |
Thread Measure | M10x1,M10x1.25,M11x1.25M12x1,M12x1.25,M20x1.25... 1/8NPT,1/2NPT,1/8x28BSPP,1/4x19 BSPP,1/2x14 BSPP,3/8x19 BSPP... G1/8,1/8BSPT... 318x24,7/16x20,7/16x24,3/8x19... |
Fitting Angle | 0,10,15,20,25,30,35,40,45,50,55,60,70,90... |
Fitting Material | Steel ,Stainless Steel,Brass,Aluminum... |
Fitting Surface | Yellow zinc,White zinc,Green zinc,Nickel,Chrome,Zn-Ni Alloy |

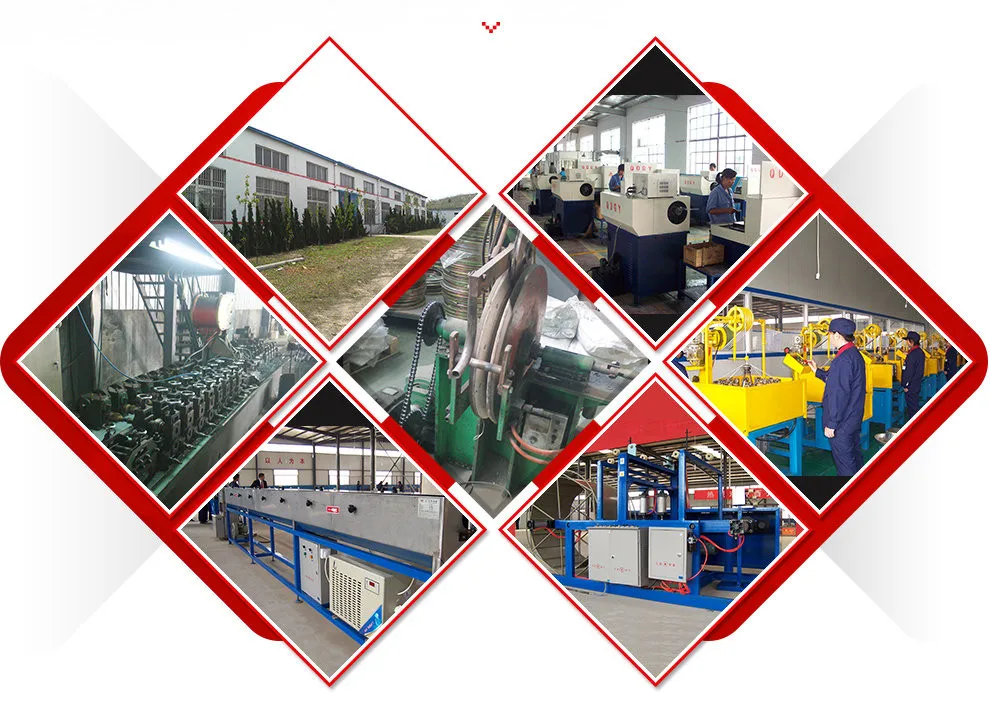

Advance workshop
Advance Workshop
Why chose us?
Why chose us?
We are a member of Trade Assurance service in //alibaba.com. that is new service provided by alibaba,which can provides buyers with a number of trade safeguards protect buyers' payment to suppliers, and to ensure suppliers fulfill their obligations regarding order and delivery time and product quality. |
| √ | Famous trademark of China |
| √ | Passed TS16949,ISO9001,DOT... |
| √ | National enterprise abiding by contract and keeping good faith |
| √ | National key high-tech enterprise |
| √ | Top ten influential brand of China brake hose and fittings industry |
| √ | First place in production and sales of brake hose and fittings in China |
| √ | ISO quality system certificate enterprise |
| √ | Professional sales teams ,technical engineers and pratical workers,safety |
| What can I do for you? | |
| 1. | Delivery time:30days after your deposit, which also will be on basis of your order. |
| 2. | Warranty:12 months. |
| 3. | Payment: 30% in advance by T/T 70% before shipment,other payments can be acceptable by negotiation. |
| 4. | Designing factory,technical support project. |
| 5. | Before sale service,middle sale service ,after-service will be supported |
| 6. | Related hose ,tube ,end terminal fittings,accessories and so on for sale. |
| 7. | All necessarry documents . |
Packaging & Shipping
Packaging: contact with us
QDGY common package: PVC bag in carton box with QDGY logo
Welcomed special package request,single packing,tasteful degined package are ok.Only little cost of special package

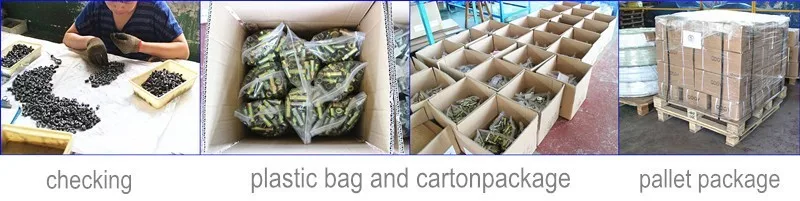

Brake hose fitting package:
Brake hose assembly package:
- 10-50pcs in one plastic bag
- Single package by plastic bag
- Single package by plastic bag with sticker and label
- Single package by paper box
- PVC box with label
- Final package is 5 layer carton then in pallet
Lead time: contact with us
For fitting: common fitting within 30 days;special fitting within 40 days.
For brake hose: wihithin 20 days.
For brake hose assembly: within 40 days.
Please noted: Exact lead time is based on details order ,please contact with us for the details information.
Shipping: contact with us
Qingdao port(Chingtao port) is only about 30 minitues from our factory.
Qingdao airport is only about 40 minitues .
Conveniently by air or by ocean with cheaper freight fee.
Company Information
FAQ
----FAQ---
Q1: Waht kinds of main rubber hose can product?
A: Rubber brake hose,EPDM brake hose,Hydraulic brake hose,Hydraulic hose,water hose,fuel& oil hose,Brake hose,Stem hose,SAE J1401 brake hose,DOT 1/8" brake hose,stainless steel braided brake hose,teflon brake hose,teflon s.s braided brake hose,OE No. brake hose,Flexible brake hose,Performance competition brake hose...
Q2: What size of brake hose can you supply?
A: common size: 3.2x10.5mm(1/8");4.8x12.5mm(3/16")
Special size: 3.2x11mm...or your request size
Q3: Can you print the words(line) as our requirement?
A: Yes,we do provide embossed and printing marking with different color ,as your requirement.
Q4: What kinds of fitting can product?
A: All kinds.Female fitting,male fitting,banjo fitting,adepter brake hose fitting,bolts and nuts,steel with zinc ,chrome,nickle...stainless steel,brass...
Q5: How many types of brake hose do you product?
A: Brake hose,Teflon braided brake hose,PTFE stainless steel braided brake line,Steel tube,Bundy tube,Steel tube assembly,Brake hose assembly...
Q6: What is my order's delivery date?
A: It usually takes 5-40 days,which generally depends on your order quantity and our storage.Details information ,kindly please feel free to contact with us,or visit our website contact with us,we will reply you within 24 hours.
