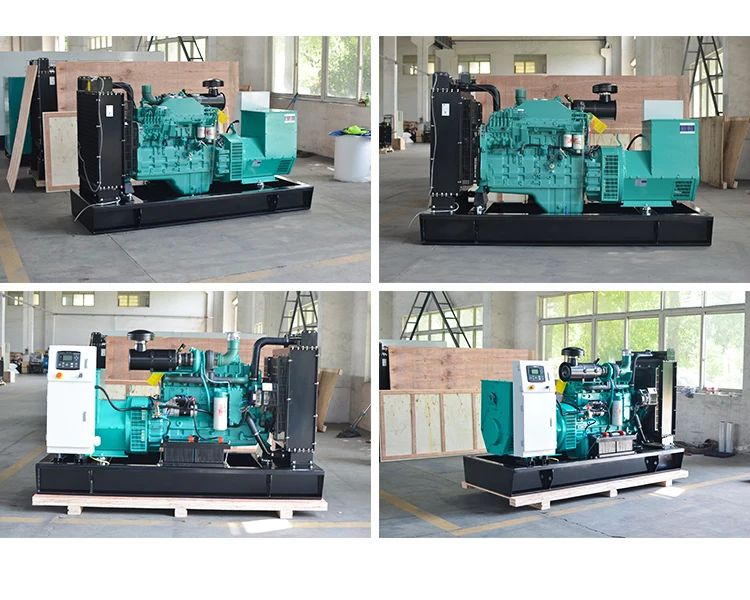

Open Type 50 HZ 200KW Diesel Generator With Engine Cummins 6LTAA8.9 G2 For Australia Use

 Prime power

This rating is for the supply of continuous electrical power (at variable load). There is no limit on the annual hours of operation and 10% overload power can be supplied for 1 hour in 12.

Standby power

This rating is for the supply of continuous electrical power (at variable load) in the event of a utility power failure. No overload is permitted.

General features:

n Every generator set is subjected to a comprehensive test program which includes 50% load, 75% load,100% load, 110% load and the checking and proving of all control and safety shut-down functions;

n 24V DC start motor;

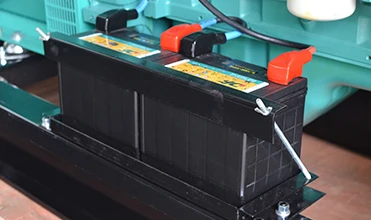

n Equipped 24V high performance maintenance-free lead-acid starting batteries and connecting with cables;

n Equipped with industrial silencer and flexible exhaust hose;

n Designed to Comply with ISO8528/GB2820;

n Powered by Cummins engine, Stamford alternator and DeepSea/ComAp/SmartGen control panel

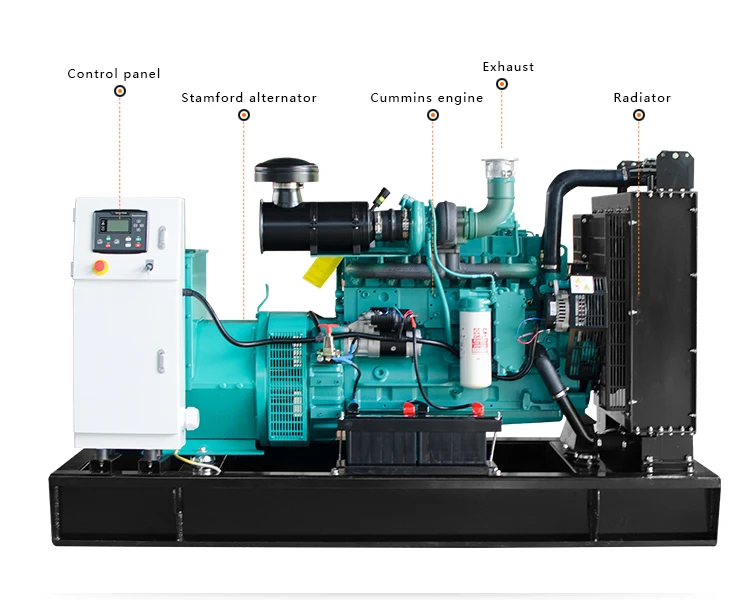

200kw generator-Open type (Powered by Cummins engine, coupled with Stamford alternator

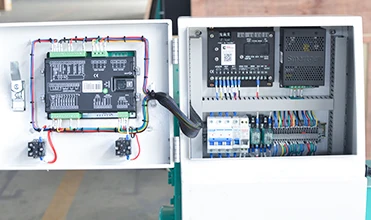

Control panel: DeepSea/ComAp/SmartGen Relay brand: Siemens APT Connect: Engine+Alternator-Terminal-Control panel Key+Emergency stop+Light: Famous brand, perfect quality
	Engine oil discharge fuel pump, it is easy and convenient for engine oil maintenance
MCCB brand: CHINT Optional: ABB, Schneider, Siemens and others

Powered by Cummins engine

 Coupled with Stamford alternator (3 years' warranty)

200kw generator, the control panel we can use ComAp IL9, ComAp MRS10, ComAp AMF20 or AMF25, SmartGen HGM6110N or HGM6120N, DeepSea DSE6020 and DSE7320

Model

MRS10/DSE6020/HGM6110N...

The control module gives digital readouts of: Generator voltage; Output frequency; Engine speed; Battery voltage; Engine hours run. The control module has indicators for failure information: Overspeed/underspeed, Emergency stop Low oil pressure; High water temperature Failure to start Battery charger failure Automatic shutdown occurs under: Low engine oil pressure; High engine water temperature; Overspeed/underspeed; Failure to start after three attempts.

Company information

Jiangsu WellPower Generator, Ltd which is one of the largest diesel generator set manufacturers in China mainland.

Our production capacity amounts to 9000 sets per year. We are specialized in making 10kva to 3000kva diesel generator sets under the brands of CUMMINS, VOLVO PENTA, PERKINS, DEUTZ, DAEWOO, MTU, SHANGCHAI, FAWD, WEICHAI, JICHAI and other engines to equip with STAMFORD, MARATHON, LEROY SOMER, MECC ALTE, SIMENS, ENGGA... Our gensets mainly use DEEPSEA and SMARTGEN control panel.

According to your requests, they can be open type, silent type, mobile type and container type.

Our goal is to provide our users the best and most effective power solution. Customer needs is the direction of our efforts, customer satisfaction is our pursuit.

Any needs in land or marine emergency, backup and primary electric power, please don't hesitate to contact us.
