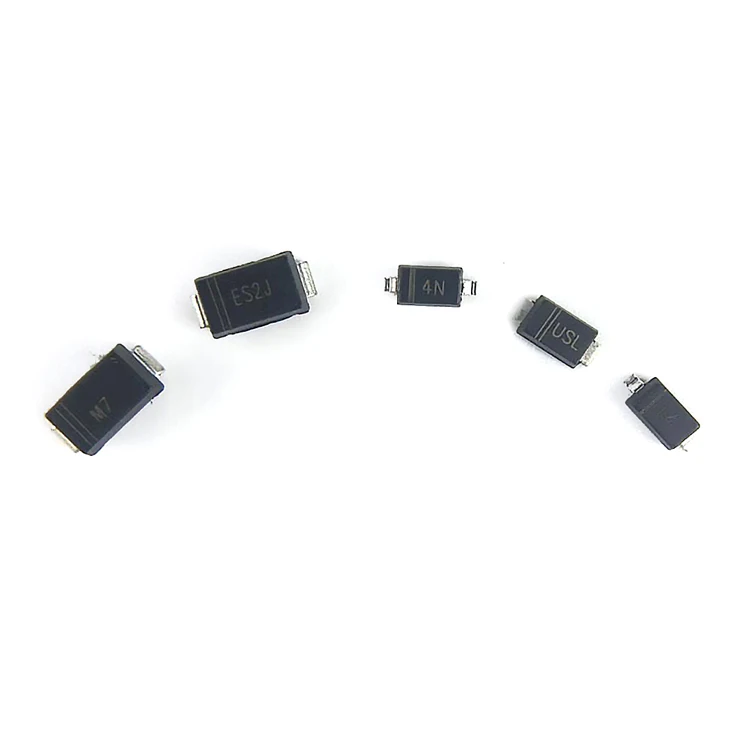

US1A,US1B,US1D,US1G,US1J,US1K,US1M SMA DO 214AC Io 1A VR 50~1000V IFSM 30A SMD rectifier diode S1A S1B S1D S1G S1J S1K S1M

Product Overview

Description

  The rectifier diode is a semiconductor device that utilizes the unilateral conductivity of the PN junction to convert the alternating current into a pulsating direct current.

    When choosing a rectifier diode, the parameters such as maximum rectification current, maximum reverse operating current, cut-off frequency, and reverse recovery time should be considered.





The reverse recovery time of rectifier diode could be divided into four categories due to different chip technologies:

1. The reverse recovery time of standard rectifier diode: > 500nS (nanoseconds);

2. The reverse recovery time of fast recovery rectifier diode: 150-500nS (nanoseconds);

3. The reverse recovery time of high efficiency rectifier diode: 50-100nS (nanoseconds);

4. The reverse recovery time of super fast recovery rectifier diode: 15-35nS (nanoseconds).
