2/3/4 Axis Ditron LCD DRO 50 3000 мм магнитные весы цифровой индикатор Dro производитель с функцией RPM
- Category: Other Test Instruments >>>
- Supplier: Chengdu Ditron Opto-Electronics Equipment Ltd.
Share on (62094002898):
Product Overview
Description
Product Description

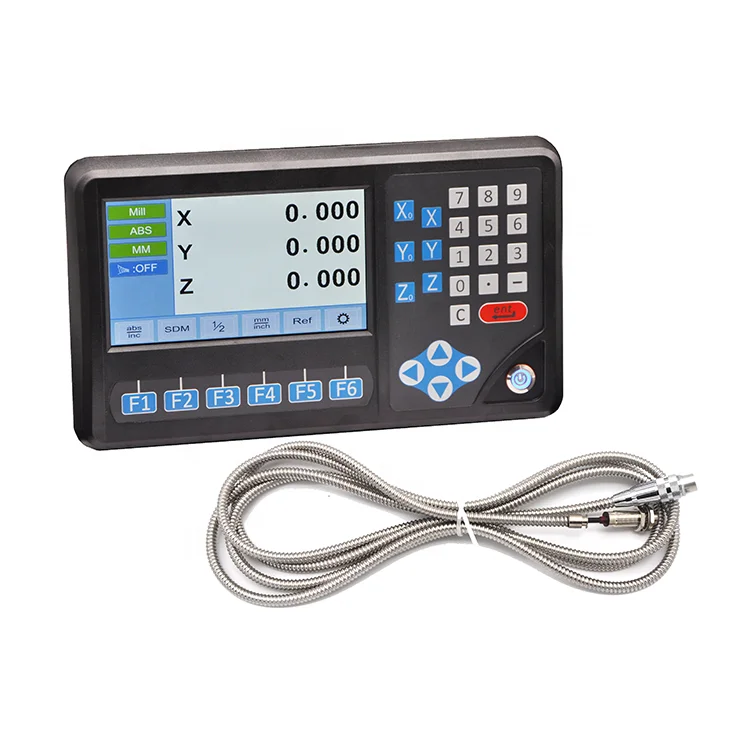

| DRO D80 Technical Parameter Sheet | |||||
| Resolution | 0.1μm/0.2μm/0.5μm/1μm/2μm/2.5μm/5μm/10μm ... | ||||
| Display Screen | 7inch LCD | ||||
| Display Case Size | 300X180X75mm | ||||
| Axis | 1 | 2 | 3 | 4 | 5 |
| Signal | TTL/RS422 | ||||
| Input frequency | <5MHZ | ||||
| Voltage range | AC 80~260V (50~60HZ) | ||||
| Power Dissipation | 15W | ||||
| Working temperature | '-10~60℃ | ||||
| Operating keyboard | Mechanical Keypad | ||||
| Material of Case | Plastic | ||||
| Application Suggested | Particular for Milling, Lathe, Grinding, EDM | ||||

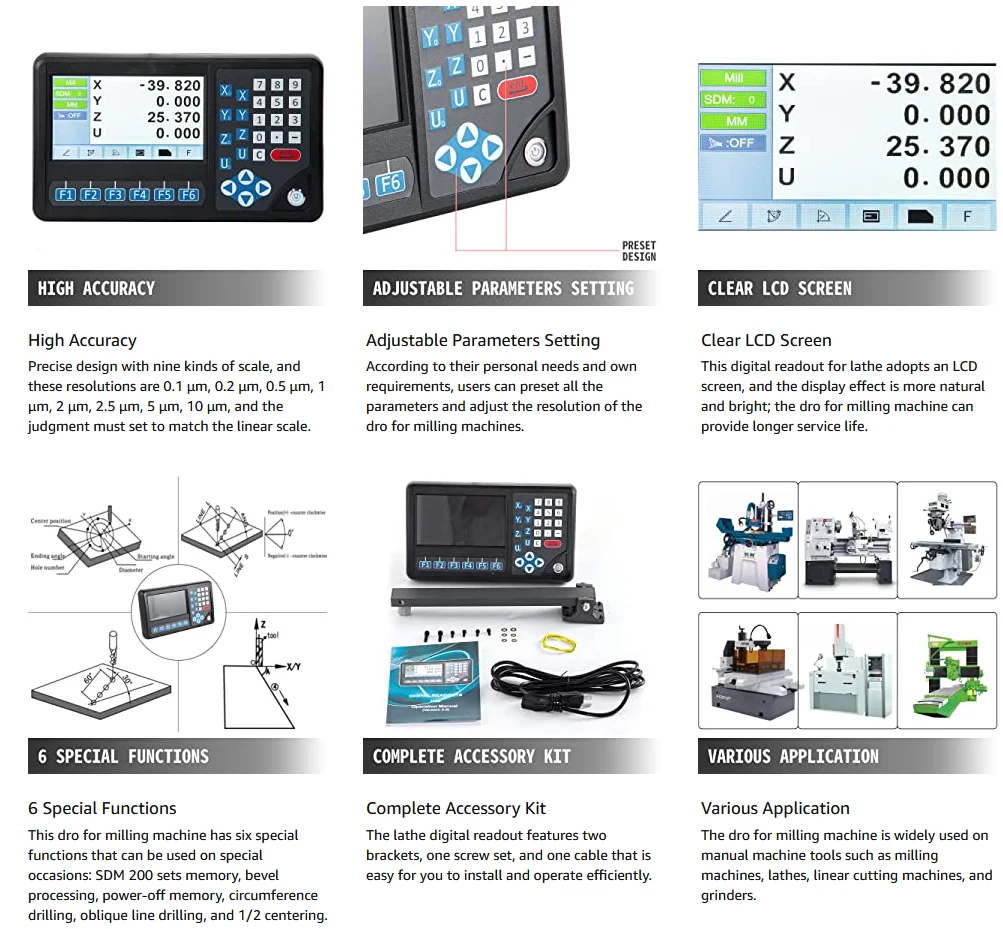

| Product Feature | |||||
| 1. 7" super LCD screen, easy to recognize | |||||
| 2. Up to 5 axis input to work for high precision tool machining. | |||||

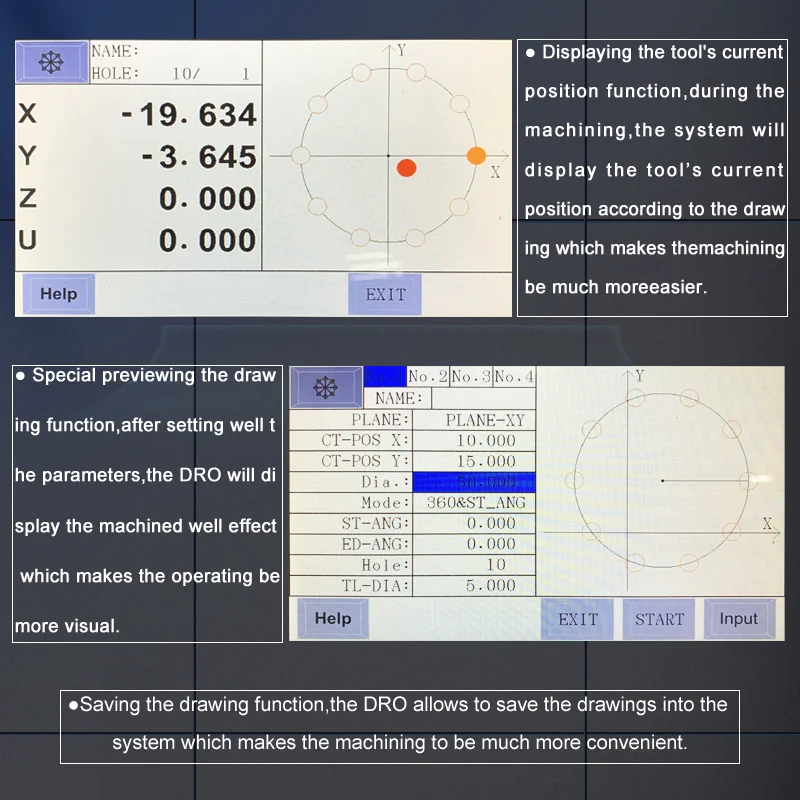

| 3. More than 10 drawings for different tools can be selected to make the machining much more convenient. | |||||
| 4. Special previewing the drawing function,after setting well the parameter,the Dro will display the machined well effect which makes the operating be ,ore visual | |||||
| 5.Custom setting for the shortcut keys,operate can set the shortcut keys according to his operating habit | |||||

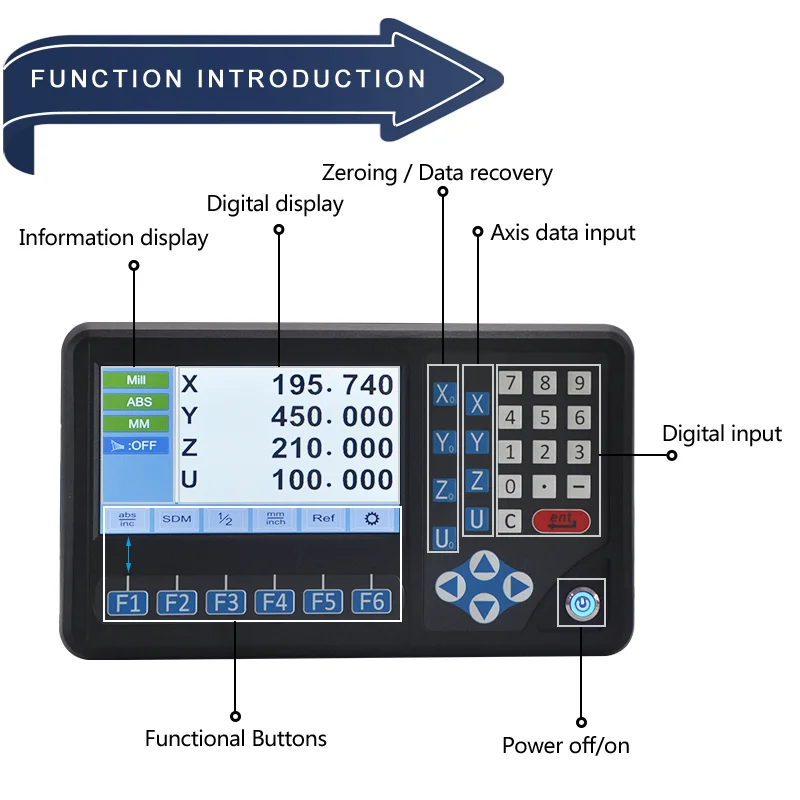

Functions:
Basic Functions | Zeroing, Data Recovery | Encoder Selection | |||||
Input Coordinate | Resolution Setting | ||||||
Display in Metric British Units | Linear Compensation | ||||||
Power Off Memory Function | Counting Direction Selection | ||||||
ABS/INC Coordinate | 200 sets of SDM Coordinate | ||||||
Ref Ruler Storage Function | Non-linear Compensation | ||||||
Calculator | 1/2 Function | Sleeping Function | |||||
Special Functions | |||||||
PLD Function | PCD Function | Simple R Function | Smooth R Function | ||||
Bevel Machining Function | Rectangle Chambering Function | ||||||
200 sets of Tools | Radius/Diameter Conversion | ||||||
Y+Z Function (special for 3 axis lathes) Digital Filtering Taper Measuring Function | |||||||
Optional Functions | |||||||

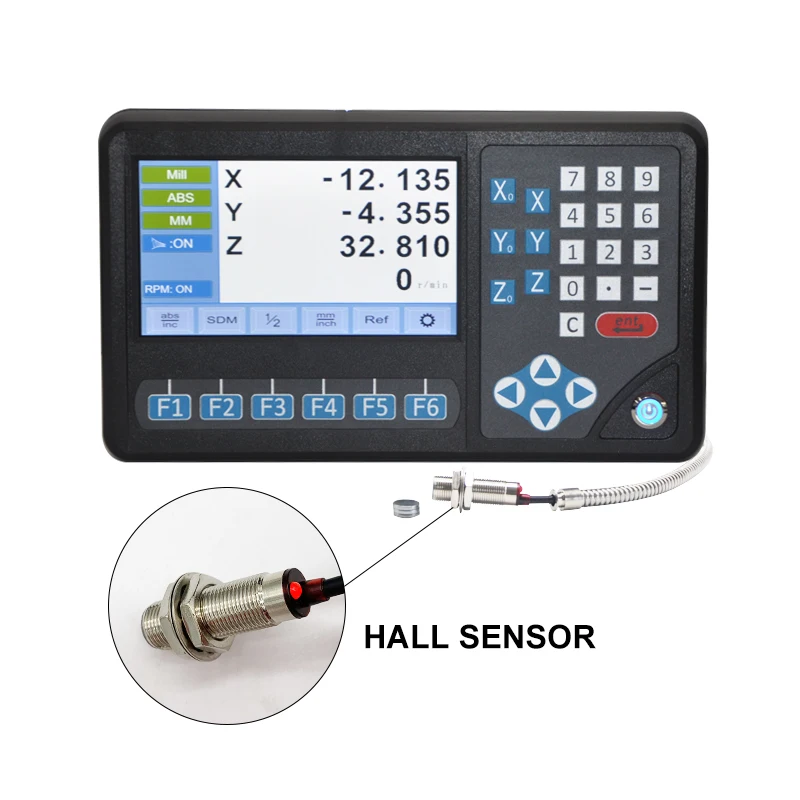

EDM Function | RPM | RS232 | |||||

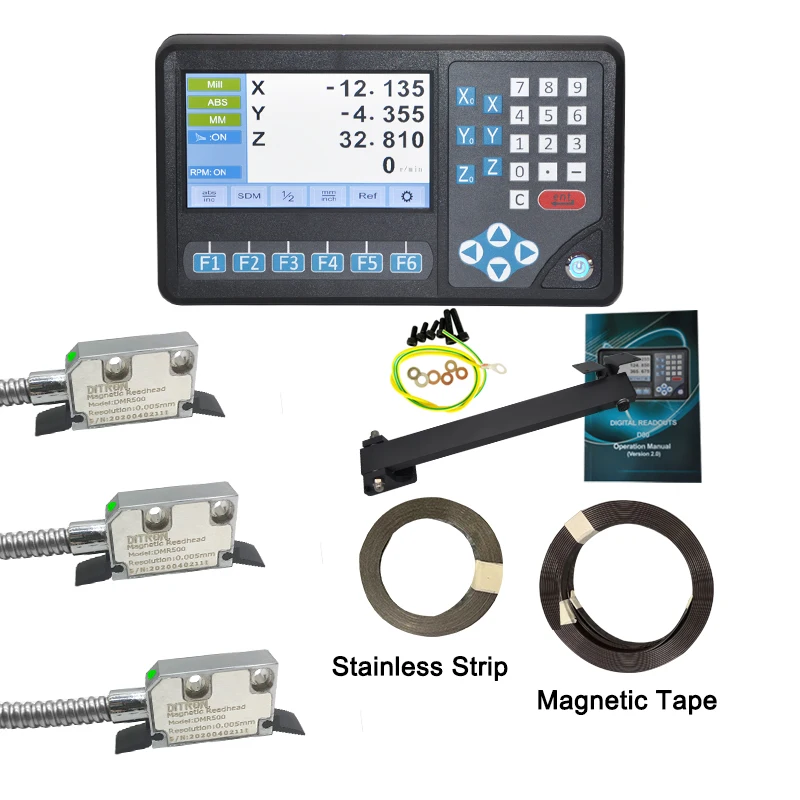

| DM Series Scale Technical Parameter Sheet | ||
| Type | DMS | DMA |
| Resolution (μm) | 0.5/5/10/25μm | |
| Accuracy (μm) | ±10/±15/±30μm (L<1m; 20℃) | |
| Measure Length (mm) | 50mm~32000mm | |
| Cable Length | 1/2/3mm | |
| Poles Pitch (μm) | 1+1 / 2+2 / 5+5 mm | |
| Air gap btw head and tape | 0.5/1/2.5mm | |
| Working Temperature | -10℃~80℃ | |
| Protection Level | IP67 | |
| Housing Cross Section (mm) | 33X20 | 31.5X28 |
| Housing Structure | Open | Open |
| Max. Response Speed (m/min) | 240 | |
| Protection Level | IP67 | |
| Output Signal | TTL / RS422 | |
| Input Voltage | LINE-DRIVE; PUSH-PULL | |
| Cable Length | 3M/5M (Can customized ) | |
| Plug Model | DB-9 | |
| Feature : | ||
| 1:Match IP67 protection degree | ||
| 2:Automatic gain control technics ,reduce the requirement for installation.The gap between the reader and tape can be 3mm (5micron ) | ||
| 3:Protection of the anti-pole of the power and wrong wire connection (voltage<5.5V) | ||
VIEW MORE MAGNETIC SCALE: ↓ ↓ ↓ ↓ ↓ ↓

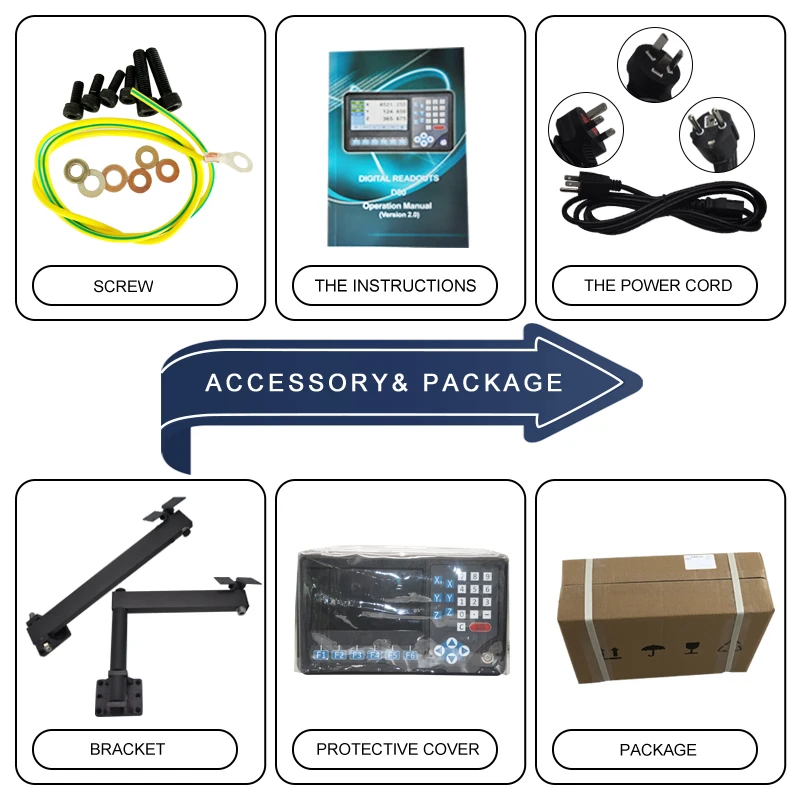

Packaging & Shipping
