Pfsense firewall barebone x86 intel core i3 i5 i7 micro pc desktop mini computer

   Part No#

Max-SPPC

   CPU / GPU

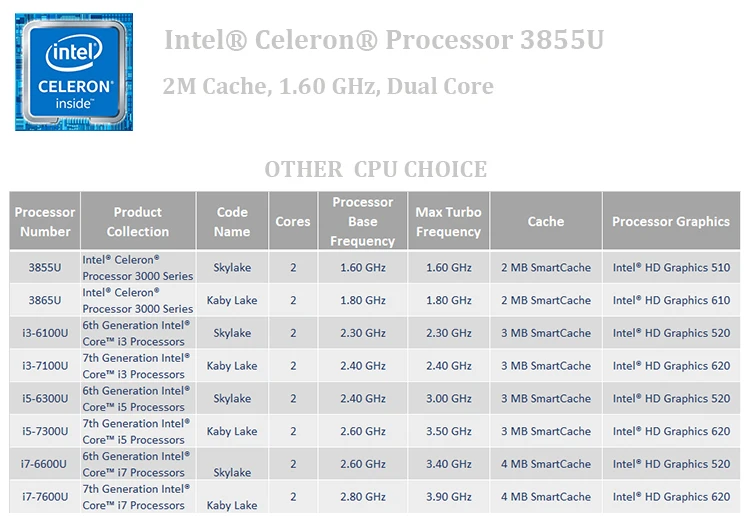

Intel SkyLake/KabyLake U series CPU
(Celeron 3855U/3865U , Core i3 / i5, HD Graphics 510/610)

   Memory

1 x DDR3L SODIMM , Support up to 8GB max

   Storage

1 x Mini-PCIE for Msata SSD

   Front I/O

2 x USB 3.0 port , 2 x 2.0 port

2 x HD port

1 x DB9 COM RS232 port

   Rear I/O

1 x 5.5mm x 2.5mm DC JACK

8 x 10/100/1000M BASE-T

4 x POE ports

2 x SFP ports

2 x LAN ports

Intel® Ethernet Controller I211 Series

   OS

Windows 7, Windows 10, Linux , Ubuntu

   Power

DC12V @ 3A

   Temperature

Work Temp -20~70℃, Storage Temp  -40~85℃
