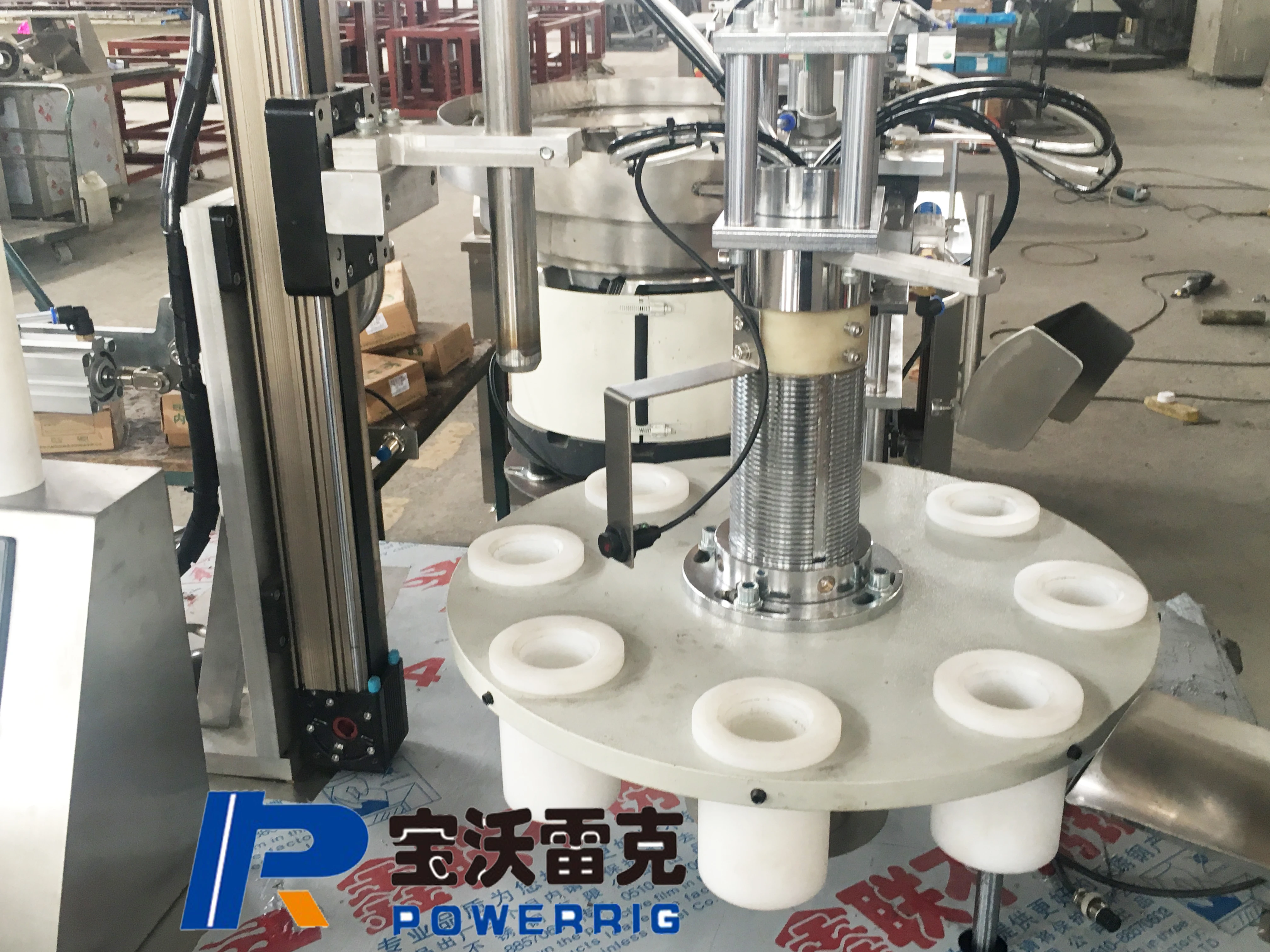

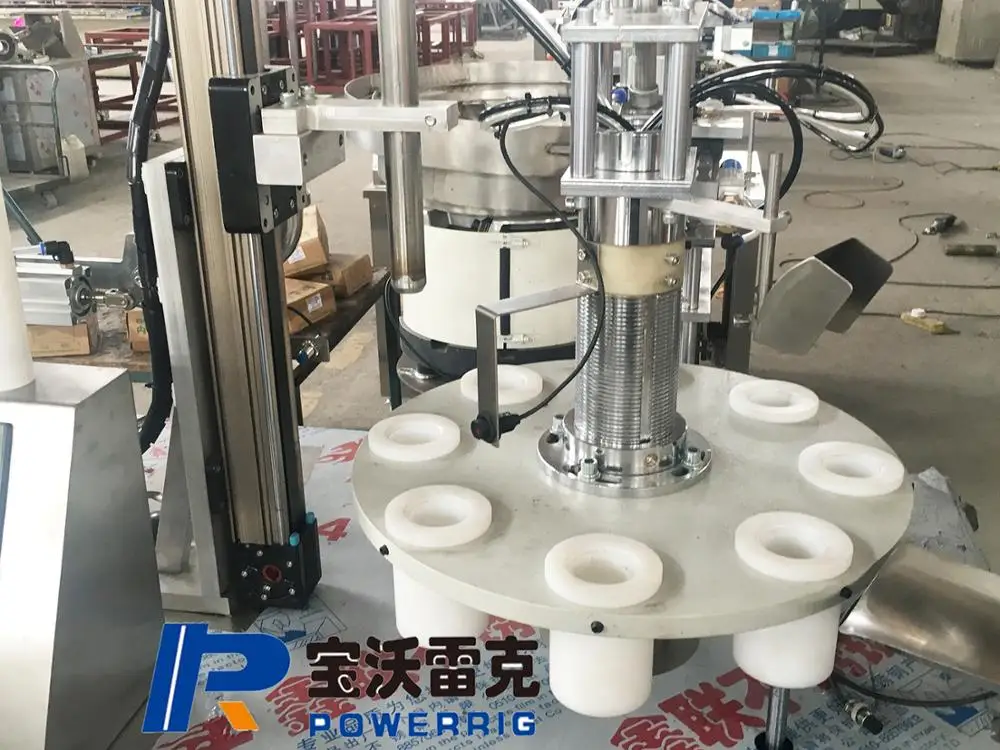

Automatic epoxy resin grease AB tile seam Glue Silicone Sealant Cartridge Filling capping Machine
- Category: >>>
- Supplier: Changzhou Powerrig Machinery Technology Co. Ltd.
Share on (62094158417):
Product Overview
Description
Suitable package
Product Descrption
Paremeter of silicone cartridge glue filling machine | ||
Filling range | 10-30ml/30-120ml/100-200ml filling volume can customize | |
Power | 1.5Kw | |
Suitable Filling Material | Aluminum tube Hard cartridge | |
Capacity | 15-30 tube per minute (Match hydraulic press tank use) | |
Power | 110v/220V/380V can customize | |
High speed automatic silicone cartridge glue filling machine for silicone cartridge
Working principle:
Material pressing machine press silicone sealant material to the filling machine
The tube is pushing to the filling nozzle, filling from buttom of tube, after filling material blow for cut material.
Adpots turn valves, speed at 30-35 piece per min. Re-design filling parts.
Full-automatic silicone sealant sausage automatic cartridge filler 300ml silicone cartridge filling sealing machine is a kind of horizontal filling equipment for silicone sealant, polyurethane sealant and such high viscosity materials in plastic cartridge, paper tube and aluminum tube etc.. The machine is fully automatic, without manual operation. It features accurate metering, fast filling, long-time continuous operation etc., fully meets the production requirements in domestic and overseas factories for large-scale production, reduction of cost and consistent product quality. It forms a complete automatic sealant production line together with the formerly developed twin-screw automatic sealant production line and static mixer, and will become a powerful assistant for most sealant manufacturers to upgrade their products.
Main feature:
1. Specially design turn valve ,cam control vertical up filling system ,for silicone sealant this type high viscosity material.
2. For silicone sealant gel this type glue, design Broken wire function in filling nozzle , avoid material Leakage or residue on the filling nozzle effect the sealing.
3. Silicone sealant is a specially material can't connect with air, so we add blow nitrogen device and spray silicone oil device in the filling nozzle part , avoid material connect with air when filling and sealing.
4. Silicone sealant have high vicosity , can't flow. so when transfer it into filling machine's filling system,must need match hydraulic press drum ,then use bear High pressure pipeline connect with filling machine's filling system ,to loading material into filling machine.
Detailed Images

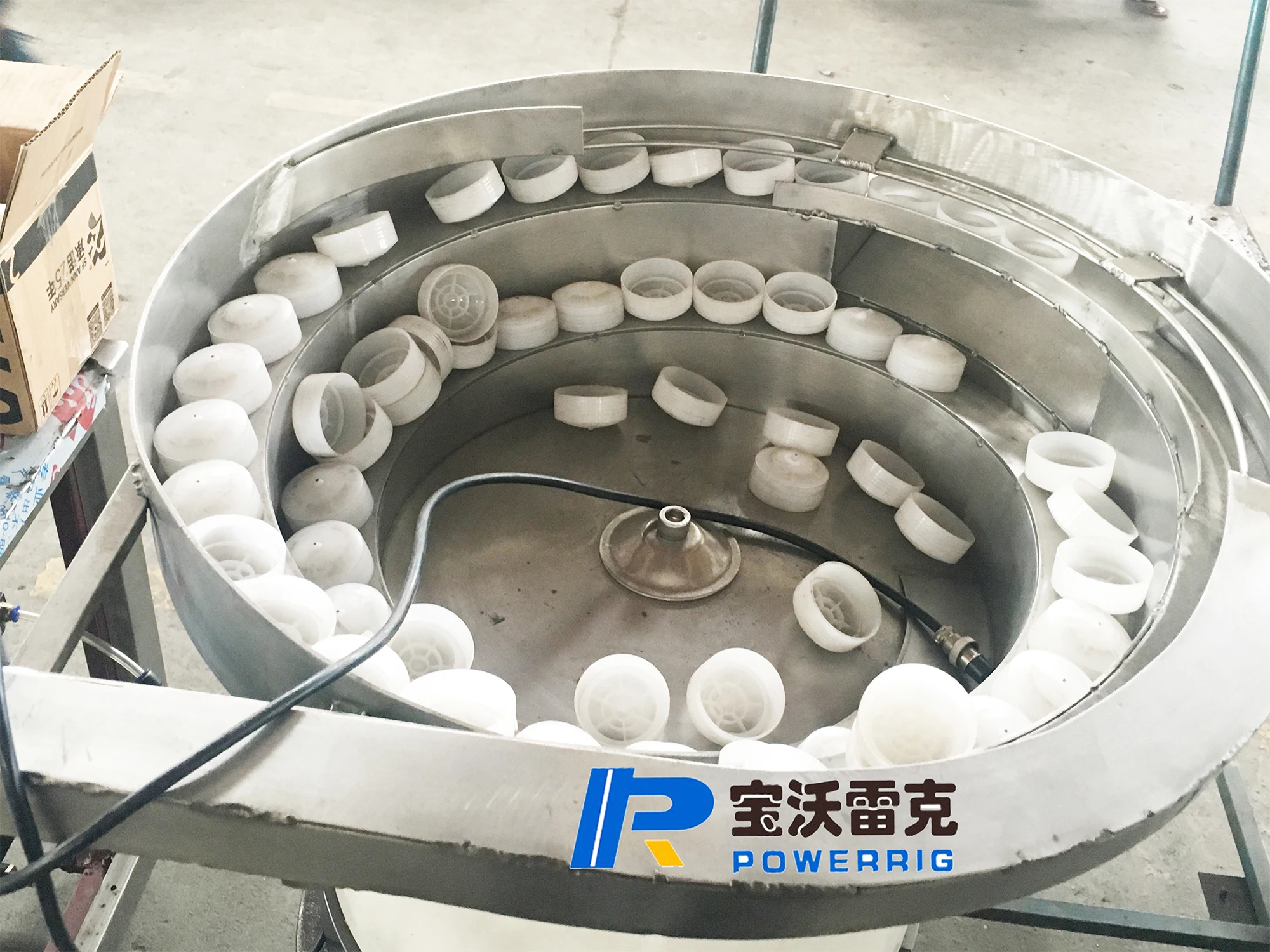

Caps vibrating plate
Automatic sort of caps and send caps into capping station

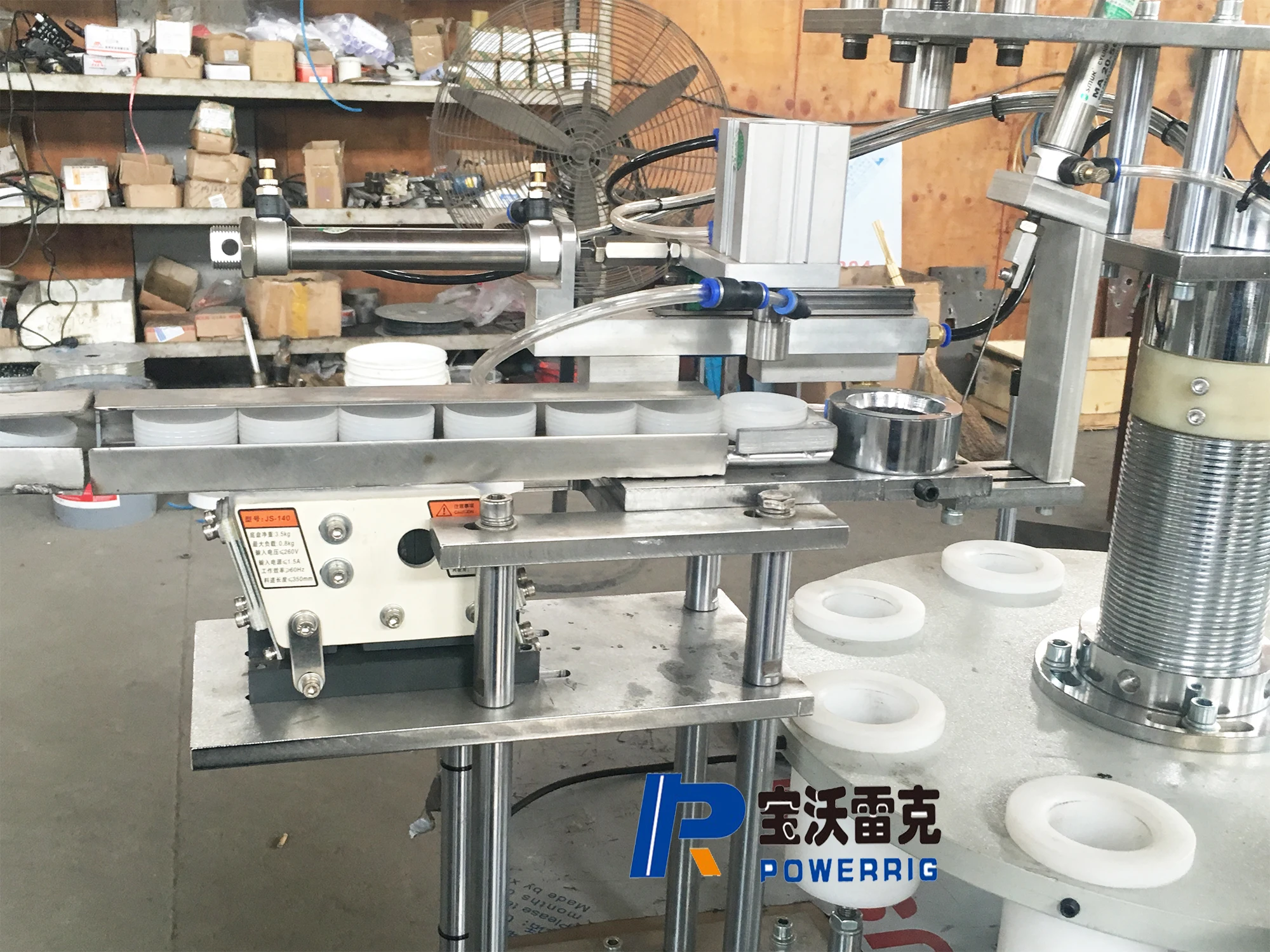

Caps loading station
Caps through loading guideo loading into capping station.
Filling nozzle
Filling nozzle will insert into the tube bottom
Form bottom filling and tube will lifting and down by cam control.Turn valve and piston cylinder
Specially design turn valve ,cam control vertical up filling system ,for silicone sealant this type high viscosity material.
Blow nitrogen device
Silicone sealant is a specially material can't connect with air, so we add blow nitrogen device and spray silicone oil device in the filling nozzle part , avoid material connect with air when filling and sealing.
Spray silicone oil device
Silicone sealant is a specially material can't connect with air, so we add blow nitrogen device and spray silicone oil device in the filling nozzle part , avoid material connect with air when filling and sealing.Avoid silicone Solidification.
Hydraulic press drum
Used to loading silicone sealant material into filling machine's filling system,silicone sealant have high vicosity , can't flow. so when transfer it into filling machine's filling system,must need match hydraulic press drum ,then use bear High pressure pipeline connect with filling machine's filling system ,to loading material into filling machine.
Servo motor control diving filling
Filling nozzle diving into cartridge bottom filling
Use servo motor control filling , ensure the filling stable and filling accuracy.
If you have any questions or requirements about High speed automatic silicone cartridge glue filling machine for silicone cartridge ,please kinding send your inquiry:
Our Service
If you need the whole produdction line of theHigh speed automatic silicone cartridge glue filling machine for silicone cartridge , we also can help you match the hydraulic press tanl to loading silicone sealant and silicone sealant mixing machine and so on .
1. Can help customer find raw material, package bottle, offer whole line serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce
2. Offer customize serivce, according to customer different tube customize machine
3. Offer Machine layout design according to customer's site size
4. Offer engineer Go abroad to install and trainning
5. Whole-lifer after sale serivce
Packing & Delivery
Packaging | ||
Size | 1800*1000*1500mm | |
Weight | 1.2 T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our factory
FAQ
Q:How Can I get a detailed quotation of High speed automatic silicone cartridge glue filling machine for silicone cartridge ,from you?
Just send us inquiry through this web page is ok. I will reply your any question within in 6 hours.
Q:Can your company able to offer 2 years gurantee?
Yes it's no problem for our company. During the warranty, if you need any spare parts, we will delivery it to you in DHL for free.
Q:Do you offer a free set of replacement parts for parts that commonly wear out quickly?
All spare parts are always avaliable for delivery. Above 90% spare parts are made by ourselves. Because we have our own processing center, so we can supply at anytime
Q:What is the whole production line?Can i connect labeling machine ,bottle feeder with filling machine in whole line?
I do not know how many meters of conveyors are involved so can not determine the over-all size of the line with all of its components.
We can help you match pipe and pump to transfer material form raw material tank to filling directly., so it can be totally auatomaticlly.We will design and make a layout plan according to customer's factory floor plan.
Q:What is the cost to send installation/training staff? How many staff do you need to send?
Whole installation/traning process needs 2peoples. Around 10days. Client needs to provide us round-air ticket, visa fee, local transpotation, accomodation, food, and 80USD/day/person.
If you have any questions or requirements about this High speed automatic silicone cartridge glue filling machine for silicone cartridge , ,please kinding send your inquiry:
