Top Selling Access Control System 12V 3Amp DC Battery Backup Power Supply For Home Security
- Category: >>>
- Supplier: Guangdong Steady Technology Co. Ltd.
Share on (62094233435):
Product Overview
Description
Product Description
Model | STD-SMJY02-12-7Z | STD-SMJY03-12-7Z | STD-SMJY05-12-7Z | STD-SMJY03-12-17Z | STD-SMJY05-12-17Z | ||||
Output | DC12V 2A 24W | DC12V 3A 36W | DC12V 5A 60W | DC12V 3A 36W | DC12V 5A 60W | ||||

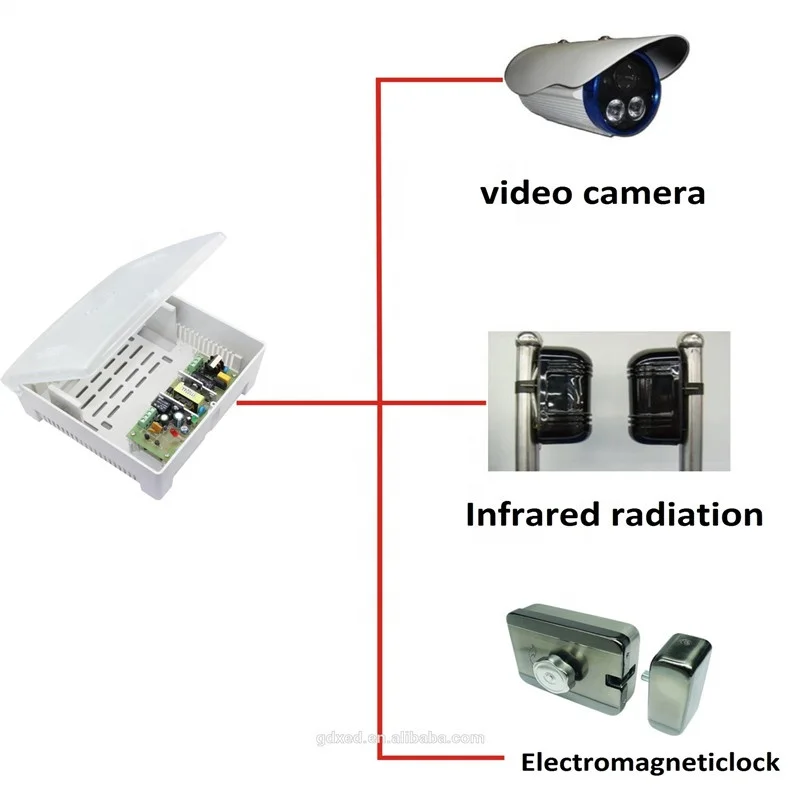

Features | 1, Suitable for centralized power system, like CCTV, alarm system, access control 2, Universal AC input/full range:96-264Vac 3,Individual fuse for each output channel 4,Built-in EMI filter,100% full load burn-in test 5,Battery backup function 6,PFC function | ||||||||
Protection Functions | 1. Built-in PFC(Power factor correction)circuits 2. Individual PTC fuse for each output channel. 3. Built-in EMI filter,100% full load burn-in test. 4. Short circuits protection 5. Over current protection 6. Over voltage protection 7. Low output ripple and noise | ||||||||
Certification and Warranty | 1.. CE&FCC/EMC/ROHS 2. Warranty:3 years | ||||||||

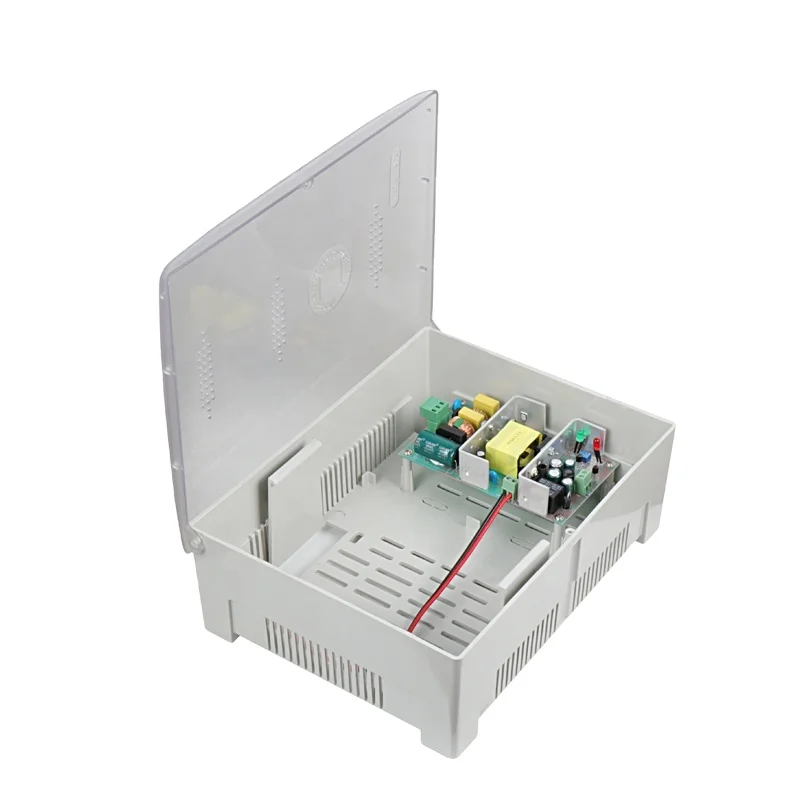

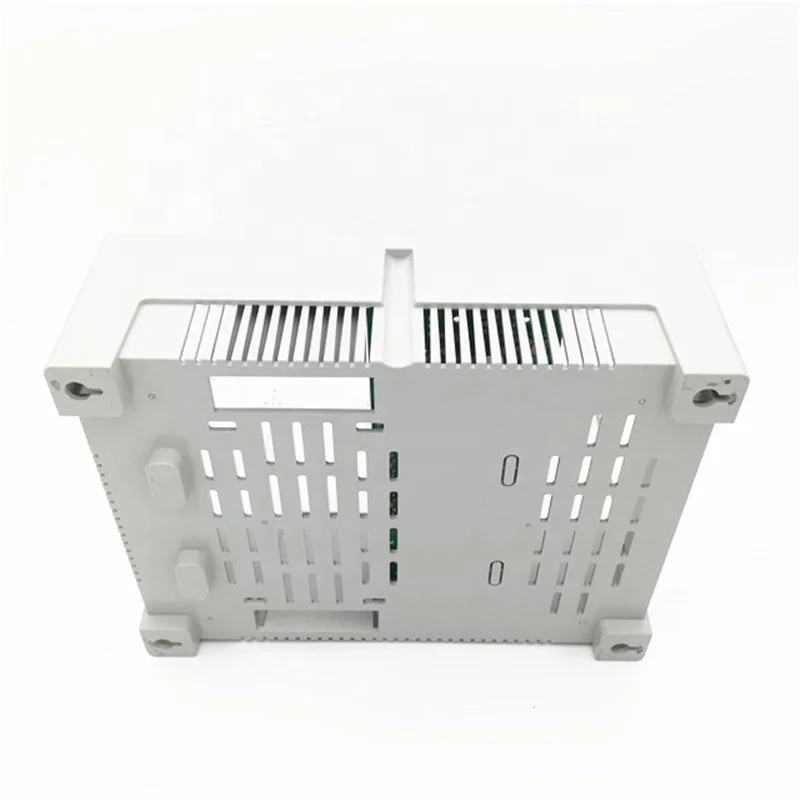

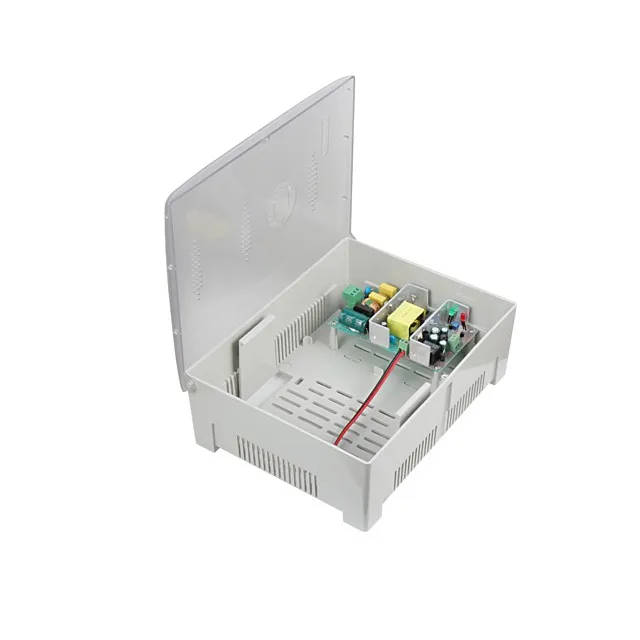

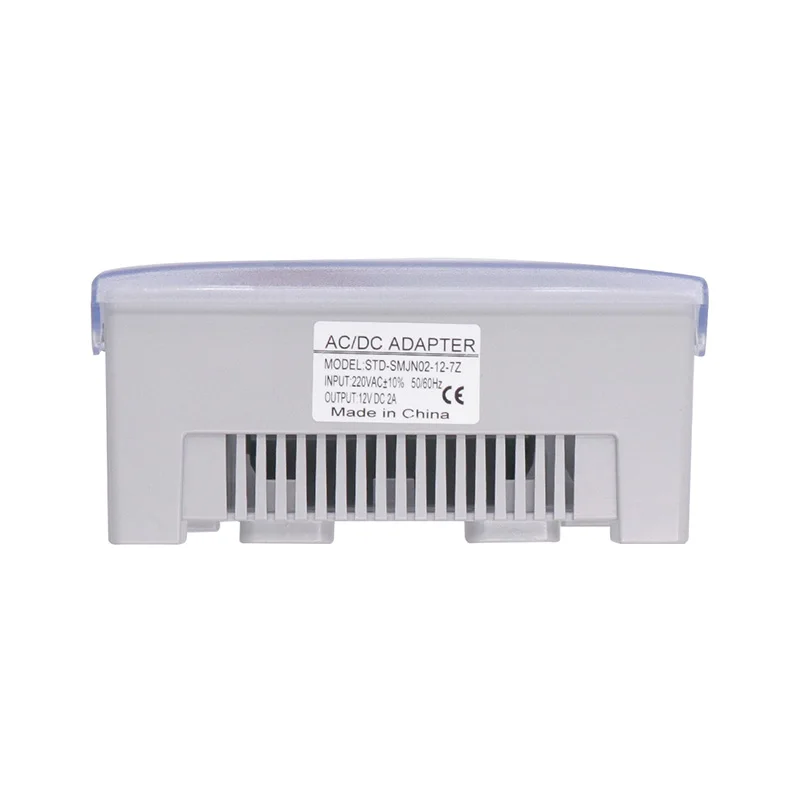

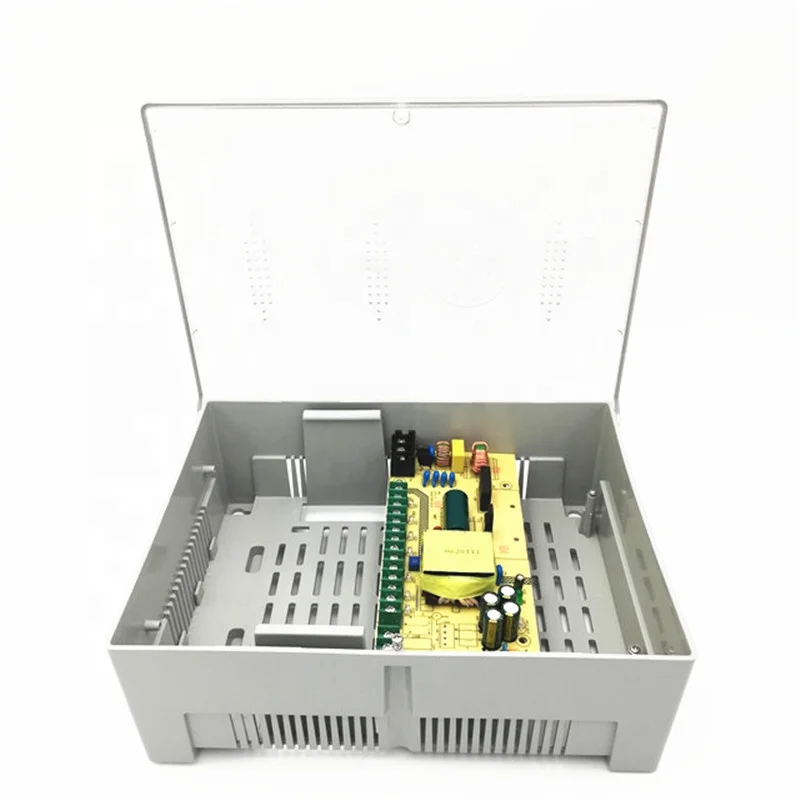

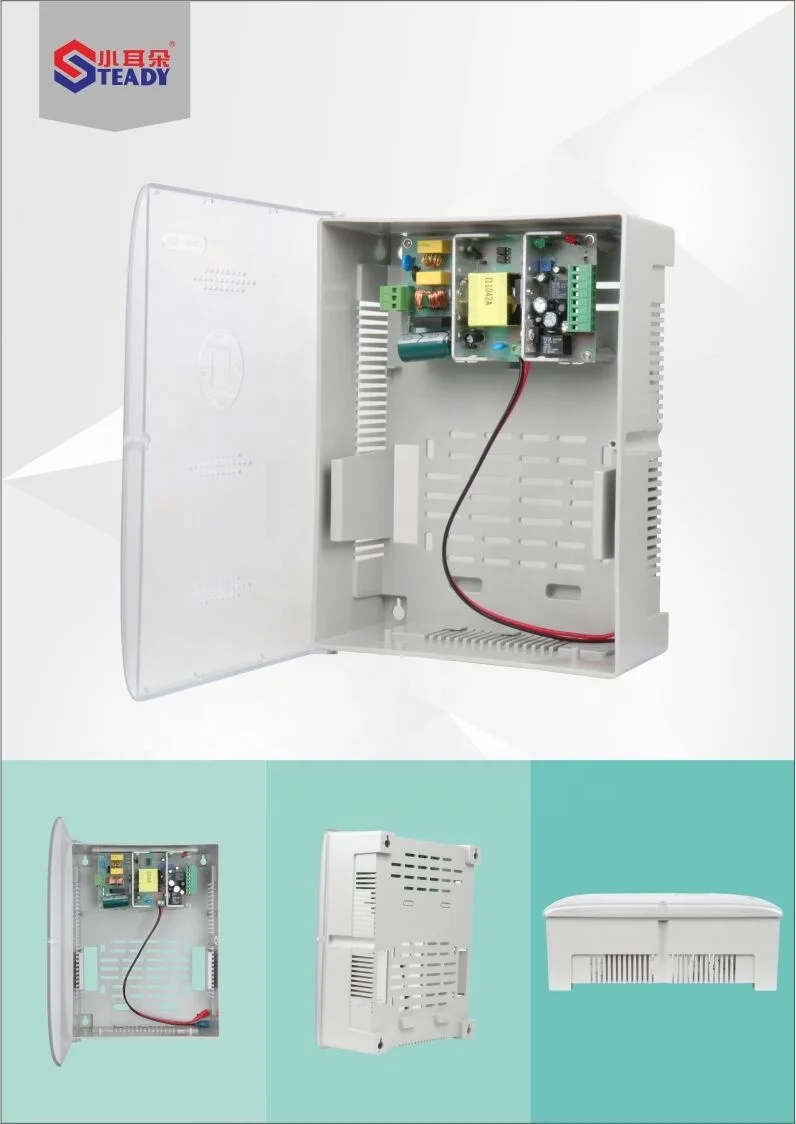

Detailed Images
Installation Steps
Step 1 .Professional Operator
The device should be installed by professional operator
Step 2. Product Checking
Open package, check if all accessories are complete. Connect device to AC power,checking whether all LEDs are lighted. Use multimeter to test output DC voltage, and compare with data showed on label, finding if two data are the same. If any LED not lighted or output voltage is different from label data , please contact the supplier.
Step 3. Position
Use the fixing drawing to position the box .Use impact electric frill to drill to drill holes on the wall.The fixing holes depth should be no more than 1.5 times of the length of assessories-plastic plug. Knock the plastic-plug totally into the wall
Step 4. Fixing
Fix the 1th screw into the plastic plug and hang the power box.Fix other screws from inside of the Box.Fix the power box steady.
Step 5. Connection
1, Connected DC cable.Notice:"+"&"-" should be connected right, otherwise tube fuse or terminal device might be damaged, or PTC fuse cut off
2.Connected AC cable.Use AC plug to connect AC jack on box side, or connect AC cable to terminal "L""N" "GND" in the box
Step 6. Turn on Power
After all connection finished, check again if all cables connected right. Turn on power, check if each LED is lighted, and if device work properly
Company Information
Guangdong Steady Technology Co.LTD is a private enterprise specialized in security centralized power supply designing, developing, manufacturing and selling.
Currently, There are over 300 employees and a fabrication area of more than 10,000 square meters.We supply security centralized power supply with highest cost effective and services such as model selection, technical support, OEM&ODM.
Our products are widely applied in security systems like CCTV, alarm, access control, building intercom etc.
The main products series Boxed Power Supply for CCTV,Boxed Power Supply for Access control.
Power Adapters&Transformers , Aluminum Housing Switching Power Supply and POE Switches, APPDU ,Wireless AP.
Power Adapters&Transformers , Aluminum Housing Switching Power Supply and POE Switches, APPDU ,Wireless AP.
Conpany information
Meeting Room
Sales offices
Workshop Show 1
Dongdong Steady Technology CO.,LTD has two lines of SMT production lines, with very high efficiency of production capacity
Workshop Show 2
Dongdong Steady Technology CO.,LTD has more than 300 enployees and six production lines
Workshop Show 3
Dongdong Steady Technology CO.,LTD with advanced production and test equipments to ensure the short lead time and high quality of clients' orders.
Laboratory Show 1.
Simulated transport drop test.
Laboratory Show 2.
High and low temperature tes
Laboratory Show 3.
Simulated transport drop test.
