Vacuum Metallizing Automatic Painting Spray Gun Machine UV Coating Line


GUN-FIXED





































Power Load              • 380-415V, 3-phase
Spindle Conveyor

              • SS track
              • Sprocket: GI finish
              • VFD control
              • Speed: 3-11mtrs/min adjustable


Deionzing Booth

             • W1.5m*D2.4m*H2.2m
              • Structure: SS304
              • Exhaust Blower: 8000 m³/hr
              • Ion Producer: with ion nozzle
              • photo sensor

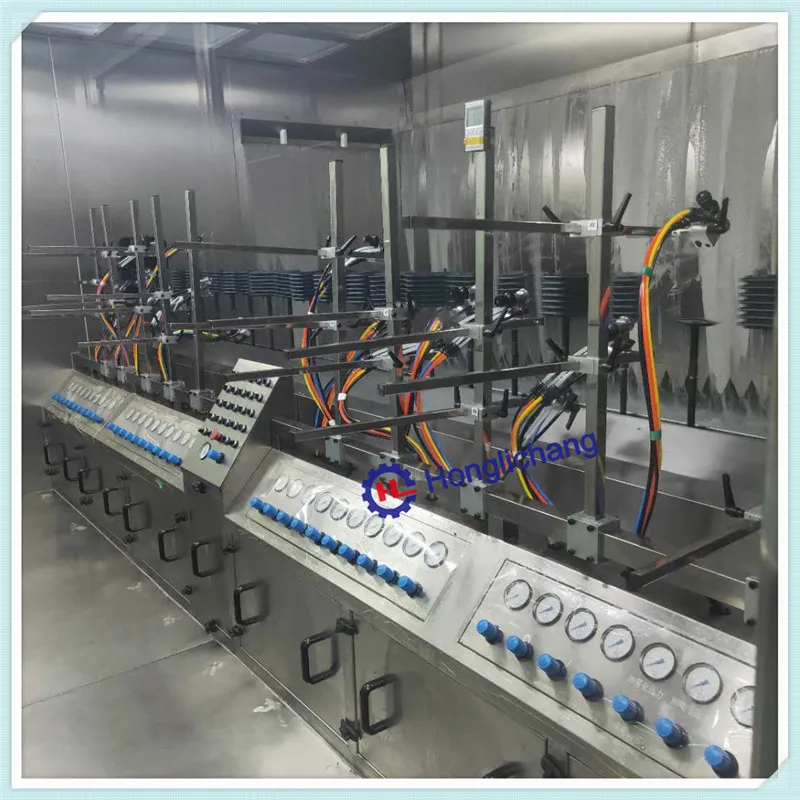

Spray Booth

              • Size: 4.0*3.6*2.4m
              • SS structure: SS304
              • Water Tank: SS304
              • Explosion-proof lighting system
              • HEPA Filter: efficiency 99.99%
              • Exhaust fan, Air volume-15000 m³/hr
              • With explosion proof glass  observation window
              • Spray Gun: IWATA
              • Paint Pump: GRACO


Painting Robot

              •  Brand: FANUC, USA make
              •  Axis: 6
              • Spray: inline tracking spray
              • Explosion-proof: Yes


Rotation Unit

              • Rotation sysem: 2 sets
              • Gun Stand: SS (with scale) and angle variable
              • Motor: 0.375KW
              • Photo Sensor

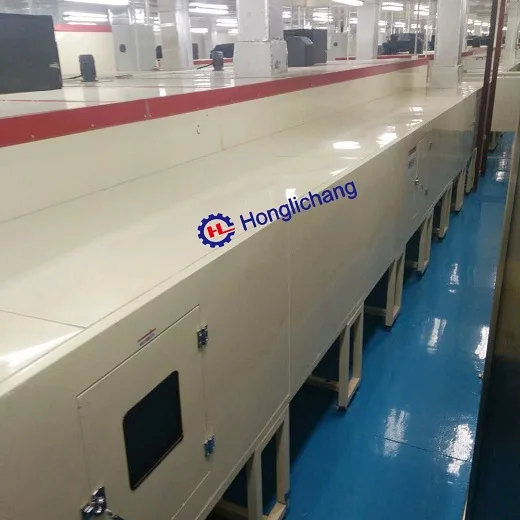

Paint Baking Oven

              • IR tunnel oven and UV curing oven
              • Temp.: 50-90 degree
              • IR Heater and UV lamp
              • Mirror finished SS inner cladding
              • Insulation: T50mm thermal panel
              • SCR unit for power saving


Control Panel

              • HMI
              • overload alarm
              • interlock for security
              • MCCB: international brand
              • VFD: well-known brand


              • PLC: international brand



Vacuum Metallizing Automatic Painting Spray Gun Machine UV Coating Line
1. uv spray painting line with NCVM
2. UV base coat and UV top coat for this spray painting line
3. low pressure spray guns with diaphragm pump for this UV spray painting line
4. flashoff zone, IR oven and UV curing oven for this UV spray painting line
5. UV painting lines with 10K clean room
6. UV spray painting line with spindle conveyor and VFD control
7. air handling unit attached with spray painting line
8. deionizing booth with clean class 10K for UV painting line
9. spray painting booth with full SS for this UV coating line
10. high output, high quality and low rejection for dustfree automatic UV painting line





Hot sale


Process





Company Information


FACTORY 1.jpg


08





Packaging & Shipping


3725





FAQ





 FAQ


 Q1:Are you trading company or manufacturer?


  A1:We are 100% manufacturer,professional supplier of spray painting line for over 12   years.





Q2:How hong is your delivery time?


 A2:Generally it is 40-45 workdays,it is according to the layout.





Q3:What is your terms of payment?


 A3:Multiple,we can disscuss.





 Q4:What is your Pre-sales service?


 A4: *Inquiry and consulting support.


        *Technology solution and quotation.


        *Customer visit our factory and check our production.





Q5:Where is factory? Can visit?


A5:Yes, you are most welcome.


Office: A901, Building No.2, Tianan Digital Park, Longgang, Shenzhen, China - 518172


Factory: 11, Phase-2, Butterfly Ridge Industrial Park, Heyuan, Guangdong, China - 517583





Q6:Could you provide the design for me?


  A6:Absolutely,we can.We are a manufacturer and designer.Just let me know your product informations and requirements like product sizes,pictures,material,output,field map,technological process,or price budget and so on.We will make a layout according to your requirments.
