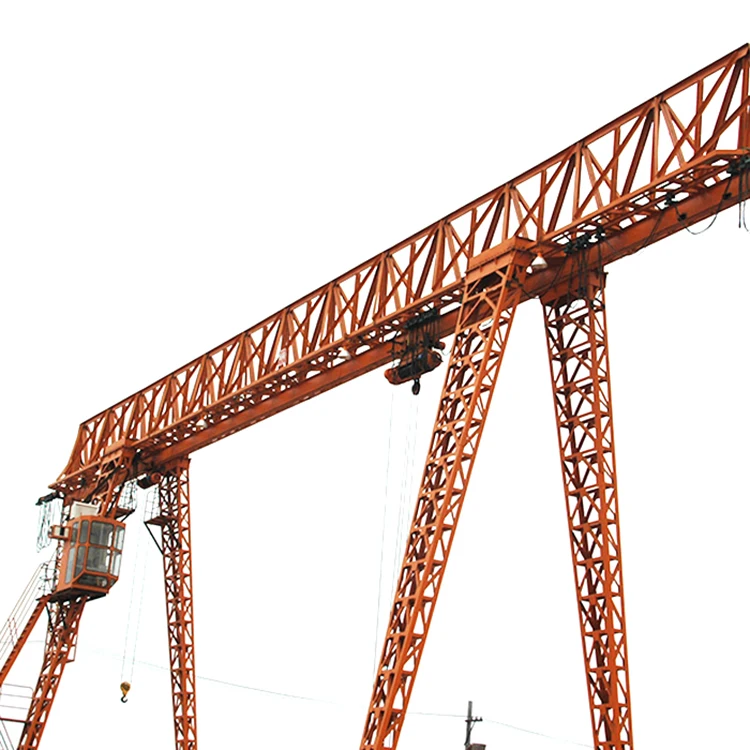

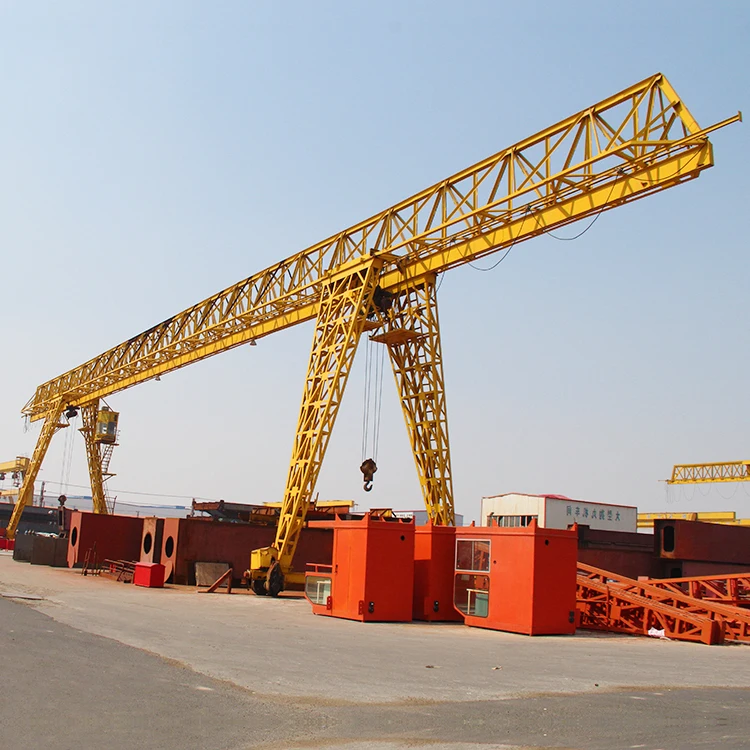

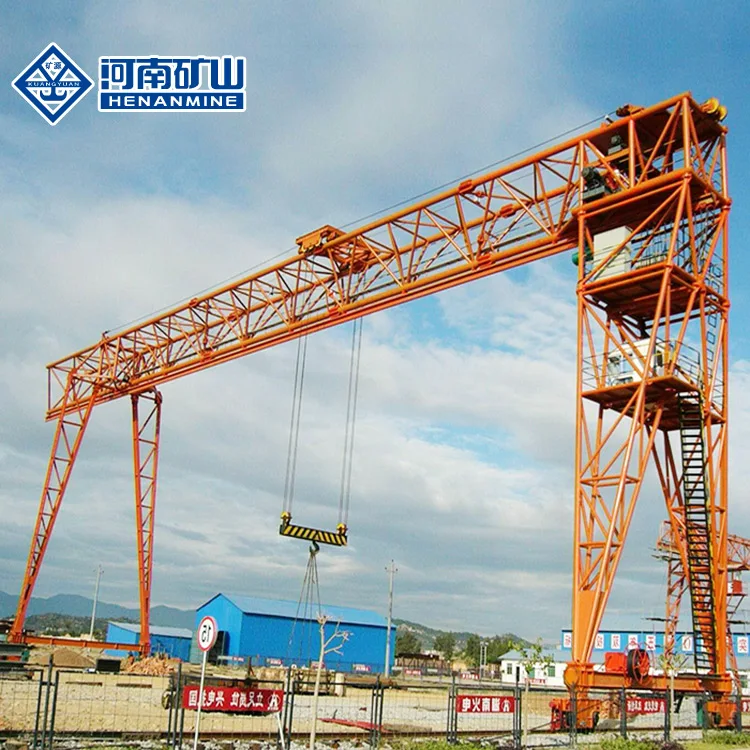

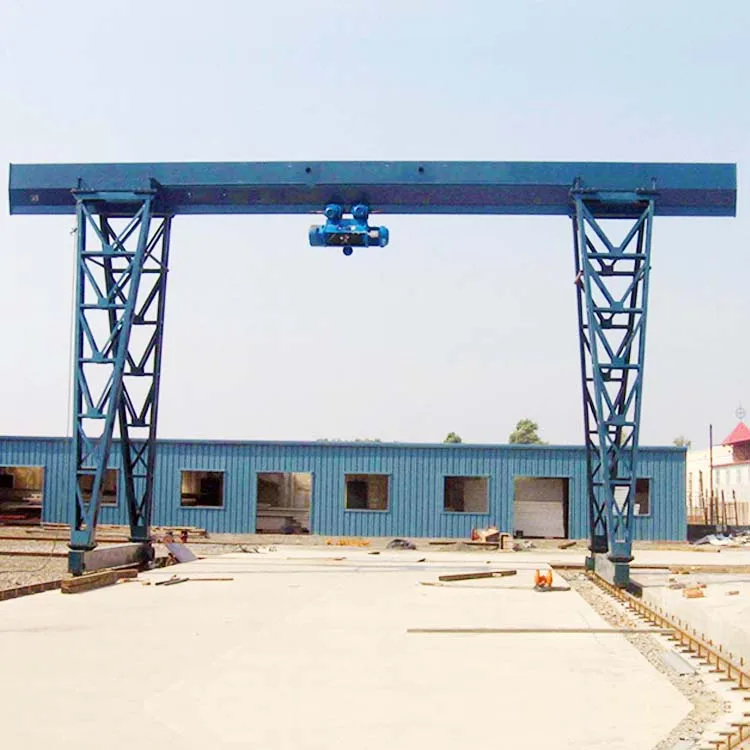

Truss Type Single Girder and beam Gantry or Goliath or Frame Crane with Electric Hoist
- Category: Gantry Cranes >>>
- Supplier: Henan Mine Crane Im&Ex Co. Ltd.
Share on (62094348600):
Product Overview
Description
FEATURES AT A GLANCE
Truss Type Single Girder and beam Gantry or Goliath or Frame Crane with Electric Hoist
MH type single girder gantry crane has box type and truss type, the former have good techniques and easy fabrication, the latter is light in dead weight and strong in wind resistance. For different usage, MH gantry crane also has cantilever and non-cantilever gantry crane. If have cantilevers, the crane can load the goods to the crane edge through the supporting legs which is very convenient and high efficiency.
Main Features of MH model Gantry Crane:
1. Simple and compact structure, steady performance.
1. Simple and compact structure, steady performance.
2.Four legs traveling on the ground through rail,steady performance.
3.Outdoor using, truss type is especially for the windy outdoors.
9.Full safety system as follows:
3.Outdoor using, truss type is especially for the windy outdoors.
9.Full safety system as follows:
Hook with safety latch.Weight overload protection
Emergency stop system,Over current protection,Short-circuit protection .Phase sequence protection,Zero position protection,Voltage loss protection
Anti-collision Limit switch and stopper for crane long traveling and cross traveling
Overhigh lift and overlow lift limit switch
Sound and light alarm devices,
Equipped with rail clamp.
Emergency stop system,Over current protection,Short-circuit protection .Phase sequence protection,Zero position protection,Voltage loss protection
Anti-collision Limit switch and stopper for crane long traveling and cross traveling
Overhigh lift and overlow lift limit switch
Sound and light alarm devices,
Equipped with rail clamp.

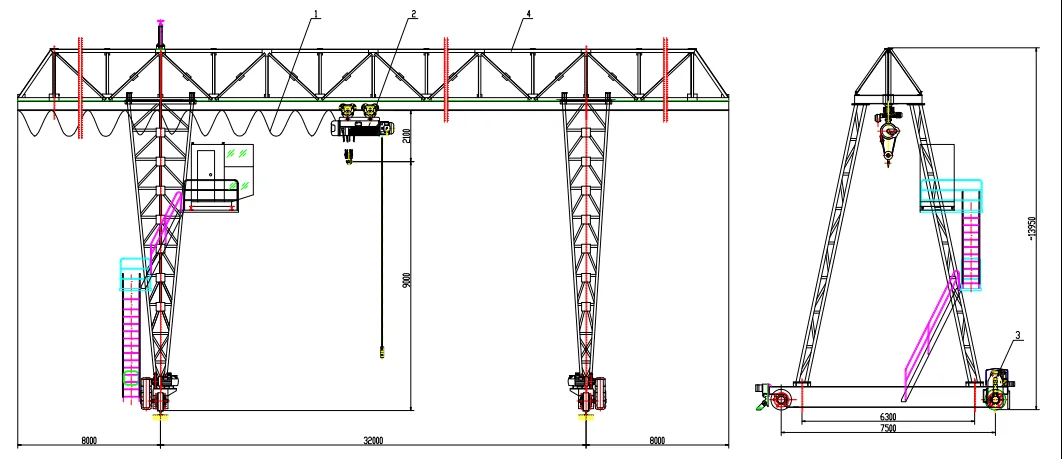

PRODUCT CONFIGURATION
Main girder
Hoist
Outrigger
Wheels
Hook
Wireless Remote Control
PRODUCT SPECIFICATIONS
Rated load/ton | 5 | 10 | 16 | 20 | |||
Span/m | 10-30 | ||||||
Lifting height/m | 6/9 | ||||||
Working class | A3/1bm | ||||||
Lifting speed/m/min | 8 | 7 | 3.5 | 3.5 | |||
Trolley running speed/m/min | 20 | ||||||
Crane running speed/m/min | 20 | ||||||
Dead weight/t | 10.5-37.5 | 16.8-52 | 18.9-65 | 24.5-77 | |||
Attention:
Safety is the most important issue for cranes.
Safety is the most important issue for cranes.
1. Our safety device for MH type overhead crane: Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar prevent plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and others you required.
2. To ensure the safety, it is prohibited to use the equipment in the combustible, explosive or corrosives environment.
(Need explosion proof type for this, please refer to our related product).
RELATED PRODUCT
COMPANY PROFILE
Certifications:
We have passed CE, GOST, SGS, and OHSAS & ISO9001:2000 international quality control, ISO14001:1996 environment and ISO9001:2001 health and safety certifications. We have a perfect quality-control system, a strict management system, and strong production capability and advanced testing measures to ensure the high production and high quality.
Customers visit
Click it you can find our all customers cases.
PRODUCT PACKAGING
Main Girder
Girder will be packed with water-proof plastic woven cloths and shipped with containers.
Spare parts
Electric and other spare parts are packed by high quality plywood crate.
FAQ
Q1: What's the information should I provide when inquiry?
A1: More details or drawings, better.
A: Lift capacity B: span C: lift height D: power source or other specials you give us will be more appreciated.
Q2: What do Henan Mine Crane do?
A2: We design, manufacture, install overhead crane, gantry crane, port crane, hoists, winch and provide customer lifting solutions.
Q3: What makes you different from other manufactures?
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
A3: We have trained service technicians who will be able to get your material handling equipment up and running and have been providing our customers and effective service solution.
Q4: What area do you service? How can we install the crane?
A5: We mainly service in China and our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.
Q6: Can this type work in hazardous environment?
A7: Sure! We can customize for you, acid proof or explosion proof, no problem for that.
Q8: Can you provide the various lifting tools?
Q8: Can you provide the various lifting tools?
A8: Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!
