Fuel Tanker API Adaptor Valve Loading And Unloading Valve Dust Cap

Product Overview

Description

Description

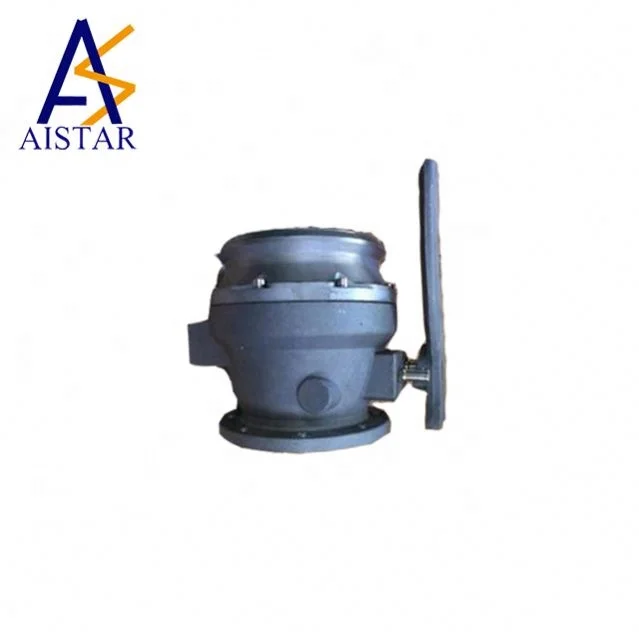

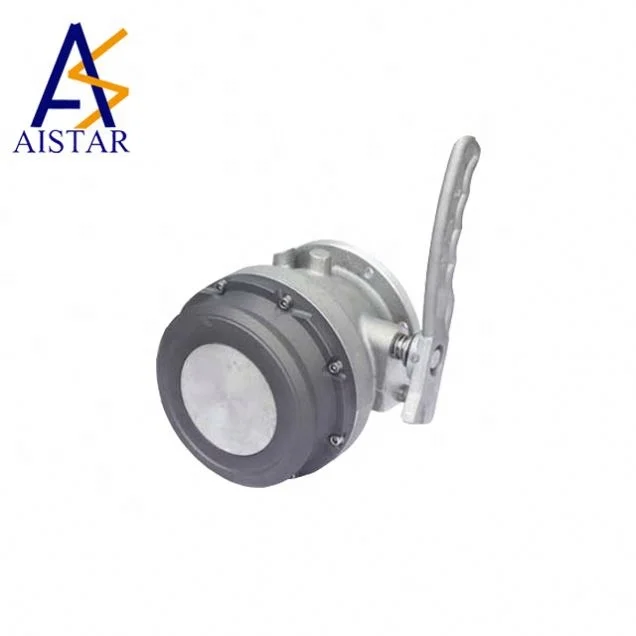

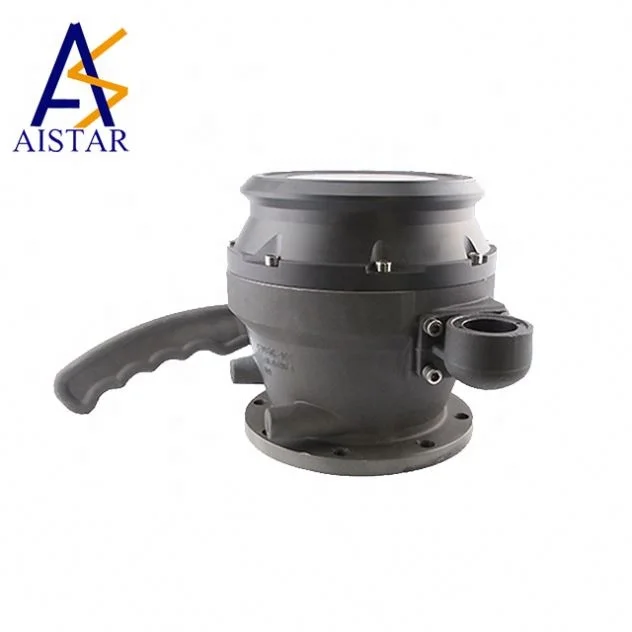

4"Aluminum API Adaptor is installed on the bottom of tank truck for quick unloading and connecting.

Characteristics

• Flat bottom of valve body ensures of complete product drainage

    and minimized contamination.

• Hydrodynamic design minimizes the pressure drop for high flow

    rate.

• Light weight, die cast aluminum construction for increased

    payloads with strength.

• Two-stage fixed aluminum handle positively indicates valve

    position.

• Stainless steel operation shaft, cam & poppet stem for durability.

• Working pressure:0.6Mpa

Application

Gasoline, Kerosene, Diesel etc.



Usage:

API bottom adaptor is installed on one side of the bottom of the tanker for quickly loading and easily connecting. When loading the fuel, it is connected with API adaptor coupler tightly. When unloading the fuel, two-stage fixed handle control the flow rate and resist side pull effectively.

Precise design and manufacturing can be used in conjunction with any fittings. The whole body is passed a special hardening process to improve its service life, with excellent performance and aluminum structure. The automatic float lift valve design and copper bearing let it pen and close smoothly. It can meet specific and different bottom unloading needs, improve operating performance, save time and get maximum benefit.



Material:
Body: Aluminum alloy
Seal: NBR
Shaft: Stainless steel
Spring: Stainless steel
Bushing: Copper
Handle: Aluminum

Product Name	API Valve
Body Meterial	Aluminum alloy
Size	4"
Operating Method	Mechanical Fork
Working Pressure	0.6MPa
Medium	Gasoline, Kerosene, Diesel
Max Flow Rate	2500L/min
Temperature Range	-40~+70℃
Installment Mode	Flange connection
Seal	NBR
Standard	API004 and EN13083, flange meets TTMA standard





Features:

1. Aluminum alloy die-cast structure, anodized treatment.
2. Hydrodynamic design minimize pressure drop for high flow rate.
3. Stainless steel shaft/cam/spring to improve it's service life.
4. Two-stage fixed aluminum handle give positive indication of valve position.
5. Internal stainless steel structure to ensure strength and durability.

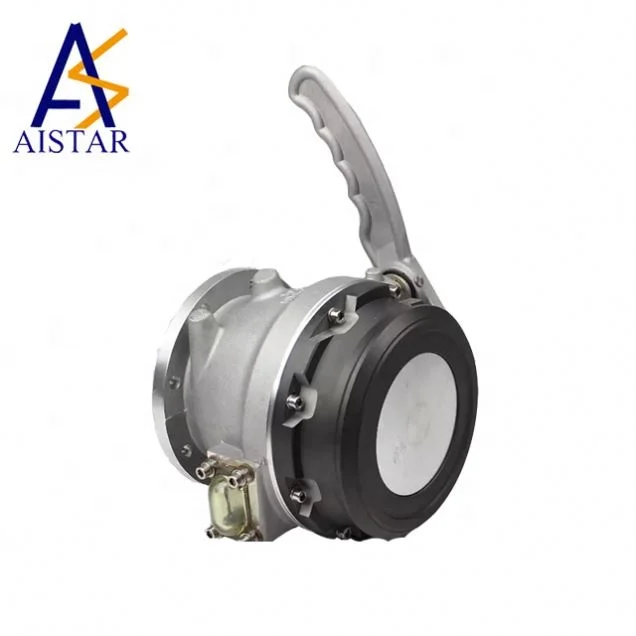

6. The operator can check the flow through the sigh glass.

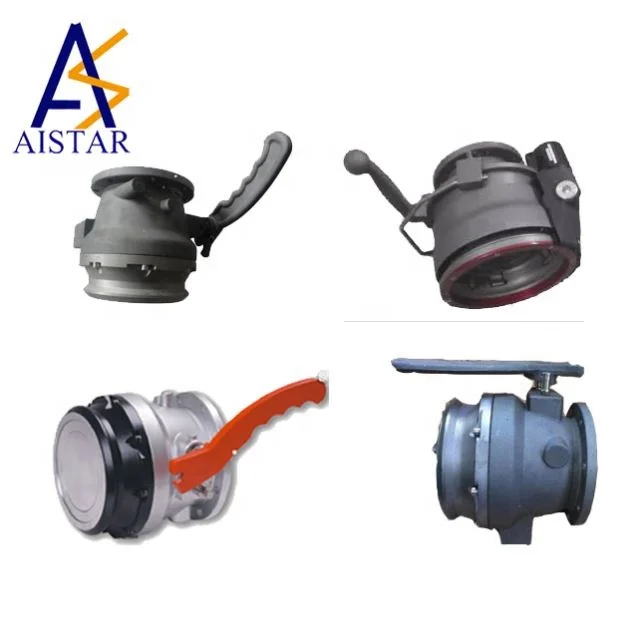

7. It can be direct replaced for many series of API adapters.
8. Top mounting for pneumatic interlock valve.
