Discharging sweco vibrating shaker screen spring bolts
The basic principle of Rotary vibration screen filter is the heavy hammer (unbalanced heavy hammer) installed in the electrical axis transform the motor’s rotary motion into horizontal, vertical, tilt motion (three-D movement) , then this movement passed to the screen surface. Adjusting the upper and lower ends of heavy hammer’s phase angle can change the trajectories of materials on the screen surface.
Application
Application of Discharging sweco vibrating shaker screen spring bolts
ØChemical industry: resin pigment, medicine, grease, paint, palette, etc. Ø Abrasive material and ceramic industry: building sand, mica, alumina, abrasive, refractory material, slurry, etc. Ø Food industry: flour, sugar, salt, sasame, date, alkali, gourmet powder, starch, milk powder, yeast powder, pollen, food additive, bean milk, juice, etc. Ø Paper-making industry: coated slurry, exhaust liquid, paper making liquid and waste water reclamation, etc. Ø Metallurgy and mining industry: quartz sand, ore, garnet sand,titanium oxide, zinc oxide, etc. Ø Mechanical industry: casting sand, powder metallurgy, electromagnetic material and metal powder, etc.
Technical Parameters
Parameters of Discharging sweco vibrating shaker screen spring bolts
Model
Dimensions(mm)
Weight(kg)
Vaild diameter(mm)
Valid area(m²)
Inlet/outlet diameter(mm)
Power(KW)
Height of frame(mm)
M400
580*580*560
55
350
0.0962
150/110
0.25
90
M600
800*800*750
98
550
0.2375
150/110
0.55
90
M800
900*900*750
158
750
0.4416
200/140
0.75
120
M1000
1160*1160*810
245
950
0.7085
250/150
1.47
120
M1200
1360*1360*885
330
1150
1.0382
250/170
1.84
140
M1500
1850*1850*990
478
1430
1.6052
280/180
2.20
170
M1800
2200*2200*1050
690
1730
2.3494
350/220
3.70
170
Detailes of Product

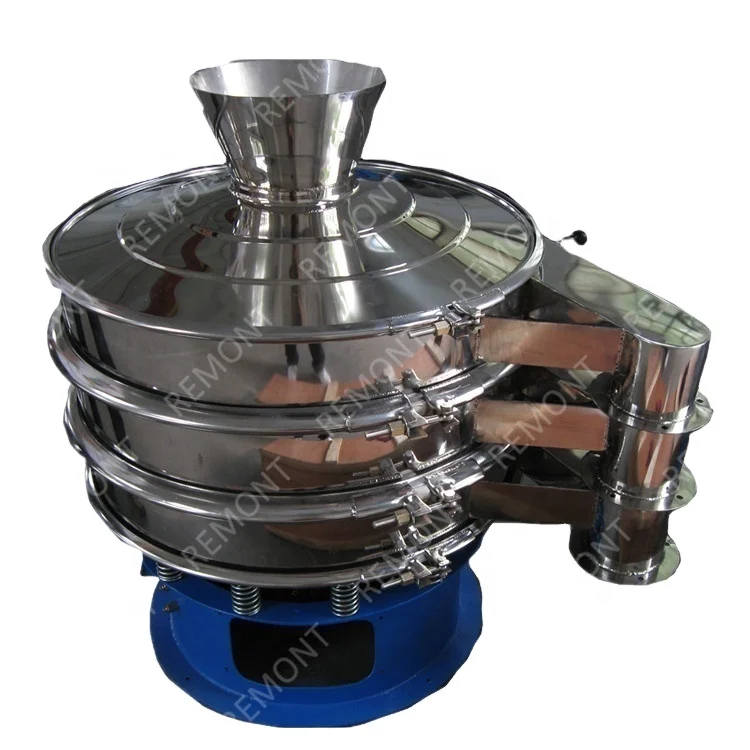

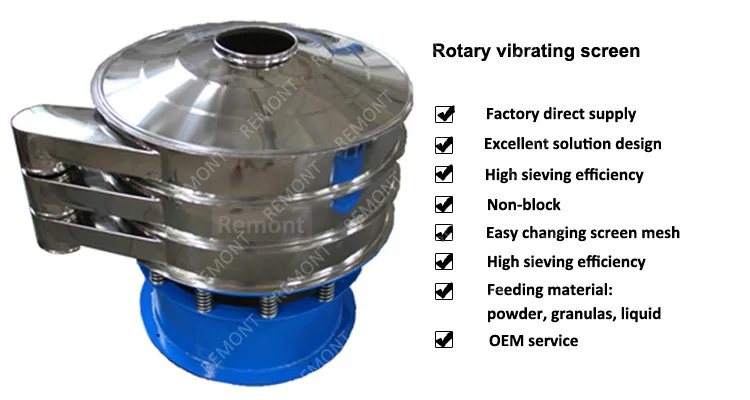

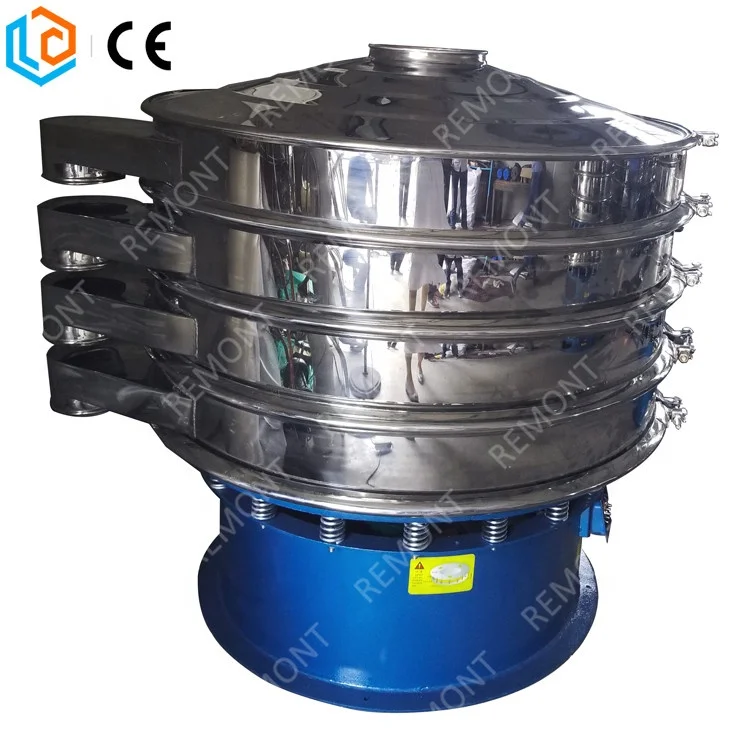

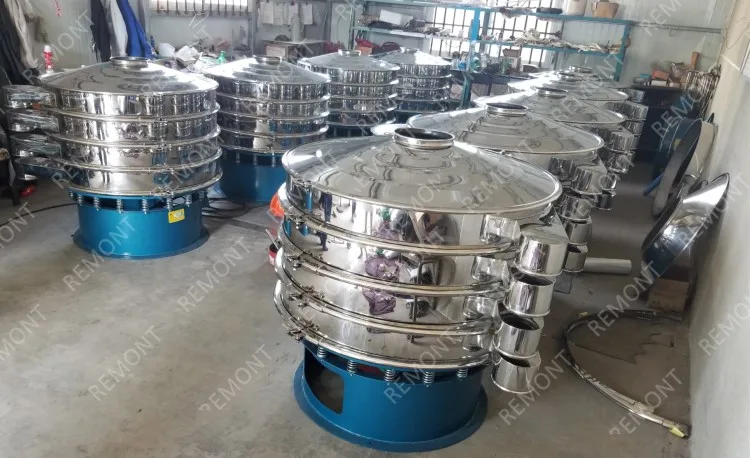

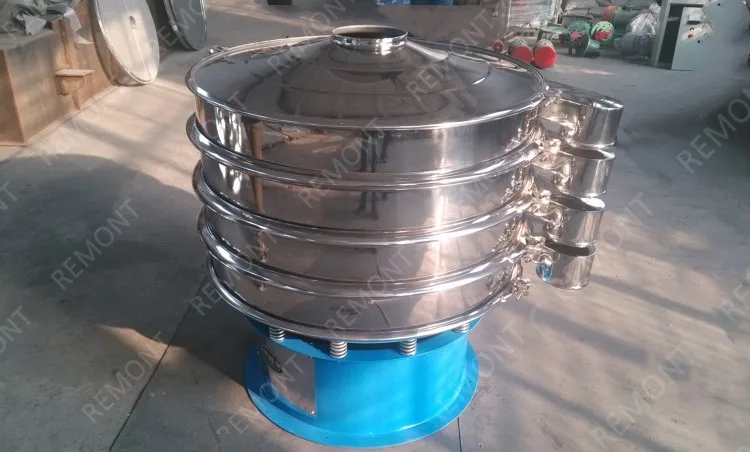

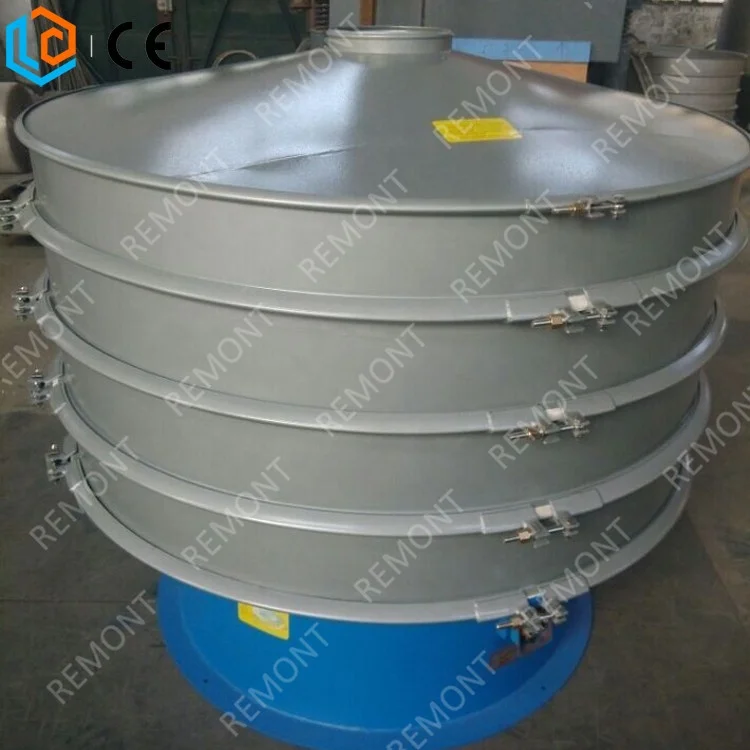

Detailed Images of Discharging sweco vibrating shaker screen spring bolts
Packaging & Shipping
Company Information
*We are the leading manufacturer specialized in designing and manufacturing rotary vibrating screen in china with the experience of more than 20 years.
*Manufacturing according to the ISO9001:2008 quality control system guidelines.
* Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
* Workers are locals in china, low production cost.
Our Services
1. Vibrating Separator installation,Debugging.
Provide sand vibrating sieve machineinstallation files, technical data and related soft copies or videos etc.
2. Vibrating Separator warranty
The provider guarantee the carbon black vibration screen could meet production technical standard and performance requirements indicated in the contract.
Warranty: 24 months for the machine after delivery,12 months for the motor after delivery.
3. Vibrating Separator technical support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4. 24 hours website hot line service.
For big Circular vibrating screen order,to dispatch technician is negotiable. Aftersales Guarantee.
FAQ
Note:
How could you choose suitable one? Please answer the following questions.
1. What’s the materials to process?
2. What’s the feature of the materials? Like density, moisture degree,input particle size and output particle size.
3. How many layers do you need ? And what’s the screen mesh about each layer?
4. What’s your capacity per hour?
5. What's material for the machine?Stainless steel or contact part stainless steel or carbon steel??
6. Other special requirement.
