API oilfield production sucker rod pump and tubing pump high quality
- Category: >>>
- Supplier: Dongying Kangya Petroleum Equipment Co. Ltd.
Share on (62094634183):
Product Overview
Description
Product Description
Product Application

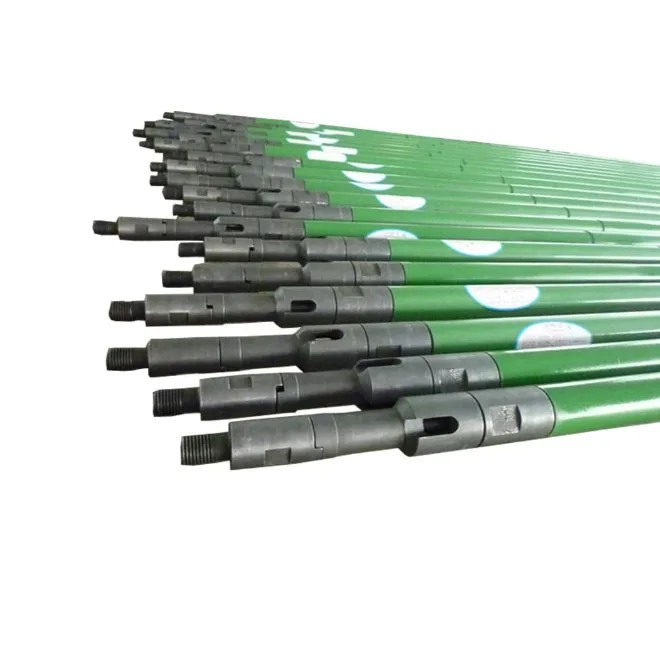

Sucker Rod Pump (Rod Type)
The whole pump can be assembled and connected to the lower end of the sucker rod on the ground, run into the well as a unit, and fixed in the tubing by seating nipple pre-fitted in the tubing at the required depth (pump setting depth). The workover operation time for a rod pump well is much shorter than a tubing pump well by at least 50%. Rod pump have three types, they are Traveling Barrel Bottom Anchor Rod pump, Stationary Heavy Wall Barrel Bottom Anchor Rod Pump and Stationary Heavy Wall Barrel Top Anchor Rod Pump.
Tubing Pumps
Tubing pumps are classified as high volume, heavy duty pumps. Maximum production can be expected with this type in relation to the size of tubing. However, because of the large plunger diameter, the fluid load will be greater than with an insert pump. Therefore, depending on the rod string and size of the surface pumping equipment, the depth at which a tubing pump can run is limited. The pump barrel serves as a section of the tubing. The plunger and traveling valve are run in the well with the sucker rods. The standing valve can be one of two types; fixed or retrievable.
Sucker Rod Pump(Rod Type)
Specification | Nominal Pump Bore (in) | Plunger Length(ft) | Max.O.D.(mm) | Rod(in) | Tubing (in) | Pump Constant (m3/d) | Stroke (m) |
20-112RHBC | 1.12 | 4~6 | 46.7 | 3/4 | 2 3/8 | 0.92 | ≤7.5 |
20-112RHBM | 44.7 | ||||||
20-125RHBC | 1.25 | 47.5 | 3/4 | 2 3/8 | 1.14 | ||
20-125RHBM | 44.7 | ||||||
25-150RHBC | 1.5 | 59.5 | 3/4 | 2-7/8 | 1.64 | ||
25-150RHBM | 55.6 | ||||||
25-175RHBC | 1.75 | 59.5 | 3/4 | 2 7/8 | 2.24 | ||
25-175RHBM | 55.6 | ||||||
30-225RHBC | 2.25 | 72.1 | 3/4 | 3 1/2 | 3.69 | ||
30-225RHBM | 71.7 |
Tubing Pumps
Pump designation | Pump Bore(in) | Length of Plunger (mm) | Range of Stroke (mm) | Pump Constant (m3/d) | Size of matched tubing (in) | Size of connecting Sucker Rod(mm) | Length of extension Coupling |
25-125 | 1.25 | 600-1200 | 600-1200 | 1.14 | 2-1/2 2-7/8 | 16 | 300-900 |
25-150 | 1.5 | 1.642 | 2-1/2 2-7/8 | 16 | |||
25-175 | 1.75 | 2.235 | 2-1/2 2-7/8 | 16 | |||
20-175 | |||||||
25-225 | 2.25 | 3.694 | 2002/7/8 | 19 | |||
25-275 | 2.75 | 5.518 | 2002/7/8 | 22 | |||
30-275 | 2.75 | 5.518 | 2003/1/2 | 22 | |||
30-325 | 3.25 | 7.707 | 2003/1/2 | 22 |
Certifications
Packing & Delivery
Company Profile
Dongying Kangya Petroleum Equipment Co.,Ltd.is a professional manufacturer and supplier of all types of petroleum equipment.The company is located in Dongying, the beautiful petroleum city at Yellow River Delta, covers an area of more than 330 million square meters.
And we have many years of history in the petroleum equipment industry.Our main products include drilling equipment,oil production equipment,wellhead equipment,well control equipment,downhole tools,OCTG pipe,\tvavle & pipe fitting and oilfield tools.
Currently,our products is already exported to America, Middle East, Australia,Africa and 20 other countries and regions.
Our company has always focused on research, development and innovation.Kangyapetro will initiate the second phase of our development strategy.Our company regards "reasonable prices, efficient production time and good after-sales service" as our tenet. We hope to cooperate with more customers for mutual development and benefits. We welcome potential buyers to contact us.
FAQ
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Western Union are the most usual ways we are using.
3) What's the order procedure?
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the order. We usually need 15-25days if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
