YK series Swing Granulator
- Category: >>>
- Supplier: Minhua Pharmaceutical Machinery Co. Limited
Share on (62094674483):
Product Overview
Description
Product Description

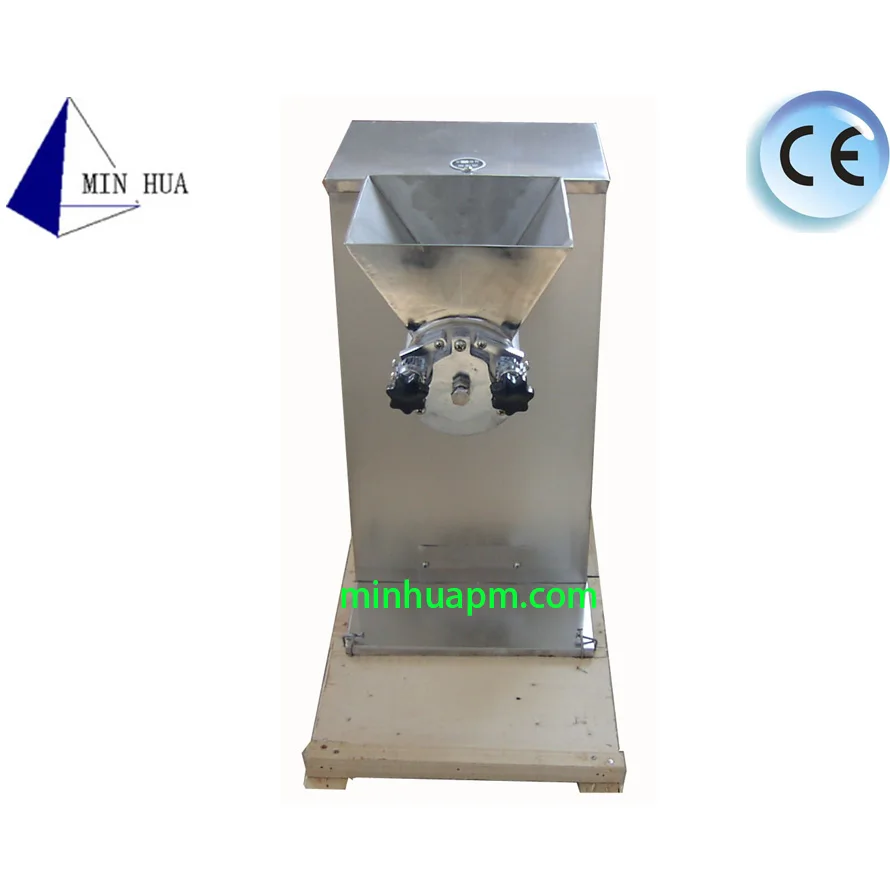

YK-60B Hot sales lab dryer granulator machine pharmaceutical
———Descriptions———

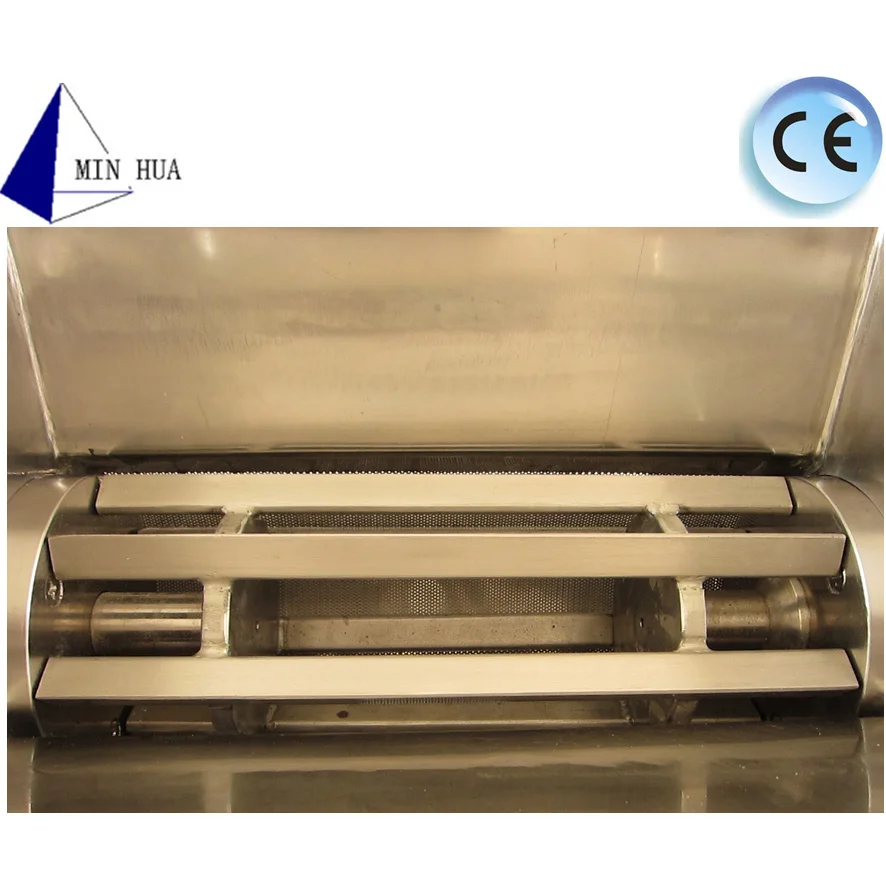

This machine makes use of the rolling motion of rotating barrel, granulates the wet
powdery materials into granule by sieve, it also can be directly used to crush the
agglomerate materials into small granule.
This machine is not suitable for solid, fluid medium, paste or pulverizing. The mesh size of meshed sieve should be based on the requirements of the size of granule, decided by the users. In chemical medicine field, it can be used to granulate the mixed powder into granule, and compressed granule into tablet after being dried. It also can be used to granulate the coagulated material that was formed during storage or during chemical processing. In food industry, it can be used to deal with the candy and sugar mixture as well as barley milk products. In other industries, it can be used to granulate such as porcelain and plastic mixtures into forming granules.
———Technical Parameters———
Model | YK-60 | YK-90 | YK-160 | YK-250 |
Production capacity(kg/h) | 20~30 | 50-100 | 300 | 500 |
Power of motor(kw) | 0.25 | 0.55 | 2.2 | 5.5 |
Revolution of roller(r/min) | 40 | 50 | 55 | 55 |
Swing angle(degree) | >360 | >360 | >360 | >360 |
Diameter of roller(mm) | Φ60 | Φ90 | Φ160 | Φ250 |
Overall dimensions(L x W x H)(mm) | 460x550x570 | 1000x800x1300 | 560x970x1200 | 1200*1000*1450 |
Weight(kg) | 70 | 150 | 380 | 700 |

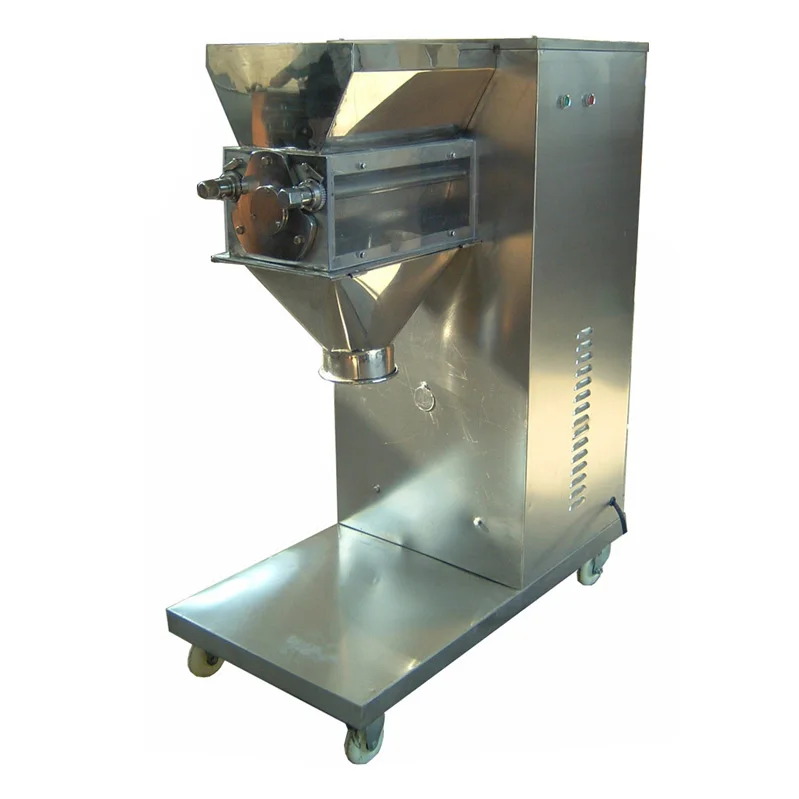

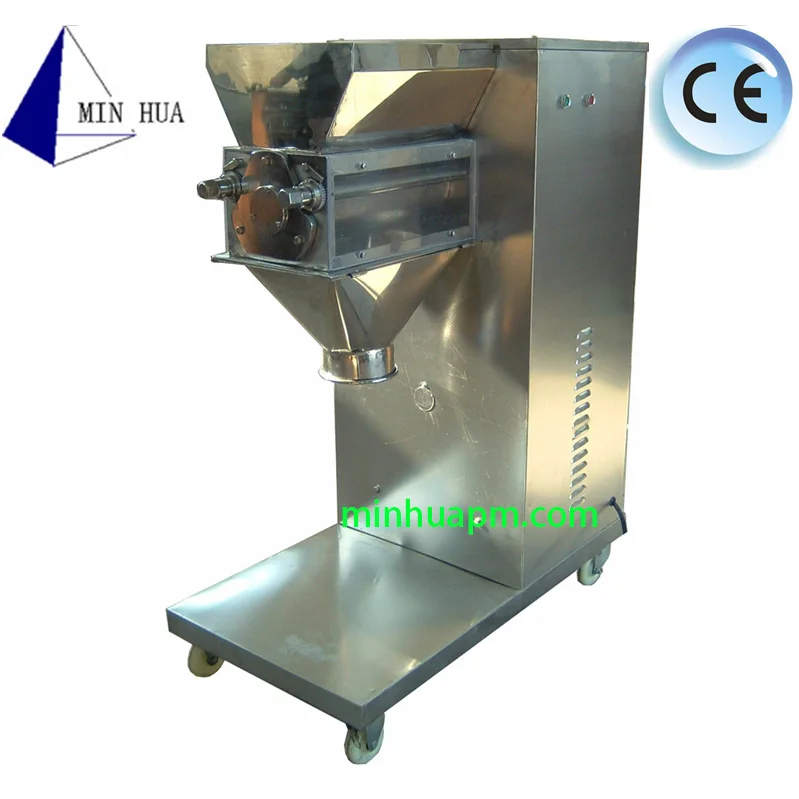

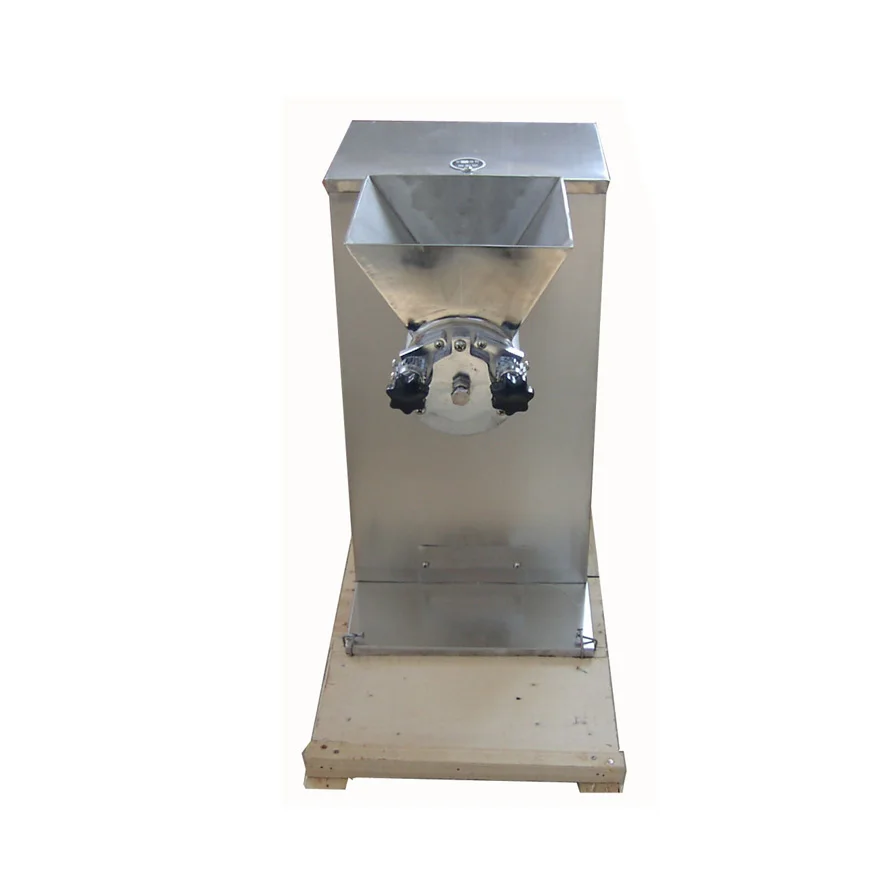

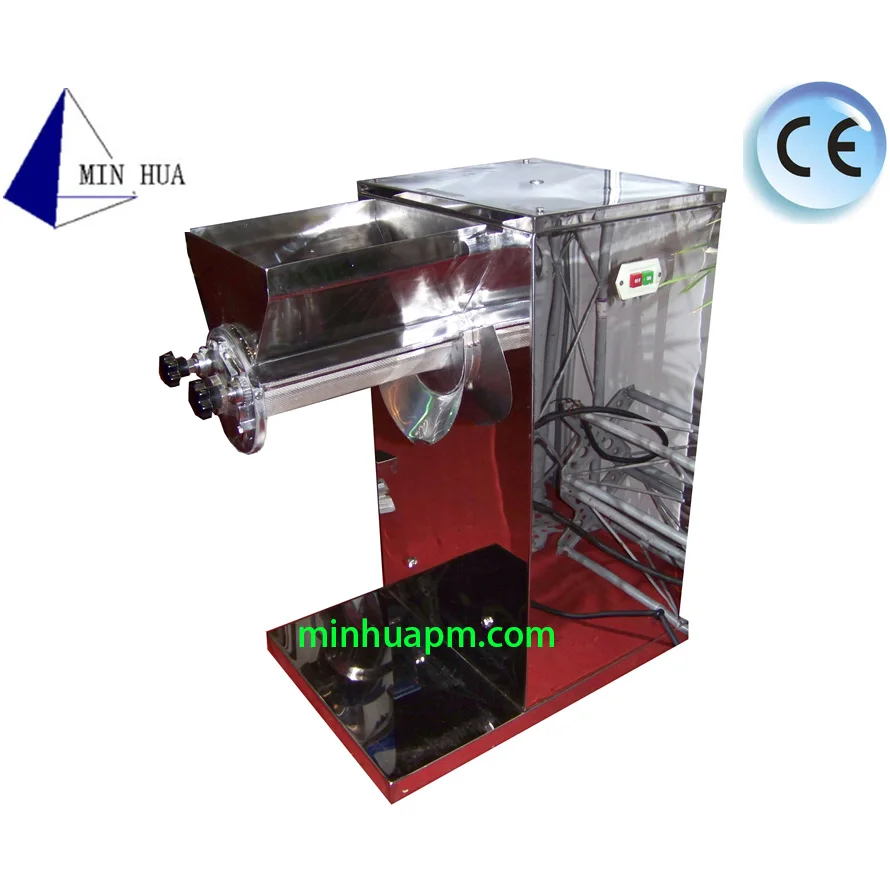

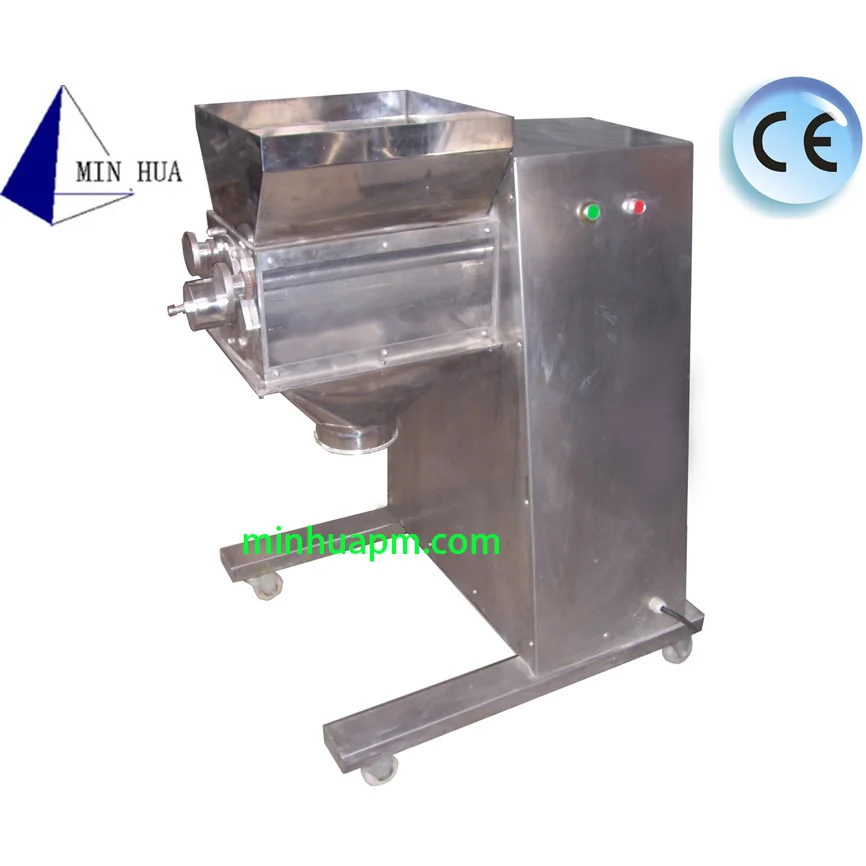

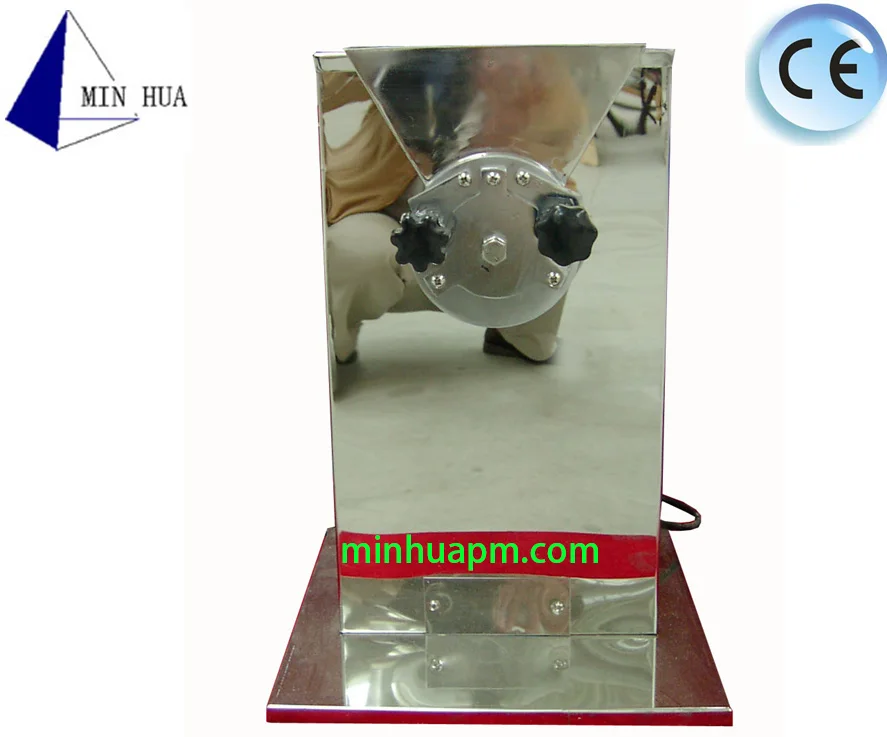

———Product image———
Features
——Features——
Feature 1 | The rotating speed of the roller can be adjusted during operation. |

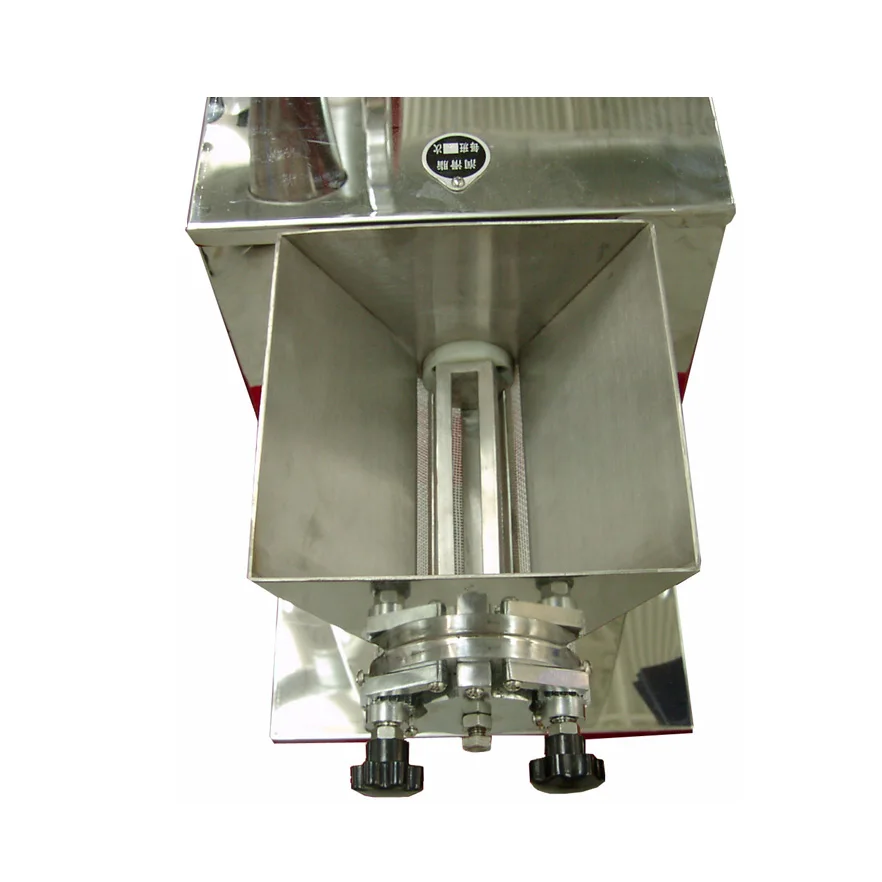

Feature 2 | The sieve can be removed and remounted easily; its tension is also adjustable. Operation is simply, low noise. |
Feature 3 | All parts are made of stainless steel, meet the GMP standard. |
Feature 4 | The driving mechanism is totally enclosed in the machine body and its lubrication system Improves the useful time of the mechanical components, easy cleaning and operation. |
