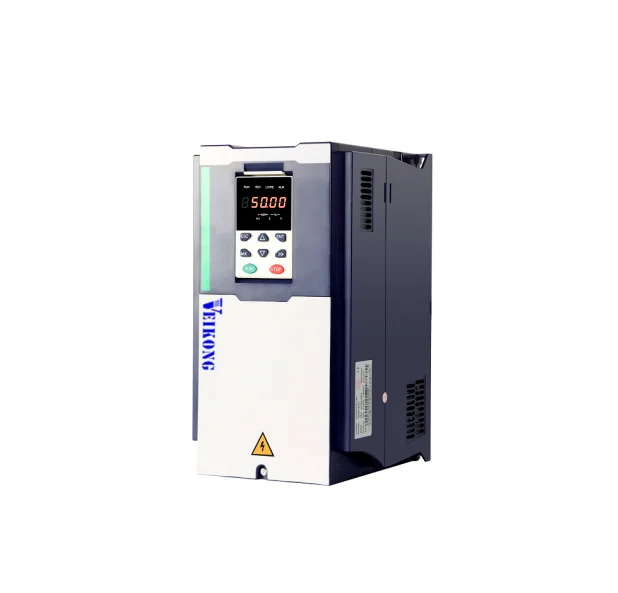

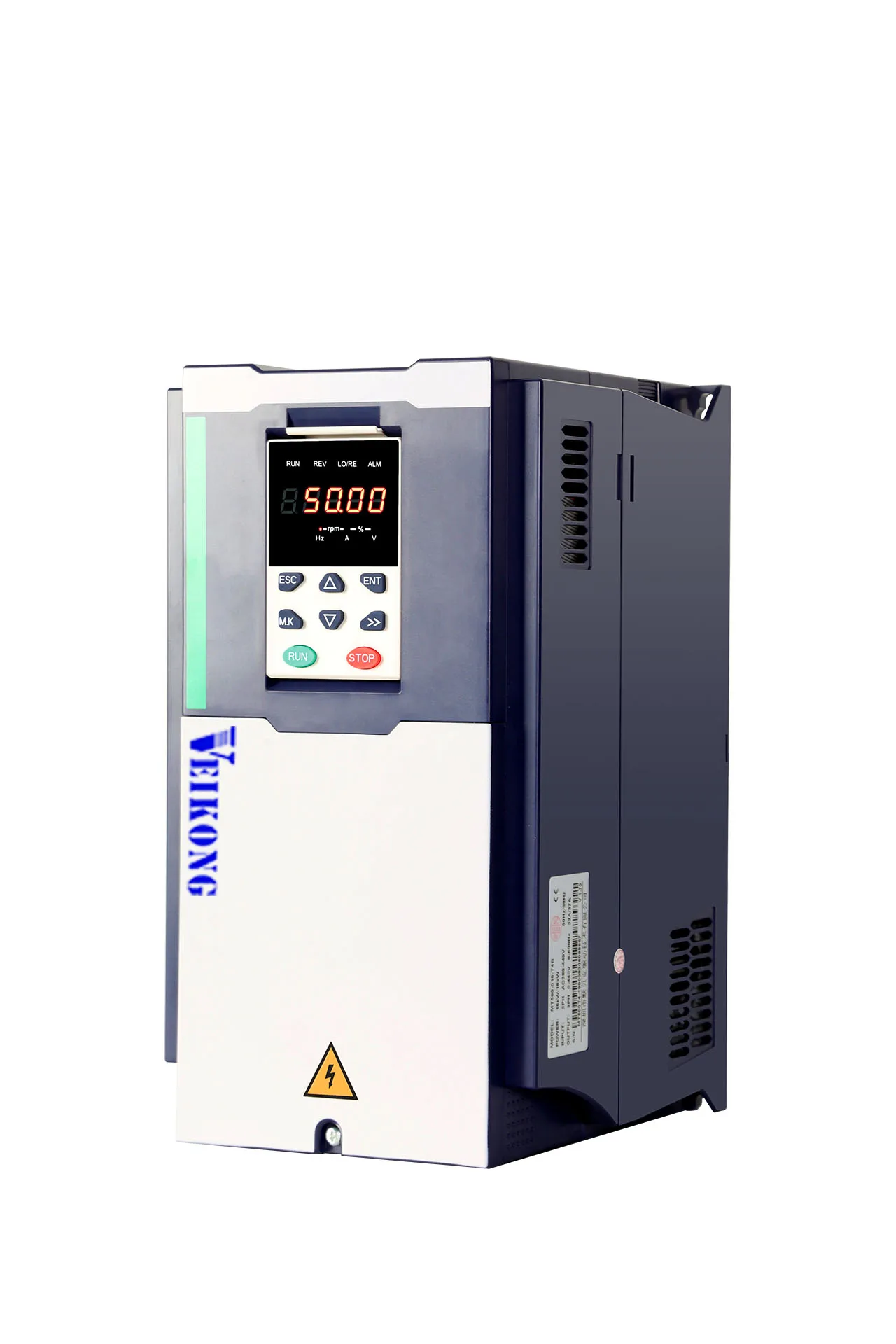

4Kw 380V Dc To Ac Hybrid solar pump inverter no Battery for submersible and surface water pump

Product Overview

Description

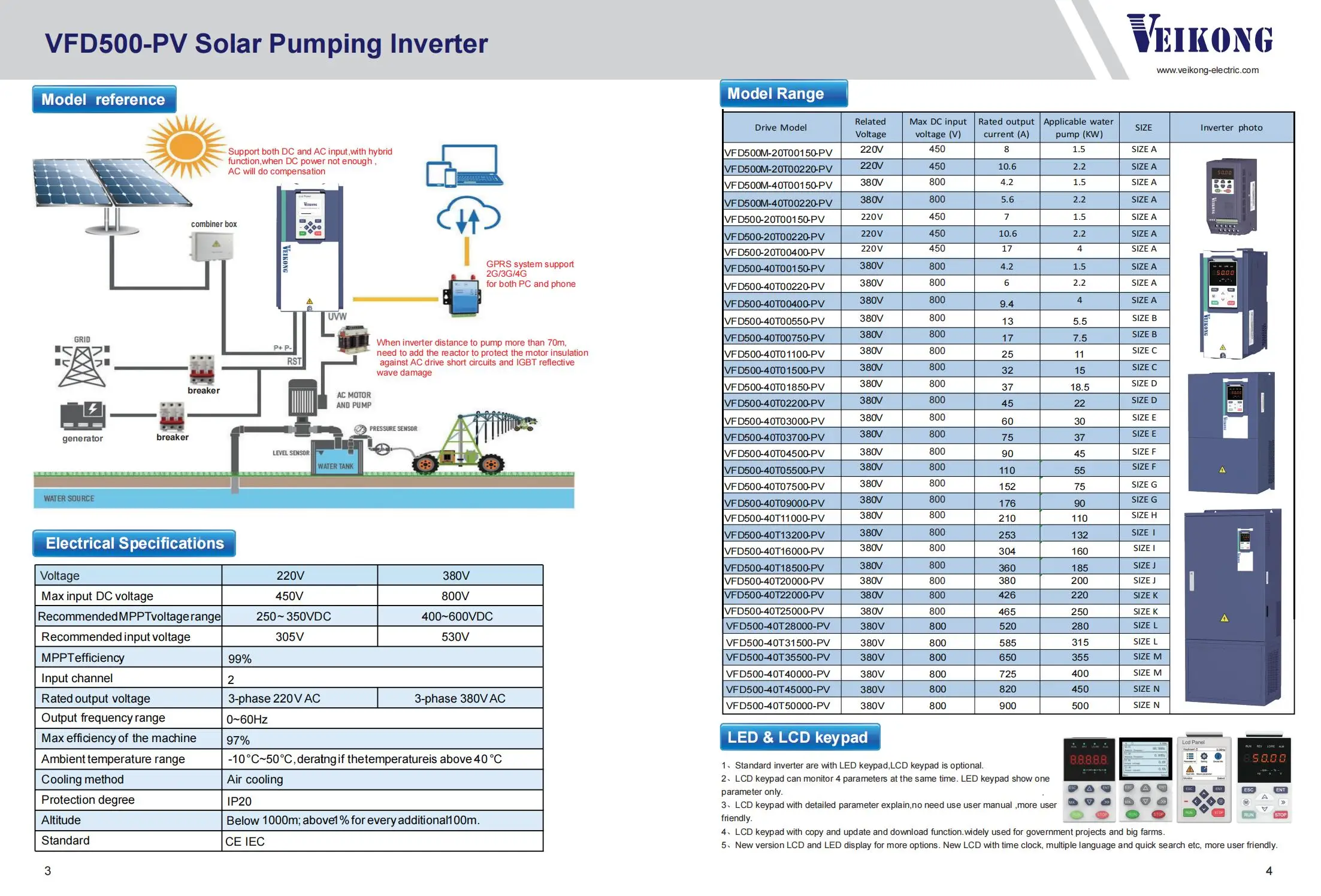

Product specification



	220V	380V
Max input DC voltage	450V	800V
DC voltage range	160~450VDC	350~800VDC
Normal working DC voltage	250V-400V	450V-600V
Recommended input mppt voltage	305V	530V
MPPT efficiency	>99%
Rated output voltage	1/3-phase 220VAC	3-phase 380-480VAC
Output frequency range	50/60Hz
Max efficiency of the machine	99%
Ambient temperature range	-10 °C~50 °C, derating if the temperature is above 40 °C
Cooling method	Air cooling
Protection degree	IP20/IP21
Altitude	Below 1000m; above 1% for every additional 100m.
Standard	CE/ROHS





Product features





1. Cover voltage levels 220V AC and 380V AC

2. Support single-phase 220V and three-phase 220V/380V pumps, the power from 0.4KW to 710KW.

3. Easy to use

4. The inverters automatically start or sleep only after being connected to solar battery panels without any

parameter setting.

5. Highly reliable for using multiple protective measures

6. Including PV over-voltage protection, PV polarity reverse warning,and auto derating against over-temperture,

which extend product life.

7. Use advanced MPPT algorithms, ensuring that the solar power tracking efficiency reaches 99%

8. Models of 2.2kW or lower can be configured with boost module, meeting low-voltage work requirements.

This reduces the use of solar battery panels and therefore the cost.

9. VFD500-PV series can implement auto switch between solar input and grid input by configuring the boost or

auto switching cabinet(meeting lightning protection requirements), implementing 24-hour unattended work.

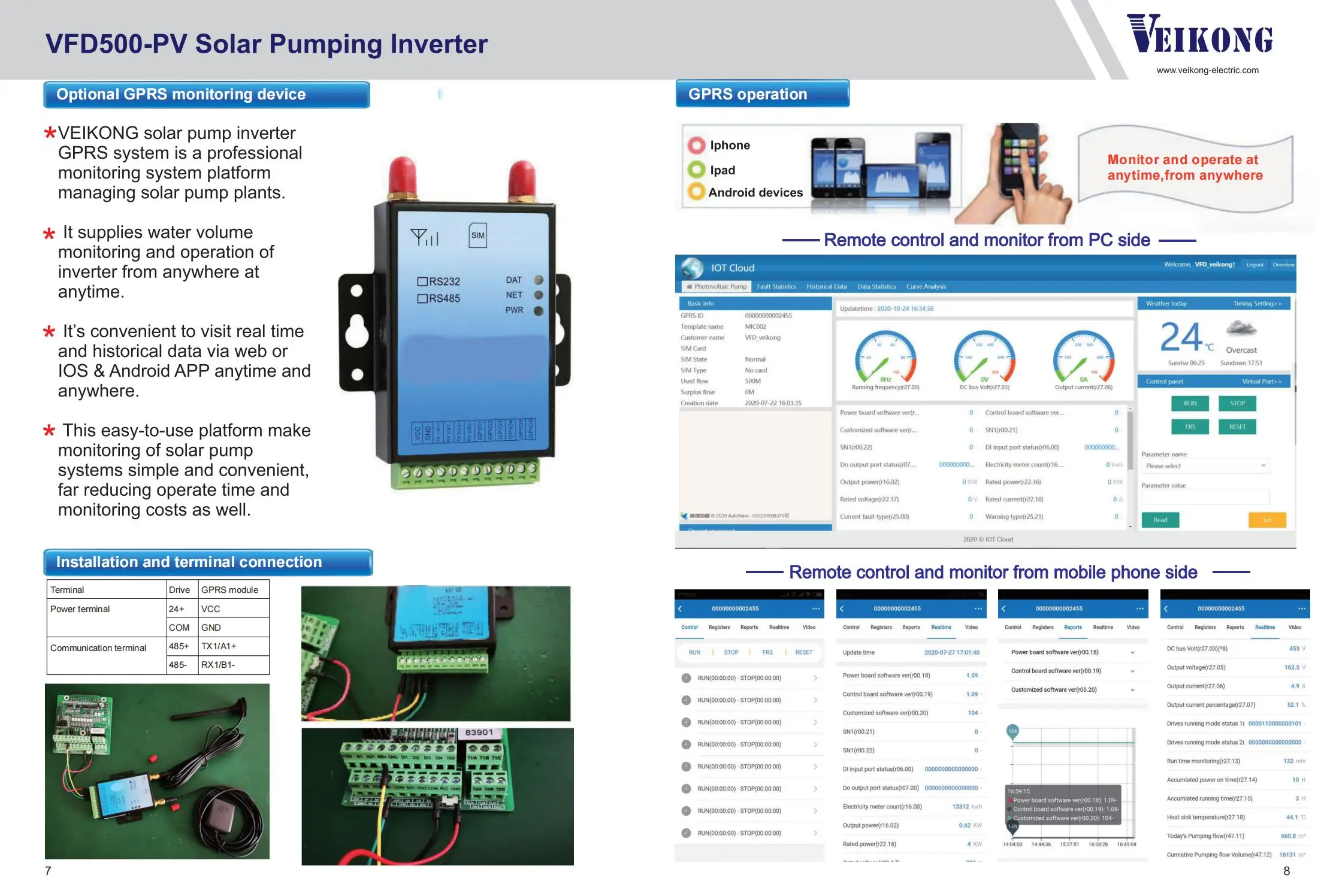

10. Support the configuration of the GPRS module, which implements remote parameter viewing and control by

using the mobile APP.

11. Support the cabinet solution for level IP54.

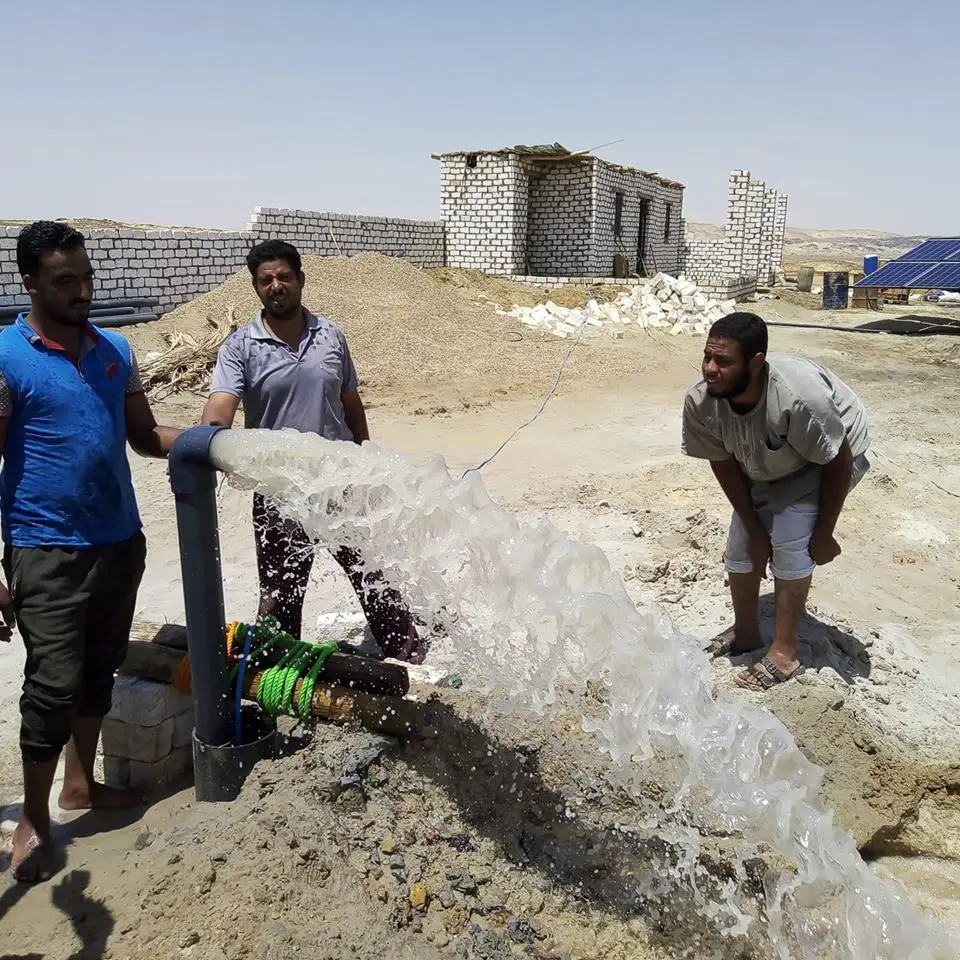

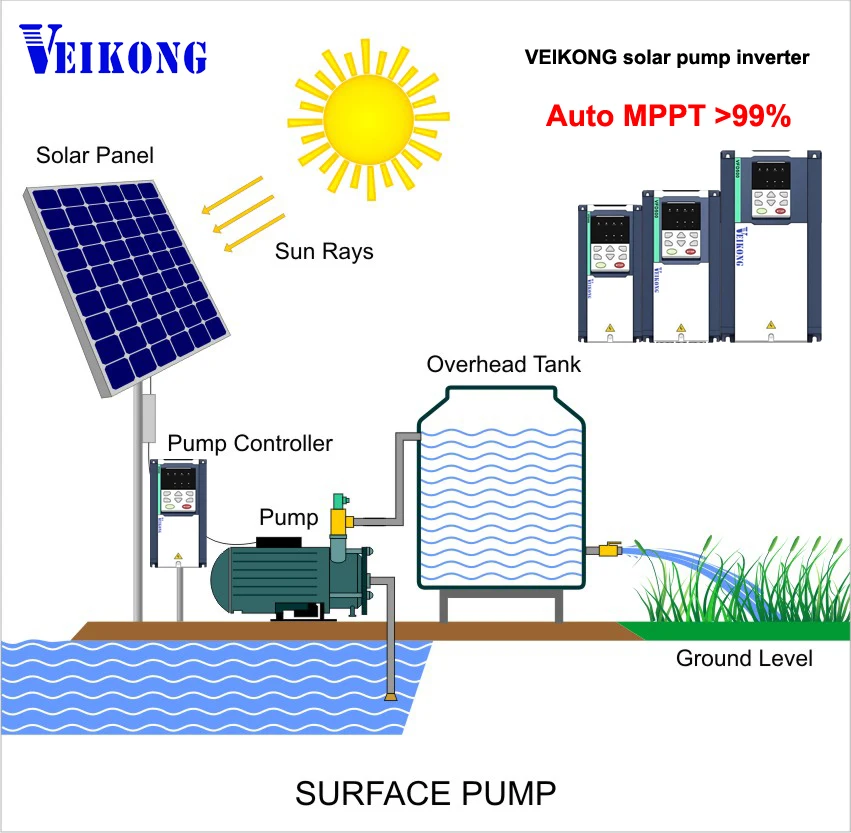

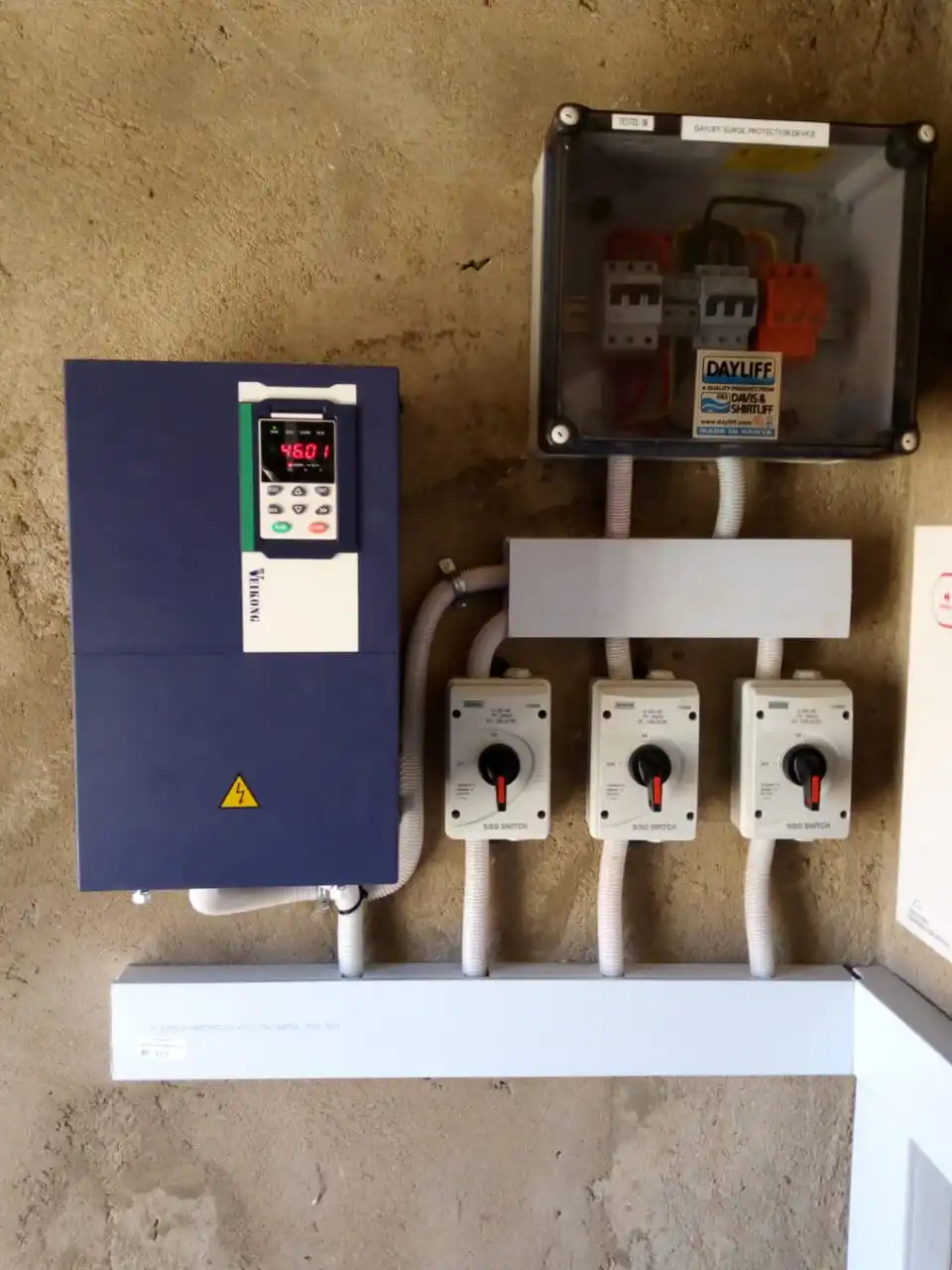

Product applications

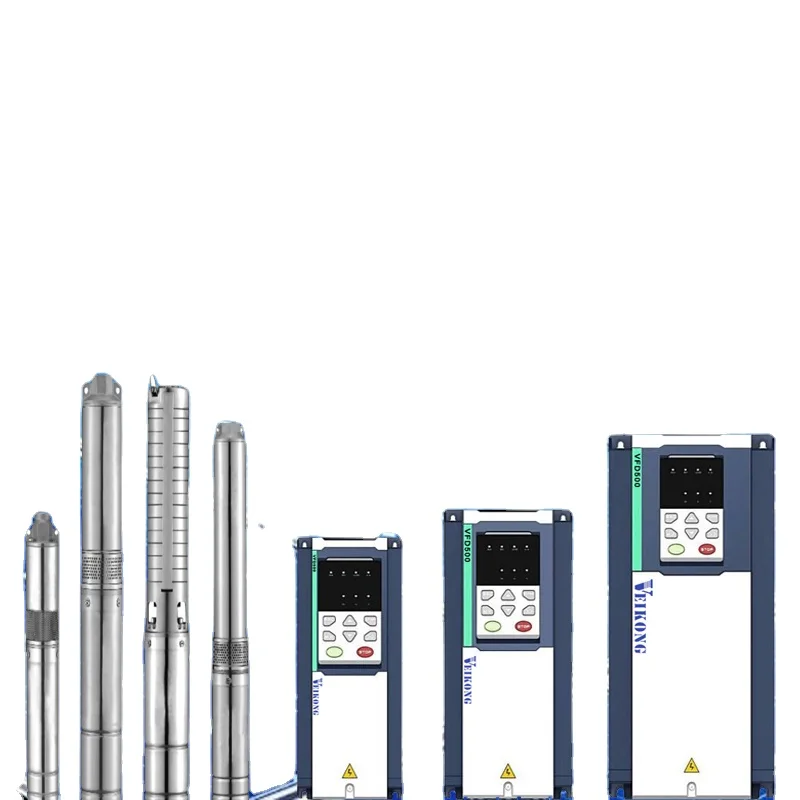

Product description





Certifications





Package



From 0.4KW-37KW, box package



From 45KW-710KW, wooden package



Our products are sold all over the world and have won praises from many customers



F & Q



1. What's the different between frequency inverter and solar pump inverter?

Frequency inverter is only accept AC input, it’s widely used in automated machines. But solar pump inverter

not only accept AC input but also can connect with solar panel to accept DC input, it more save power, mainly

used in solar pumping system.

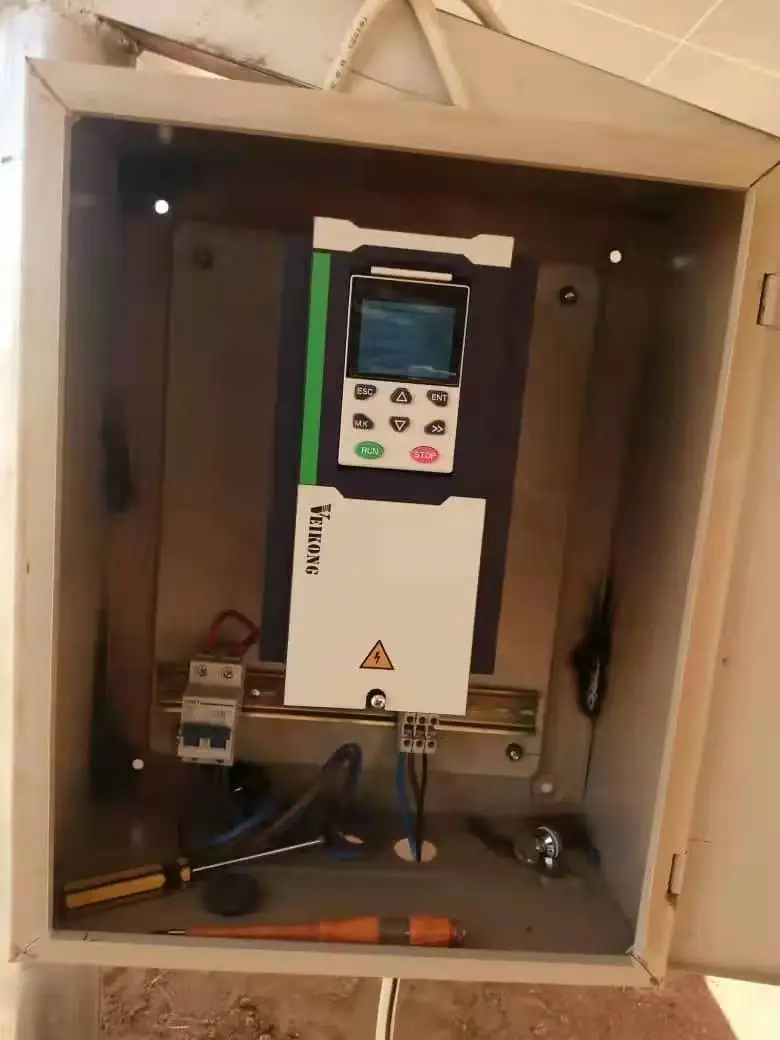

2. What should be noticed when installing inverter?

Put the product in a place where is well ventilate, cool, dry and water-proof. Do not stress or put foreign objects

into the inverter. Remember to turn on the inverter before turn on the appliance.

3. Do we need to set the parameter before using?

No need, our preset parameters can already meet your normal use.
And our inverter is AI intelligent working.
If you need to adjust the parameters yourself, you can do it in a few simple steps.
