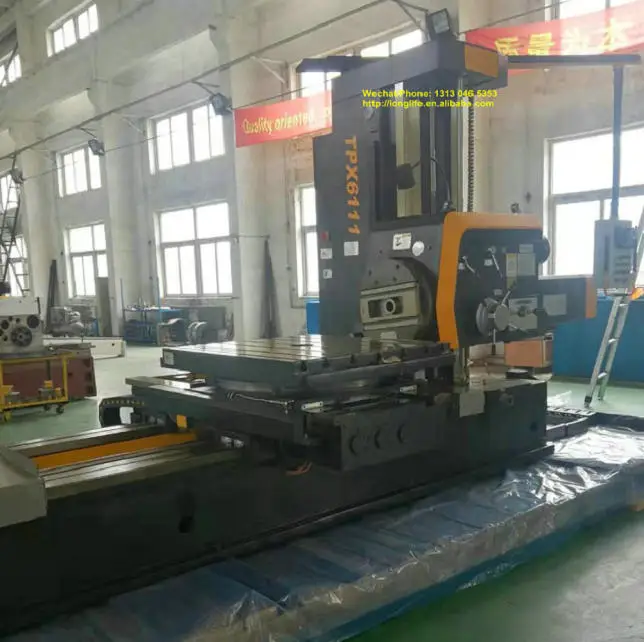

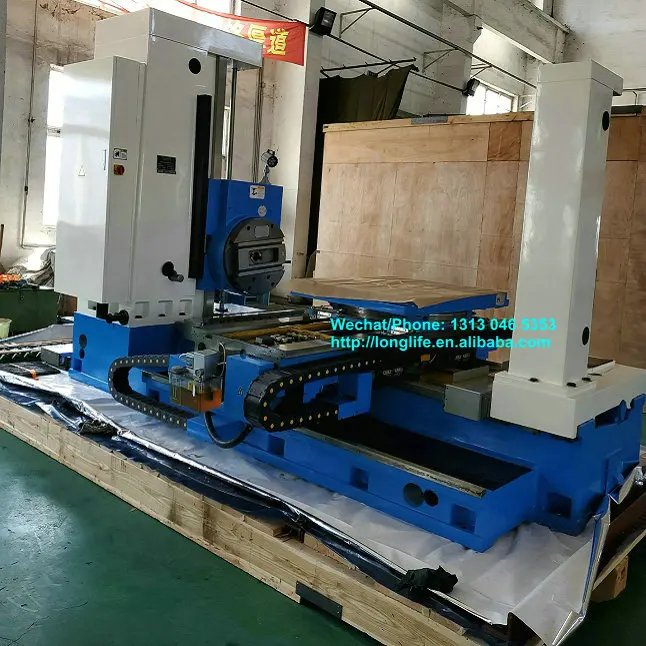

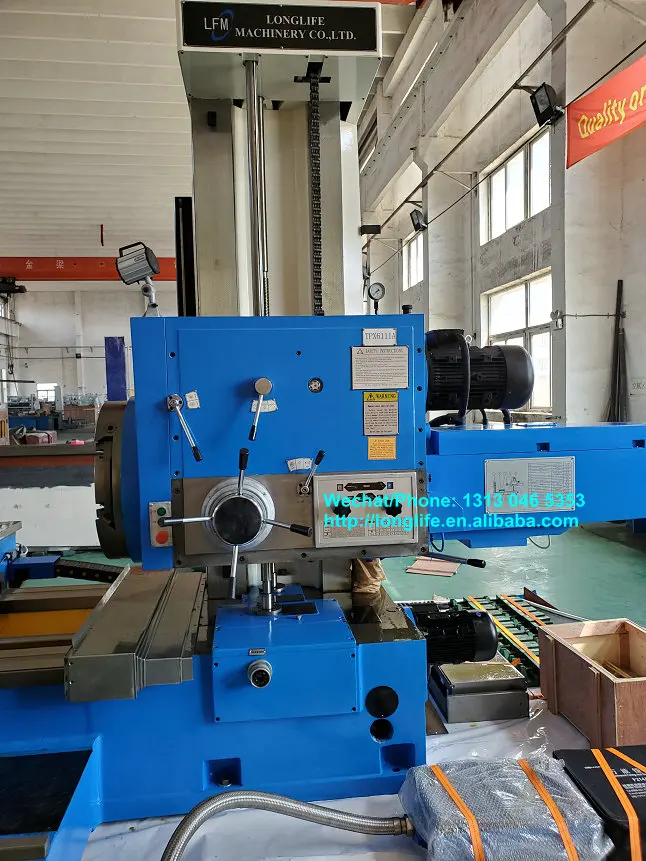

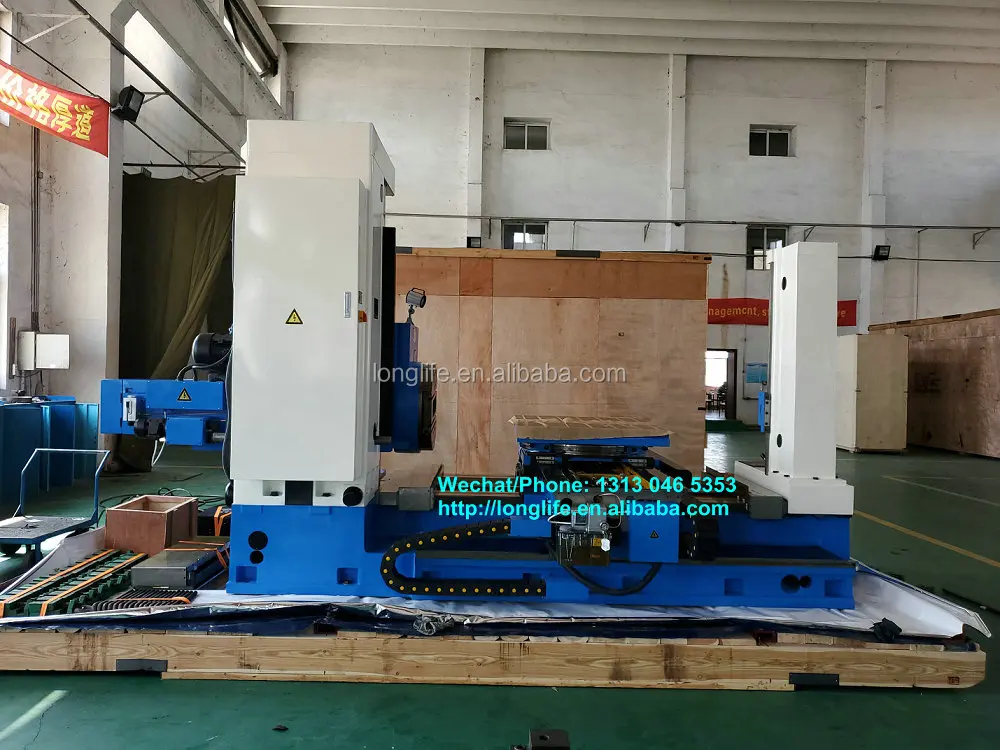

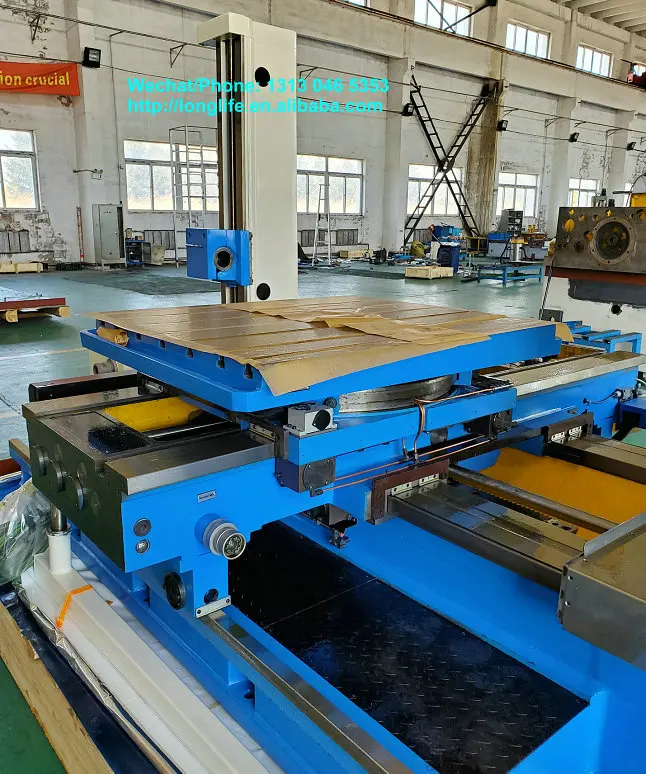

TPX6111/2 Horizontal Boring Milling Machine
- Category: >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (62094885821):
Product Overview
Description
TPX6111-2 Dro Horizontal Milling Boring Machine
Main Featurers
TPX6111 series digital readout horizontal boring and milling machines are universal machine tools which can be adapted to machine casting, steel, and nonferrous word- places.
Operations include drilling, hole enlarging, boring, reaming, plane milling, spot facing, threading, and other machining processes.
The faceplate slide can be fed radically, which enables the machine to bore large size holes, turning outside diameters, and grooving.
This series of machine can be used in the industries of energy, metallurgy, mining, machinery, military, etc it is a reliable choice for machining box- type part.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice. SY
Main Technical Data
Specifications of tpx6111 horizontal boring machine | Unit | TPX6111/2 |
Spindle bore diameter | mm | Φ110 |
Spindle taper |
| MT 6 |
Max. torque of spindle | Nm | 1225 |
Max. axial thrust of spindle | N | 12250 |
Steps of spindle speed |
| 22 |
Range of spindle speed | r/min | 8~1000 |
Power of main motor | kW | 7.5 |
Max. torque of facing head | Nm | 1960 |
Diameter of facing head | mm | Φ600 |
Range of facing head speed | r/min | 4~200 |
Speed step of facing head speed |
| 18 |
Table size | mm | 1100 x960 |
Max. permissible load on table | kg | 5000 |
T- slot | mm | 22 |
Number of T-slot |
| 7 |
X- axis travel | mm | 1250 |
Y - axis travel | mm | 900 |
Z - axis travel | mm | 1400 |
W- axis travel (Spindle travel) | mm | 600 |
U - axis travel (facing head slide travel) | mm | 180 |
B - axis work table rotary | ° | 360 |
Min. distance between spindle center and table surface | mm | 0 |
Rapid travel (X/Y/Z) | mm/min | 2500 |
Range of feed (X/Y/Z) | mm/rev | 0.04-6/0.01-1.88 |
Precision of measurement accuracy by DRO (X/Y) | mm | 0.005 |
Precision of measurement accuracy by DRO (Z-axis opt.) | mm | 0.005 |
Overall dimensions (L*W*H) | mm | 4930x2870 x2750 |
Weight of machine | kg | 13000 |
Free Std Accessories
S.N | Name | Remark |
2 | Face heading plate | 1 Set |
3 | Tool holder for boring | 1 pc |
4 | Tool holder for milling | 1 pc |
5 | Operation tools | 1 Set |
6 | Automatic centralized lubrication system | 1 Set |
7 | Work light | 1 Set |
8 | Documents in English | 1 Set |
Optional Accessories
S.N | Name | Remark |
1 | Rear column | $ |
2 | universal boring head | $ |
3 | angle boring head | $ |
4 | tool holder for turning | $ |
5 | DRO for B-axis | $ |
6 | DRO for Z-axis | $ |
7 | DRO for W-axis | $ |
Pls send inquiry to me for optioanl accessories and other further information about such horizontal boring machines.
