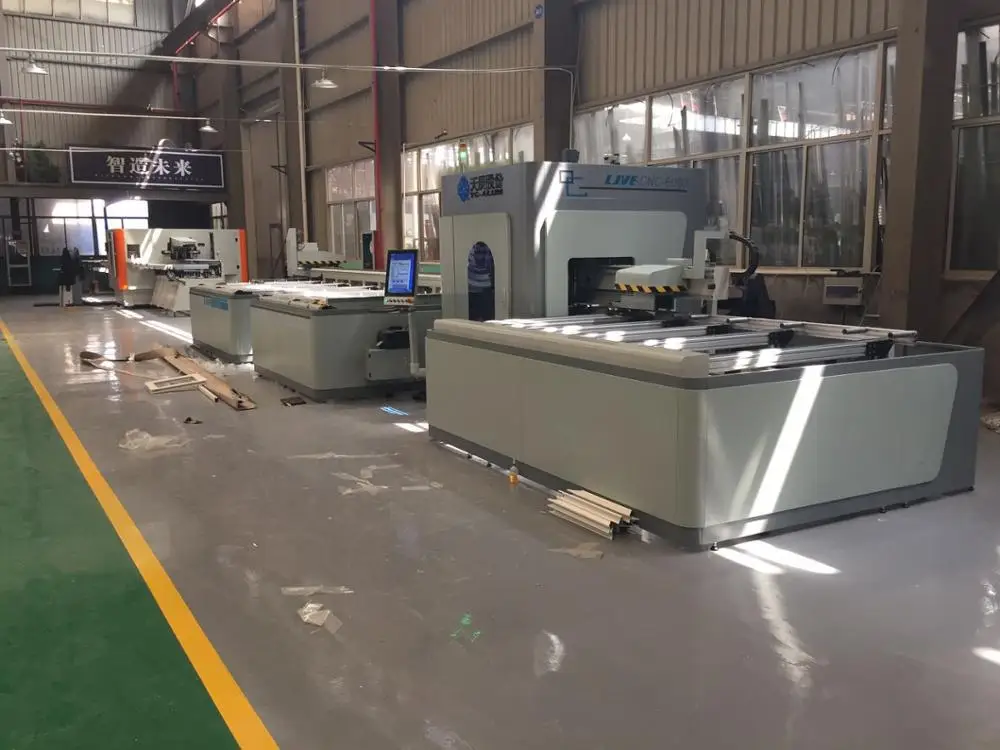

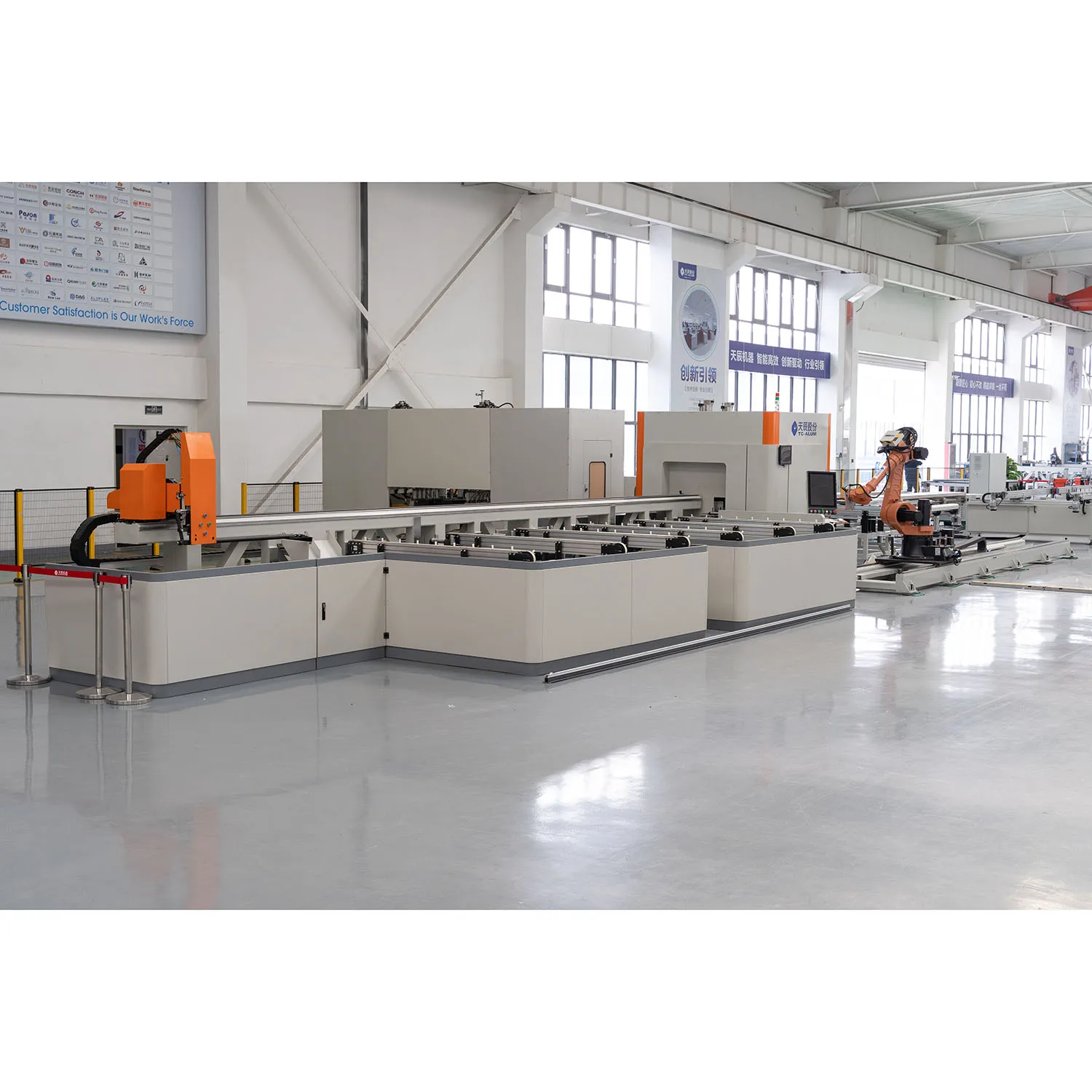

Window Door Production Line Aluminum Automatic Cutting Saw Center

Product Overview

Description

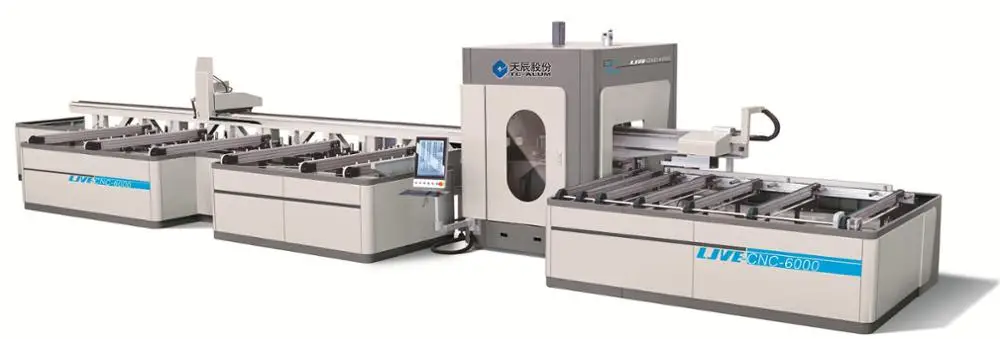

Aluminum Profile Automatic CNC Sawing Center

Model LJVE-CNC-6000



l  Main Specificaitons:

 Cutting Saw motor power:       3x3.0 kW

 Machine’s total power:           18kW

Input Power supply:               380V 50Hz

Work pressure:                   0.6~0.8MPa

Air Consumption:                   150L/min

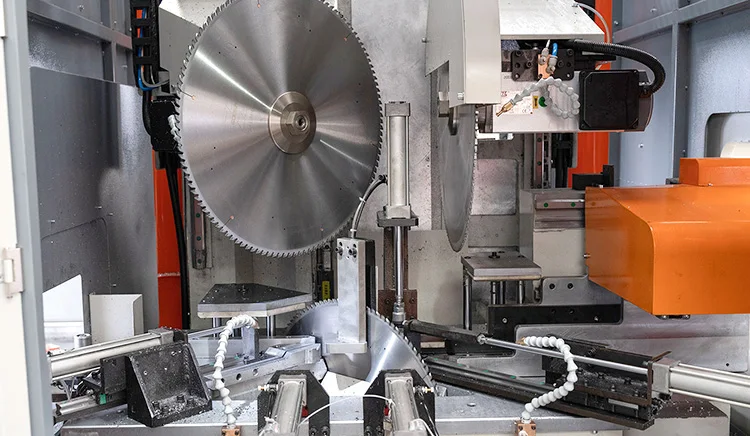

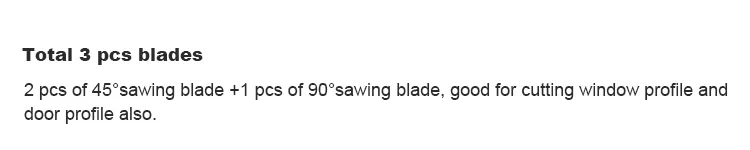

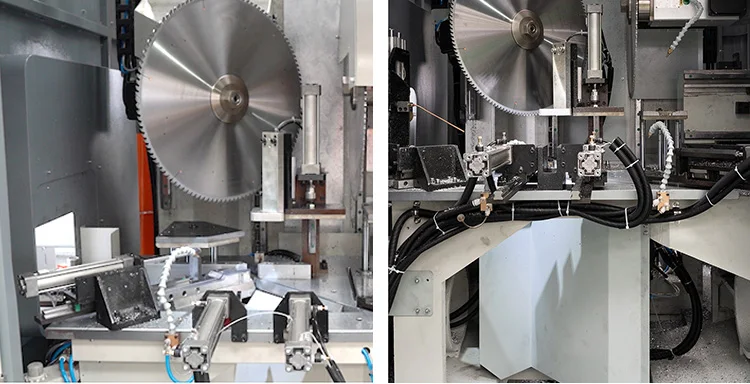

±45°Sawing blade size:      Dia.550x Dia.30x4.4x120T

 90°Sawing blade size:         Dia. 600x Dia.30x4.4x120T

Aluminum profile height:       30~140 mm

Aluminum profile width:       30~100 mm

Cutting Length:                  290~6000 mm

Cutting angle tolerance:           ±5′

Cutting length tolerance:      ±0.15mm

Repeating location tolerance:  ±0.05mm

Overall size (L*W*H):          14000x5000x2500 mm

Net Weight:                     About 7500 kg

l Main Outsourced Components List:

Item	Brand name

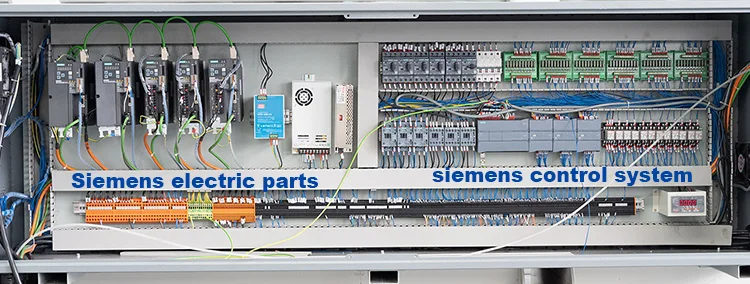

Control System	Siemens
Servo Motor	Siemens
Air Cylinder	SMC
Damping Cylinder	SMC
Guide Rail	HIWIN
Ball Screw	PMI
Cutting Motor	Shenyi
Rack	YYC
Infeeding material Reduction Box	APEX
Output material Reduction Box	NEWSTART
Sawing Blade	Wagen (Japan)
