Product Overview

Description



Product Description

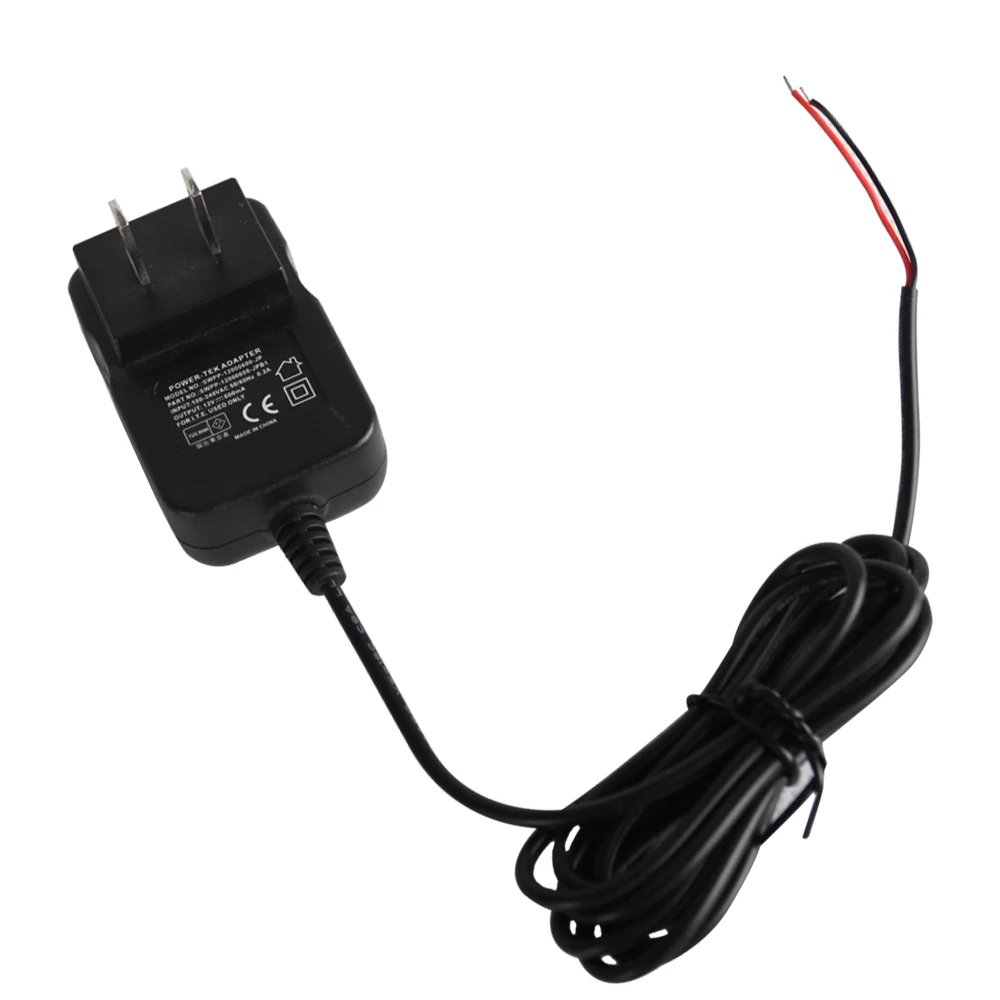

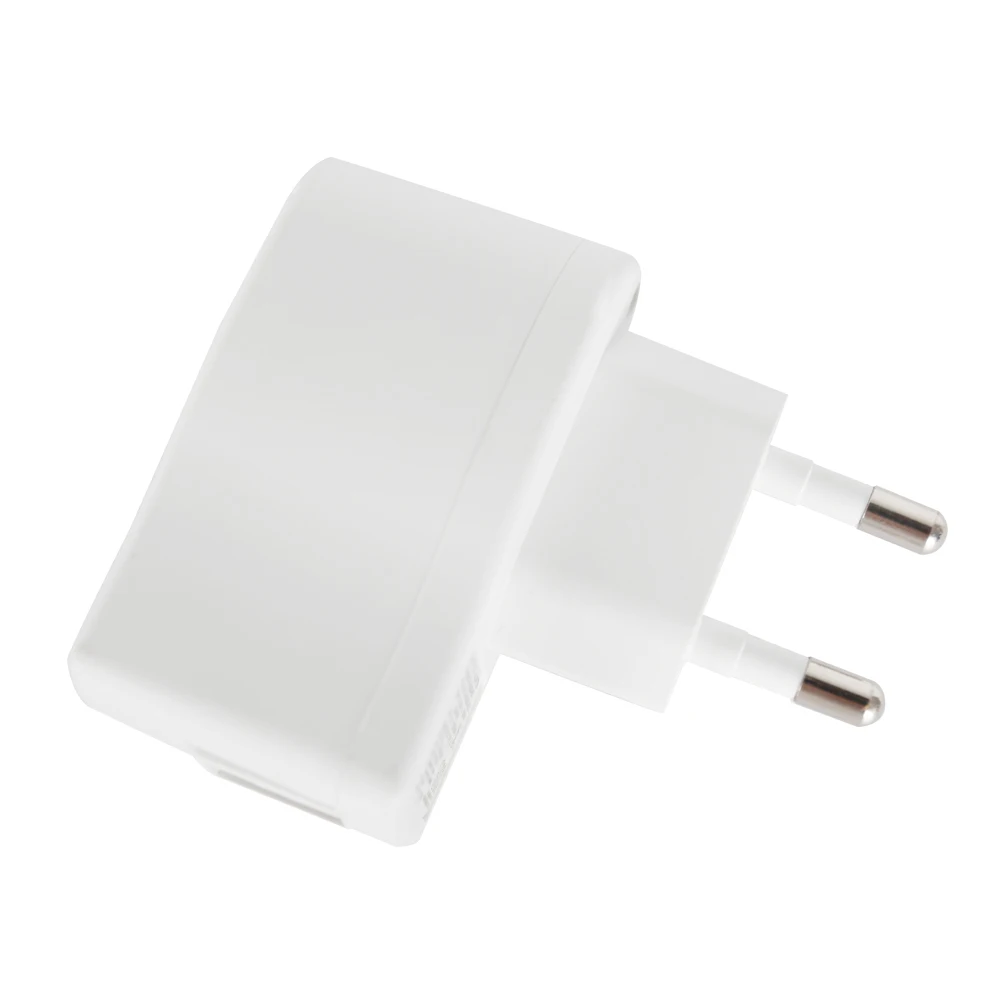

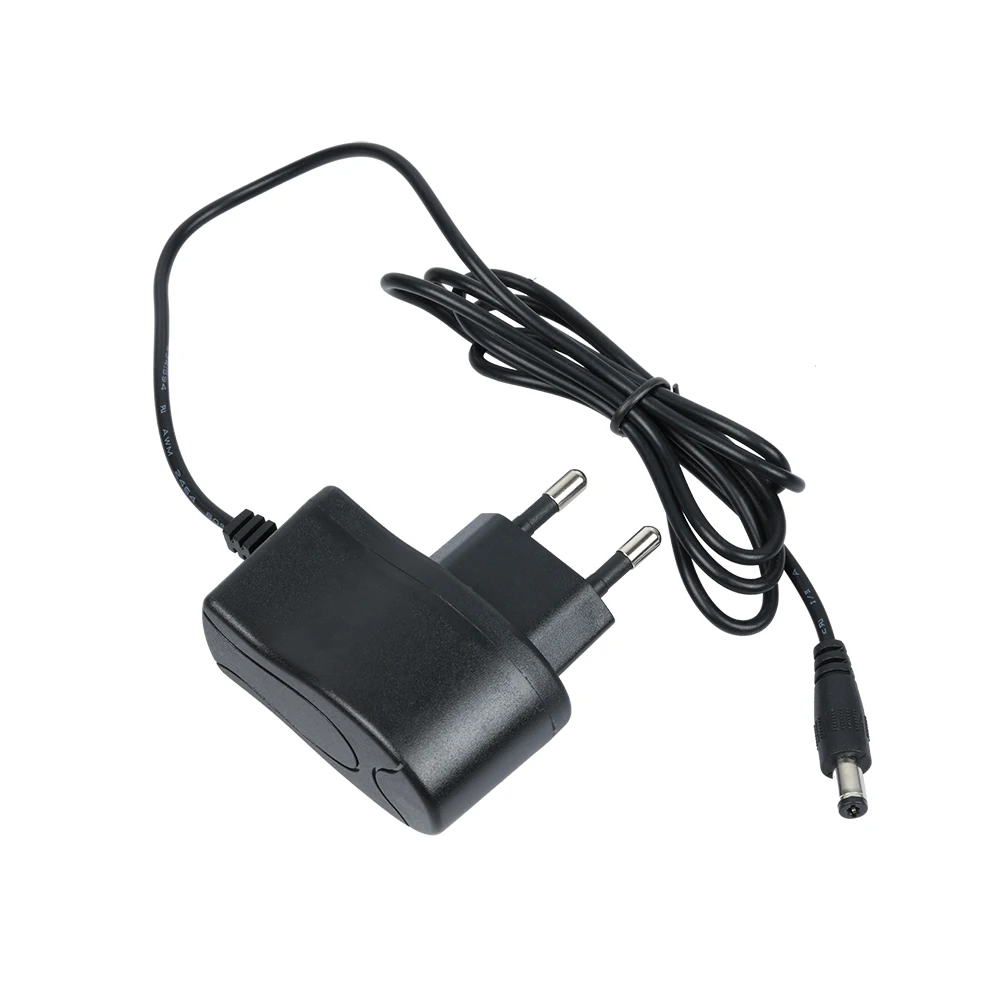

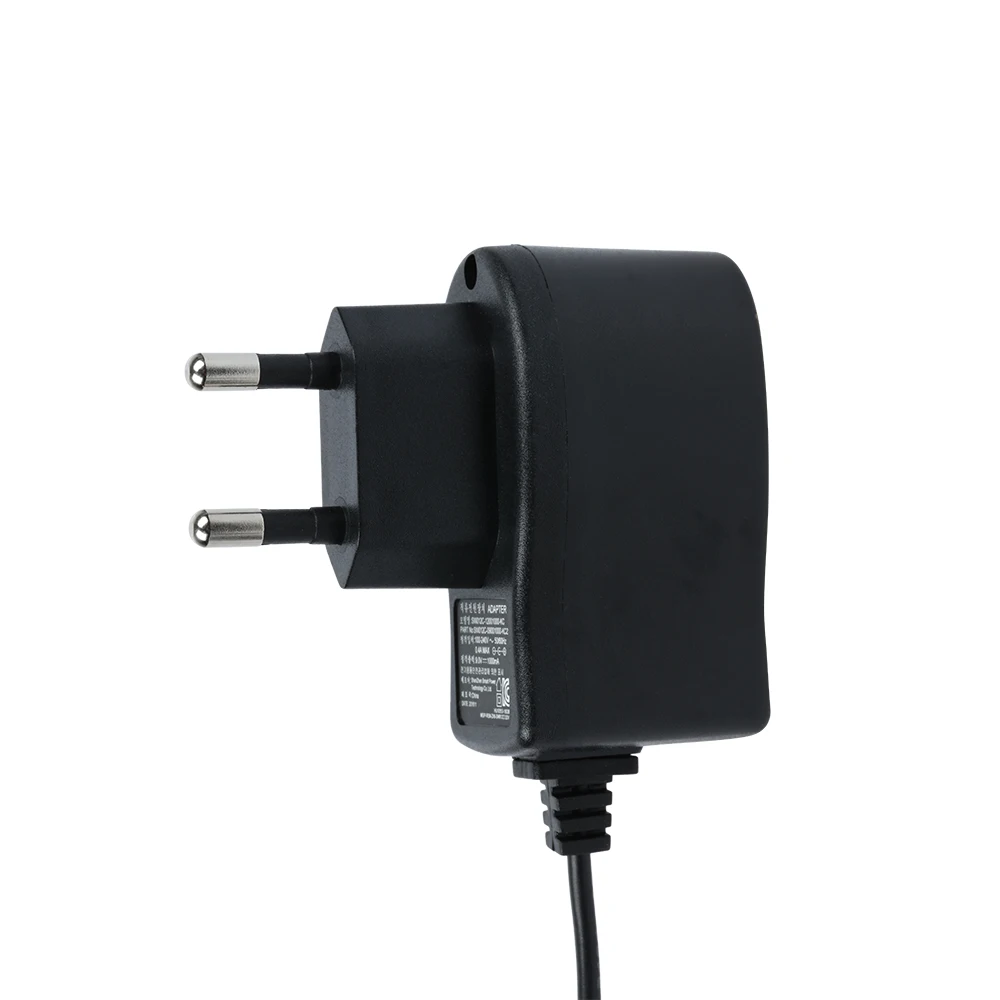

12V500mA 6W CE UL FCC KC KCC PSE Wall Mount Power Adaptor





Products Name	12V0.5A Power Adaptor
Input Voltage	96-264V AC 50/60Hz 0.65 A
Output Voltage /Current	12VDC 500mA
Total Output Power	12W(Max)
Input Inlet	CE UL PSE KC UK SAA
O/P DC Cord Length	1.2M, 1.5M, 1.8M, 2.5M,3.0M, etc.
DC Connector	5.5*2.1mm, 5.5*2.5mm, 3.5*1.35mm, 3.5*1.0mm,         4.0*1.7mm, 2.5*0.7mm ,etc.
Dimension / Net Weight	L63.0X W31.0xH35.0mm ; 60g/pc
Safety Approvals	UL/FCC, CE, PSE, KC,  Certificate, Level 6
MTBF	50,000 hours
Ripple and noise	<80mV
Operating temperature	-10 to 45°C
Storage temperature	-20 to 80°C
Humidity	5% to 95% RH (rockwell hardness)



POWER	MODEL	INPUT	OUTPUT		AC
			Voltage	Current	Input Inlet
12W Series	SW012C-XXXXYYYY-Z	96-264V/AC 1.0A	5-12Vdc	0.5-1.0A	CE+UL+KC+PSE+UK
	The"Z" can be US/EU/JP/SAA/UK/EK		NA	NA
	SW012C-05002000-Z		5V	2.0A
	SW012C-06002000-Z		6V	2.0A
	SW012C-09001000-Z		7.2V	1.5A
	SW012C-12000500-Z		12V	0.5A
	SW012C-12001000-Z		12V	1.0A
