Not Universal Model .Only Used FOCAN Controller with FOCAN-LCD Display.

Parameter

Item Type: Electric Display Screen

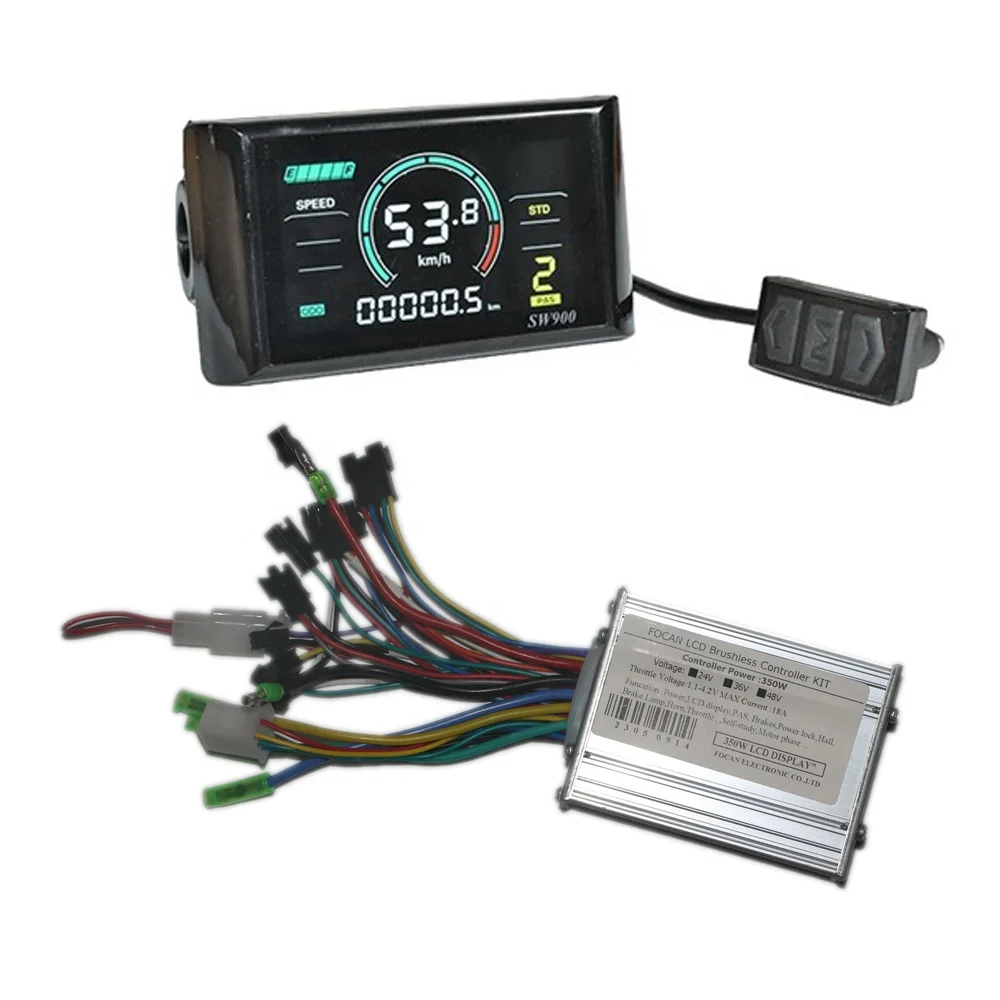

Model : LCD Display +DC Brushless Motor Controller

Product Material: ABS

Voltage: DC 24V 36V 48V 52V 60V(Adjust Voltage By P03 set,default 36V )

Suitable For Mounting Handlebars: 22.2mm Diameter Handlebars

Plug Type : SM 5pin Connector (LCD cable )+ SM 2pin connector (Light cable)

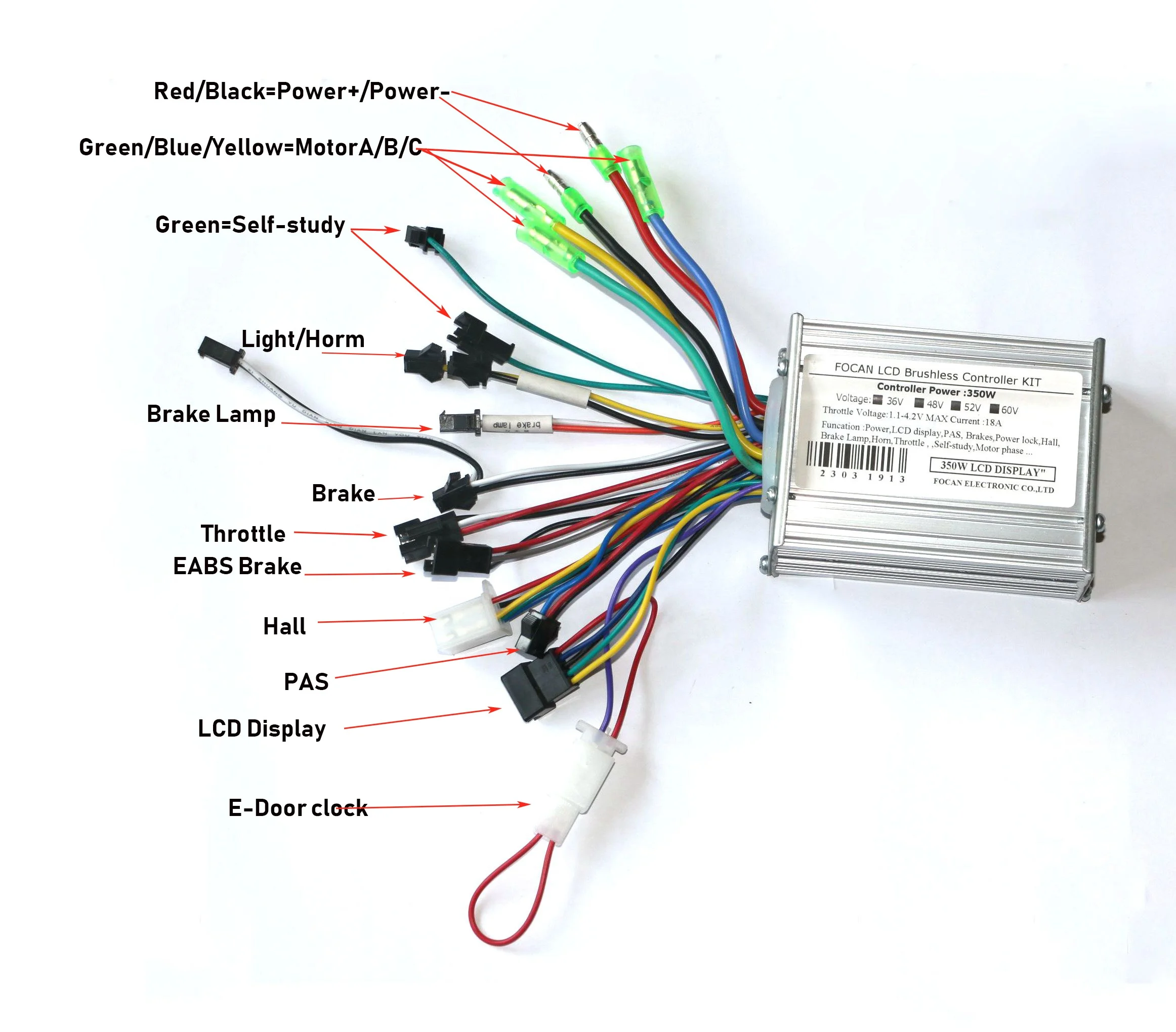

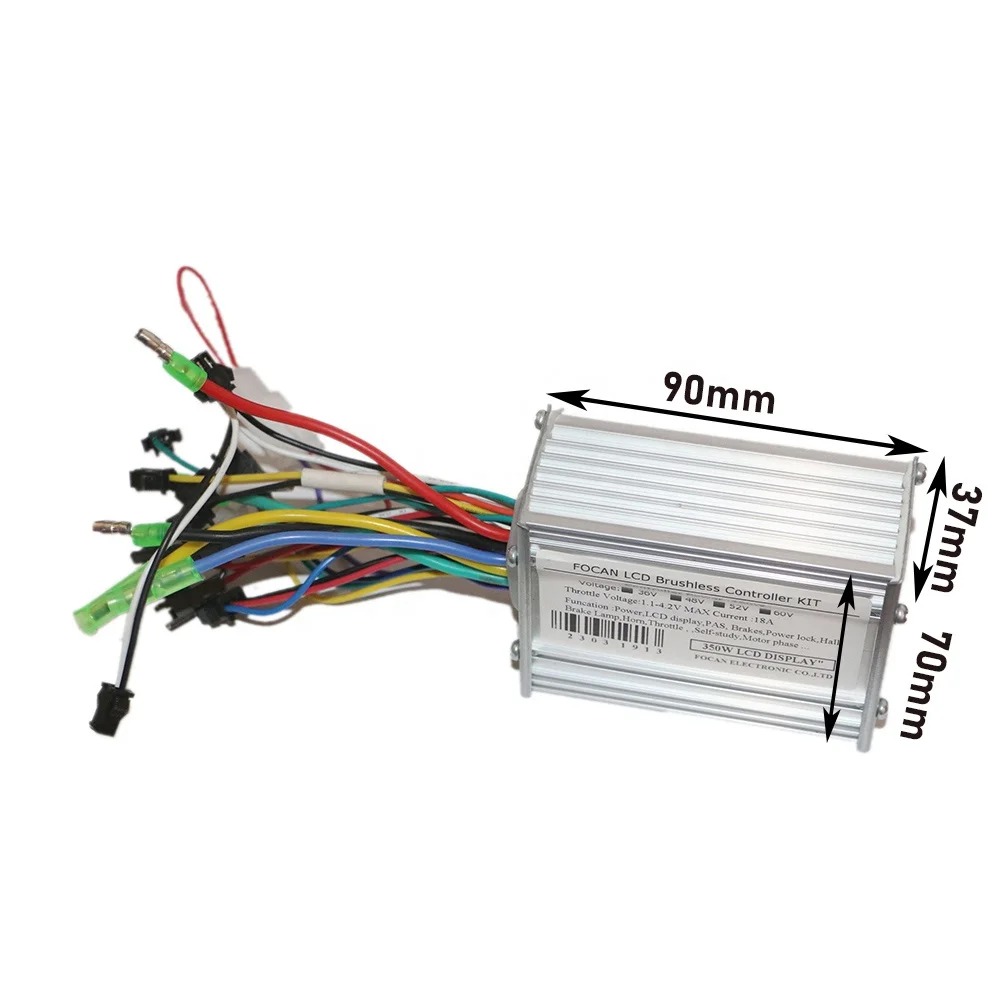

DC Brushless motor controller :

Condition: 100% Brand New

Material: Aluminum

Controller Rated Voltage:24-48V

Limited Current :18±1A

Speed set:1.1-4.2V

Power :350W

Suit for :250W-350W DC Brushless Motor

Applicable model: electric bicycle, electric scooter, electric vehicle, toy scooter etc

Note: Due to product upgrade, the product you purchased may be slightly different from the descriptions in this user manual, and this won’t affect normal usage.

Package List:

1 x LCD Display

1 x Controller
