Rock wool insulation spray cabin for car repair
- Category: >>>
- Supplier: GZ GUANGLI EFE Co. Ltd.
Share on (62095135581):
Product Overview
Description
Rock wool insulation spray cabin for car repair
Product Description
GuangLi Spray booth Feature
--Wall panel: sandwich style, δ=50mm, rock wool,polystyrene is available as required.

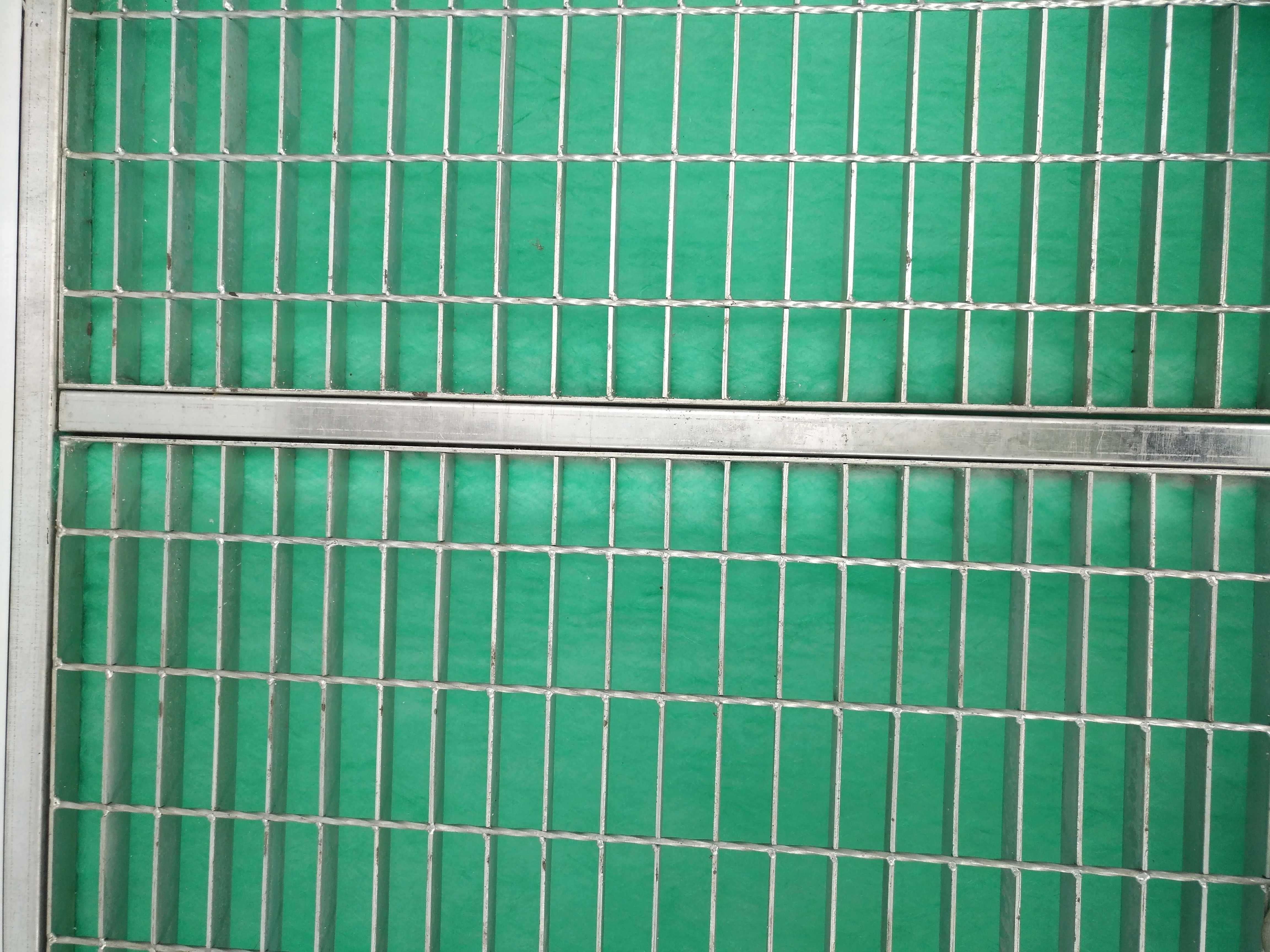

--Basement: steel structure, full grids. ramp: 2 pcs of grids.
--Door: 3 pcs of front door without aluminum side cover. 1pc of emergency door with pressure lock.
--One 7.5kw intake fan and one 7.5kw exhaust fan.
--4m straight exhaust ducts, one 90° bend, and one 60° bend.5m straight chimney and 2 small bends.
--1 manual VCD exhaust damper, electrical VCD as optional. One pressure meter.
--Spraying/baking transition damper, automatically air controlled.
--Heat exchanger: stainless steel. Riello G20 burner.

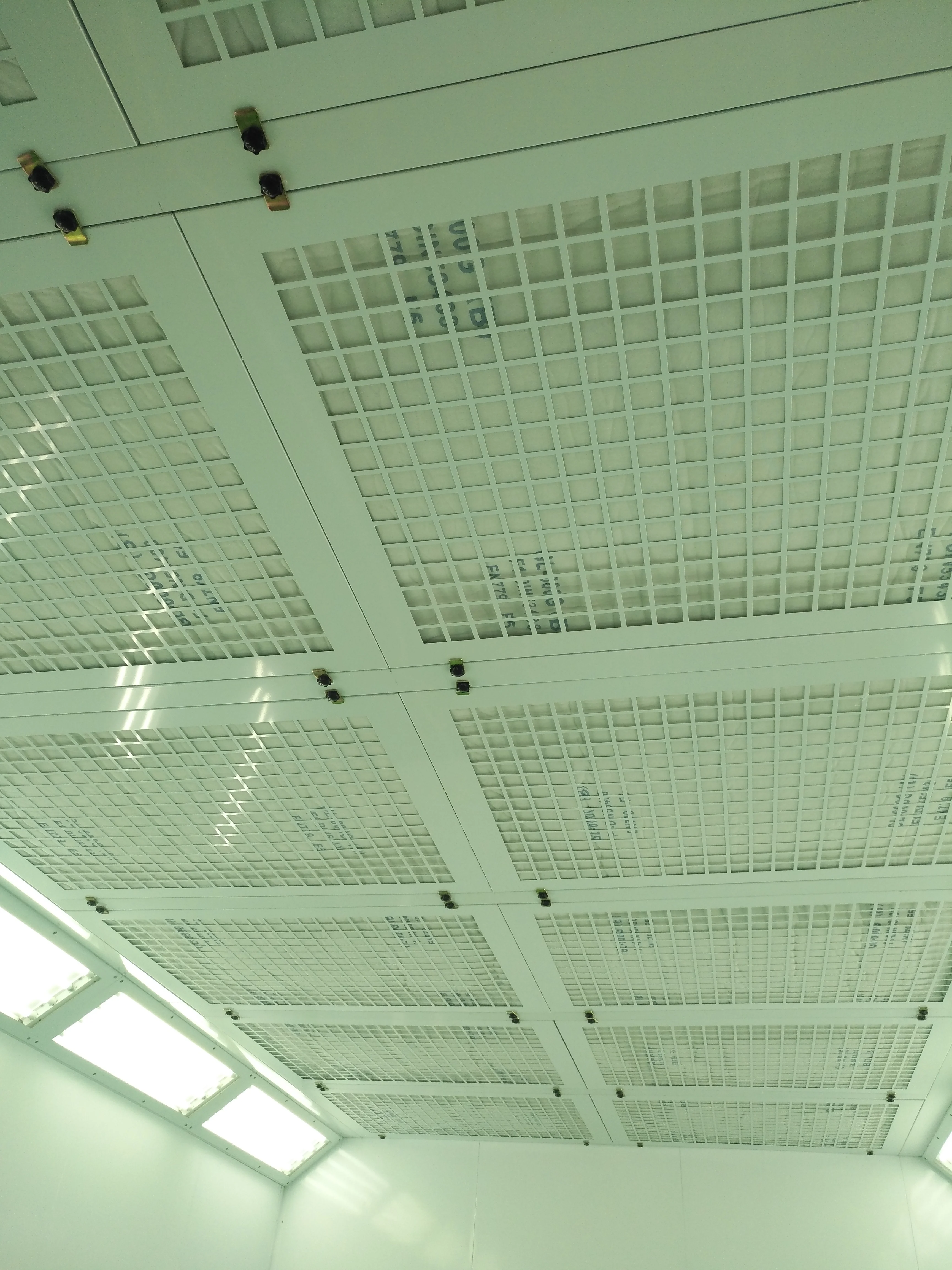

--Roof filter: 6 pcs of filter, mounted above support frame, which is made of steel and powder coated.
--5 pcs of floor filter and 2 pcs of air mouth filter.

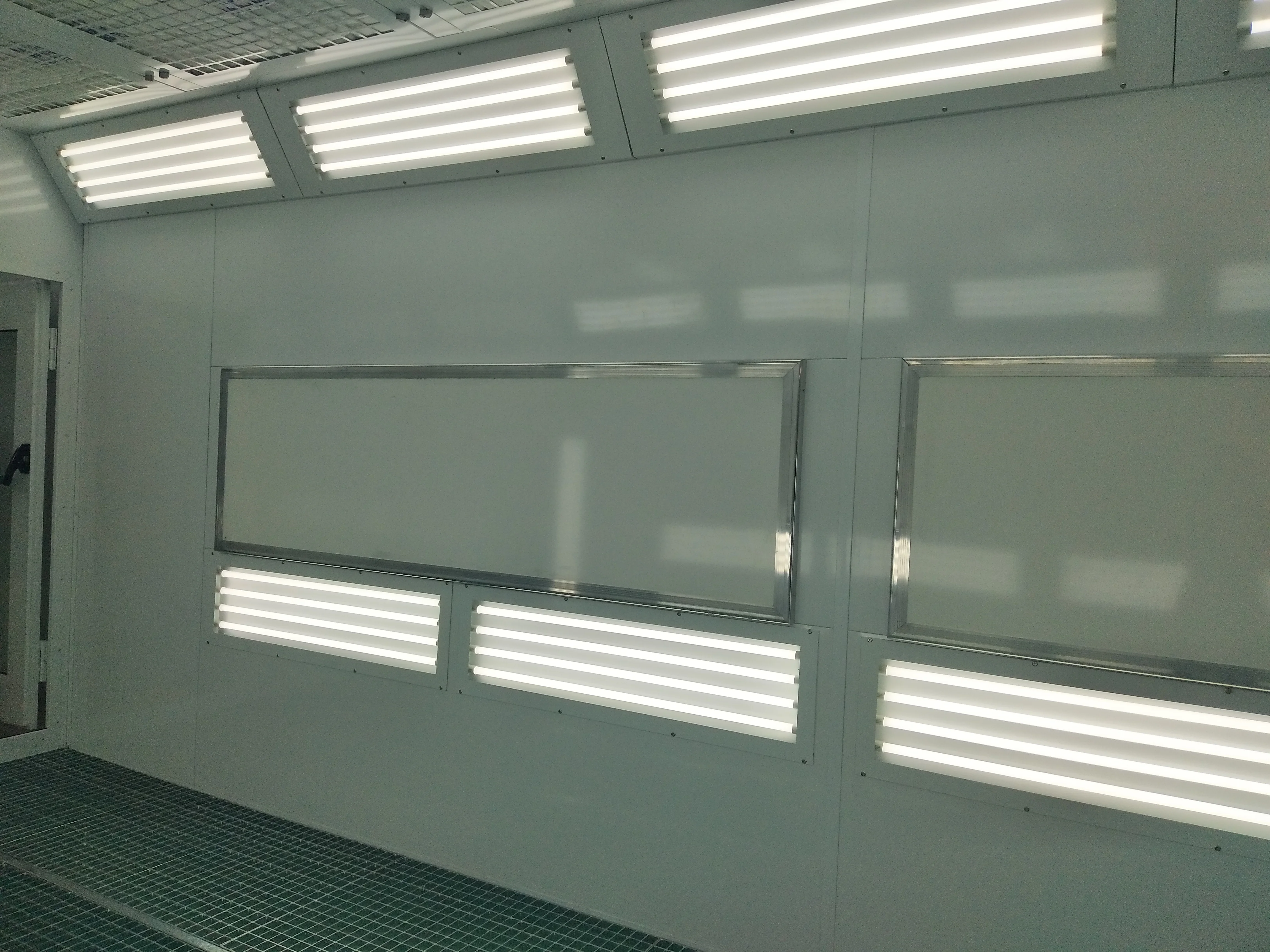

--Upper light: 10 sets, 4*40w per set. Side lights: 8sets, 4*40w.

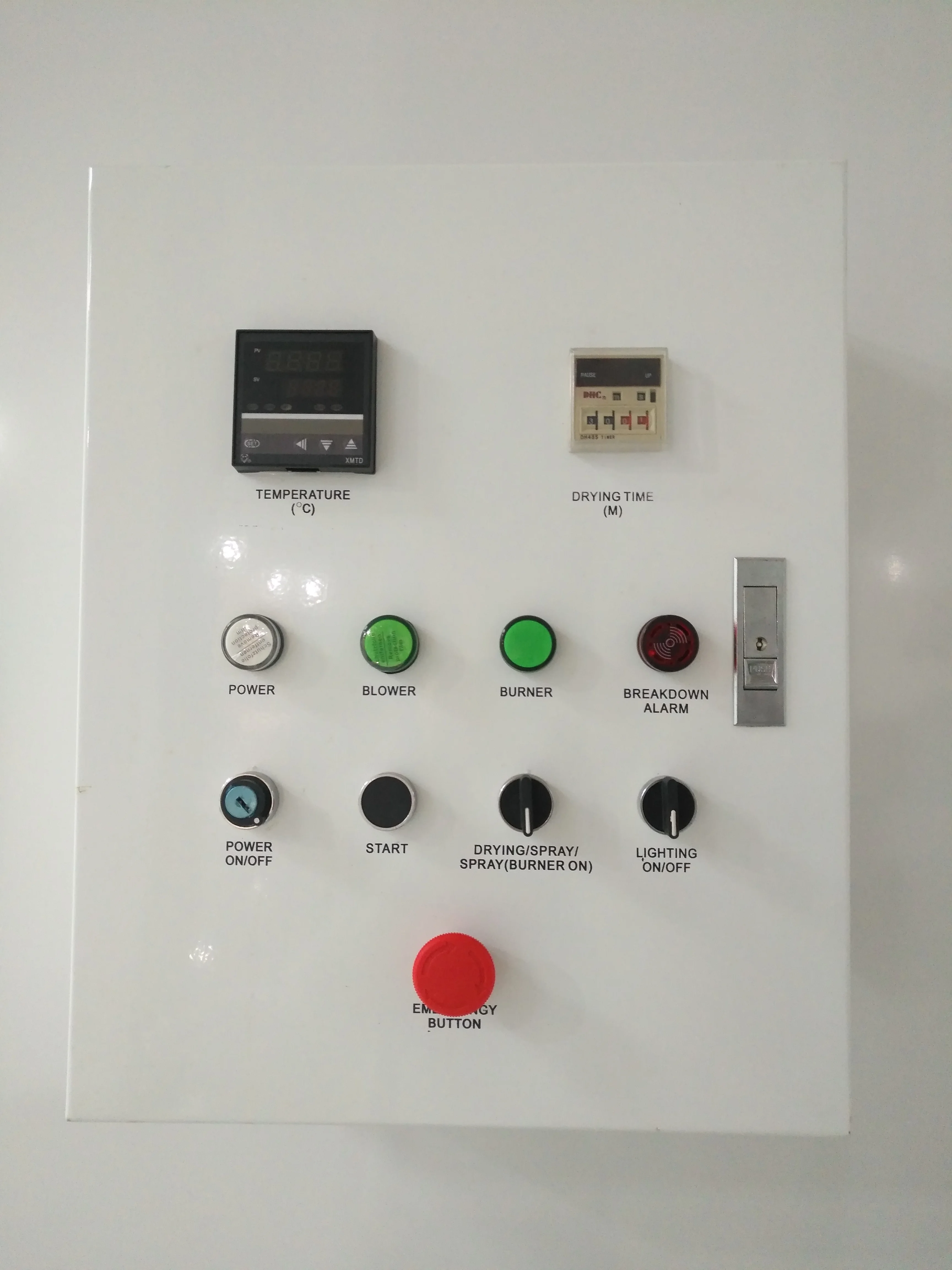

--Control box: imported components, overload, overheat, phase-lacking,
phase-locking protection, engine Y/ start.
--Automatically stop when preset time is up.Constant temperature spraying.
--Environmental filter: the equipment can be adopted M style activated
carbon or drawer style activated carbon as optional.
| Technical Specifications | GL3000-A1 |
| External size(m)(LxWxH) | 7.0×5.3×3.5 |
| Internal size(m)(LxWxH) | 6.9×3.9×2.7 |
| Door width(m) | 3.0 |
| Door height(m) | 2.66 |
| Air flow (m3/h) | 24000 |
| Inside on-load air speed(m/s) | 0.25-0.35 |
Exhaust type | Full-undershot,Bilateral,Semi-down,Unilateral etc |
| Drying Temperature(ºC) | 20-80 |
Water-based paint device | As option |
Color | Orange Blue Red White or Client's Requirements |
| Power (kw) | 18 |
| Vehicle suited | Saloon car |
GuangLi Spray booth Show
Our Other Products
Why Choose Us
1.More than 20-year experience in Spray booth and car lift field.
2.Superb unique technology and Automatic production line.
3.Bulk order can be placed.
4.Advanced equipment and exquisite workmanship.
5.Durable and reliable.
6.Good pre-sales and after-sales service.
Company Information
GZ GUANGLI EFE CO.,LTD is the first and the largest auto spray booth manufacturer in China, having a good reputation among Chinese auto-maintenance enterprise. The sales volume of spray booth ranks top in this field over years.
Founded in 1994, GZ GUANGLI EFE CO.,LTD is a professional spray booth and car lift
manufacturer in China wtih more than 22 years technical and production experience,which
covers 58,000M2 of grounding area and 36,000M2 of building area.
Our products have been used in many car manufacturers' and thought highly of:Guangzhou
Honda,Dongfeng Honda,FAW Toyota,Dongfeng Peugeot,Dongfeng Nissan,BMW South China
etc.
Our products spray booth and car lifts have got CE certificate and our company has passed ISO9001:
We have imported a Full-auto production line and many facilities from Europe, owning the most advanced production equipment in China.
