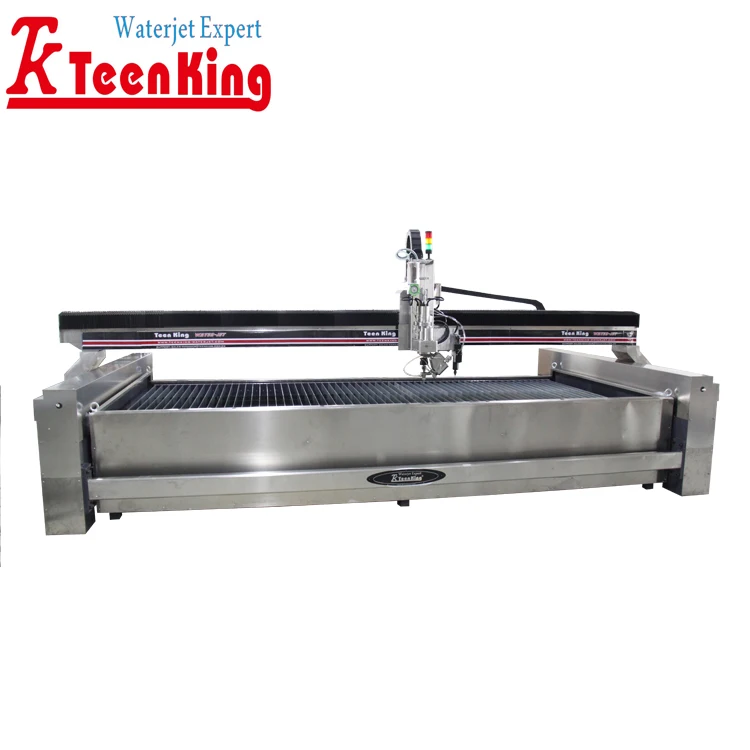

CNC Waterjet Machine for Metal Stone Glass Marble cutting

Product Overview

Description



Company Profile

TEENKING CNC Machinery CO., LTD was established in 2004, specializing in manufacturing high efficiency CNC cutting machines.  TeenKing Waterjet is commonly used to cut steel, metal, marble, stone and glass, etc.  By becoming the preferred choice of the high end customers at home and abroad, we are dedicated in producing quality products with our know how and innovations, in order to give good service and fulfill our customers’ requirements. By making our customers as our partners, we work together to achieve their needs, maximum economical benefits and produce easy to use machines.



With the development and enlargement of the company, we strive for perfection through our motto “Innovations, Practice, Diligence”.  We insist on “better quality and service” to serve our customer’s needs.  We appreciate your opinions and feedbacks which will help us improve and be closer to perfection.  We are making “Teen King” a worldwide brand and at the same time satisfy all our customer needs.

Production description

A full set of abrasive waterjet cutting machine includes work table, CNC controller, High pressure system with cooling system, Auto abrasive feeder, Water treatment and Sludge Removal System, etc.

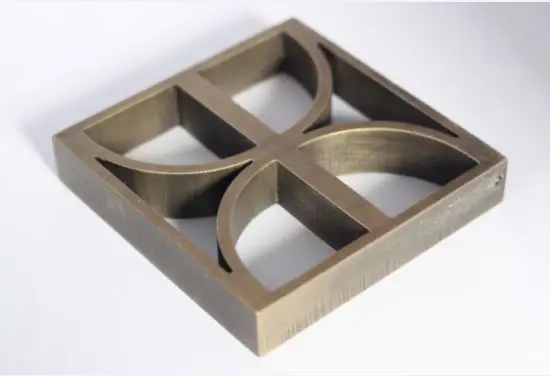

Waterjet can cut almost every thing, including: Stainless steel, hard tool steel, mild steel, aluminium, brass, bronze, titanium, tungsten steel, zirconia, glass, plexiglass, rubber, ceramic,marble, granite, etc.

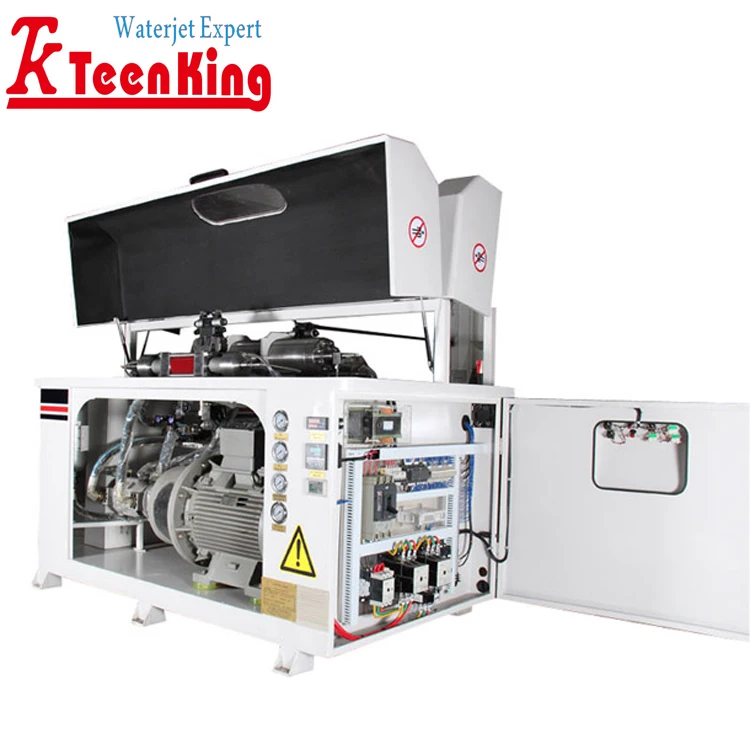

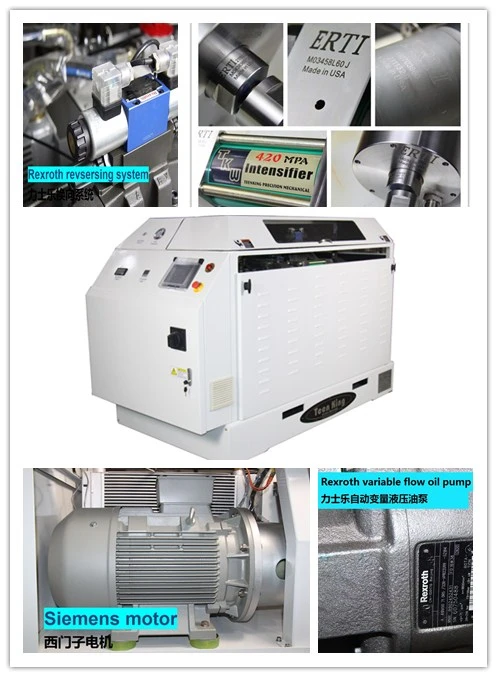

Teenking High Pressure System
	Intensifier ERTI USA Assembly Intensifier
	Accumulator Accustream from USA
	Main motor German Siemens Motor
Model	TK-Trump50/   TK-Trump100
Drive system	Motor
Pressure system	Intensifier
Max. cutting pressure	420MPa/60000psi
Continuous working pressure	350-380MPa/50000-55000psi
Max. flow rate	3.6L/min /                  7.0L/min
Nonimal power	37KW/50HP            75KW/100HP
Power Supply	380V/50Hz, 3 Phases
1.    Imported original intensifier and accumulator assembly are specially adapted to ensure system stability and service life.
2.  With effective fan-oil cooling system, oil temperature is strictly control to not over 60 degrees Celsius, guaranteeing life of sealing elements.
3. Various Instruments monitor data of temperature, pressure and running.
4. Auto dual pressure (low/high range 70~380MPa) pressure control system enables automatic low/high pressure switching when cutting, decreasing damages to work pieces.

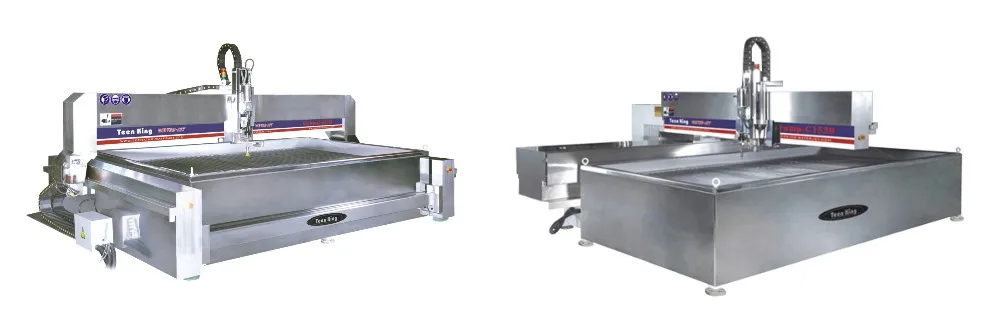

Teenking Work Table
Gantry type	Cantilever type

Available cutting area   (mm)           (For more size, please contact us freely.)
3000x15000	3000x2000	2000x4000	2500 x 1500
Max speed in X,Y axis		20m/min
Max speed in Z axis		3m/min
Tolerance square (100x100mm)		+/-0.02mm
Tolerance circle (dia 500mm)		+/-0.08mm
Position in X,Y axis		≤+/-0.05mm per 300mm
Reposition tolerance		≤+/-0.02mm/ full range

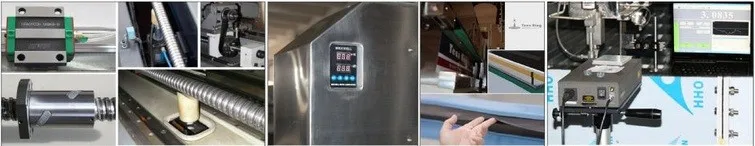

HIWIN liner guide, ABBA ball screw/  Auto central lubrication/ Unique sealing/   Laser checkout equipment

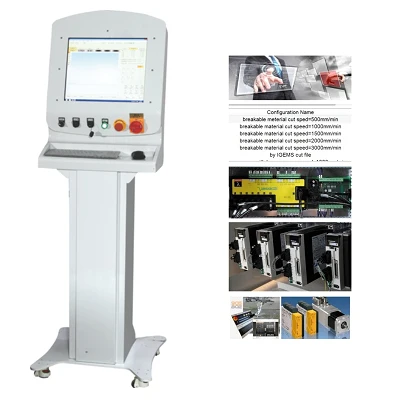

Teenking Controller
	1. 19" touch screen sets you free from keyboard and mouse when control machine.
	2. Built-in Teenking material database, simply choose material and thickness, machine will automatically finish the remaining work and give you ideal part.
	3. Teenking CNC control card, support absolute value encoder servo system.
	4. Japan Yaskawa absolute value encoder servo motor supports power-break resume, making no more back to reference possible!
	5. Italian ECS control system and German Baumüller absolute value encoder servo system as optional units!

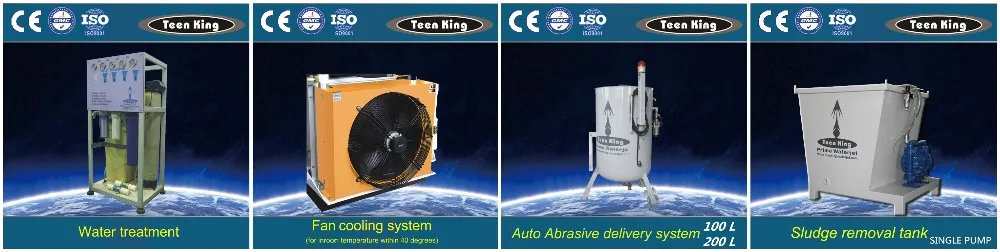

Recommended Units

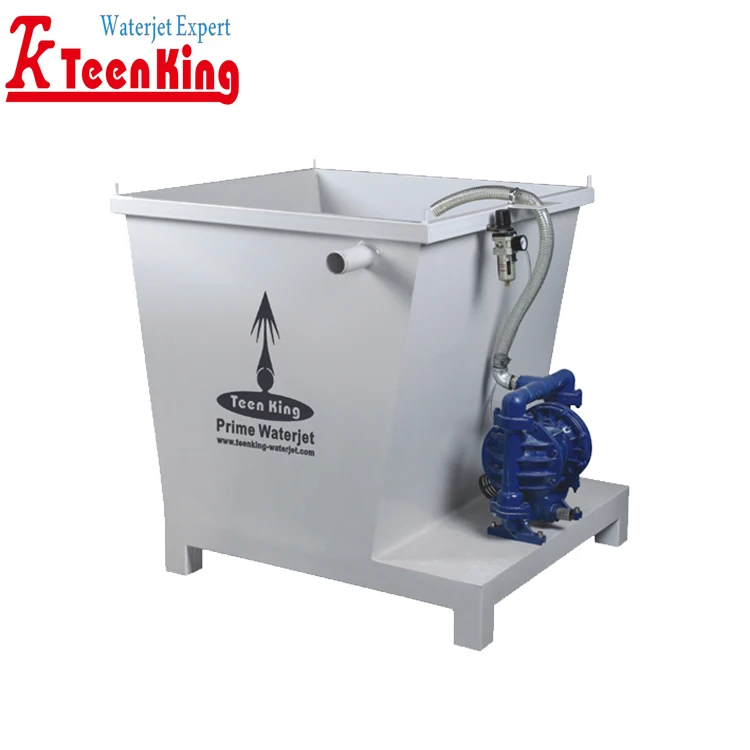

Water Treatment Precise filtration up to  0.1 micron and auto softened	Auto Cycling Fan Cooling System         Mantain the oil temperature    within 20 degrees higher       than environment  temperature	Auto Abrasive Feeder      Deliver the abrasive automatically by pressed          air (2.5 bars) , volume controlled by the level  of the hopper.	Sludge removal system Automatically clean up and collect sludge from water tank

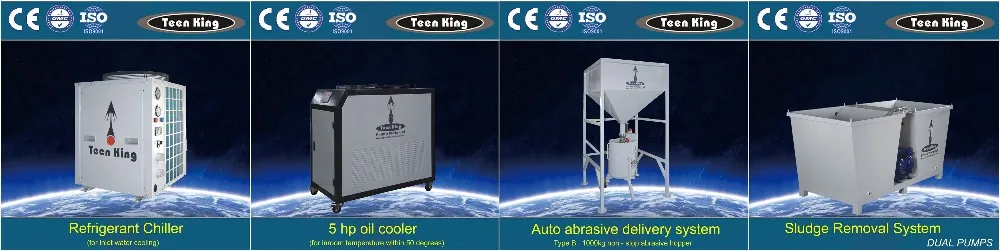

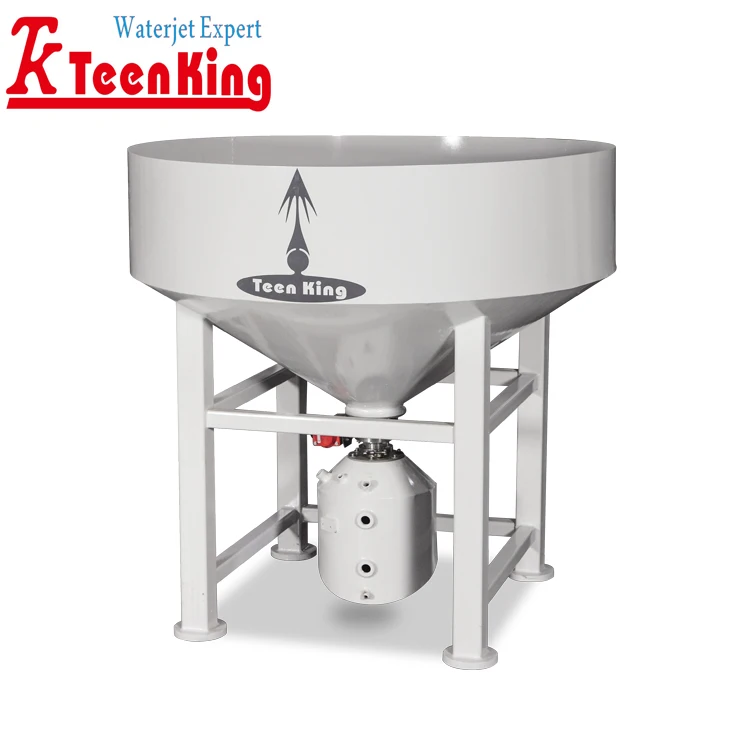

Refrigerant chiller Cooling inlet water and extend high pressure pump lift	5 hp oil cooler  Cooling down hydraulic oil, suitable for high temperature areas	Auto abrasive delivery system 1000kg jumble bag non-stop abrasive feeding system	Sludge removal system Dual pumps removal system

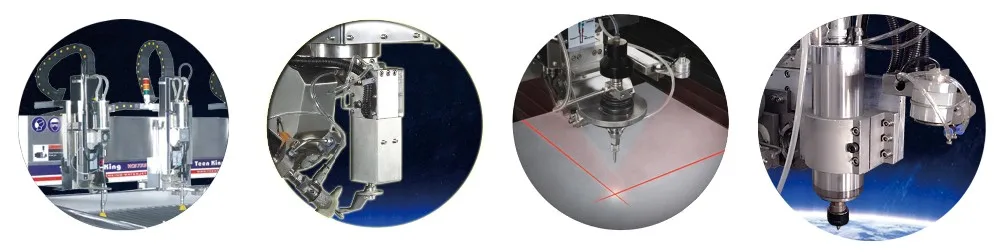

Independent dual cutting heads Can choose single or dual    head(s) work together, distance between heads   is adjustable.	Auto height tracking system Track height of material before and during cutting	Laser locator Help for locating nozzle	Engraving head Help to do engraving work when needed

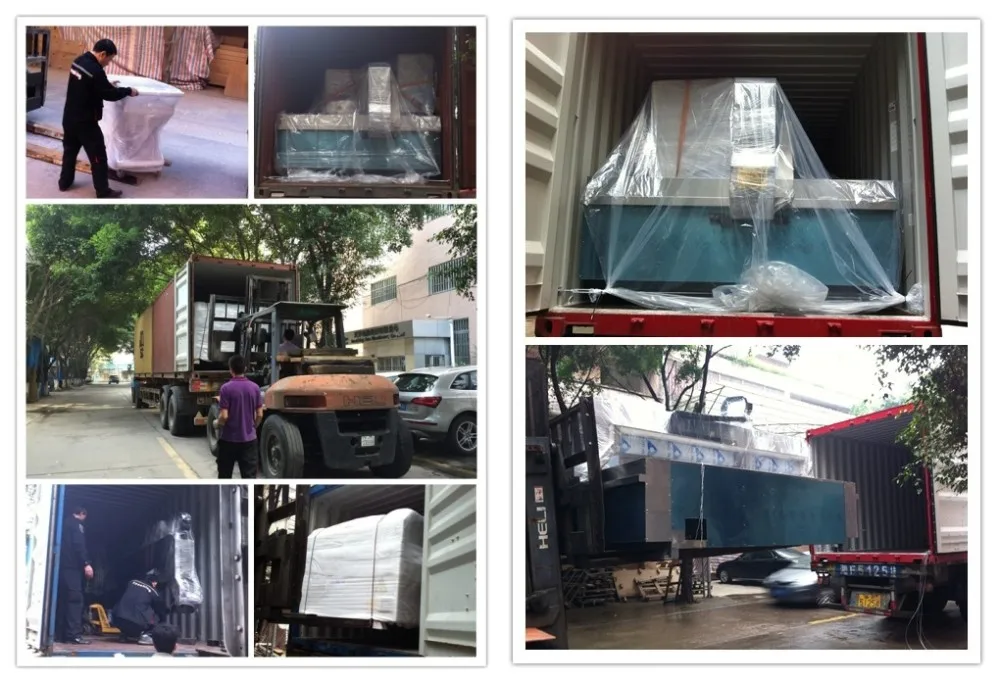

Packing & Shipping
