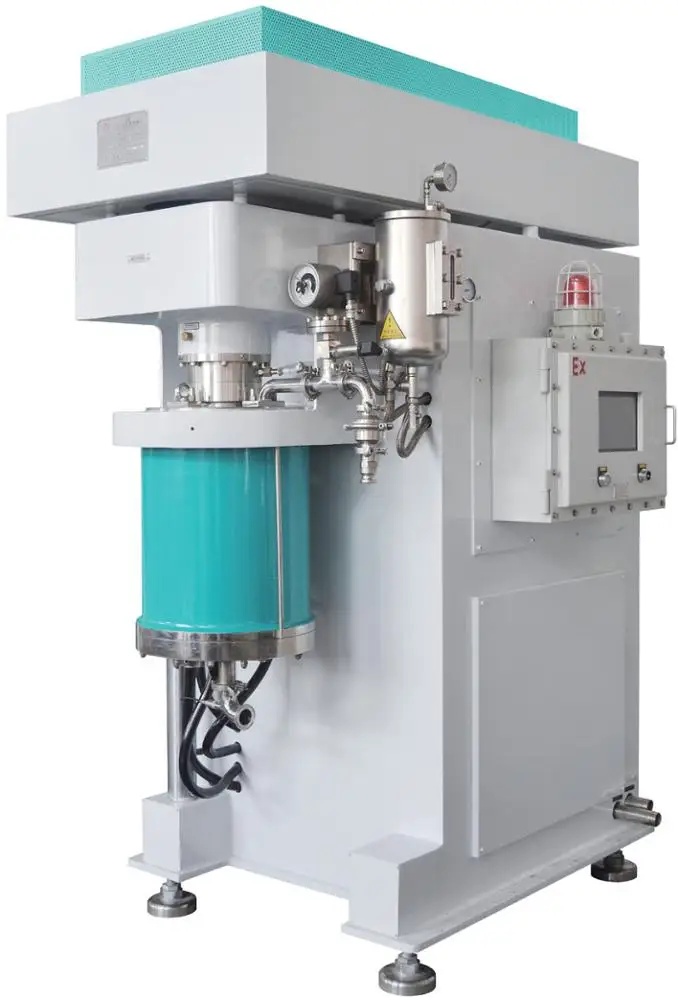

30L Wet Grinding Machine Hot Selling Grinding Capacity Pin Type Vertical Bead Vill

Share on (62095186162):


Price:$18,000.00 - $28,819.00

Quantity:


Product Overview

Description


Product Description





Hot Selling 30L grinding capacity pin type vertical bead mill

1.fineness of grind:100-500um
2.material viscosity:<= 4000 cps
3.solvent system: suitable for Waterborne,

Oiliness
4.Mechanical capacity:Range of 500kg to 100 ton one day
5.Grinding cavity:can choose High wear resistant alloy steel, silicon carbide, zirconia, polyurethane, tungsten carbide
7.Function:explosion protecting system,cooling system,frequency speed cotroller,Material control system.

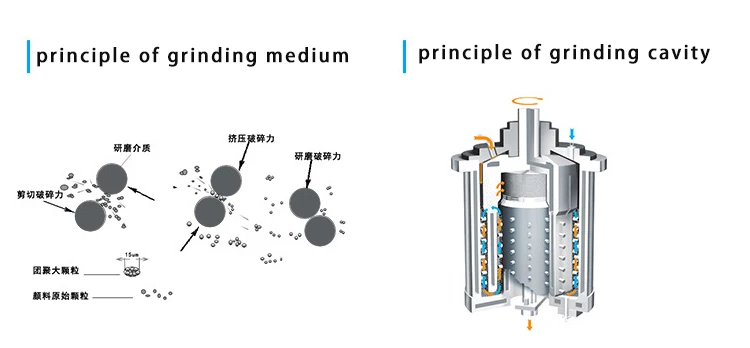

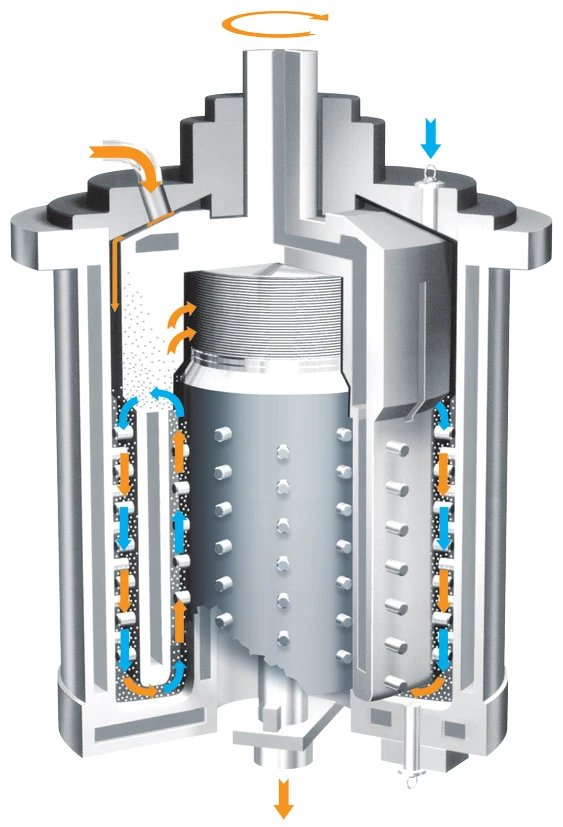

Grinding Priciple:

The high-speed operation of the rotor makes the grinding medium produce high shear force, impact force and crushing force, which can disperse, break, grind, depolymerize, homogenize and emulsify the granular materials in the fluid. Material grinding, do not destroy the performance of the material itself






Pre-stirred materials ——> into the feed pump ——> into the main grinding tank—— > plus appropriate grinding   medium——> products to the required fineness and dispersion effect | ——> special separation device to             separate the dispersion out ——> material particles impact to produce shear, mixing, emulsification


Type
DCD-20
DCD-30
DCD50/60
DCD-100
Main Motor Power(KW)
18.5~22
22~30
37~45
55~75
Vessel Capacity(L)
20
30
50/60
100
Maximun Flow Rate
50~250
100-500
200~1000
250~2500

Apllication Filed2.jpg
