ODOELEC China wholesale original 80v 200A 2 pole contactor DC182B 581T for pallet truck /tractor / industrial trucks
- Category: >>>
- Supplier: Yueqing Wodu Electric Co. Ltd.
Share on (62095191191):
Product Overview
Description
Application
ODOELEC China wholesale original 80v 200A 2 pole contactor DC182B-581T for pallet truck /tractor / industrial trucks
The product has two sets of contact switch, which can be used in auto electric winch, telecommunication equipment, engineering machinery, storage battery, electric forklift trucks, trains, ships, uniterruptible power supply and other electric control system.

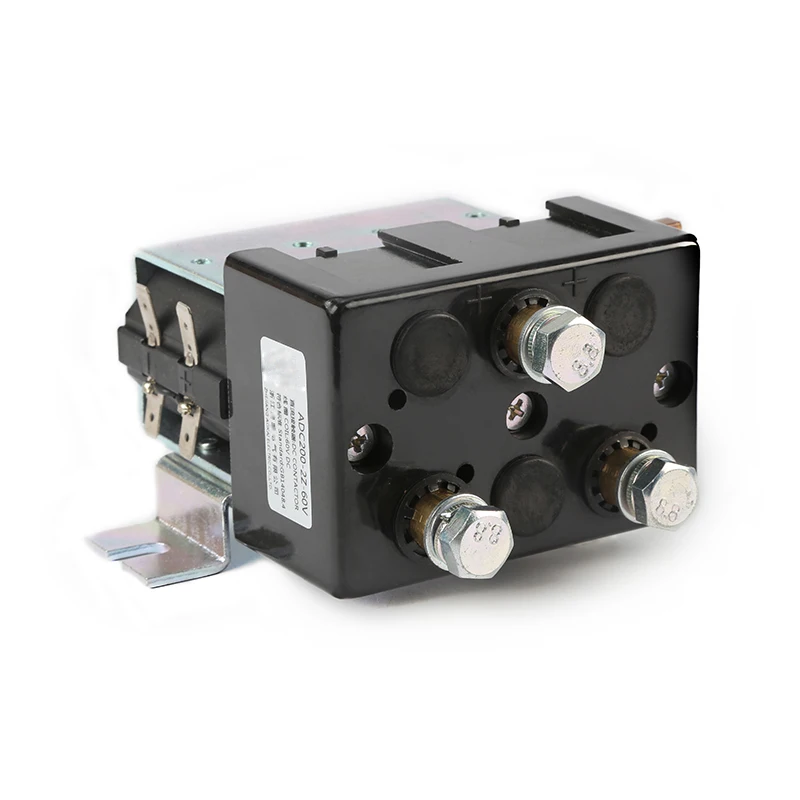

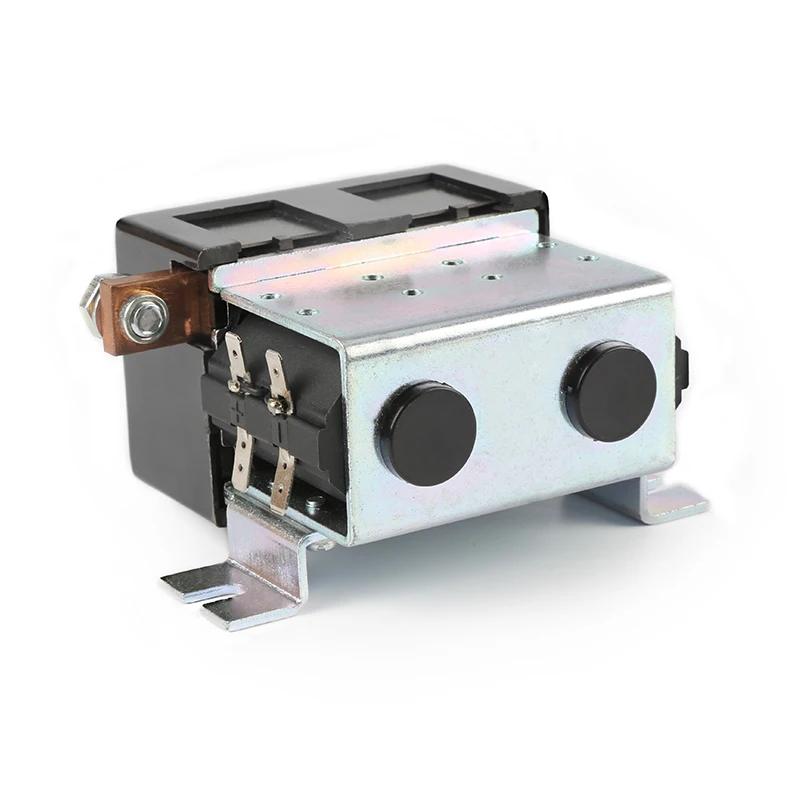

Detailed Images
ODOELEC China wholesale original 80v 200A 2 pole contactor DC182B-581T for pallet truck /tractor / industrial trucks
1) Rated Voltage: 80V
2) Current: 200A
3) Contact form: 2 NO and 2NC
Technical Parameters
Rated Voltage | 12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V, etc. | ||||
Contact circuit rated load current | 200A | ||||
Typical voltage drop across contacts per 100A | ≤80mV | ||||
the cooling pull-in voltage at (20+5)°C | ≤70% | ||||
The allowed range of coil voltage | ±20% | ||||
insulation resistance | ≥50mΩ | ||||
Overload Current | ≤7Ie, ≤1s | ||||
Electrics strength to resist | 50Hz/60Hz 1000VAC/1min | ||||
Contact form | 2NO and 2NC | ||||
Contact material | AgCdO/AgCuO | ||||
Work specification | continuous | ||||
Mechanical life | 300 thousand times | ||||
Starting Current | ≤4A | ||||
Technical Specification | GB14048.4-2010 | ||||
Application
Environment
altitude | ≤2km | ||||
ambient temperature | -25~+55℃ | ||||
International protection | IP50 | ||||
way to install | any | ||||
Packing & Delivery
ODOELEC China wholesale original 80v 200A 2 pole contactor DC182B-581T for pallet truck /tractor / industrial trucks
Packaging Details:\tregular packing
Delivery Detail:\tShipped in 20 days after payment
