RH AUDIO 2 Channel DAB Plus Radio Player with USB Output BT FM RDS CD for Music Playing
- Category: >>>
- Supplier: Guangzhou Xinghongde Electronics Technology Co. Ltd.
Share on (62095209611):
Product Overview
Description
RH-AUDIO 2 Channel DAB Plus Radio Player with USB Output BT FM RDS for Music Playing Bracket
Product Description
The RH680CAS is an All-In-One audio source device which accommodates different kinds of audio sources into one single device with two channels:
Channel A combines a CD-Player,USB/MP3-player and Bluetooth-receiver.
Channel B combines USB/MP3-player,Bluetooth-receiver and a tuner receiver of FM/AM/RDS/DAB/DAB+.
Specification
Model | RH680CAS |
Compatible media | Channel A USB,Bluetooth,AUX in |
| Channel B USB,Bluetooth,FM,AM,RDS,DAB,DAB+ |
Control | Front panel,Remote control,RS232 |
Output | RCA (L&R)x2, XLR (L&R)x2 |
Frequency range | ABS enclosure, metal bracket & grille |
| FM(RDS) 87.5-108 MHz |
| AM 522-1620 KHz |
| DAB 168-240 MHz |
| DAB+ 168-240 MHz |
Frequency Response | 20 Hz - 20 kHz |
Output level | 2V (0dB) |
Power supply | 100 ~ 240 VAC / 50 ~ 60 Hz |
Power consumption | 10 watt |
Weight | 3.5 kg |
Dimension (WxHxD) | 330x267x49mm |
Unit height | 1U height with rack mounting brackets supplied |
Product details
Listening to DAB/DAB+:
The radio channel provides a solution of Digital audio broadcasting (DAB+), the signals of which are transmitted in-band, on-channel (IBOC). Several stations can be carried within the same frequency spectrum. And with outstanding features including improved sound quality, reduced fading and multipath effects, enhanced immunity to weather, noise, and other interference, and expansion of the listener base by increasing the number of stations that can broadcast within a given frequency band.
Since the DAB system is broadcasted in digital format, DAB system can supply crystal-clear audio and stable reception even in mobile objects. DAB is a new generation radio which can provide data service and supplementary multi-media services.
1)The main difference between DAB and DAB+ is the type of audio codec used.
DAB: MPEG2
DAB+: MAEG4 (AAC)
2)This unit can receive both DAB and DAB+ broadcasts.
Remark for the feature of RDS/DAB/DAB+: To lower the cost of this player,RDS/DAB/DAB+ can be removed for the markets where this feature is not compulsory.
Stereo Output:
On the rear side each channel has its own stereo outputs provided with RCA & XLR connection interface.
Because of the two separate stereo outputs,the two channels can operate simultaneously.
This feature can be useful for applications such as Multi-Zone systems where multiple audio
sources are required at the same time.
RS232 serial interface:
A RS232 serial interface that can be used for external control of the host device and to configure settings.
In the serial remote control function, a host such as a computer is connected to the unit.
By sending control commands from the host to the unit, the unit can be operated.
Removable rack mounting brackets:
Removable rack mounting brackets are supplied,1U height design for installation in standard equipment rack or on desk.

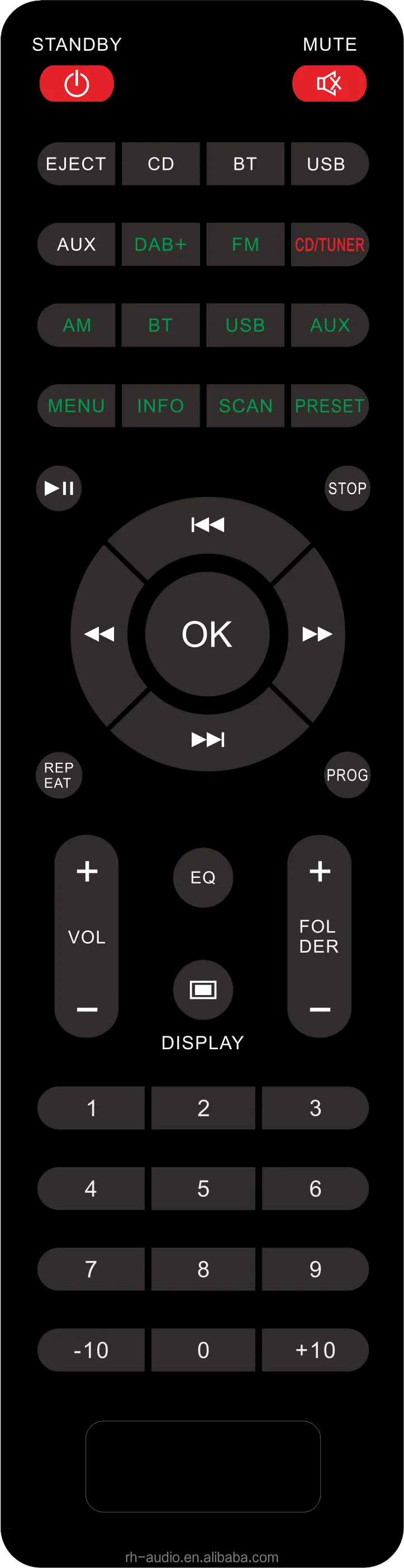

Remote control:
This player RH680CAS can be operated through the front panel pushbuttons,also can be done through its remote control.
