Food additive homogenizer lab mixer homogenizer
US $18000-$20000
LH500/25 Ultra dairy laboratory food big high pressure homogenizer
- Category: Homogenizer >>>
- Supplier: Shanghai Flight Pharmaceutical Machinery Co. Ltd.
Share on (62095301550):
Product Overview
Description
Product Description
LH500/25 Sterilized special high pressure milk homogenizer machine
———Descriptions———
The LH series homogenizer is the new product developed by our company based on the
up-to-date International technology of 1990 s.
The equipments is used to homogenize, emulsify, spray and high pressure transport liquid
Materials whose viscosity is less than 0.2 p.as, temperature is lower than 80 c (liquid-liquid
Phase or liquid-solid phase).
In working, with the advance and return movement of plunger piston, open and close of
rebound valve and covered core inside the pump, to control the slight clearance between the
valve head and valve base inside the adjusting valve effectively, so form strong high pressure
energy.
The materials could fulfill the purpose of homogenization and emulsification under the
instant action of combined force of turbulent flow, cutting, collision and cavity.
The equipment is widely used in the production, scientific research and technical
development of a lot of areas, such as: food, dairy food, drink, pharmacy, chemical industry,
biological technology and so on.
1, Be used as high pressure homogenizer It can cause the material homogeneity and
mixture under the three action of extruding, strong impacting and decompression inflating.
It is an important equipment of food, dairy food, drink processing and so on. It can cause the
fat globule thinning while homogenating under the high pressure to the milk, soy milk this kind
of dairy food. And cause its products to be easy to digest and absorb, and to improve the
dietary value. It can improve the fineness and the fraction void of the fluid material, as well
as its intrinsic quality, while be used in the processing of ice cream this kind of production. If
be used in the producing of emulsion, glue, fruit juice, syrup and so on, it will prevent or
reduce the delamination of the material, improve the appearance of the material, and make
the luster more bright, the fragrant thicker and tasting mellower.
2, Be used as high pressure delivery pump
It is an important equipment during the production of powdered medicine, as the fluid
material produce high pressure when through the equipment, and be made to powder after
through the spray drying device.
This equipment also can be used in the emulsification, high-pressure transportation and the
high pressure spray situation of other fluid materials.
———Technical Parameters———
Rated flow | 500 L/h |
Max. work pressure | |
Continuous work pressure | 20 MPa |
Emulsification granularity | ≤1 um |
working temperature | ≤80°C |
Materials viscosity | ≤0.2 pa.s |
Diameter of feeding pipe | 33 mm |
Diameter of discharging pipe | 21 mm |
Power | |
Power supply | |
Speed | |
Net weight | |
Overall size |

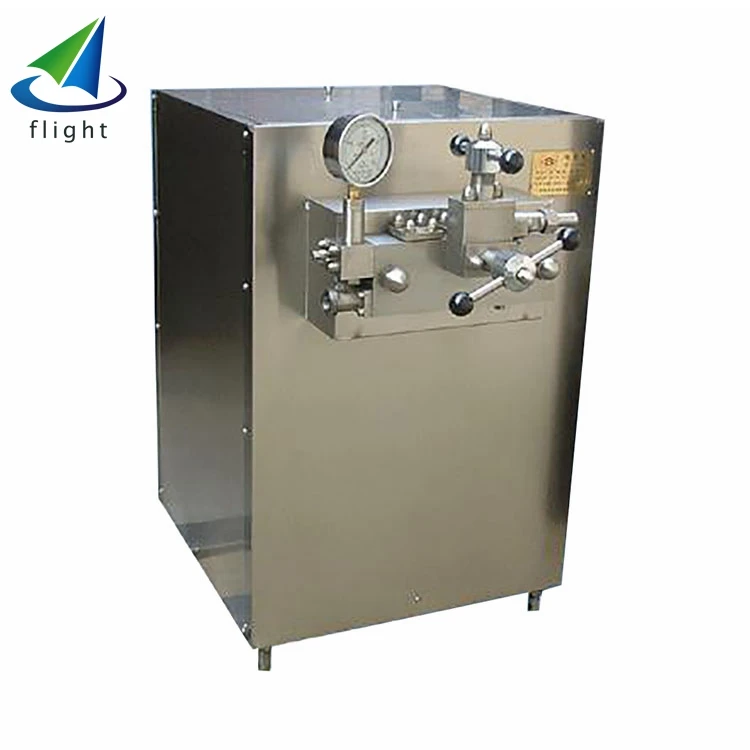

———Product image———
Features
——Features——

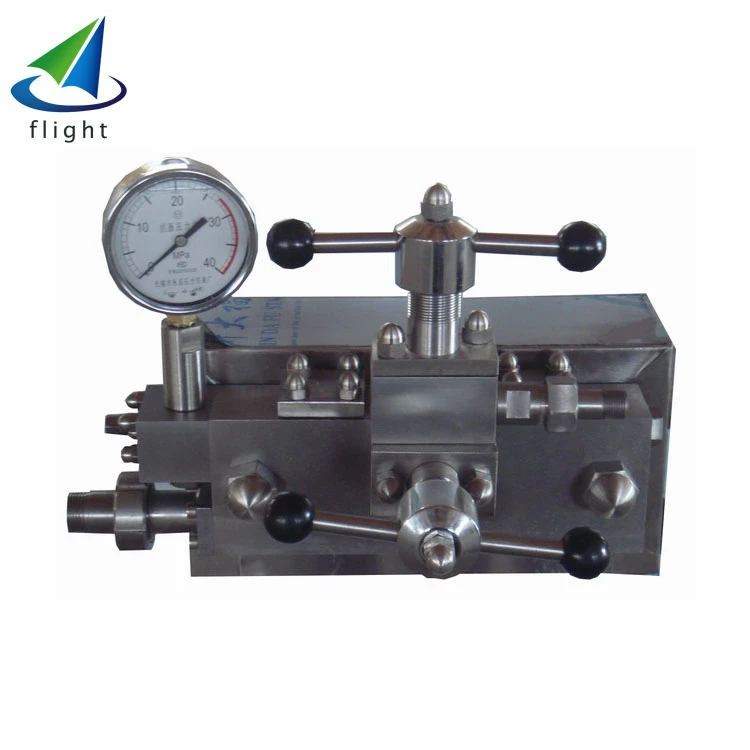

Feature 1 | It is composed of frame, wheel box, pump body, pressure meter and homogenizer and so on. Its designs is reasonable and original, variety is ample. As follows: -Special model for sterilized milk. -Special model for fruit juice and beverage. -Special model for alcoholic liquor. -Special model for albumen drink. -Special model for cold food (thick plasm). -Special model for lubricating grease. -Special model for chemical industry. -Special model for condiment( sauce, vinegar, and so on) -Special model for special purpose |
Feature 2 | The outside and main parts adopt high quality stainless steel and corrosion resistant alloy, So it useful time is longer, its outside is very exquisite, meet the food sanitation standard. |
Feature 3 | Pressure control adopts two-tier mechanical pressure regulating, it is easy to regulate, safe and reliable. |
Feature 4 | The plunger piston adopts some new material of wearproof alloy spray alloy and china, With the characteristics of anti-corrosion, wearproof.The high pressure sealing of plunger piston adopts self-caulking gasket ring, V-shape gasket ring, combined type gasket ring, with long useful time. |
Feature 5 | Bent axle drive adopts one-stage drive mode, with stable running, small power loss, and low noise. |
——Hot Sale Products——
Our Advantages
——Our advantages——
Products advantages | 1. We always give top priority to quality 2. Strictly guarantee the precision of parts error 3. Reasonable processing technology coupled with advanced processing equipment |
Trade advantages | 1.Our company is a Gold Supplier on Alibaba. So we can provide Escrow Service on Alibaba. 2.Our company can do Trade Assurance Order for customers on Alibaba. |
Custom made advantages | 1.The company independent research and development, custom design exclusive for the series of products. 2. Mutual benefit with the best quality and service, and sincerely hope that friends from various circles at home and abroad sincere cooperation and mutual benefit and win-win situation. |
Company Introduction
——Our Company——
Flight Pharmaceutical Machinery CO., Ltd is the professional manufacturer and export of
various pharmaceutical machineries in China. Our company has profuse designs with series
quality grade, and expressly, our price is very competitive, because we are manufactory.
Our factory developed about forty types of machines in over ten varieties. By ISO9001:2000
quality system attestation, accord with GMP attestation request. All tasks from casting to
metal machining, and general assembly are accomplished ourselves.
We produce and export various pharmaceutical machineries, relevant medicament detecting
instruments and packing machinery, such as Rotary tablet press, Single punch tablet
press, Pulverizer, Mixer,Coating machine, Granulator, Labeling machine, Liquid filling
machine, Capsule filing machine, Blister packing machine, and so on.
We have professional export office, with an experienced and professional team, they will
service in whole business. By excellent quality, reasonable price and perfect after-service,our
products have been sold in many countries and regions all over the world, Such as United
States, Canada, Australia, United Kingdom, Bulgaria, Russia, Indonesia, Pakistan, Thailand
and Vietnam etc, these products are very popular with the customers there.
Try to do everything, let customer satisfaction, this is our company’s service tenet.
<<Welcome new and old customers come to discuss business>>
——Certificate——
Packaging & Shipping
——Packing & Shipping——
Delivery time | ≤10 units,Within 7 days after receiving the payment. >10 units, to be negotiated |
Payment methods | T/T or Western Union payment, and full payment before shipping |
Guarantee | One year quality guarantees and free with spare parts for one year. |
After sales service | The English user manual Circuit diagram |
