band saw cutting machine price band saw blade sharpening machine for wood
- Category: >>>
- Supplier: Qingdao Lusen Machinery Co. Ltd.
Share on (62095356169):
Product Overview
Description
Products Description

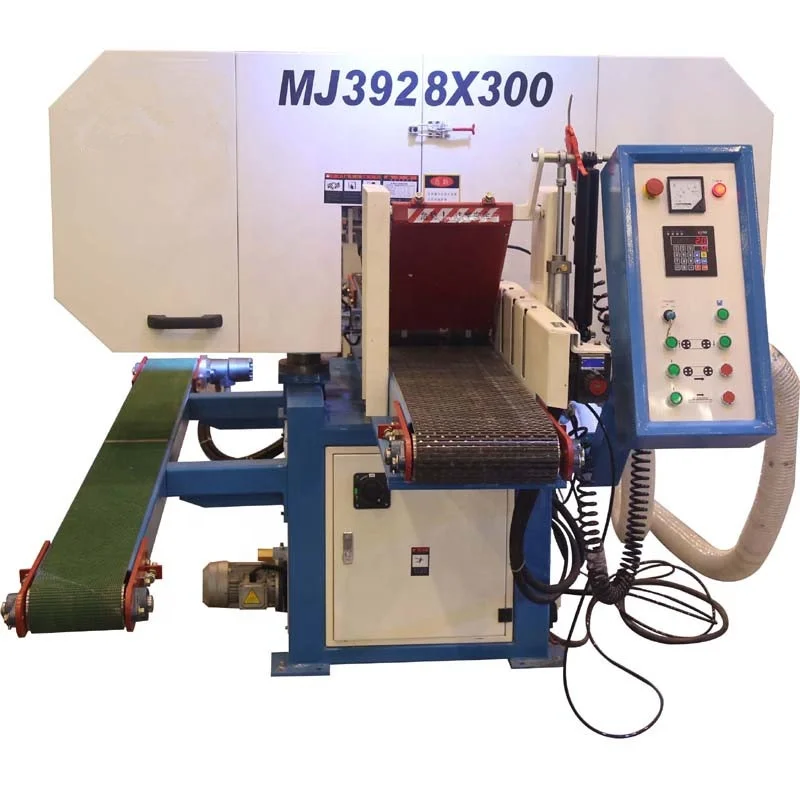

Band Saw Machine table saw machine/wood band saw/rotating blade band saw machine
Horizontal band saw for wood main features:
1. Equipped with personalized micro-computer interface, and digitalize thickness display for quick and accurate saw blade
position, ensure a simple and convenient operation.
2. High-precision rotary encoders with precision ball screw, which achieves low noise, small torque fluctuations and
long-termmaintenance, also ensure the greater accuracy of sawing thickness.
3. Assisted material revert system, which can ensure a higherefficiency and more energy saved.
4. The PLC integrated control system, assures a simple and steady operation.
5. Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and
extend the useful life of the saw blade.
6. The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving
power, so as to ensure the work piece is well shaped and smooth.
7. Specially designed with multi units of pinch roller setting, which ensure the work piece can be firmly pressed when cutting, it
is also a guarantee of operation safety.
8. Saw wheel is made by medium carbon steel, convex saw wheel avoids saw blade sliding off.
9. Water-cooling system provides high efficiency cooling and cleans wood dust on saw teeth.
10. The thickness tolerance is only 1.1-1.6mm, compared with other processing methods, it can save approximately 20% of material,
and this is the most effective way of reducing costs.
1. Equipped with personalized micro-computer interface, and digitalize thickness display for quick and accurate saw blade
position, ensure a simple and convenient operation.
2. High-precision rotary encoders with precision ball screw, which achieves low noise, small torque fluctuations and
long-termmaintenance, also ensure the greater accuracy of sawing thickness.
3. Assisted material revert system, which can ensure a higherefficiency and more energy saved.
4. The PLC integrated control system, assures a simple and steady operation.
5. Automatic hydraulic saw blade tensioning compensation system to ensure the best tension state of the working saw blade and
extend the useful life of the saw blade.
6. The conveyor belt is driven by a hydraulic or electric motor, which provides steady operation, constant and powerful driving
power, so as to ensure the work piece is well shaped and smooth.
7. Specially designed with multi units of pinch roller setting, which ensure the work piece can be firmly pressed when cutting, it
is also a guarantee of operation safety.
8. Saw wheel is made by medium carbon steel, convex saw wheel avoids saw blade sliding off.
9. Water-cooling system provides high efficiency cooling and cleans wood dust on saw teeth.
10. The thickness tolerance is only 1.1-1.6mm, compared with other processing methods, it can save approximately 20% of material,
and this is the most effective way of reducing costs.
Details Images

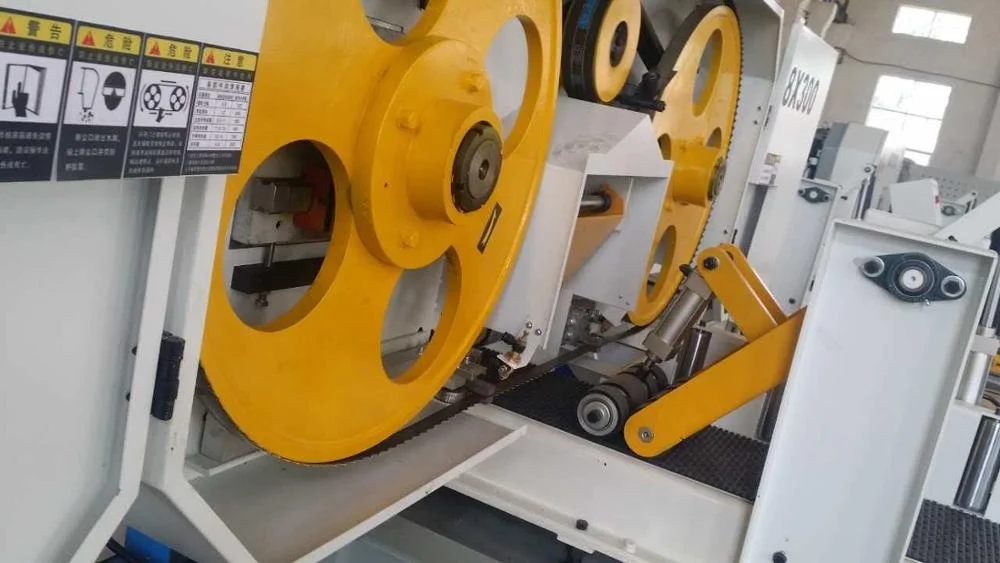

saw wheel

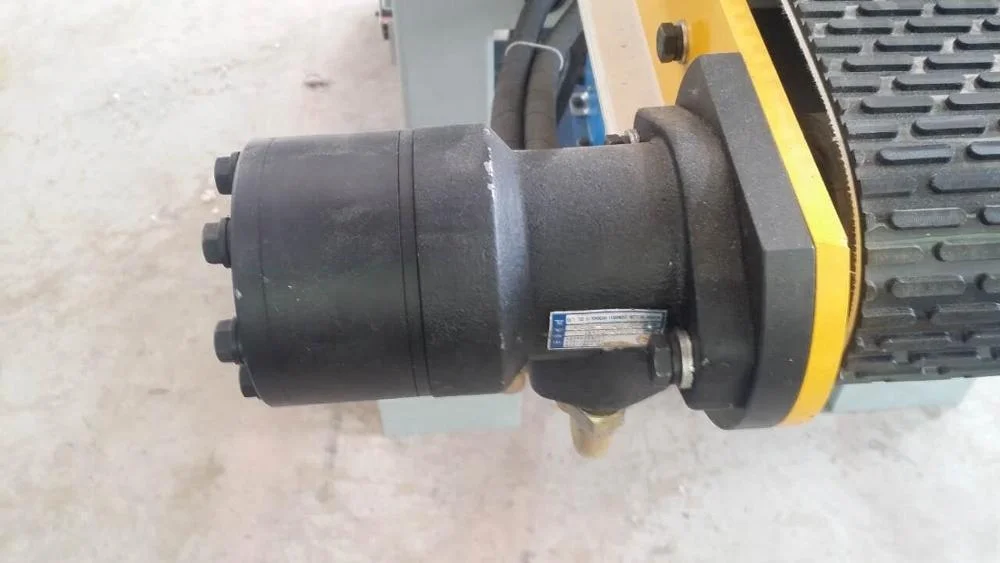

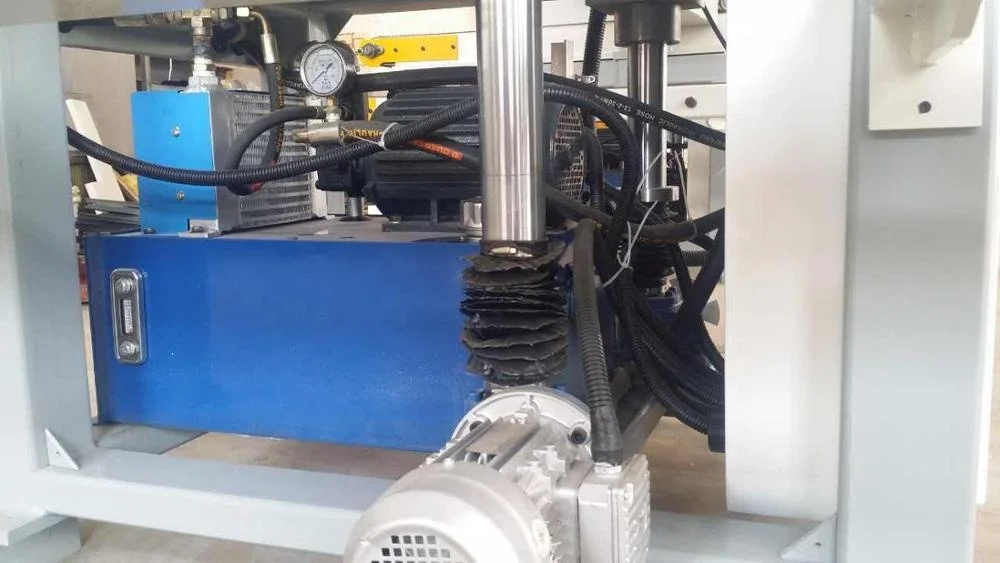

hydraulic system
electric control
heavy machine structure
Product Paramenters
Max working size | 300*300mm |
Distance to the working table | 3-200mm |
Width of conveyor belt | 285mm |
Diameter of saw wheel | 711mm |
feed speed | 0-18m/min |
lift motor power | 0.18kw |
saw wheel motor | 15kw |
hydraulic pressure | 55kg/cm³ |
diameter of vacuum tube | 102mm*2 |
saw blade size | 4572*27*0.9mm(1" saw wheel ) |
4572*41*1.27mm(1.3" saw wheel ) | |
saw road | 1.2-2.2mm |
Net weight | 1800KG |
Overall dimensions | 3000*1950*1850mm |
application
Product packaging
Recommend Products
Our service
(1) Pre-sale services:
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients’ special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
* Provide the free consultation of the equipment .
* Provide the standard device and the flow chart.
* According to the clients’ special requirement, offering the reasonable plan and free design helping to
select the equipment.
* Welcome to visit our factory.
(2)Services during the sales:
* Inspect the machine before leaving the factory.
* Oversea install and debug the equipment.
* Train the first-line operator.
(3)After sale services:
* 24 hours online service.
* Provide the VIDEO with Install and debug the equipment.
* Provide technical exchanging.
