Good performance small Mobile Hydraulic Tricycle Crane

Product Overview

Description

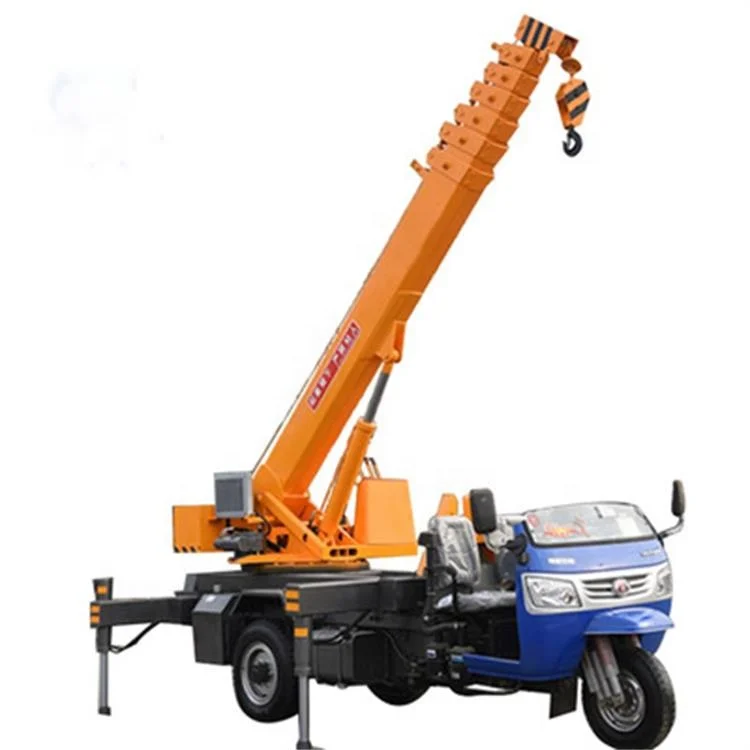

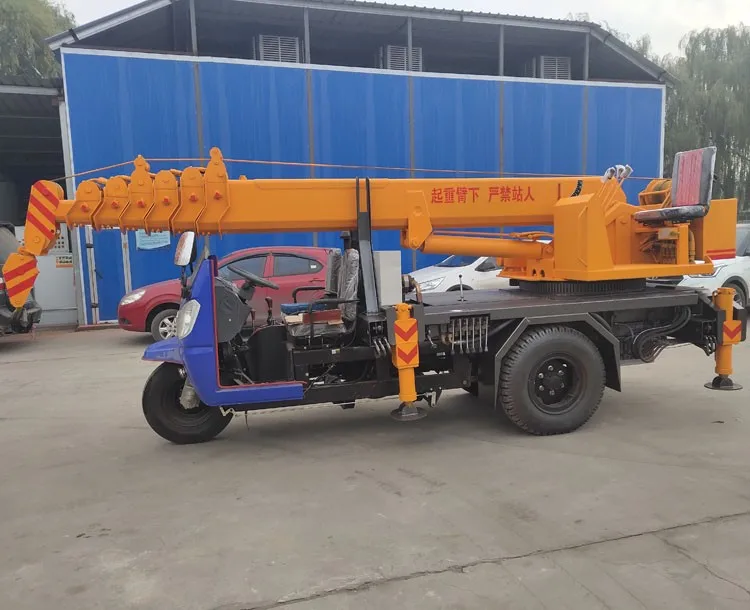

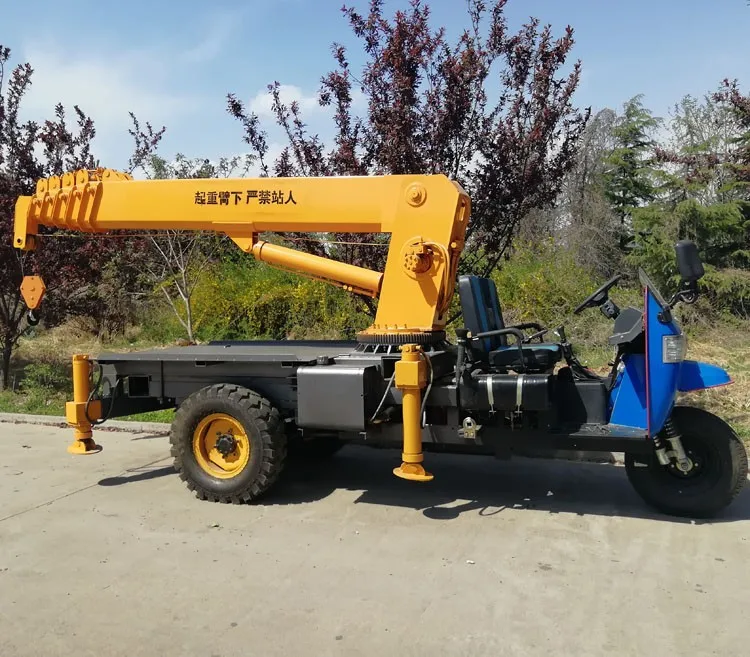

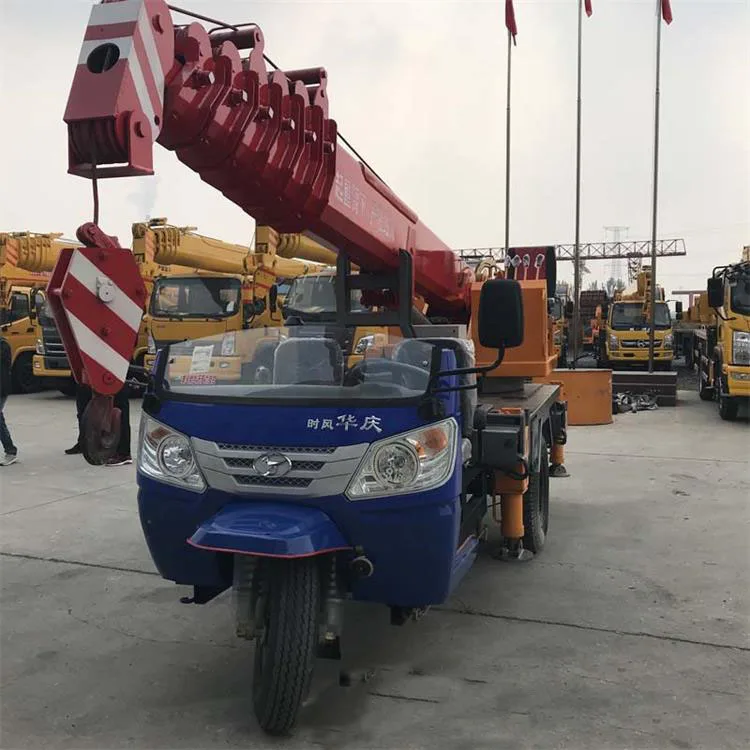

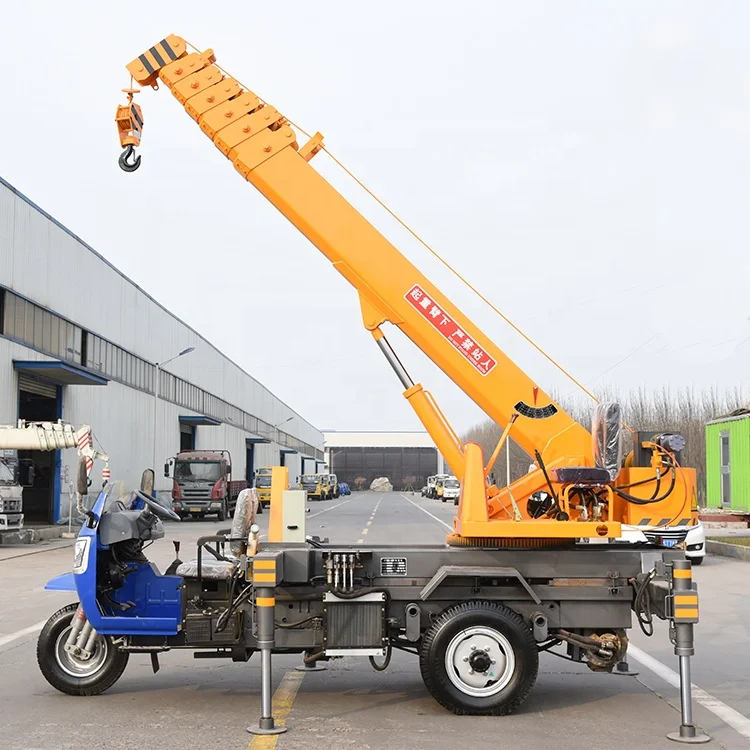

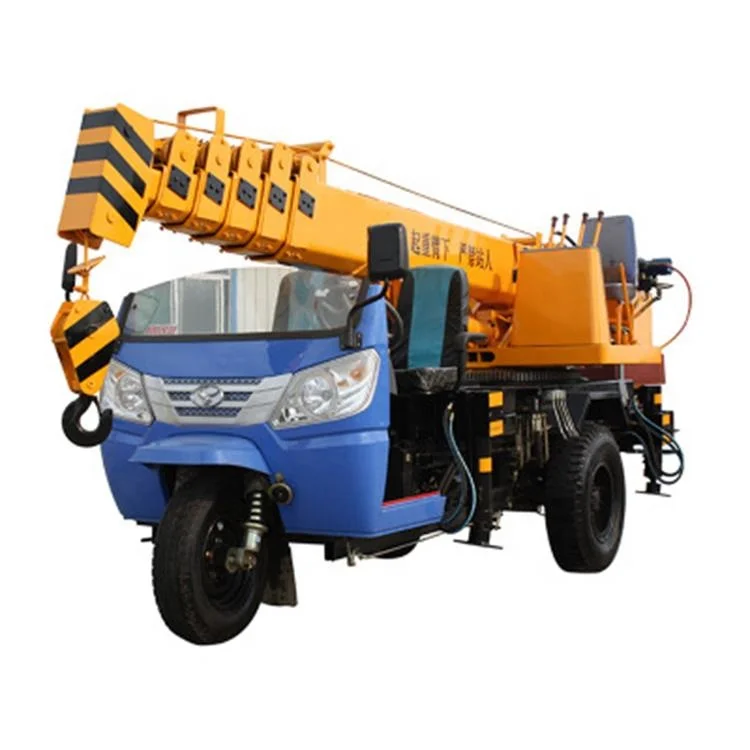

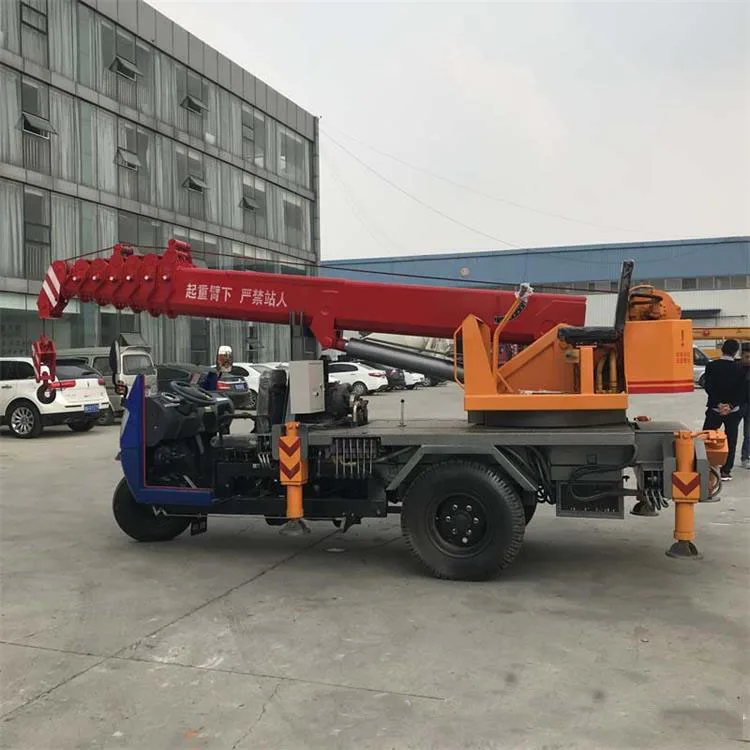

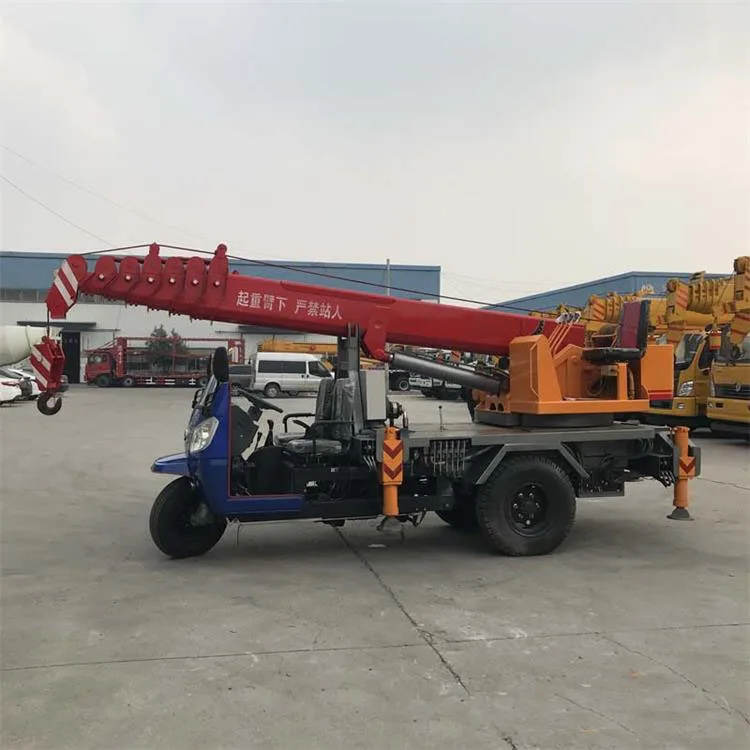

Small Mobile Hydraulic Tricycle Crane

The three-wheeled crane has a small size and high efficiency, and is suitable for lifting and transporting various narrow terrains. It is mostly used for lifting saplings, slate, cement, etc., with a maximum lifting capacity of 3 tons.

1. It is made of WISCO high-strength HG80-HG60 steel plate to ensure product quality. Not only the entire vehicle and the crane are lighter in weight, but also have a higher lifting capacity and improved lifting performance.
2, the use of lightweight design, so that the vehicle has greater carrying capacity, reduce the car's own weight, reduce fuel consumption, its own more fuel-efficient and improve transport capacity, the annual investment recovery rate is higher.
3, through modular, parametric computer design, can be matched with a variety of lifting attachments, extending the job function. And has a variety of operational forms of configuration.
4. The key parts of the hydraulic system of the truck crane adopt a full set of imported hydraulic oil seals and imported multi-way valves to ensure stable performance, reduce failure and maintenance costs, more reliable quality, longer service life and safer operation.
5, unique 25% safety overload capacity design, making lifting more safe, work area is larger.
6, using hydraulic winch technology, automatic welding production line, higher efficiency, more convenient operation and maintenance, more economical and practical.
7, with the car crane can be operated left and right, can be rotated 360 degrees forward and reverse, full rotation, high speed and smooth, high efficiency, easy to operate. It adopts military quality production, advanced technology, reliable quality and performance, long service life and fast working speed.
8, a variety of additional functional configuration, personalized customization to meet the needs of different customers.
Technical Parameters:
Maximum lifting capacity: 3000Kg
Lifting speed: 26 (52) m / min
Maximum lifting height: 15m
Swing speed: 1.76r/min
Engine model: ZS1115
Driving speed: 40Km/h
Power: 25HP
Outrigger span: 2.905x2.225m
Chassis model: 7YP-1450-2
Dimensions: 4.8x1.5x2.2m
Time wind three wheel chassis speed winch double 40 pump
Advantages of reducer: stable work, low noise, high power, saving time and effort, and overload protection.
The hydraulic legs that can be moved are stable and reliable, and there is no need to worry about the legs being swayed due to uneven ground.
