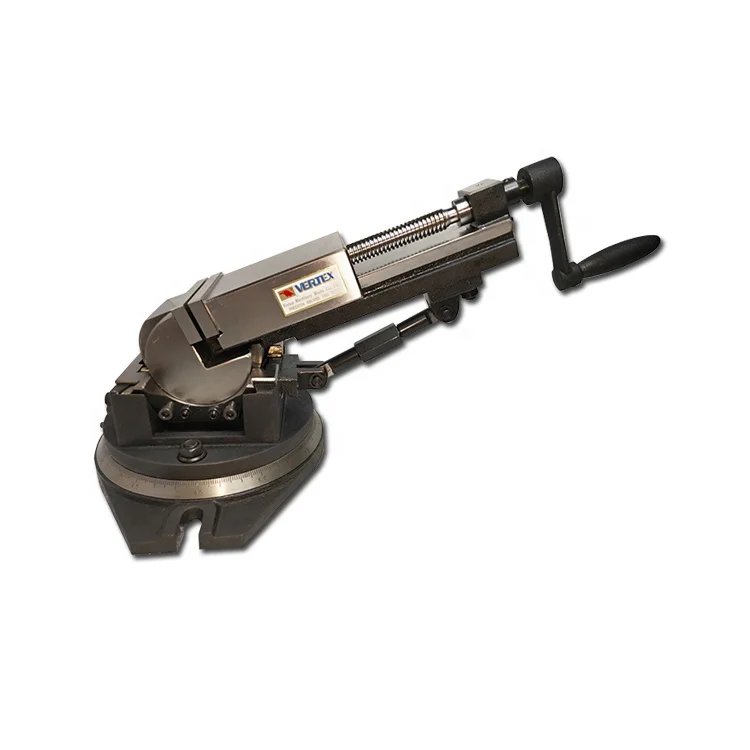

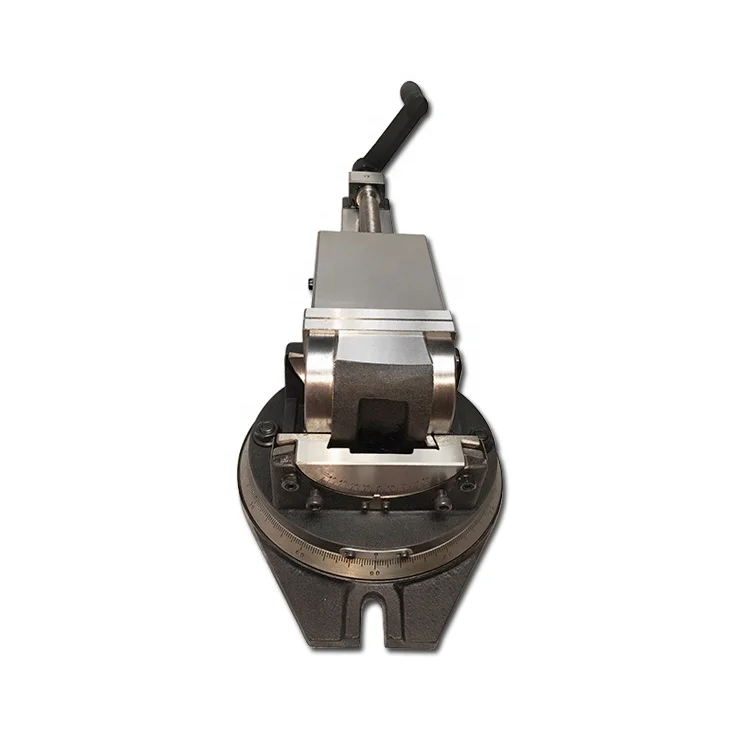

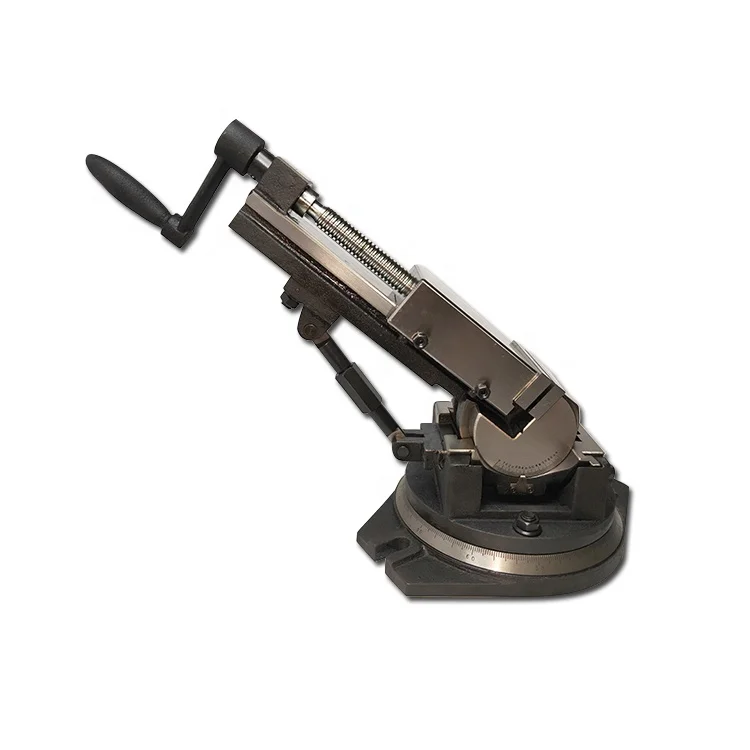

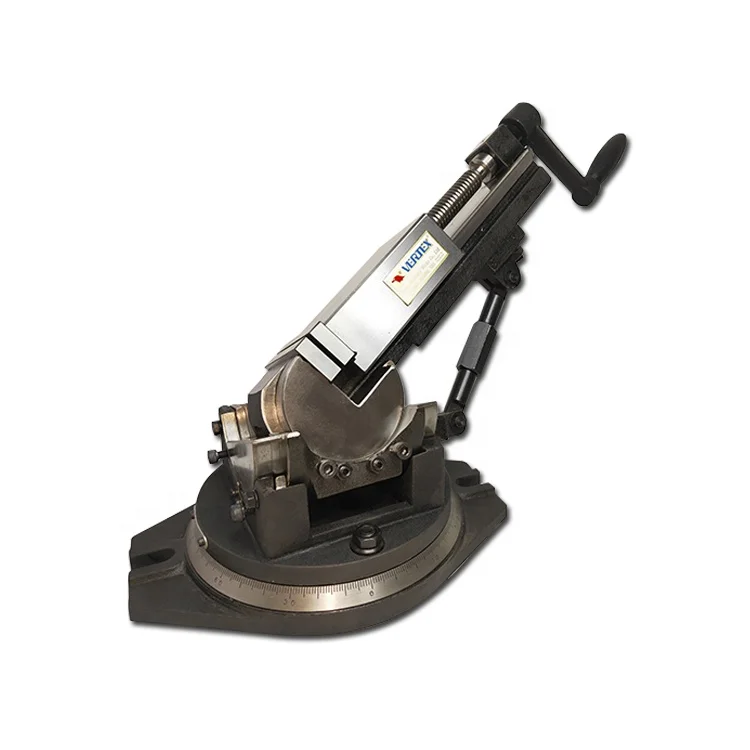

VERTEX Universal adjustable tilting rotating 3 way angle machine vise with swivel base VW 3

 Wholesale Cheapest Price 3 Way Angle Machine Vise For General

Milling Machine

Product function and feature:

1. Angle can be adjusted in three directions: horizontal, vertical and gyration.

2. It can be adjusted horizontally to 90 degrees perpendicular and inclined to 45 degrees left and right at the same time.

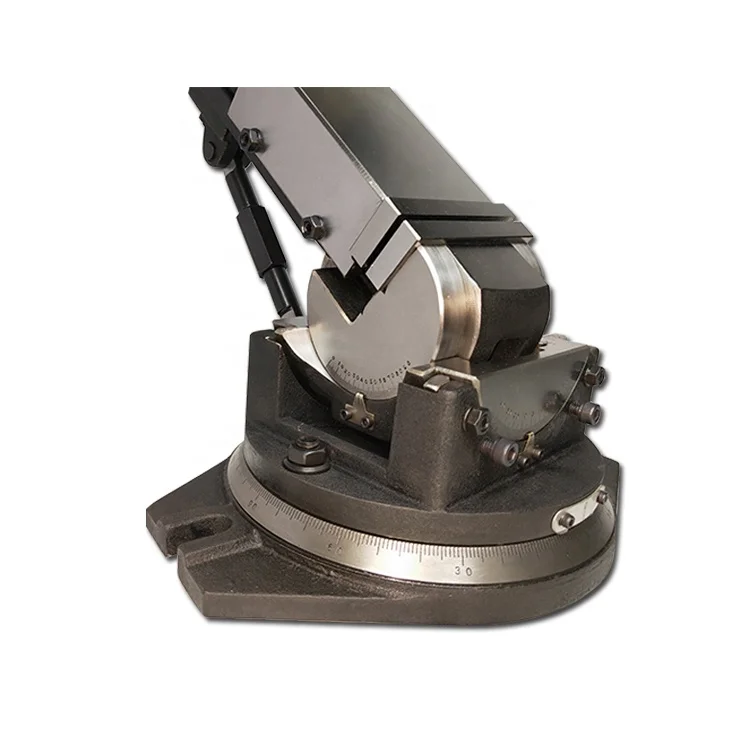

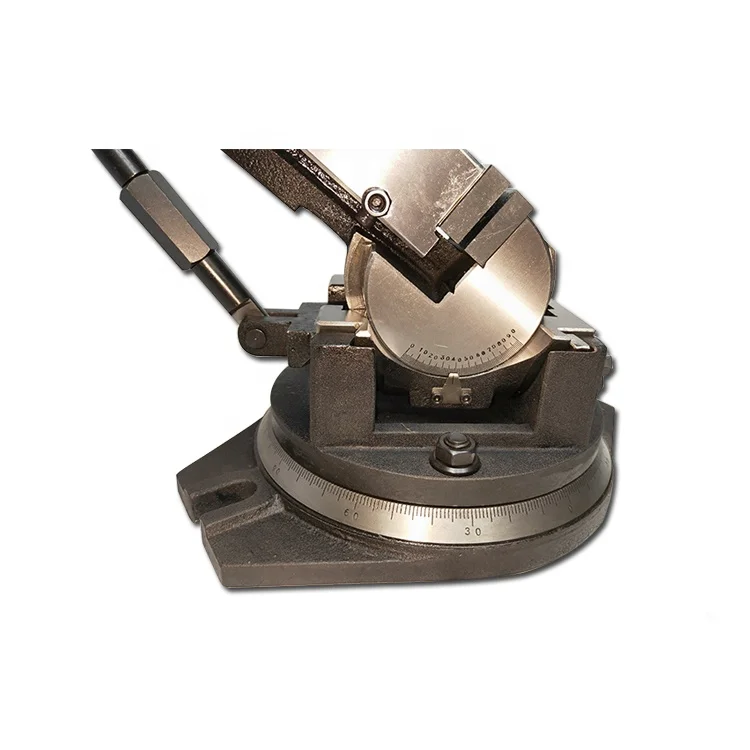

3. The pedestal has a degree scale and can rotate 360 degrees.

4. Secure locking in three directions;

5. Using high quality cast iron materials

6. Parallelism of the two clamps is 0.01mm/100mm, and perpendicularity of the two clamps to the rail surface is 0.01mm.

7. The rotary tilting mechanism of clamp body, bidirectional body and sliding seat is used to locate all directions in three

directions.

8. Widely used in the use of complex parts such as mechanical and electrical processing

Application:

Suitable for general milling machine, CNC numerical control milling machine, machine processing, die manufacturing

industry
