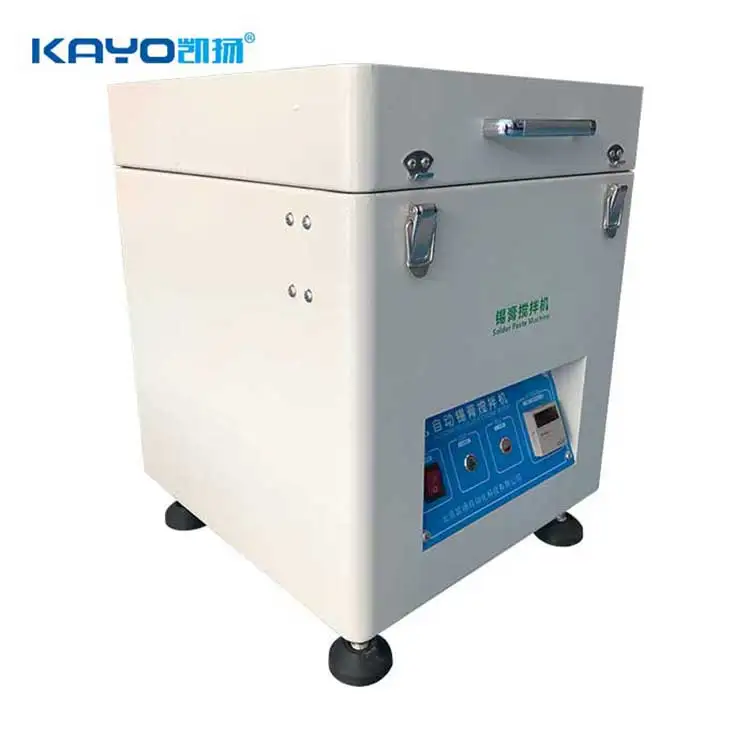

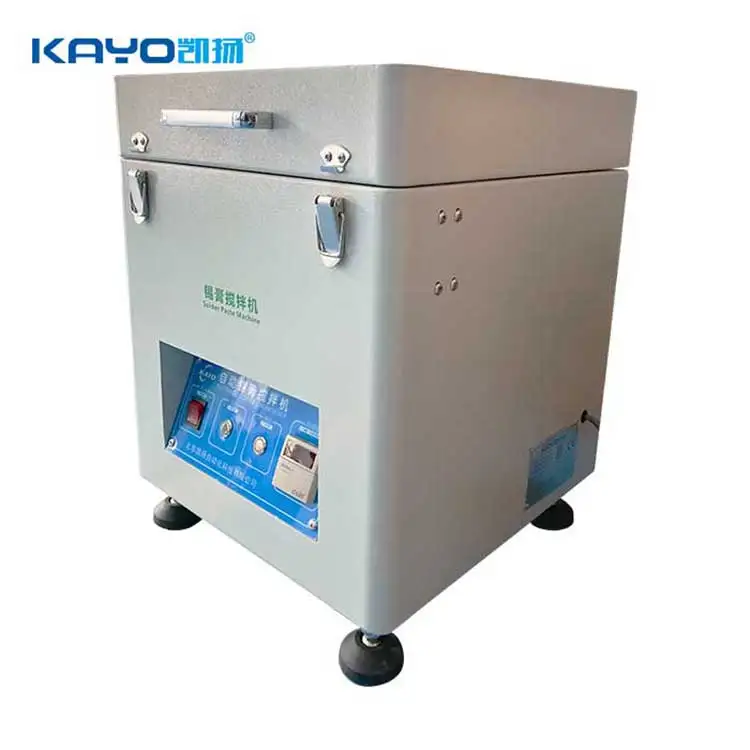

KAYO 500S Automatic solder Paste Mixer for smt line
- Category: >>>
- Supplier: Wuxi KAYO Automation Equipment Co. Ltd.
Share on (62095699676):
Product Overview
Description
Product Description

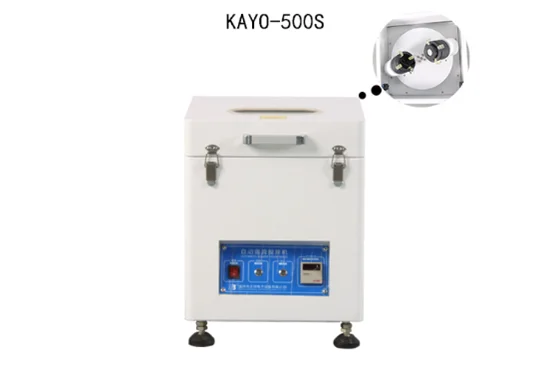

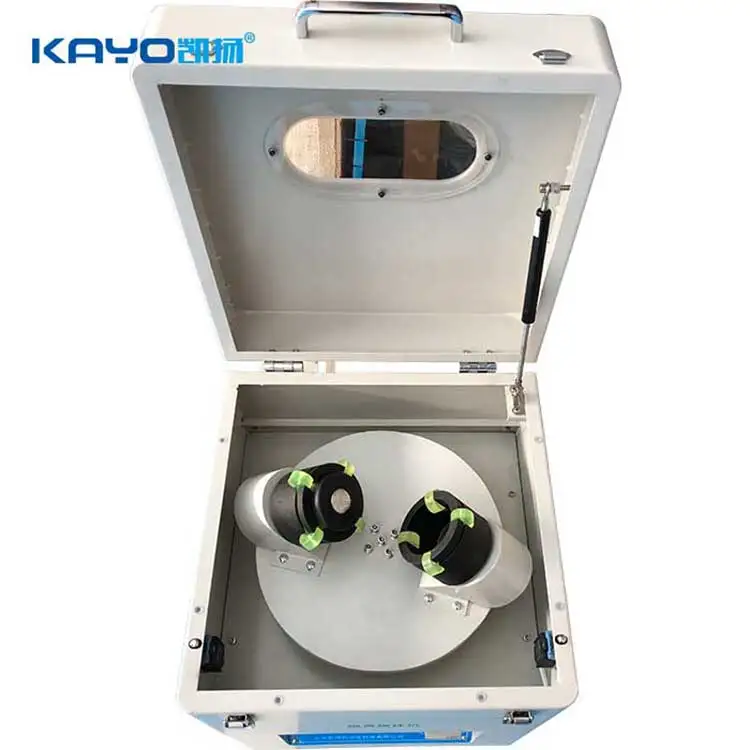

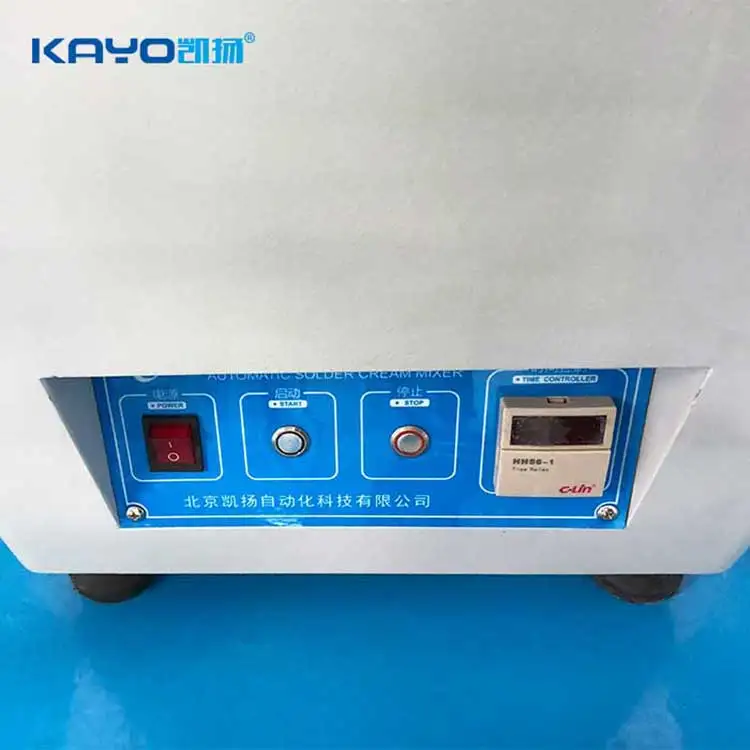

Automatic Paste Mixer

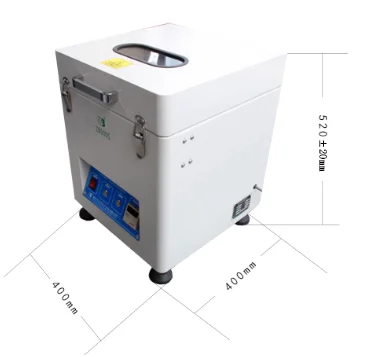

Product Dimensions
Product Specification:
1.Model: KAYO-500S.
2.Running Speed: 800.
3.Motor Rotational Speed: 1350 RPM.
4.One revolution: 400RPM.
5.Two rotations: 300RPM.
6.Operational Capability: 0-1000g * 2 tanks.
7.Acceptance of Paste Solder Cream Pot: Tank diameter Φ60-Φ70 standardconfiguration (suitable for general 500g solder cream bottle).
8.Time Setting: 0.01s~99H99s, minute and second set.
9.Display Mode: LED digital display.
10.Rated Power: Constant speed 60W.
11.Power Supply: AC 220V 50Hz.
12.Dimensions: 400×400×520mm.
13.Weight: 45KG.

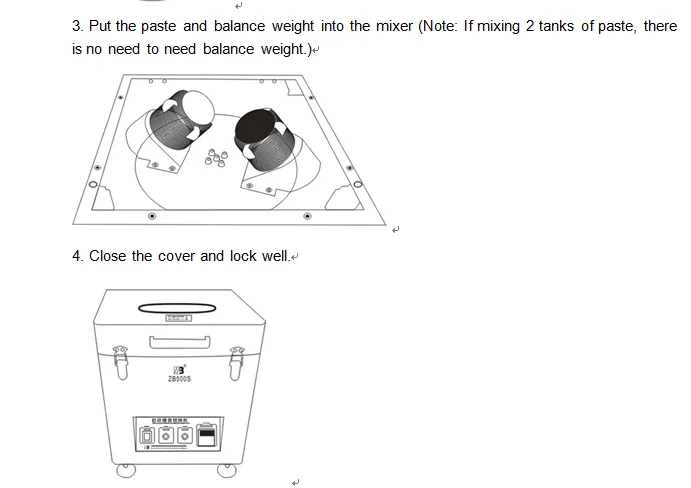

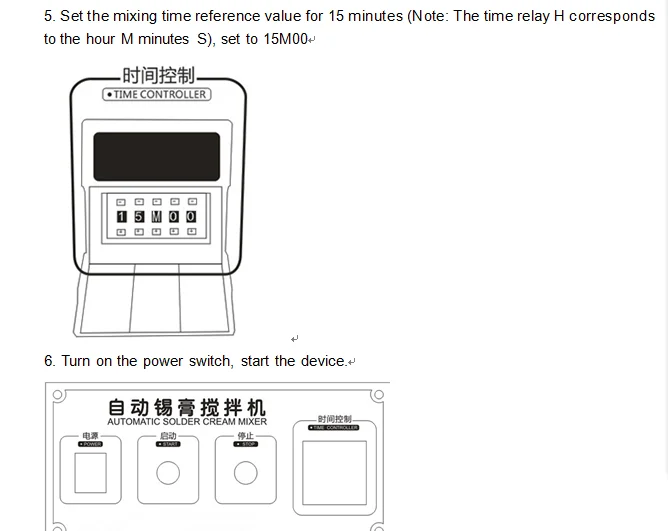

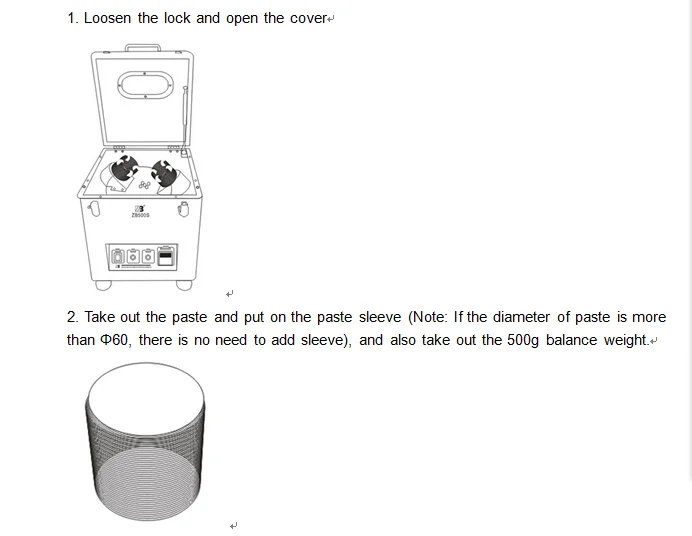

Operating Steps

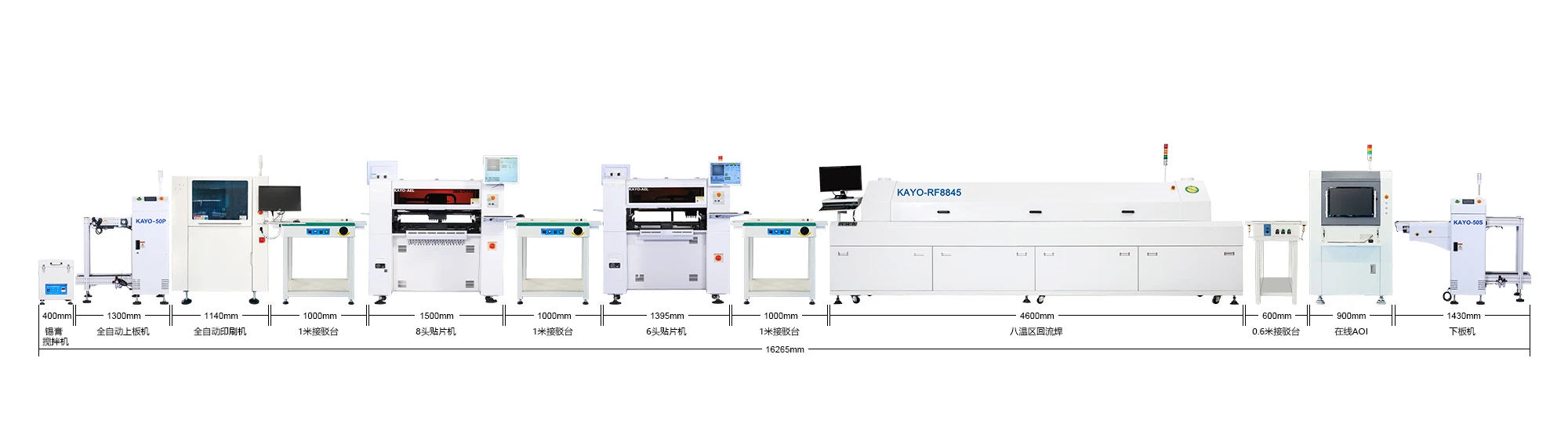

KAYO Main products
KAYO main products
1.Pick and place machines
Pick and place machines parameters
| Machine Name | KAYO-2DV-25S | KAYO-A4 | KAYO-A4L | KAYO-1706-3DSG (KAYO-A6L) | KAYO-A8L | KAYO-S600 | |
| Type | Vertical | ||||||
| Mounting Heads | 2 | 4 | 4 | 6 | 8 | 6 | |
| Feeder No. | 25 | 46 | 46 | 60 | 70 | 82 | |
| Max. Mounting Speed | off visual (CPH) | 6000 | 7000 | 8000 | 13000 | 15000 | 16000 |
| on visual (CPH) | 5000 | 5000 | 6000 | 10000 | 12000 | 14000 | |
| PCB Size | Min.(W*Lmm) | 50*50 | |||||
| Max.(W*Lmm) | 295*420 | 300* 480 | 300* 480 | 370* 650 | 380* 650 | 380* 650 | |
| Camera | Total | 2 | 6 | 6 | 8 | 10 | 9 |
| Mark | 1 | 1 | 1 | 1 | 1 | 1 | |
| High-speed | 1 | 4 | 4 | 6 | 8 | 6 | |
| High-precision | 0 | 1pc of 5million | 1pc of 8million | ||||
| Visual correction | 0 | 0 | 0 | 0 | 0 | 1 | |
| Driving Motor | Progressive motor | Panasonic servo motor | |||||
| Motion Drive System | High speed digital high voltage driver | Panasonic High speed DPS driver | |||||
| Positioning Accuracy | 0.01mm | ||||||
| Support Feeding Method | 8/12/16/24/32/44mm Pneumatic and electric feeder ,vibration feeder ,tube feeding, tray IC | ||||||
| Applicable Mounting Range | Min. | 0402 | 0201 | ||||
| Max. | 15*15mm | 45mm*45mm range pin pitch ≥0.3mm SSOP,QFP, BGA etc. | |||||
| Weight(kgs) | 100 | 350 | 450 | 450 | 550 | 880 | |
| Dimensions(mm) | 1050*850*660 | 1180*1080*880 | 1095*1165*1400 | 1335*1230*1420 | 1500*1280*1410 | ||
2.Screen printer
Screen Priners parameters
| Machine name | KAYO-P1000 | KAYO-5088 | KAYO-5088C | KAYO-5088L | KAYO-YS1 | KAYO-450 | KAYO-600 | |
| Type | Manually | Semi-auto | Full automatic | |||||
| Max. PCB Size(mm) | 250*400 | 400*300 | 600*320 | 1200*300 | 400*300 | 450*350 | 610* 350 | |
| Printing Table Size(mm) | 300*400 | 500*320 | 700*350 | 1250*320 | ||||
| Stencil Frame Size | Min.(mm) | 470*370 | 470*370 | 420*520 | ||||
| Max.(mm) | 370*470 | 600*320 | 950*736 | 1500*550 | 600*550 | 737*737 | 800*800 | |
| Squeegee Length | Standard 200mm (Could lengthen according to clients’ request) | |||||||
| Squeegee Speed | Manually Controlled | 0-100mm/s | 0- 200 mm/s | |||||
| PCB Thickness(mm) | 0.2-3 | 0.4-5 | 0.6-14 | |||||
| Printing Accuracy(mm) | ±0.01 | ±0.02 | ±0.1 | |||||
| Repeat Precision(mm) | ±0.01 | ±0.02 | ±0.05 | |||||
| Machine Dimension(L*W*Hmm) | 540*380*390 | 900*1100*1680 | 1800*900*1680 | 1450*1200*1680 | 1140*1400*1480 | |||
| Weight(kgs) | 20 | 150 | 160 | 180 | 500 | 1000 | 1200 | |
3.Reflow oven
Reflow oven parameters
| Machine name | KAYO-RF330 | KAYO-RF530 | KAYO-RF430 | KAYO-RF630 | KAYO-835 | KAYO-8845 | KAYO-610L | KAYO-820L | KAYO-800L | |
| Type | Desktop | Vertical | ||||||||
| Heating Zone | upper | 3 | 3 | 4 | 6 | 8 | 8 | 6 | 8 | 8 |
| down | 0 | 2 | 4 | 6 | 8 | 8 | 6 | 8 | 8 | |
| PCB Max. Width | 300 | 350 | 450 | 300 | 400 | |||||
| Transmission type | mesh | Mesh (Can customize mesh + rail guide) | Mesh + rail guide | |||||||
| Cooling zone | 2 | |||||||||
| Heating zone length(mm) | 1000 | 960 | 1400 | 2200 | 3200 | 3150 | 2050 | 2700 | 3000 | |
| Temperature control type | Panel Button + PID Close Loop | Panel Button +PID closed-loop (Can customize PC + PID) | PC +PID closed-loop | |||||||
| upper furnace opening method | Manually Open | Double electric cylinder jacking | ||||||||
| Dimensions(L*W*H mm) | 1500*610 *670 | 1700*710 *650 | 2500*612 *1220 | 3600*700 *1220 | 4200*800 *1320 | 4600*1000 *1420 | 3600*1200 *1450 | 4600*1200 *1450 | 5050*1350*1550 | |
| Weight(kgs) | 120 | 150 | 300 | 500 | 900 | 1100 | 800 | 1000 | 2200 | |
4.Other Accessories
