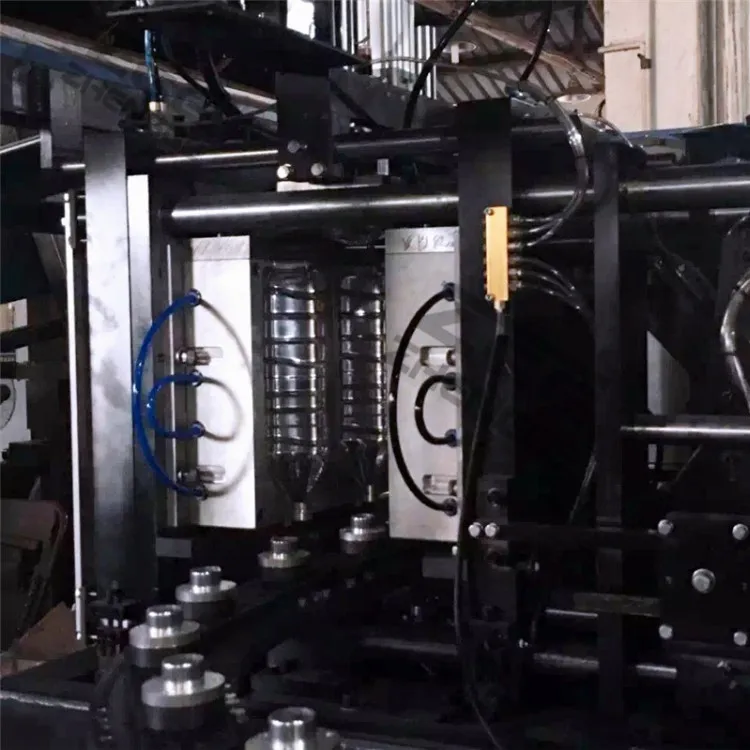

Plastic Product Making Machine Household /Latest Plastic Bottles Of Manufacturing Machine In China
- Category: >>>
- Supplier: Taizhou Huangyan Zhengge Plastic Machinery Co. Ltd.
Share on (62095716683):
Product Overview
Description
Product Description
Plastic Product Making Machine Household /Latest Plastic Bottles Of Manufacturing Machine In China
Great Overall Performance
Simple and generous appearance designed by our senior engineers .Also can add logo and other design
by customized.
Smart System
With the efforts of our engineers, now we can start our machine easily Which means you will have no trouble to operated when you get it.
Easy to Maintain
Don't worry about machine maintain, we have optimize its structure, so now it is easy to maintain! Professional after sales service will be offered.
Model | ZG-5000 | ||
Theoretical output | 700-800 pcs/h | ||
Max. bottle volume | 5L | ||
Max. neck diameter | 48mm | ||
Max. bottle diameter | 170mm | ||
Max. bottle height | 380mm | ||
Mold specifications | Cavity | 1 cavity | |
Mold thickness | 90mm-270mm | ||
Open stroke | 210mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 20kw | ||
Actual power consumption | 15kw | ||
Air source | High pressure air compressor | 1.6m³/min 30Kg | |
Low pressure air compressor | 1.6m³/min 10Kg | ||
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 2300*1950*2100mm/2500kg | |
Preform loader size | Length*width*height/weight | 2300*2150*2650 mm/550kg | |

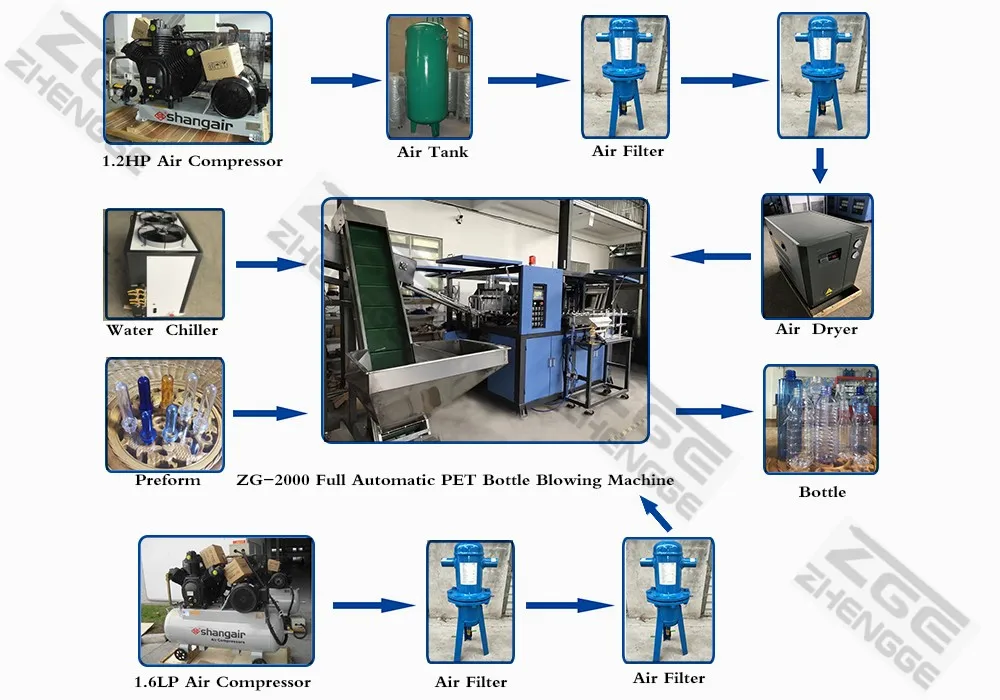

Flow Chart
We supply not only Bottle Blow Molding Machine,but also the Whole Line!
other auxiliary matched for you are all enjoy highly reputation around the word!!!
Control System
A. Advanced PLC control system with a use-friendly control panel.
B. Built-in memory of the PLC saves all the sets of numbers required to produce different size bottles.

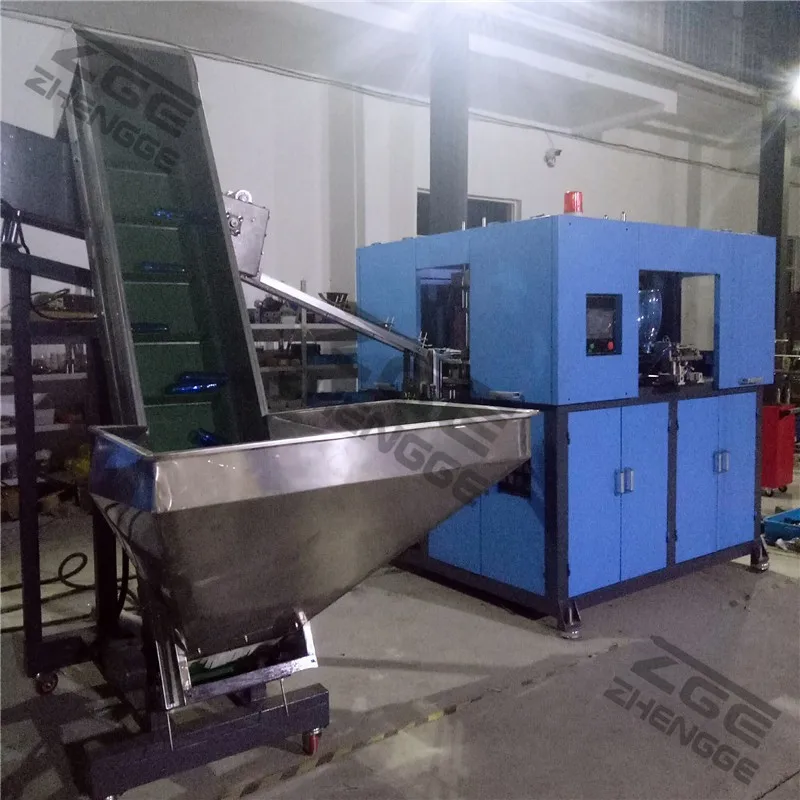

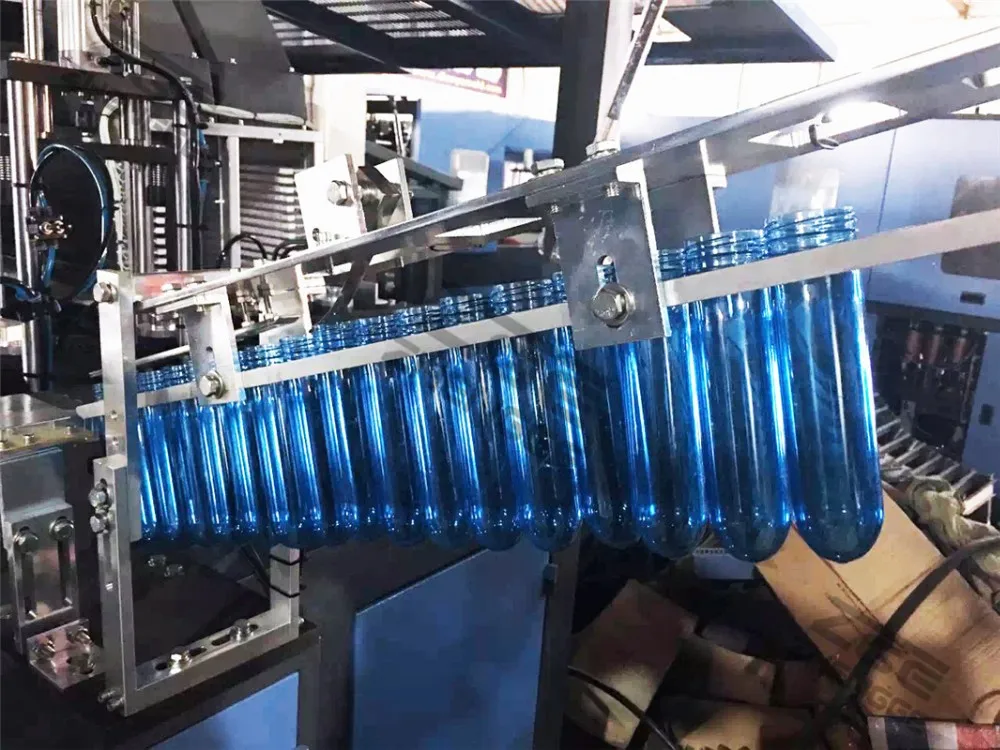

The automatic preform loading system.

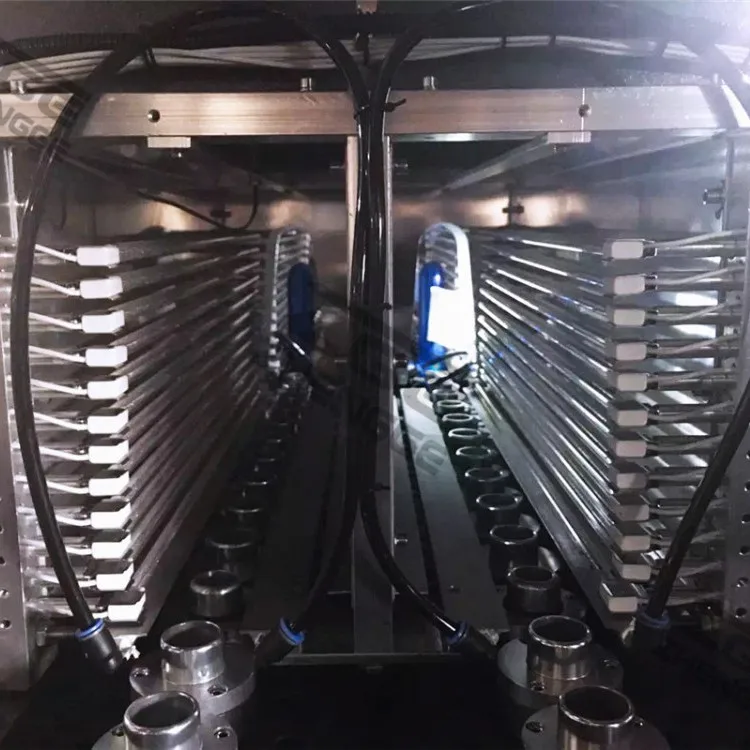

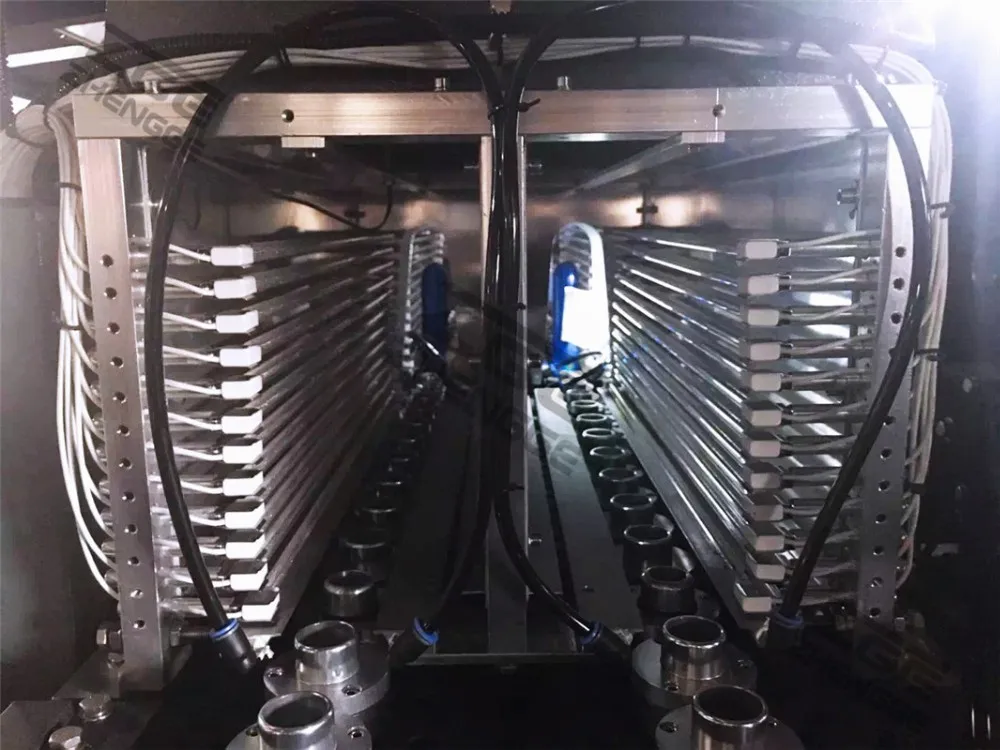

The heating system
We adopt infrared lamp to heat the preform.
A. 8 layer heating tunnel. Total 32 pieces heating lamp.
B. Each layer of lamp controlled independently,suitable for different kinds of preform.
C. Power of each lamp: 1.0Kw
A. 8 layer heating tunnel. Total 32 pieces heating lamp.
B. Each layer of lamp controlled independently,suitable for different kinds of preform.
C. Power of each lamp: 1.0Kw
C. Oven design in reasonable, adopt water cooling and air cooling. Suitable for hot environment to work, make sure the preform neck not distortion.
D. Total 33 pieces holder.
The machine can be customized. Different quality,different price.

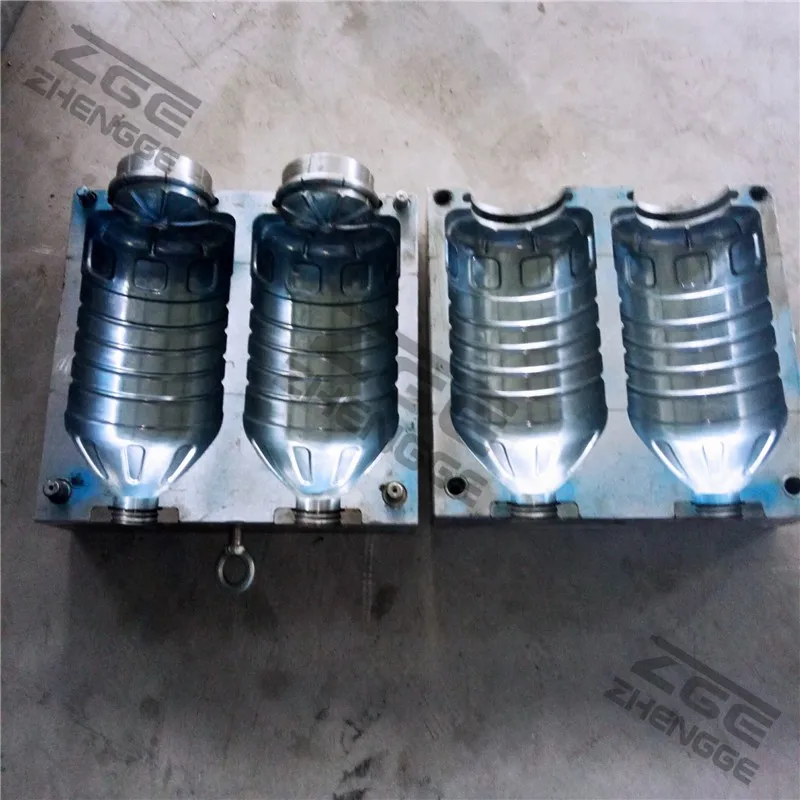

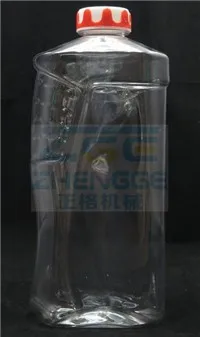

Bottle Design
The Production Line Of Bottle (We supply the whole line solution)

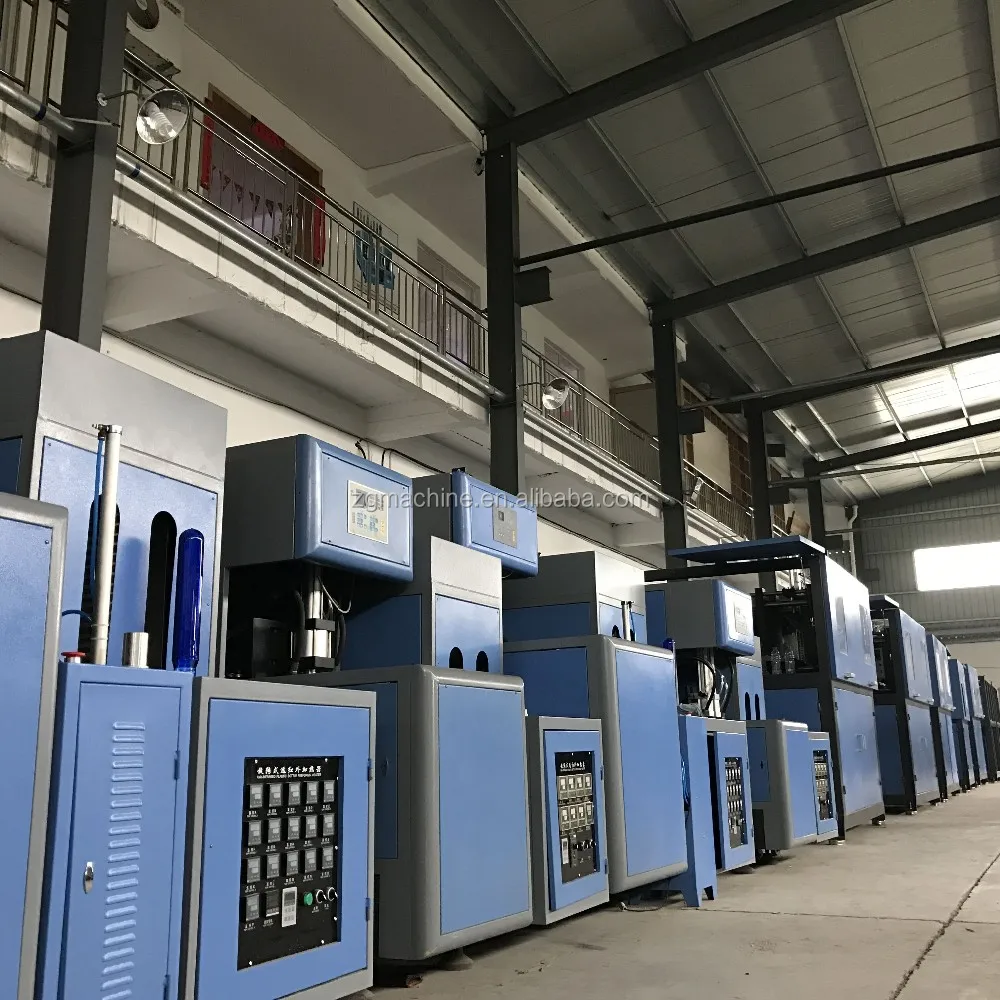

Our Workshop
With Customers
Our Service
Pre-Sales Service
* Welcome to view our Factory.
* 24 hours on line answer your question.
* Help client choose the suitable machine.
* Take video as client's request.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* We provide useful documents with machine.
* All spare parts are always available and free for your request in first year.
