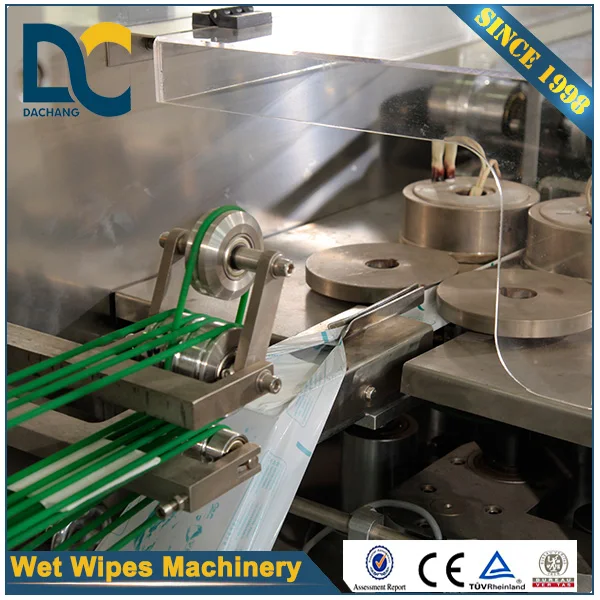

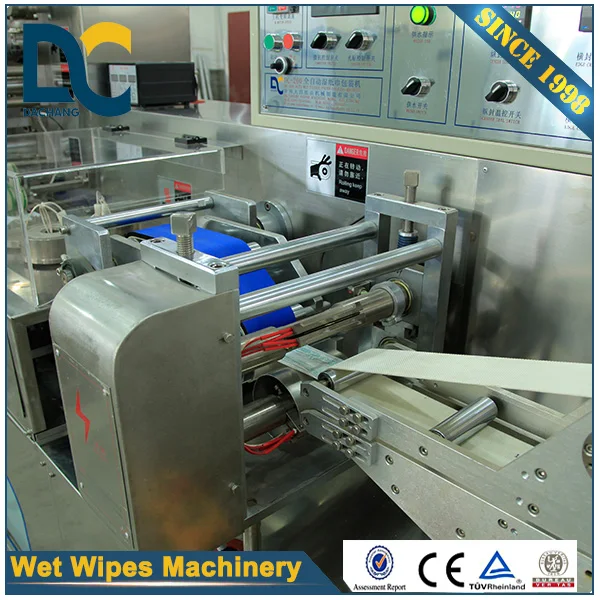

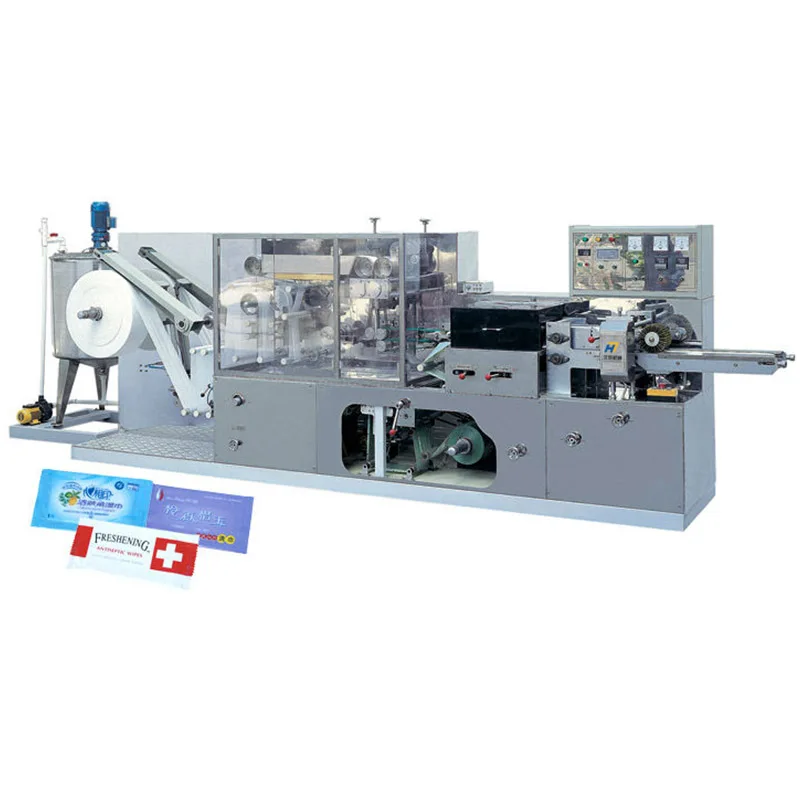

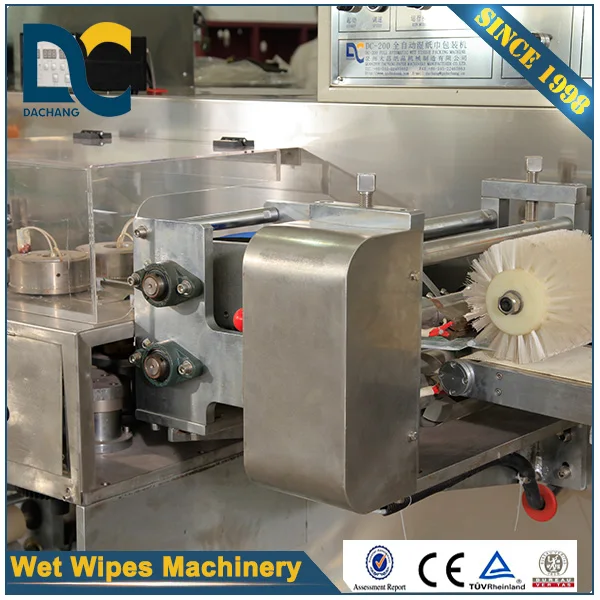

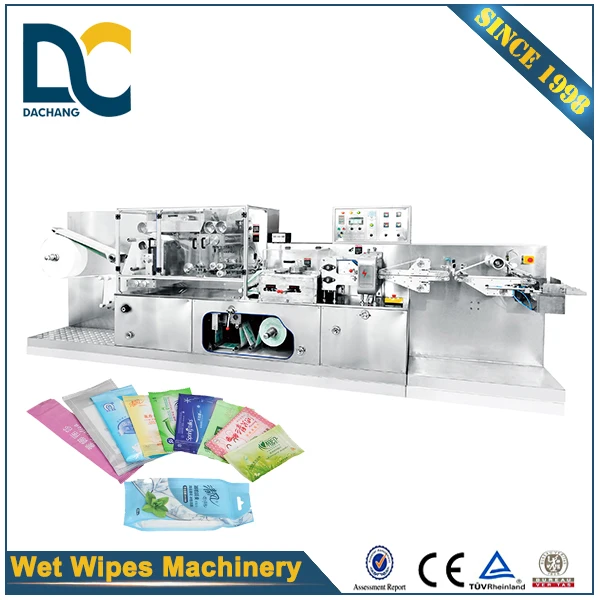

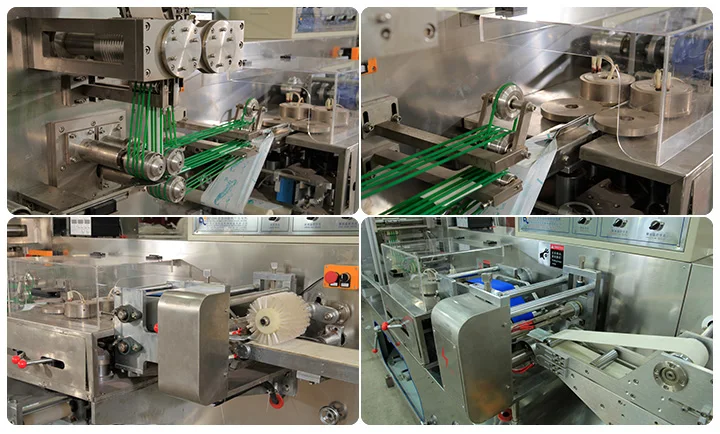

Single Piece Per Bag Full auto Wet Tissue Folding and Packing Machine

(1) Main Technical Parameter

1. Product type:                                         antiseptic cleansing wipe, make-up wipe, cleaning wipes

2. Speed:                                                   150-200pcs/min

3. Piece /pack:                                           single

4. Suitable material :                                 Nonwoven fabric, air laid paper

5. GSM:                                                      40 -80g/m2

6. Power:                                                   380V 50HZ

7. Power supply:                                       6KW

8. Raw material roll width :                      150-200mm

9. Unfolded size(mm):                              (160-260)×(150-200)(L×W)

10 .Folded size(mm):                               (80-130)×(50-80)(L×W)

11. Packing film:                                        PE & PET, OPP & PE(aluminium film)

12. Packing size(mm):                              (100-200)×(60-80)(L×W)

13. Folding type:                                        ”Z”,”W”,"C"

14. Wetting system:                                   Tank with agitator

15 Installation space (mm):                      4700×900×1650(L×W×H)

16 Size of tank(mm):                                900 x 900 x 1900

17.Weight:                                                 1500kg

   (2) Main Features

1. With scientific design and compact structure, easy operation and maintenance

2. Spunlace wetting device with spraying.

3. Lotion supplying system, including a tank with continuously agitators mixing, recyle unit, lotion

applicator sucking liquid from the tank and spraying liquid to the product con-tinuously with

adjustable amount.

4. Nonwoven cutting system, length can be adjustable

5. Package forming, the length can be adjusted and width can be changed by forming unit.

6. Safety system: Emergency braking system, complete protection for the blade, cabinet must be

made with doors.

7. PLC control system and detecting system.

8. Electrical control system consists of main circuit system, second circuit control system,

temperature control system, tension control system, PLC system and other auxiliary parts.

(1)Technical Support
1. Free consultant service, help customers to make project feasibility analysis.
2. We provide the relevent product information of the series for customer’s reference.
3. We offer the designing, installment drawing and necessary information for production according to customer’s real situation.
4. We inform the models, technical index and request, suppliers and reference price of all necessary raw materials for production.
5. We advise customers how to solve the usual machine fault.
6. We can supply the technicians to operate the machine.

(2)After-sale Service
1. The machines are tested and have trial production in our factory before leaving our factory and they are shipped out only after the customers are satisfied with them.
2. When the machines are tested, our technicians will train the customers’ technicians in theory and practice till they grasp the skills.

3. When the machines are delivered to the customers, we can go to customer’s factory to install, test the machines, and to train again before the operation staff start working.
4. During this period of one year warranty, if the machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.
5. During this period of warranty, if there is something wrong with the machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.
6. After the warranty, we charge only cost price for maintaining the machines within three years.
7. Other after-sale terms can be agreed by buyer and seller in addition.

Quanzhou Dachang Paper Machinery Manufacturer Co., Ltd. was founded in China in 1998, Dachang consolidated its leading position as wet wipes machine manufacturer.

We have contributed to the development of the wet wipes market in China, with many technological innovations. Annually we produce 150 sets of wet wipe machines and export them to more than 70 countries and regions around the world.

Our mission is to be the leaders in wet wipes machines manufacturing worldwide, and the best industrial partner for our customers by offering them premium state-of-the-art quality machines.

Q: How about your machinery quality?

A: Dachang is a mature brand in China,more than 20 years manufacturing experience of different kinds of wet wipes machines.We strictly manufacture and manage according to IOS9001:2000 System,and can match all the CE  standard or more strict standard.Our wet wipes machine is runing well in more.

If you have any questions,pls note to contact us:
