15KW Medium Frequency Induction Melting Smelting Furnace For Gold Aluminum
- Category: >>>
- Supplier: Guangzhou Wangxin Mechanical & Electrical Equipment Co. Ltd.
Share on (62095963351):
Product Overview
Description
15KW Medium Frequency Induction Melting Smelting Furnace For Gold Aluminum
Main Features
1. High power, low frequency and good diathermancy. Mainly used for heating, forging, melting, heating treating various metal material
2. The absolute load merit rate design , 100% duty cycle and 24 hours continuousw
3. Small size, high efficiency, economize on power , easily installed and simplyo
4. Adopted IGBT inverting device tracks frequency automatically.
5. Complete protection from over voltage , over current , lack of water, phase failoverheating etc.
6. Manual or automatic regulating, enhances the work piece heating quality, theheating repeatability and the continuity.
2. The absolute load merit rate design , 100% duty cycle and 24 hours continuousw
3. Small size, high efficiency, economize on power , easily installed and simplyo
4. Adopted IGBT inverting device tracks frequency automatically.
5. Complete protection from over voltage , over current , lack of water, phase failoverheating etc.
6. Manual or automatic regulating, enhances the work piece heating quality, theheating repeatability and the continuity.
Technical Parameters
Model | Input Voltage | Frequency | Max Input Power | Max Input Current |
WXM-15 | 3 phase 380V, 50/60HZ | 1-20KHZ | 15KVA | 24A |
WXM-25 | 3 phase 380V, 50/60HZ | 1-20KHZ | 25KVA | 36A |
WXM-35 | 3 phase 380V, 50/60HZ | 1-20KHZ | 35KVA | 51A |
WXM-45 | 3 phase 380V, 50/60HZ | 1-20KHZ | 45KVA | 70A |
WXM-70 | 3 phase 380V, 50/60HZ | 1-20KHZ | 70KVA | 105A |
WXM-90 | 3 phase 380V, 50/60HZ | 1-20KHZ | 90KVA | 135A |
WXM-110 | 3 phase 380V, 50/60HZ | 1-20KHZ | 110KVA | 175A |
WXM-160 | 3 phase 380V, 50/60HZ | 0.5-10KHZ | 160KVA | 240A |
Melting speed: the first cool furnace 50-60mins/furnace, the second heated furnace 20-30mins/furnace
Model | Steel ,iron | Copper, Gold , Silver | Aluminum |
WXM-15KW Melting Furnace | 10KG | 3KG | |
WXM-25KW Melting Furnace | 5KG | 20KG | 6KG |
WXM-35KW Melting Furnace | 10KG | 30KG | 10KG |
WXM-45KW Melting Furnace | 18KG | 50KG | 20KG |
WXM-70KW Melting Furnace | 25KG | 100KG | 30KG |
WXM-90KW Melting Furnace | 40KG | 120KG | 40KG |
WXM-110KW Melting Furnace | 50KG | 150KG | 50KG |
WXM-160KW Melting Furnace | 100KG | 250KG | 100KG |

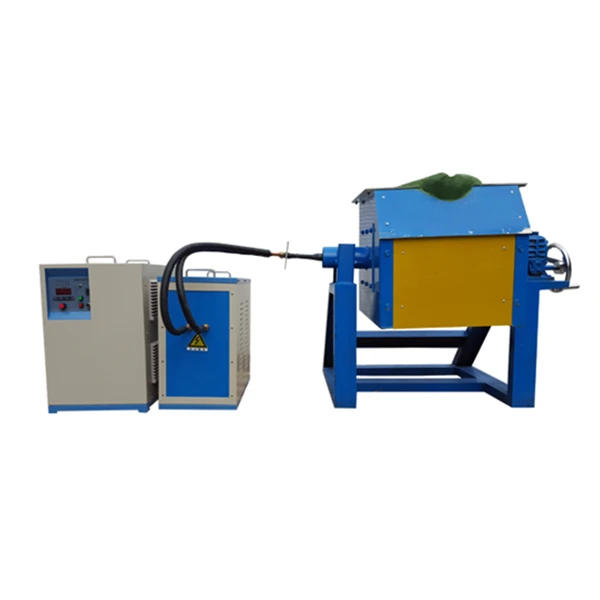

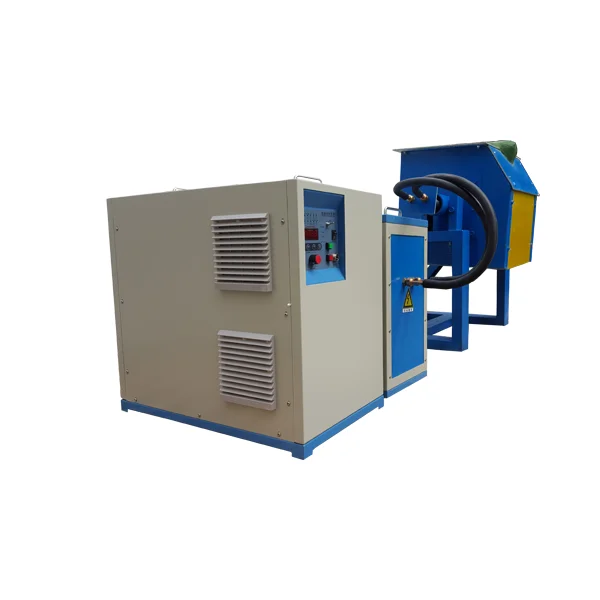

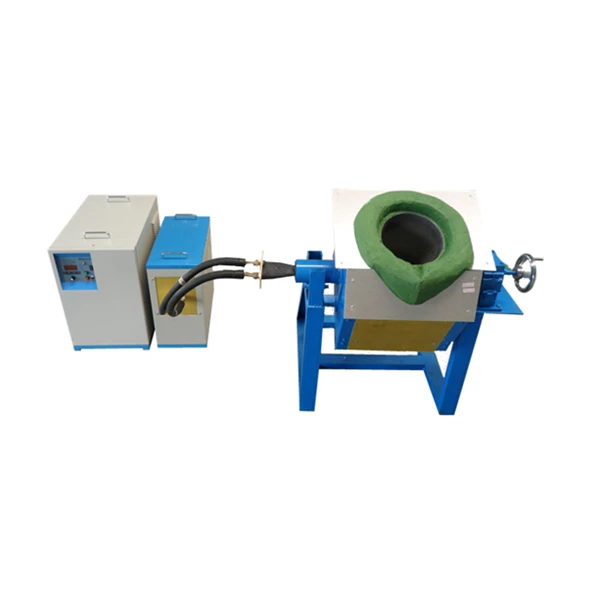

Machine Show

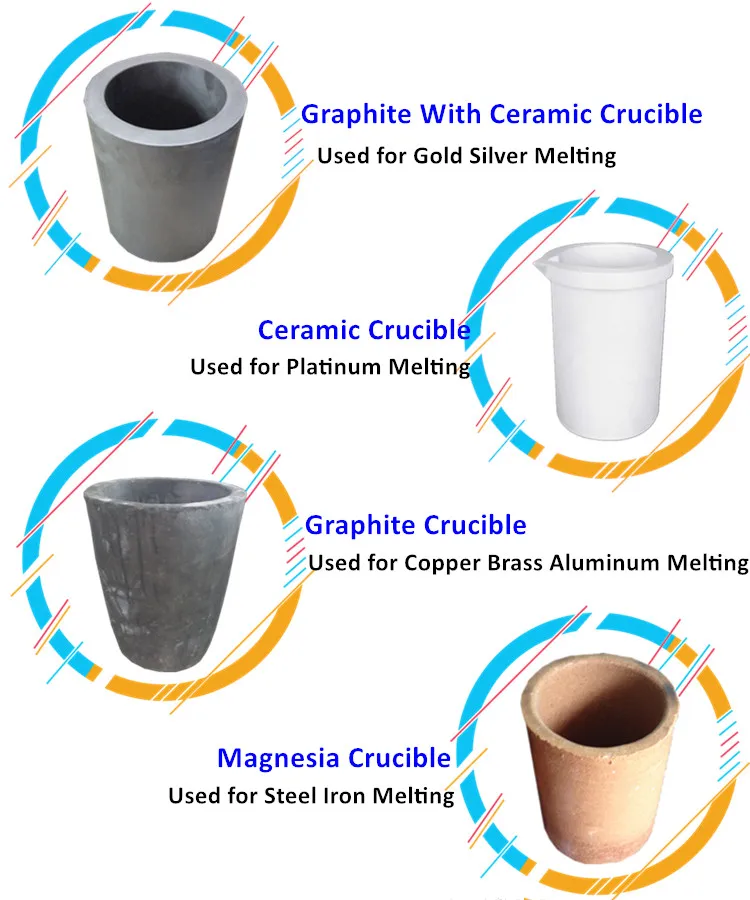

Crucible For Melting
Process Flow
Recommend Products

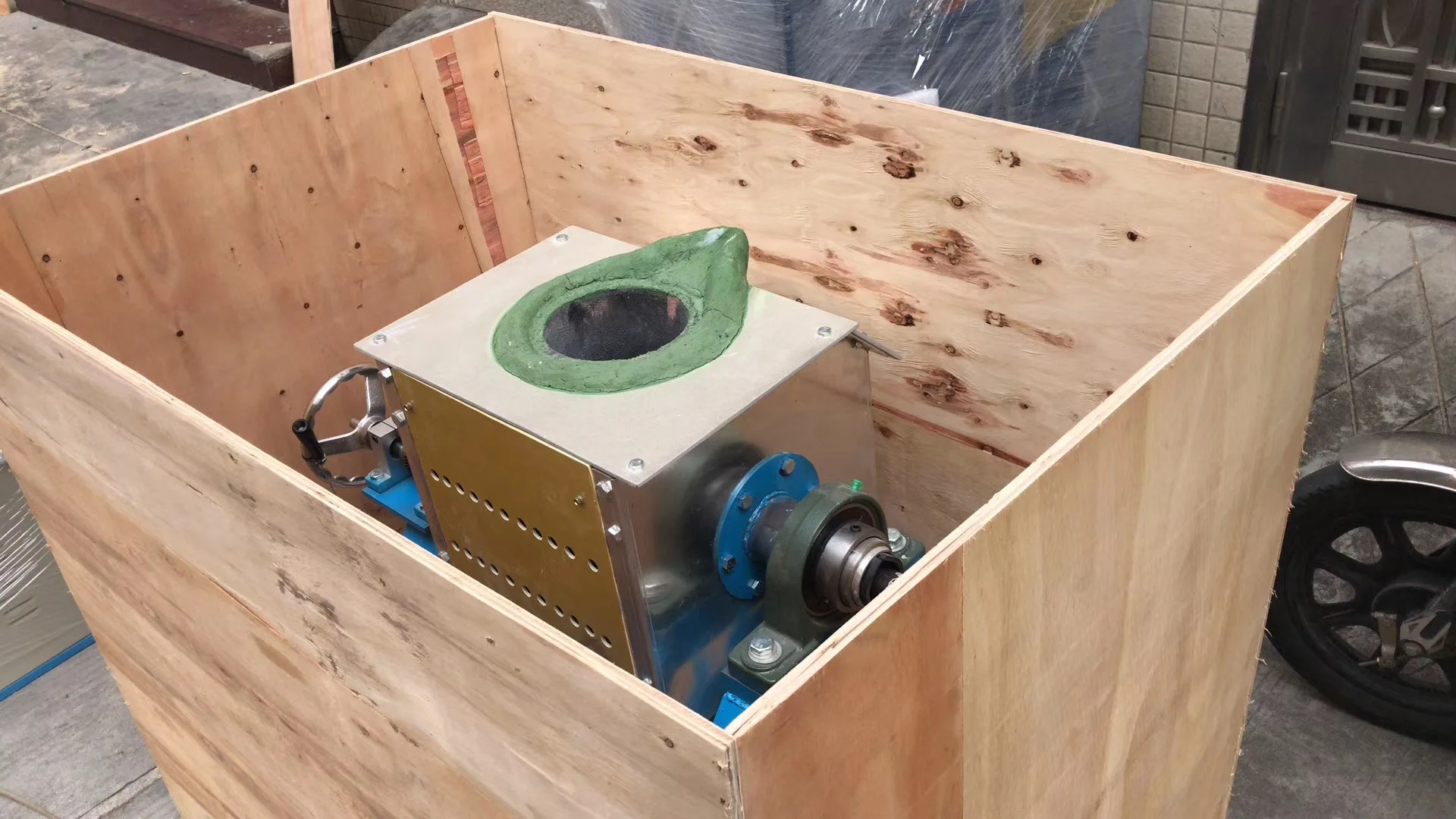

Product Package
Packing Details
1. Standard export wooden cases, no need fumigation,
2. Plastic wrap for waterproof,
3. Plastic foam for shockproof,
4. Steel belt for fastening the wooden box corner.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
2. Plastic wrap for waterproof,
3. Plastic foam for shockproof,
4. Steel belt for fastening the wooden box corner.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Service
1. One year warranty time and 24 hours online service
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problem like design, manufacture or procedure occurs, Wangxin would provide free replacement parts.
3. Large inventory of spare parts ready for immediate delivery.
4. Customized design and induction heating solutions.
5. Welcome your engineers to come to factory accept maintenance training & trouble shooting guide.
2. Within one year free warranty, any fault caused by non-artificial reason, any quality problem like design, manufacture or procedure occurs, Wangxin would provide free replacement parts.
3. Large inventory of spare parts ready for immediate delivery.
4. Customized design and induction heating solutions.
5. Welcome your engineers to come to factory accept maintenance training & trouble shooting guide.
Company Profile
Guangzhou Wangxin Electrical & Mechanical Equipment Co.,Ltd is based in Guangzhou, more than 20 years focused on the development and manufacture of induction heating machine. Customers’ satisfy is our constant aim, hope our professional induction heating solutions can benefit you a lot.
We mainly have four series of machine divided by frequency:
Medium Frequency Series Machine (WXM): Frequency 0.5-20KHZ
Ultrasonic Frequency Series Machine (WXU): Frequency 10-30KHZ
High Frequency Series Machine (WXH): Frequency 30-100KHZ
Superhigh Frequency Series Machine (WXS): Frequency 100-1100KHZ
We mainly have four series of machine divided by frequency:
Medium Frequency Series Machine (WXM): Frequency 0.5-20KHZ
Ultrasonic Frequency Series Machine (WXU): Frequency 10-30KHZ
High Frequency Series Machine (WXH): Frequency 30-100KHZ
Superhigh Frequency Series Machine (WXS): Frequency 100-1100KHZ
