KQZ 200D pneumatic water well drilling rig pneumatic down the hole drilling rig

Product Overview

Description

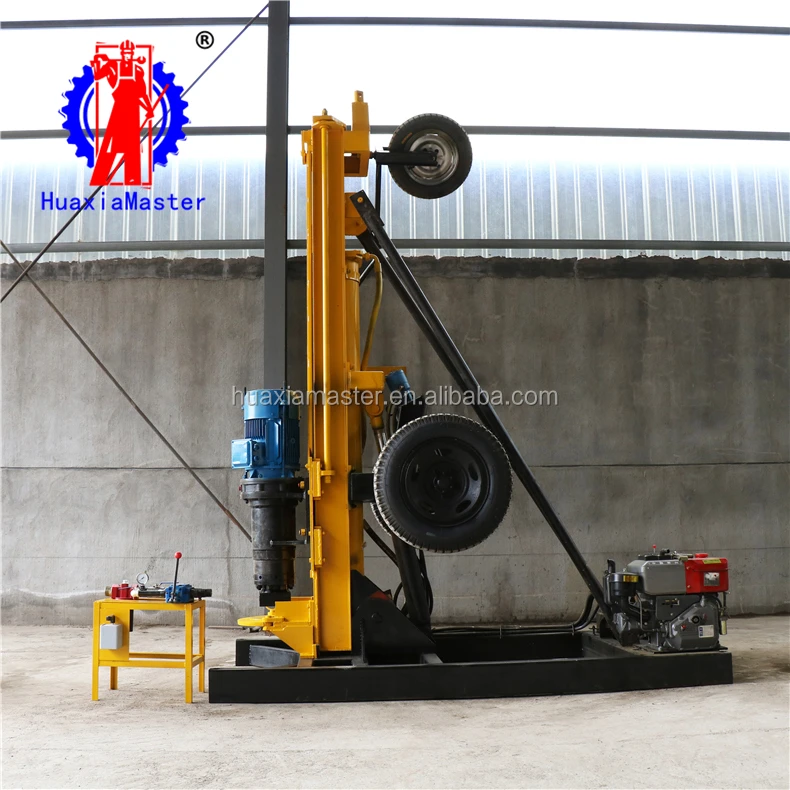

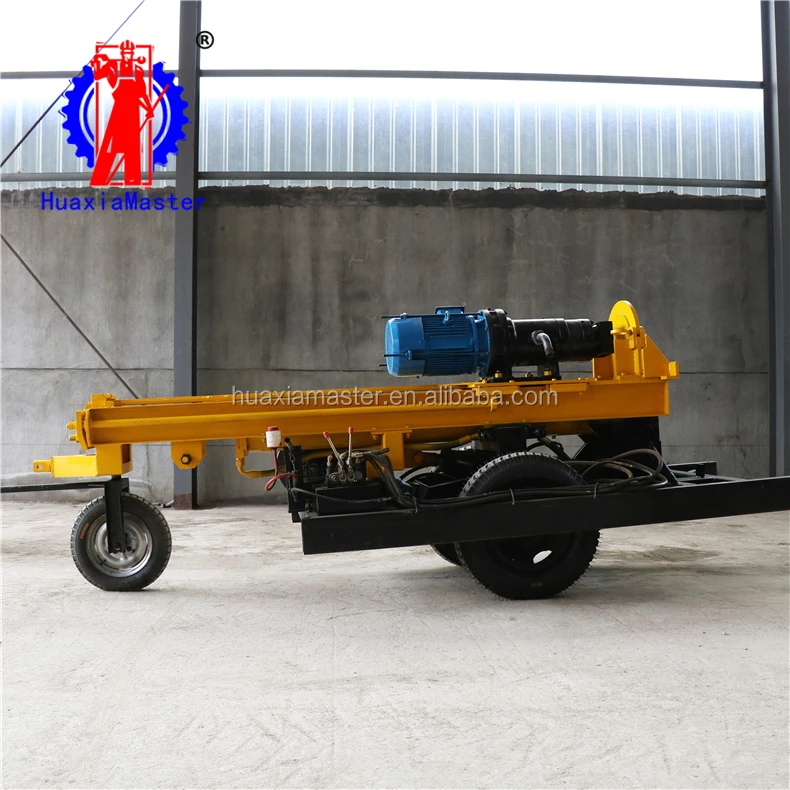

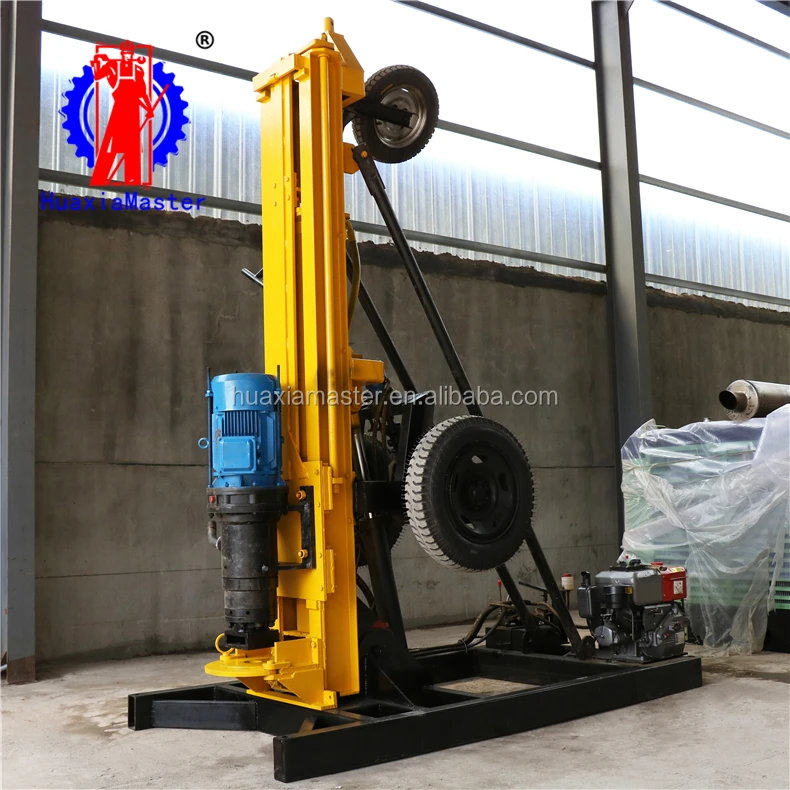

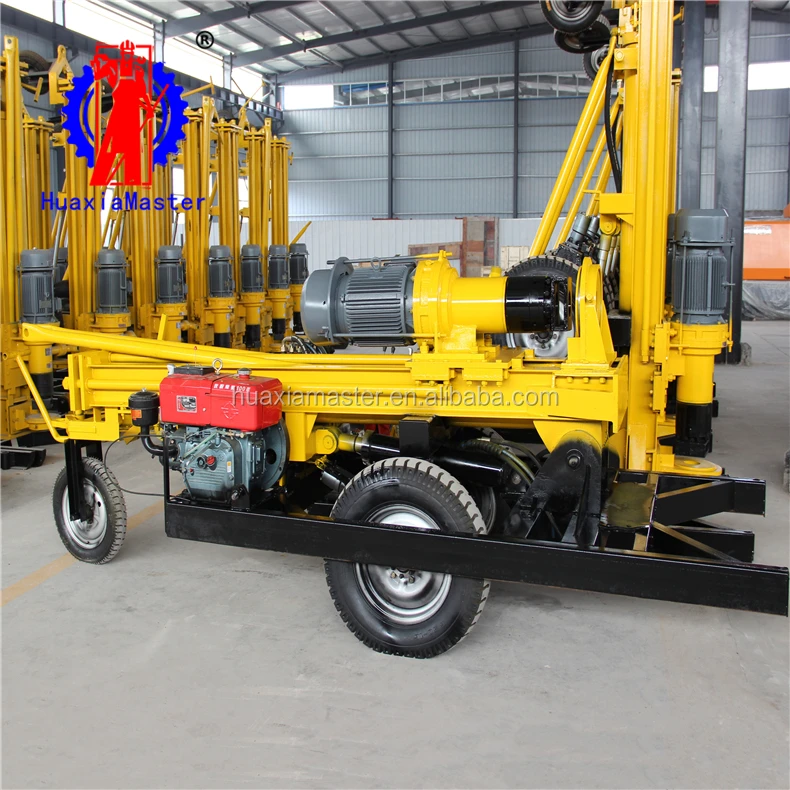

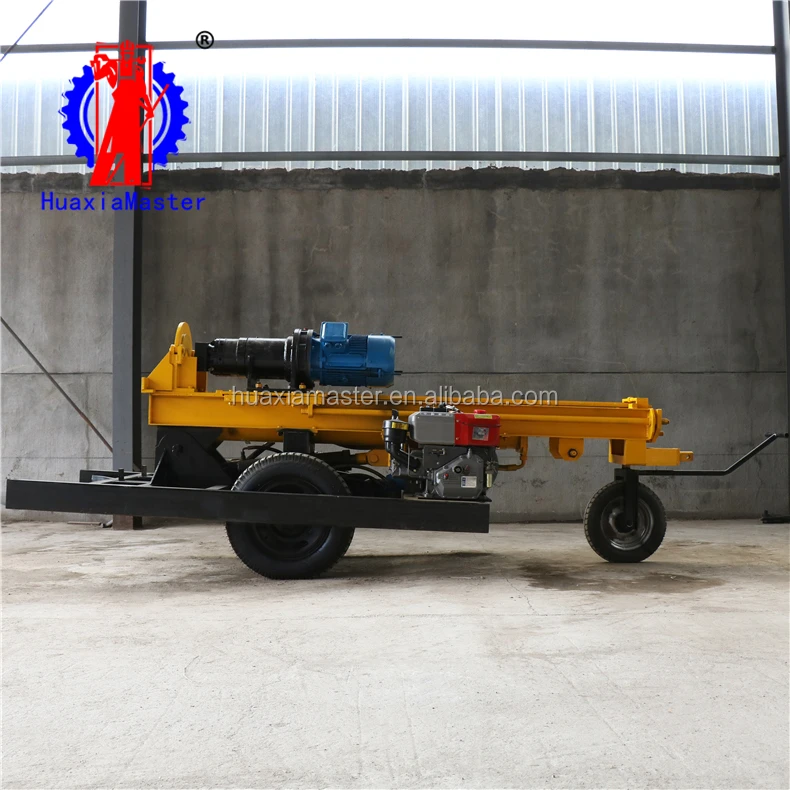

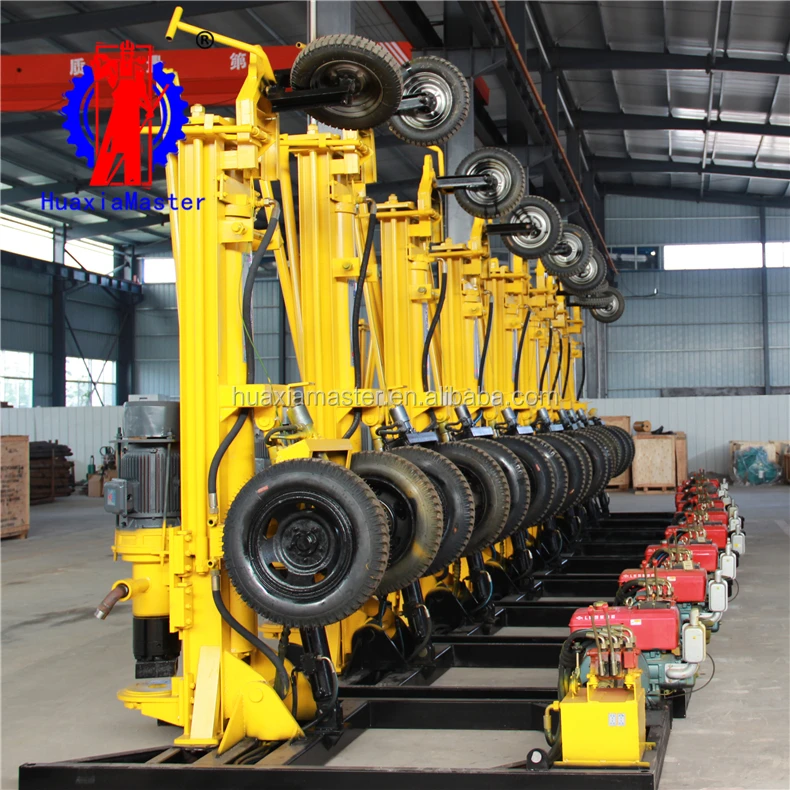

KQZ-200D pneumatic water well drilling rig

1. The brief introductions of KQZ-200D pneumatic water well drilling rig

KQZ-200D pneumatic water well drilling rig is suitable for drilling and geothermal drilling. It has many advantages, such as large diameter, deep drilling, fast footage, flexible movement and wide application area.

2. The specifications of KQZ-200D pneumatic water well drilling rig

KQZ-200D pneumatic water well drilling rig
Borehole diameter	mm	100-254
Borehole depth	m	200
Drilling angle	°	45-90
One-time feed stroke	mm	1500
Motor power	kw	11
Diesel engine power	hp	8.5
Rotating speed of drilling tools	rpm	52
Air pressure	mpa	1.45-2.5
Air consumption	l/min	15-27
Total weight	kg	650
