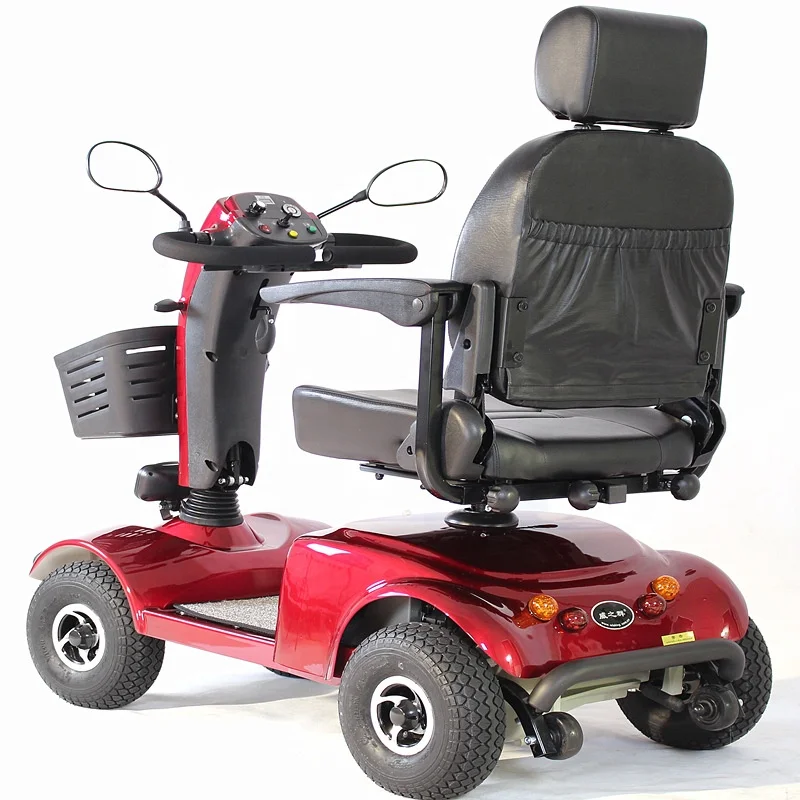

Wisking middle size travel scooter elevator type electric scooter

Share on (62096066741):


Price:$680.00

Quantity:


Product Overview

Description


Net weight 75kg without battery, 95kg with batteries.  motor 24V 400w, drive range  up to 25km per battery charge. charging time 6-8h.


Can take in elecator, suitable for mid range tavelling.


Import electric brake.

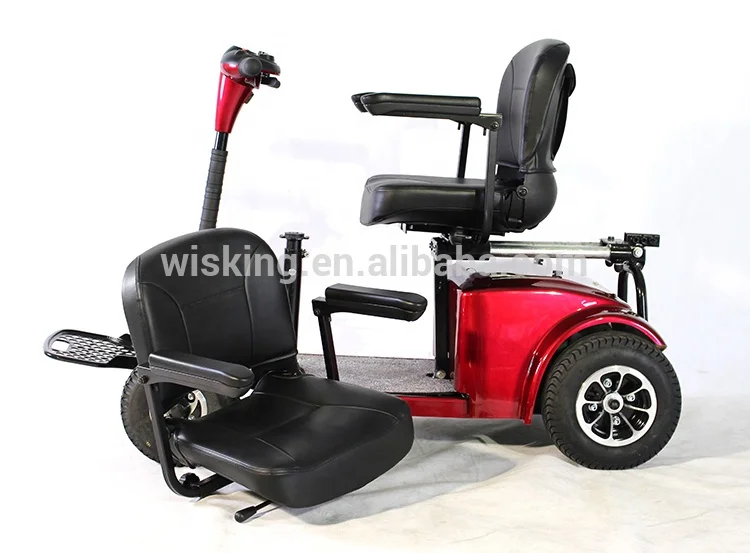

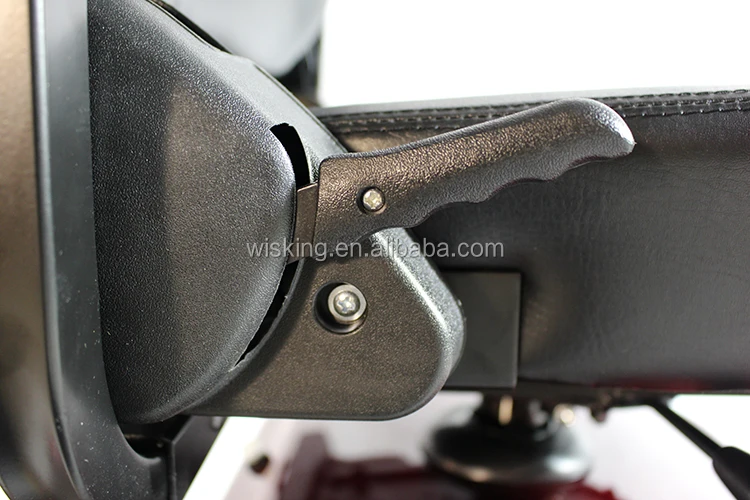

360 degree swivel seat. armest flip up.

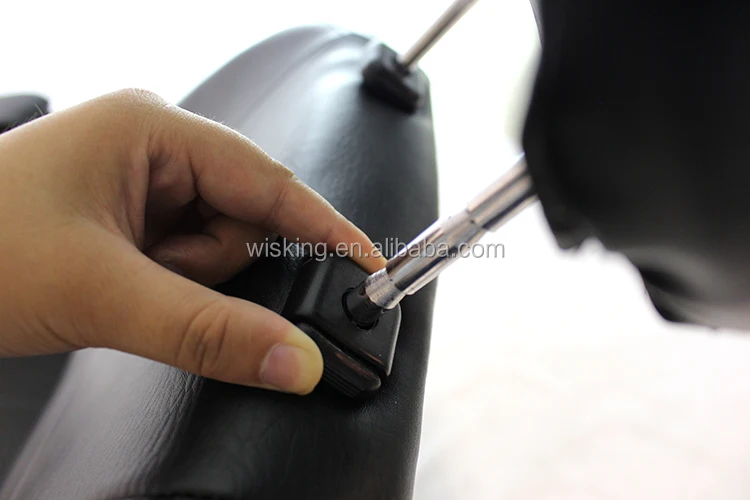

High back with head rest. seat height adjustable.

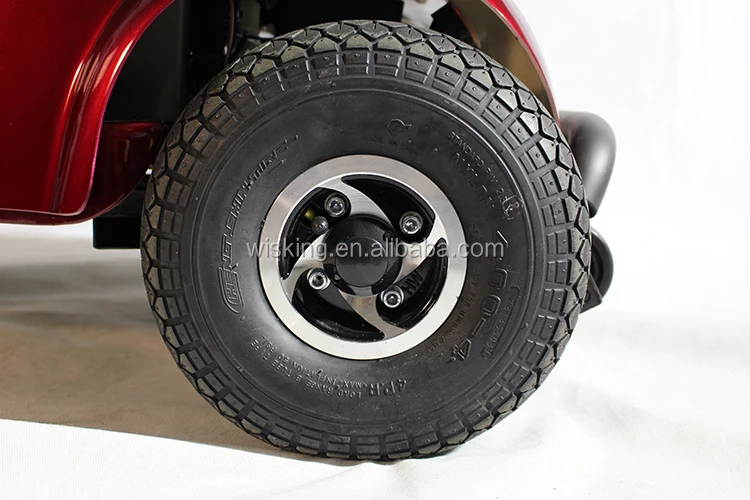

Durable aluminum wheel hub, lightweight and high durality.

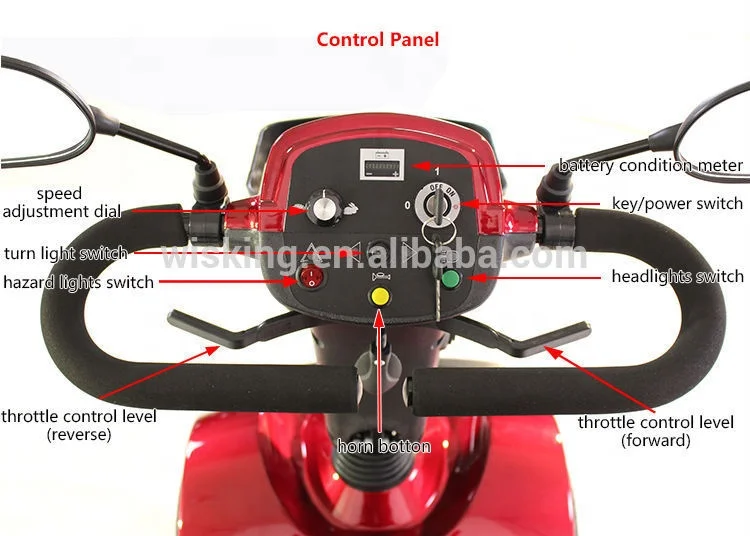

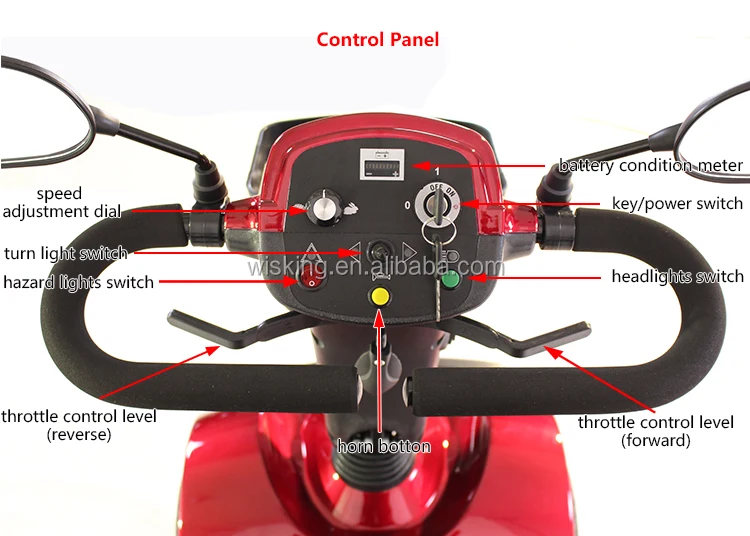

Import battery meter.  battery remaining can be view at any time.


Whole set of import LED light system. direction turning light, alarm light, view back mirror. and night travel light.


Seat slid front to back function.


Stepless adjustable handlebar.






Product Description


Specification




























































































Specification for Wisking4025 series



Overall dimension



1270*620*1080mm



Front tire / Rear tire



11” air tire / 11” air tire



Weight capacity



160kg



Controller



PG (Imported from UK) 70A



Motor



24V/400W



Battery



12V/35/40AH x 2



Battery weight



11.2 kg x 2



Battery dimension (l*w*h)



195*130*180mm x 2



Charger



24V/5A



Recharge time



6-8hrs



Gross weight



95kg



Net weight (with batteries)



85kg



Package



1ctn



Package size



138*62*56cm&52*48*31cm



Range



up to 30km per battery charge



Incline capability



15 degrees



Turning radius (min)



1.85m



Ground Clearance



6.5cm



Max. forward speed



10.5km/h



Qty of 20’ FCL



52 or 39pcs depend on the tiller

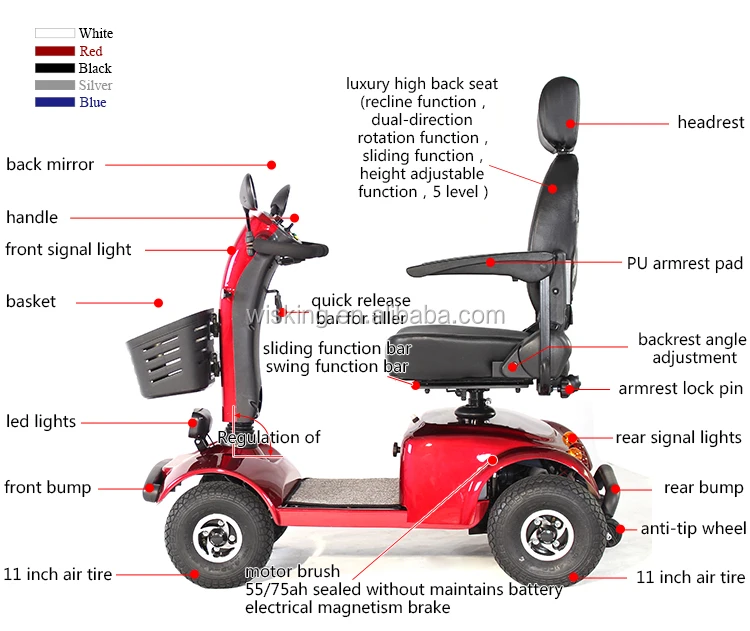

Product pictures













Product details














Our Services


After Sale Service


ONE-YEARS LIMITED WARRANTY
One years on all structural frame components





ONE-YEAR LIMITED WARRANTY
For one (1) year from the date of purchase, Wisking will repair or replace at our option to tile original purchaser, free of charge, any part or electronic component found upon examination by an authorized representative of Wisking to be defective in material and/or workmanship,
The battery is warranted by the battery manufacturer, The battery is not warranted by Wisking, Warranty service can be performed by Wisking or by an authorized Wisking Provider, Do not return faulty parts to Wisking without prior consent, All transportation costs and shipping damage incurred while submitting parts for repair or replacement are the responsibility of the original purchaser.





ONE-YEAR WARRANTY EXCEPTIONS
TRANSAXLE: In cases where there is an increase in the operational noise level, the warranty does not apply,(The increase in operational noise level usually occurs due to abusive and excessive strain on the scooter,)
MOTOR BRAKE: one-year warranty for the electrical function of the motor brake, Brake pads are a wearitem and are not warranted,





WARRANTY EXCLUSIONS
ABS plastic shrouds and footrest covers (wear items and not warranted)
Batteries (the battery manufacturer provides a limited warranty)
Tires and tire tubes (wear items and not warranted)
Upholstery and seating (wear items and not warranted)
Repairs and/or modifications made to any part of the scooter without specific and prior consent from Wisking
Circumstances beyond the control of Wisking
Damage caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper
operation, maintenance, or storage, commercial use or use other than normal
Labor, service calls, shipping, and other charges incurred for repair of the product





THERE IS NO OTHER EXPRESS WARRANTY
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of original purchase and to the extent permitted by law. Any and all implied warranties are excluded, This is the exclusive remedy, Liabilities for consequential damages under any and all warranties are excluded,
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages, So, the above limitation or exclusion may not apply to you.





Service Network


In this market the disabled and the elderly in the domestic, the quality of Wisking's products has the higher reputation and good customer service. We export our products all over the world, and every year, export around 10,000pcs mobility scooters and power wheelchairs. We are also capable of providing OEM and ODM high quality products with the most competitive prices.
