SPM 360 DHD 360 8 1/2 inch well drill bits for sale / odex drill bit / 7 1/2 inch reaming drill bit for overburden formation

Share on (62096124392):


Price:$1,450.00 - $1,580.00

Quantity:


Product Overview

Description


Product Description

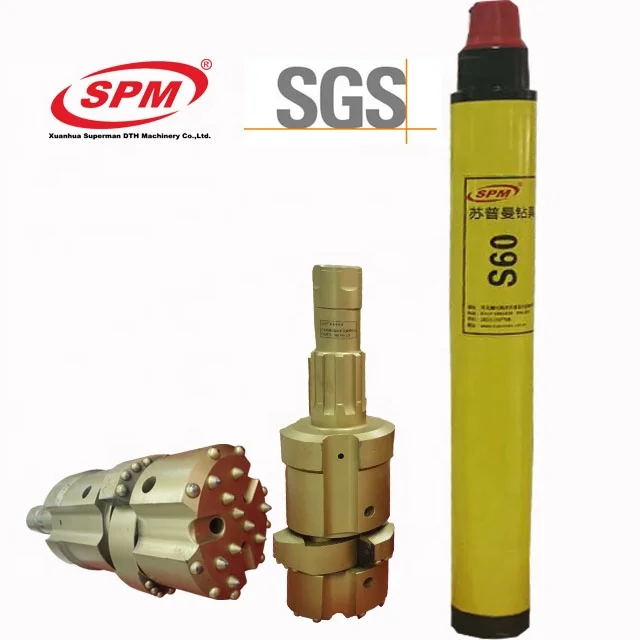

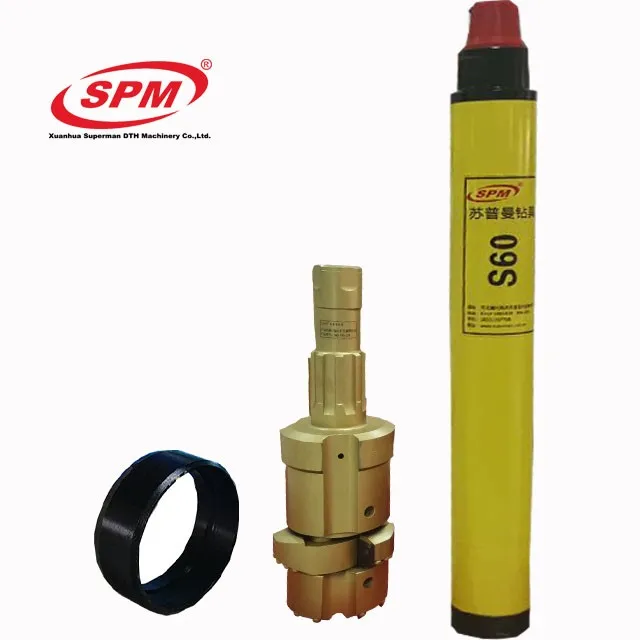

SPM 360 DHD 360 8 1/2 inch well drill bits for sale / odex drill bit / 7 1/2 inch reaming drill bit for overburden formation

SPM 6 inch High Pressure odex drilling system bit  is very popular in international well drilling field.
It is widely used in international well drilling field.
Matched DTH hammer:DHD360 / SPMS60

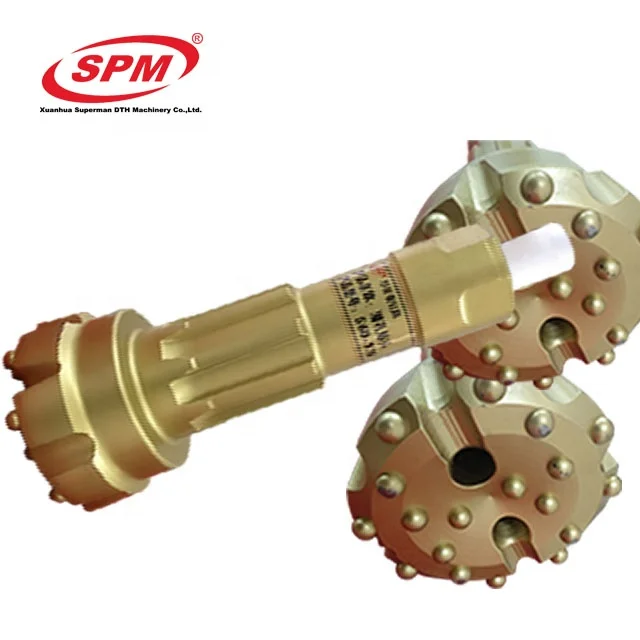

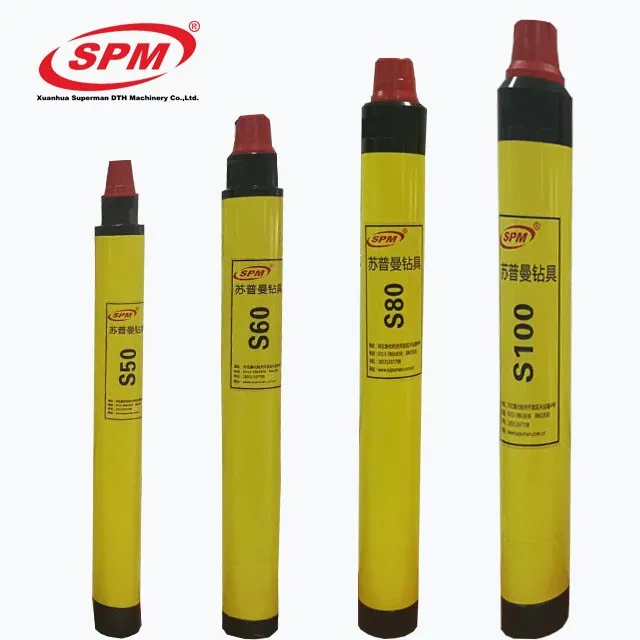

We also supply other 3",4",5",6",10",12" High Pressure DTH Air Drill Hammers and various matched drill bits,
We offer SPM high air pressure DTH hammer size from 3" to 12"(Φ71mm-Φ275mm), SPM DTH hammers perform good in drilling well of diameter from 85mm to 600mm, especially excellent in deep hole well drilling works.
Different designing makes SPM DTH drill hammers are suitable for various well drilling conditions.

\t

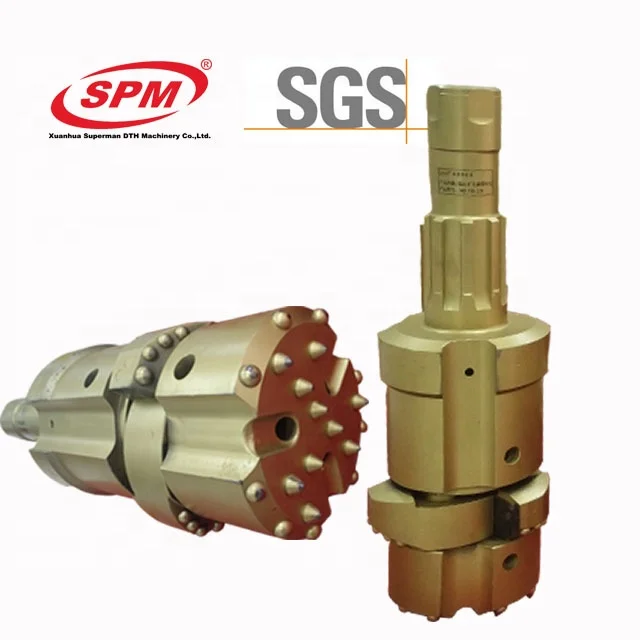

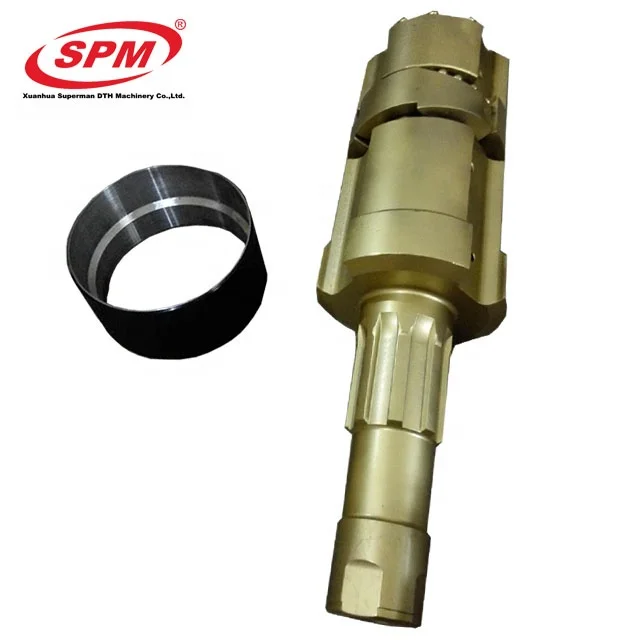

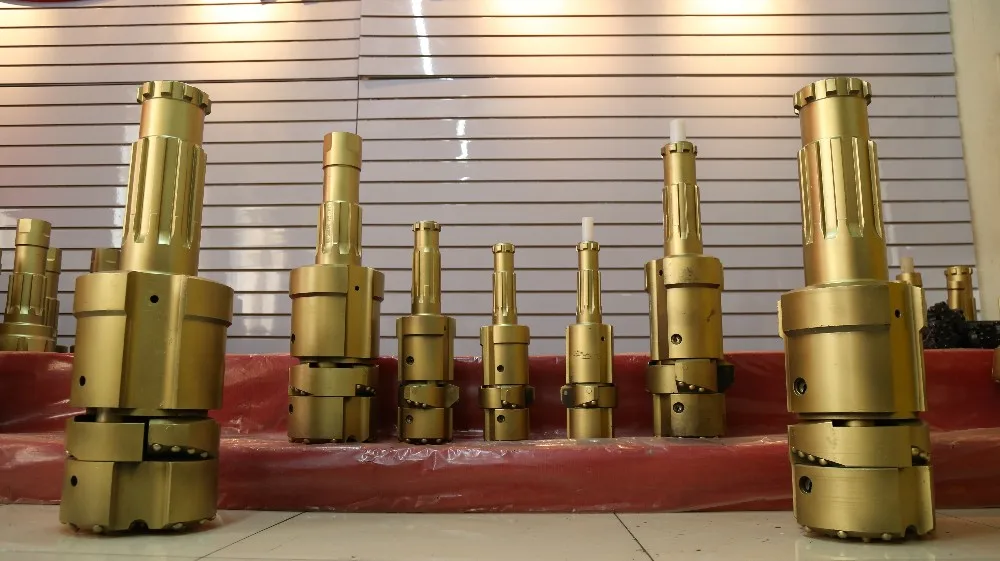

SPM 6 inch odex drilling system bit
\t
SPM/N
\t
Casing OD(mm)
\t
Casing Min ID(mm)
\t
Reaming Dia.(mm)
\t
Casing Shoe Min ID(mm)
\t
Pilot Bit Max OD(mm)
\t
Matched DTH Hammer
\t
SPM360-186-219
\t
219
\t
201
\t
240
\t
187
\t
186
\t
DHD360/SPMS60
\t
SPM360-195-219
\t
219
\t
211
\t
240
\t
196
\t
195
\t
DHD360/SPMS60

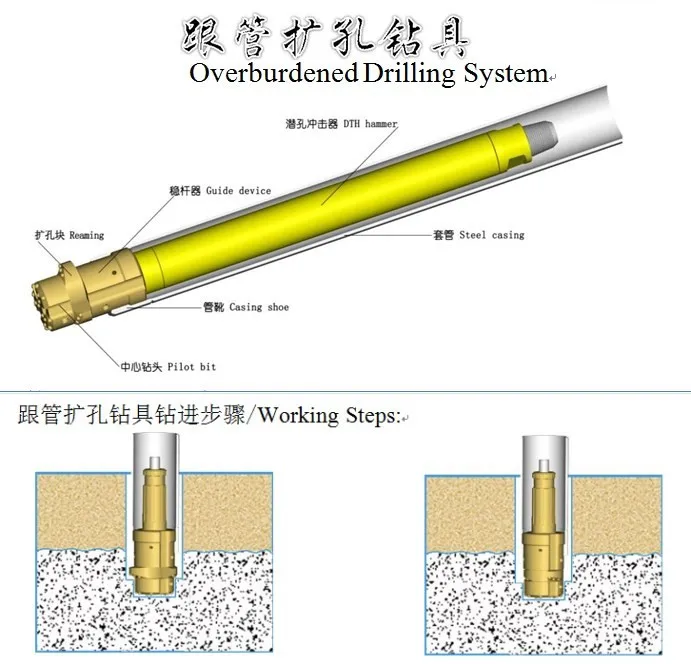

Working Steps:


1. The overburden drilling system is consist of DTH hammer, eccentric designed reaming and pilot bit, guide device and casing. The eccentric bit reaming rotates outward to drill a larger hole so as to enable the steel casing enter the hole simultaneously. Rock dust is blown out of the hole through the casing pipe.

2. After drilling to the specific depth, the reamer will be retracted by slightly reversing the rotation direction or by pulling the tool, and it is the time that drilling tools can be pull out.

3. Pulling the casing up and meanwhile filling concrete or other things underthe hole.

4. Using ordinary drilling bit can continuously drill the hole, while DTH bit can drill to the required depth.

Certifications
Detailed Images



 Xuanhua Superman DTH Machinery Co., Ltd is a national high-tech enterprise, located in Xuanhua, 150km northwest of Beijing, a renowned industrial zone that has a title of "NO. 1 Prefecture West of Beijing".


Covering a wide range of mining, excavating and constructing, the products of our company can be equipped in mines, petroleum, hydropower, transportation, forestry, geothermal drilling, well, photovoltaic and new energy industry, etc. Taking the world's leading position in down-the-hole drilling technology especially, the company has a business connection with dozens of countries.

Our Service

  We guarantee that we supply customers with leading drilling products by our superior service and effective scheme. Meanwhile, we have been pursuing the goal that we shall do utmost to improve the service life of product, reduce the maintenance cost, and provide a perfect solution. Sincerely welcome friends from home and abroad, we will provide you product with the highest quality, and show our greatest sincerity for establishing the business relationship!

Packing & Delivery
\t
Packaging
\t
Packing
\t
Wooden case or cardboard box with foam
\t
Weight
\t
100KG
\t


Deliver
Details
\t


1. Standard exporting package, wooden case or as your choice.
2. Shipping: By sea / By air / By express
Related Products

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

Products Name with link

91.8% Response Rate

FAQ

Q1.Why choose us?
A1. High-quality products, reasonable price, professional team work.

Q2. Which industry can use our products?
A2.Mining, tunnel, foundation pit, quarry, oil, well, etc.

Q3. Do you have different type for different kind of stone?
A3. Yes, according hardness of stone and stone's feature, we have different type respectively.

Q4. If we need technical support, can you offer us?
A4. Yes, we have an experienced team, offering our customers additional benefits with specific advice.

Q5. Do you offer free samples?
A5. Normally we do not offer free samples, but we could properly adjust according to detailed requirement.

Q6. Is there cheap shipping cost to import to our country?
A6. For small order, express will be the best, and for bulk order, sea is best way but take longer time. For urgent orders, we suggest via air or by express send to your destination.

Q7. Which Express company you send? How many days we can receive?
A7. We are official partner of TNT, UPS, DHL, Fedx. It will take only 3-5 days after we sent.

Q8. When you can reply to me when I send you an Inquiry?
A8. We promise to reply within 24 hours ( includs holidays) on receipt of your inquiry.

Q9. Are you a manufacturer or agent?
A9: We are a manufacturer.
