High precision 3D printer for engineering stronger material industrial grade High Temp FDM PEEK 3 D digital printer
- Category: >>>
- Supplier: Dongguan Imai Intelligent Technology Co. Ltd.
Share on (62096319121):
Product Overview
Description
Product Description
Product Application

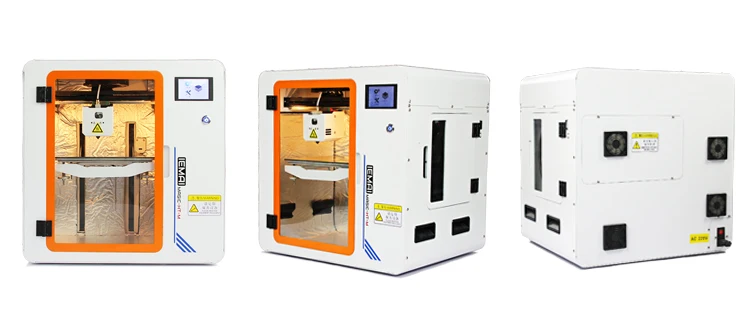

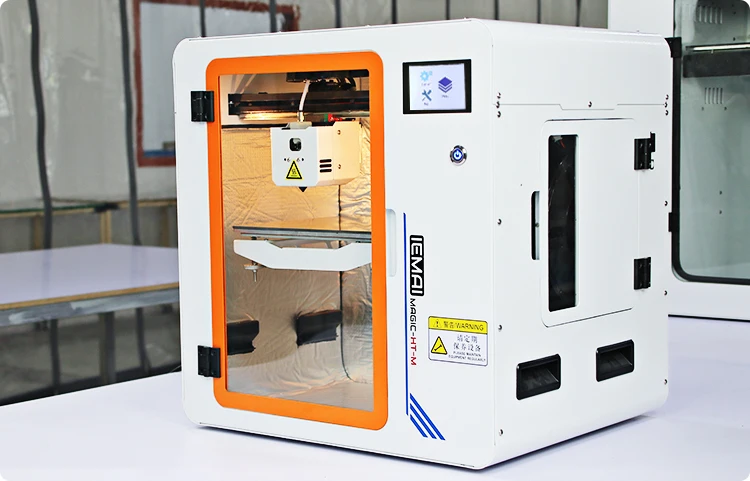

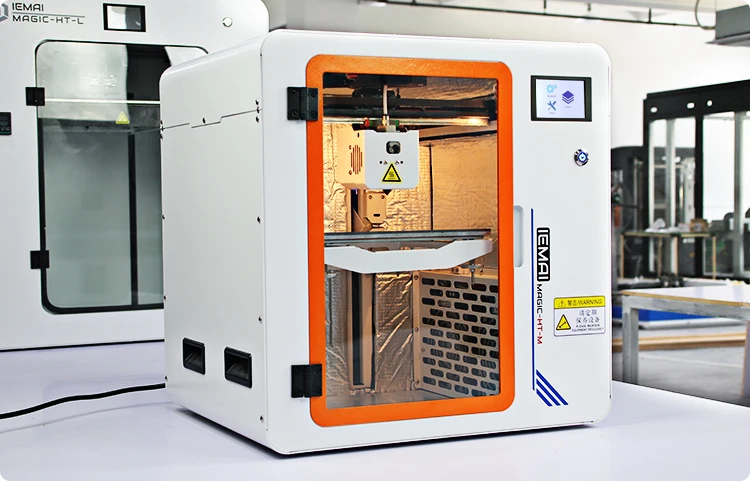

IEMAI High Performance Materials 3D Printer MAGIC-HT-M is a 3D printing device based on the principle of fuse deposition (FFF) technology, with a print temperature of up to 450°C and a hot bed temperature of 150°C.

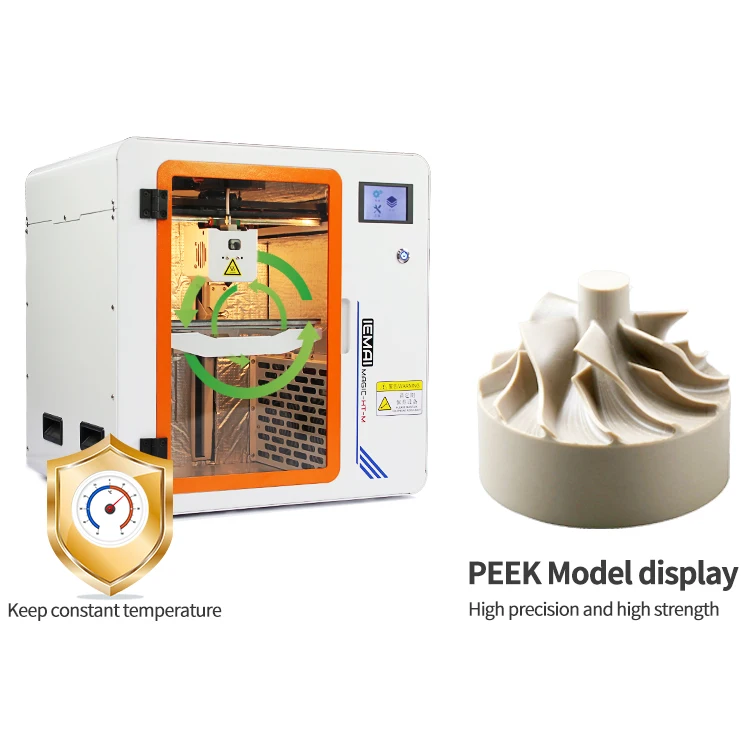

And the cavity temperature of 90 °C, to support the vast majority of polymer 3D printing wire on the market, including special engineering plastics PEEK, PPSU, ULTEM, etc., supporting the quick release print head, creating a simple maintenance conditions.
Core parameters | Core functions |
Printing Size:220*220*220mm | (1)High success rate of PEEK |
High Printing TEM:450℃ | (2)Detachable single printing head (HT or NT) |

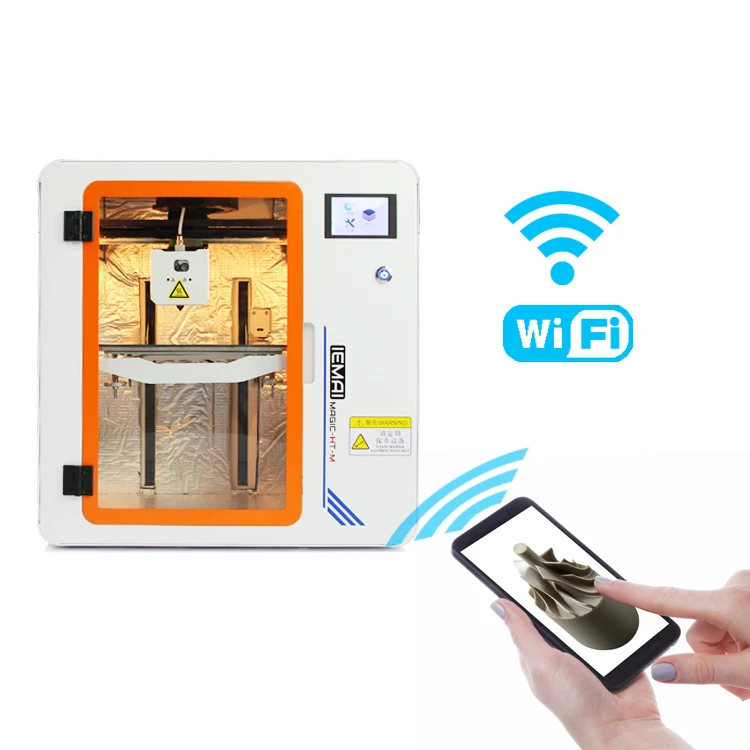

High chamber temperature: 90℃ | (3)WIFI control (cell phone APP) |
Hight heat bed temperature:150℃ | (4)High Precision, Power Failure Recovery |
MAGIC-HT-M | ||||||
Printing Technology | FFF | Layer Thickness | 0.05-0.3 mm | |||
Printing Size | 220*220*220 mm | Nozzle Diameter | 0.4 mm | |||
Machine Size | 505*435*515 mm | Nozzles quantity | Single | |||
Packing Size | 535*465*675 mm | Supported File Types | STL,OBJ,etc. | |||
Printing Temperature | 450℃ | Chamber insulated way | Single layer housing + insulation | |||
Chamber temperature | max 90 ℃ | Position Accuracy | X/Y: 12.5 μm Z: 2.5 μm | |||
Net Weight | 35 kg | Print Speed | 0-150 mm/s | |||

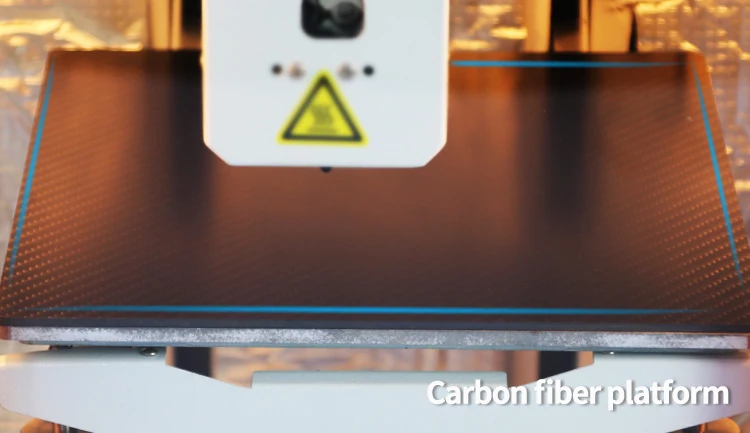

Packing Weight | 51 kg | Build Platform | Fiberboard | |||
Print head cooling method | Air-cooled | Support material | 1.75mm,PEEK, ULTEM, PPSU, PA/CF, PC, PC Alloys,PA,ABS,etc. | |||
Detailed Images

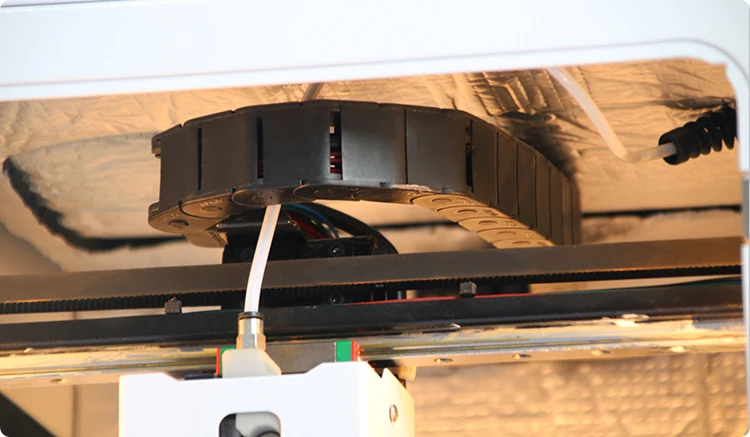

High precision transmission
To Ensure smooth printing and smooth operation for high print accuracy
1,X/Y-Axis:Linear guide+High quality belt
Z-Axis:Precision T type Screw+2 Linear Guide
2,Adopt precision motor and Professional Driver.

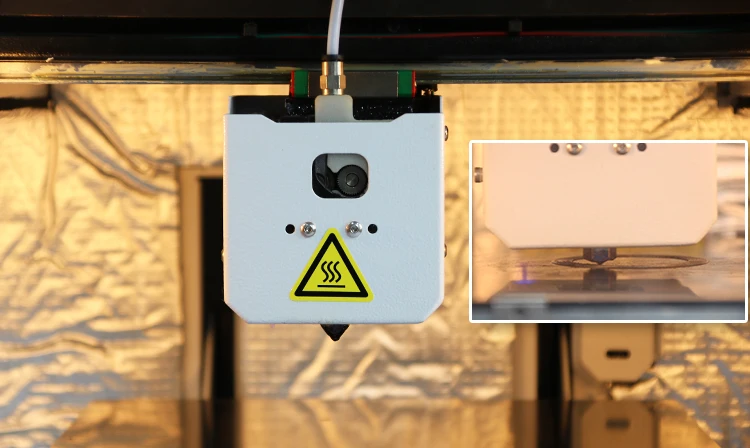

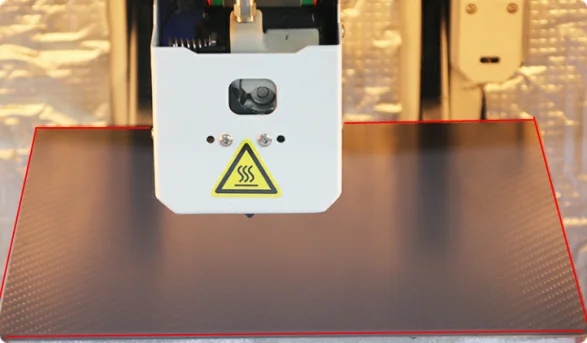

Detachable Printing head
1,Independently developed special high temperature print head.
2,Easy to replace and maintain.
3.Nozzle temperature up to 450℃,Support the printing of a variety of materials.

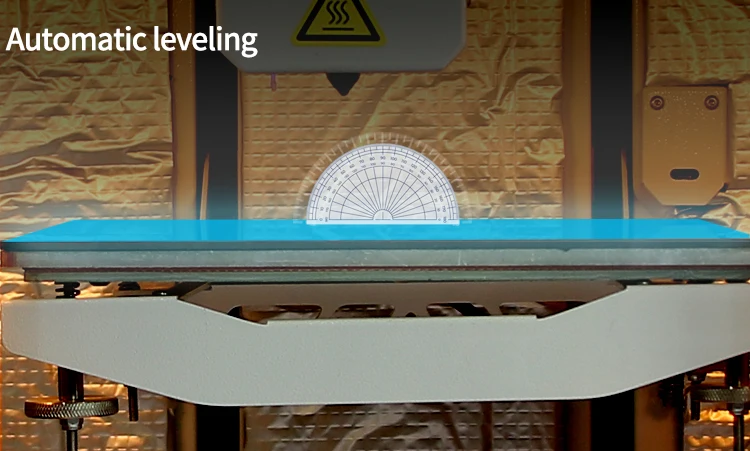

4. automatic bed leveling system,

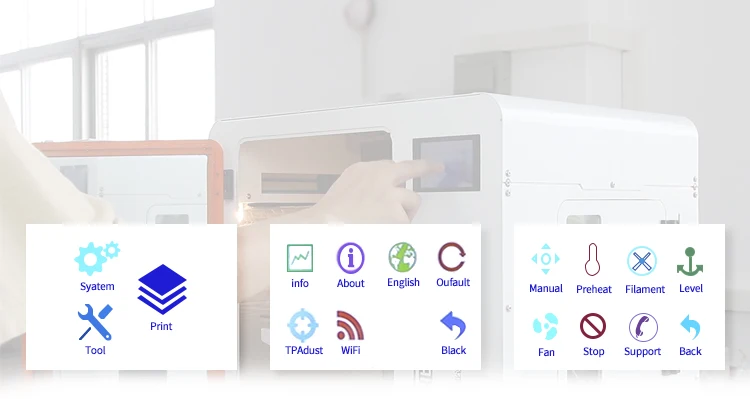

Control main board
Intelligent Main board
STM32 processor: clock frequency 36 MHz, memory 512 kb, 64K SRAM, 1M file processing time 2 s

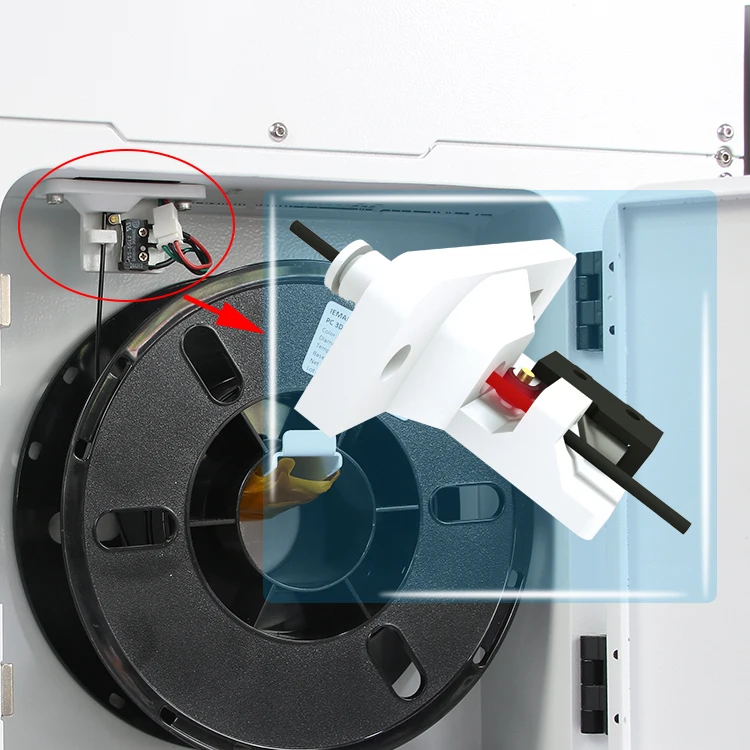

Special function: print resuming, Filament Absent Warning, WIFI control, auto & timing shutdown

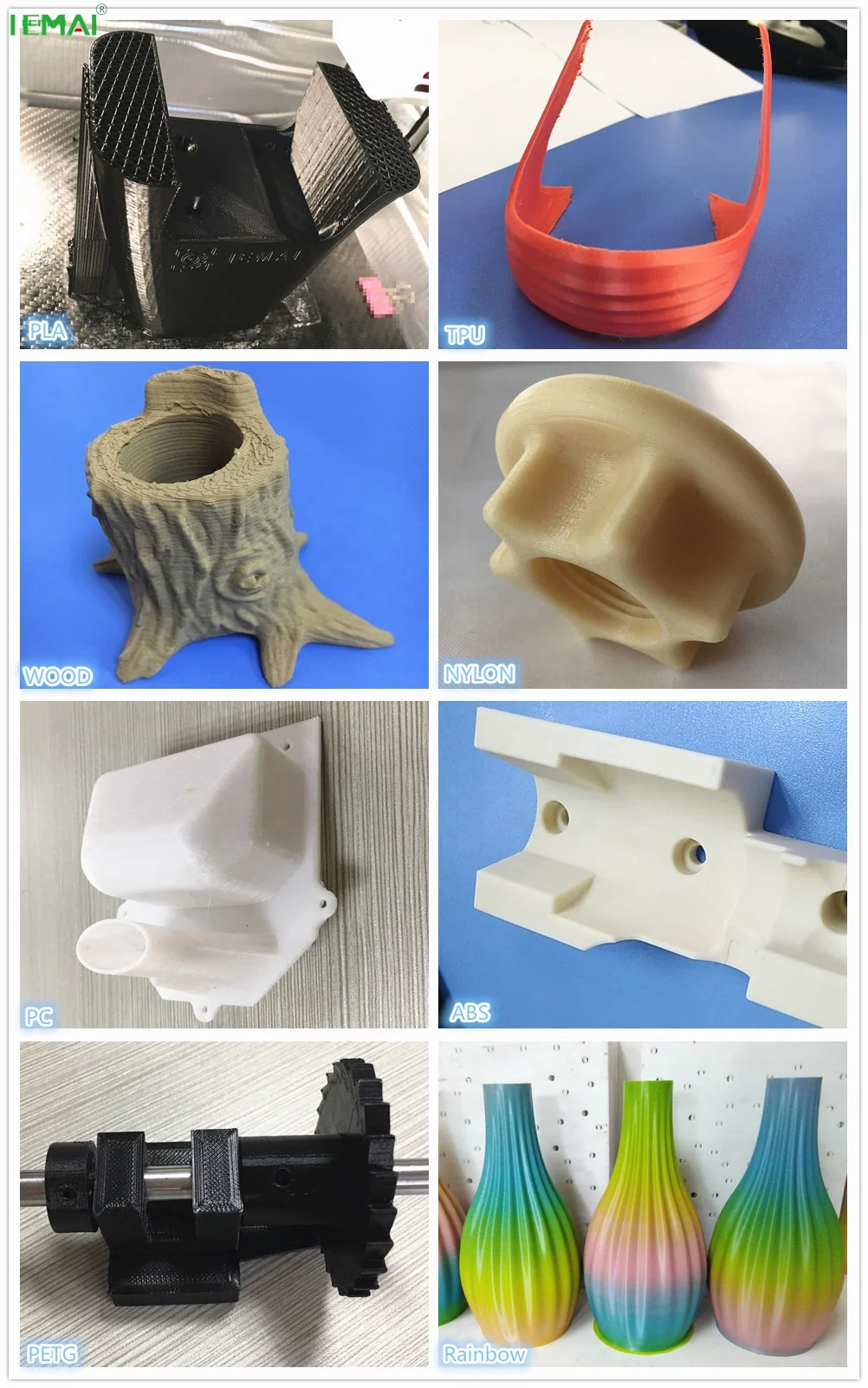

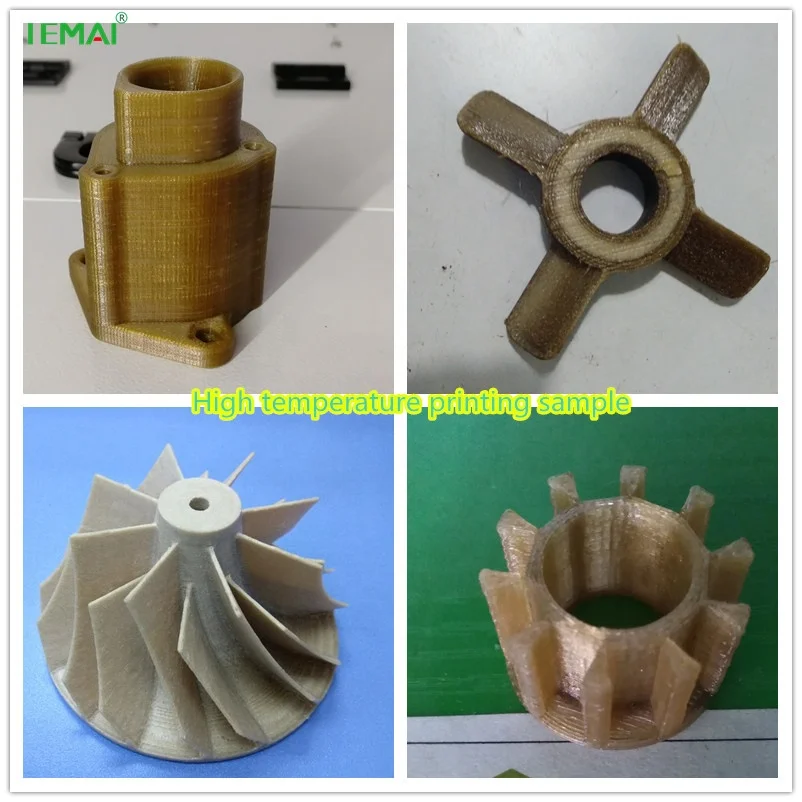

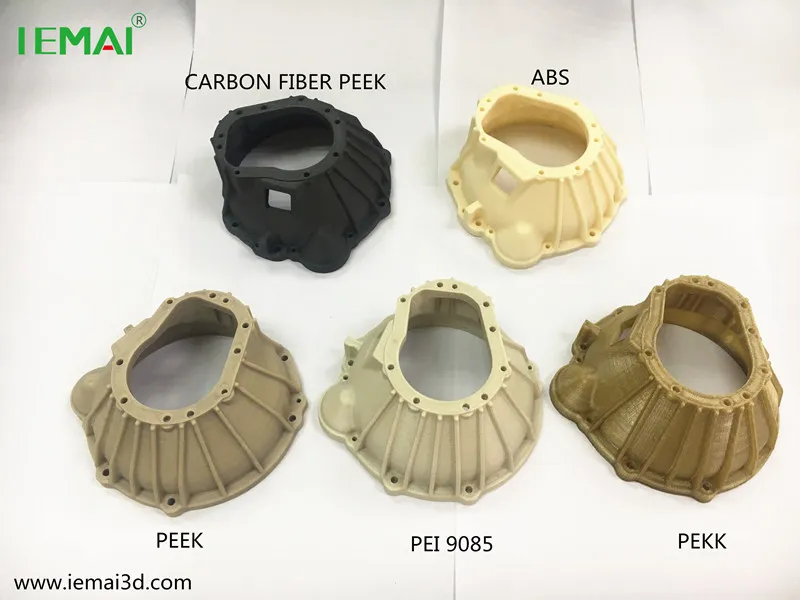

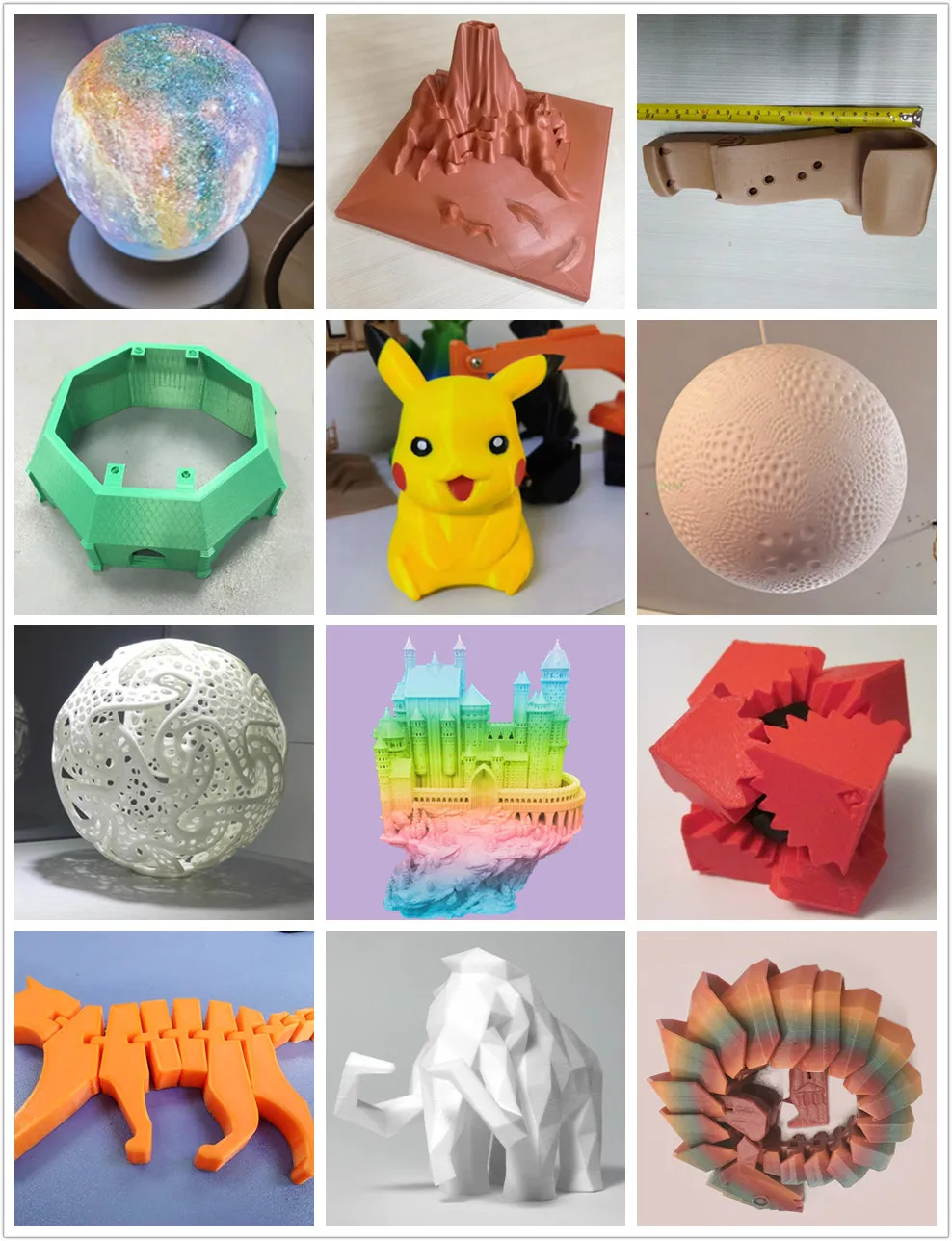

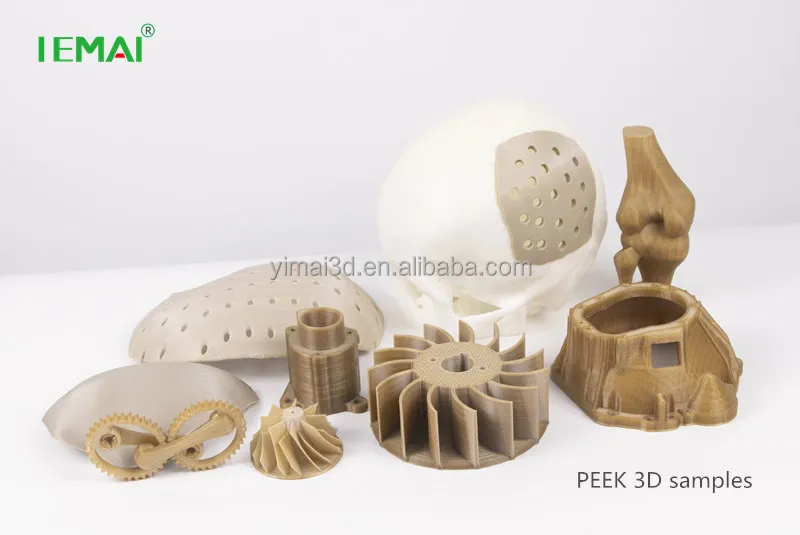

Priting samples
Packing & Delivery
Packaging | ||
Size | 53.5cm (L) * 46.5cm (W) * 67.5cm (D) | |
Weight | 51kg | |
Packaging Details | The normal package is wooden box. If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
Company Profile
Dongguan Iemai Intelligent Technology Co.,Ltd is a high technological enterprise which specialized in producing 3D printers and 3D filaments in the Pearl River Delta of China. IEMAI 3D develops, manufactures, and sells high performance functional materials and Industrial 3D printing solutions.
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:
1. Large printing size industrial series: MAGIC-L,YM-NT-750, YM-NT-1000, YM-NT-1200.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, MAGIC-HT-MAX, YM-HT-920.
3. High flow pellet 3D printer FAST-JET-780, FAST-JET-1500.
4. 3D Letter printing machine: YM-AUTO-600, YM-4020 , YM6010/UV.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL,PA6, etc..
IEMAI is committed to the highest manufacturing design and quality standards where all 3D printers have received ROHS and CE certifications. IEMAI is committed to the research and development of core technology, and we have software copyright and invention patents.
Today, IEMAI's 3D printing solutions cover the aerospace, automotive, oil and gas, medical, dental and electronics manufacturing industries.
Our Main products:
1. Large printing size industrial series: MAGIC-L,YM-NT-750, YM-NT-1000, YM-NT-1200.
2. High performance materials high temperature 3D printing series: MAGIC-HT-M, MAGIC-HT-L, MAGIC-HT-PRO, MAGIC-HT-MAX, YM-HT-920.
3. High flow pellet 3D printer FAST-JET-780, FAST-JET-1500.
4. 3D Letter printing machine: YM-AUTO-600, YM-4020 , YM6010/UV.
5. 3D printing consumables, including PEEK, PEI ( ULTEM ) , PPSU , PLA, ABS, PETG, PC, CARBON FIBER, TPU , TPE, PVA, HIPS, METAL,PA6, etc..
6. Lampshade 3D printer LAMPRO-600.
7. 3D printing service.
...
we accept customization,please contact us for details.
Our certification:
* 10+ Patents.
* ISO, CE , Rohs certification.
* 1 software copyright
* trademark for CHINA, U.S.A, and European.
Our certification:
* 10+ Patents.
* ISO, CE , Rohs certification.
* 1 software copyright
* trademark for CHINA, U.S.A, and European.
