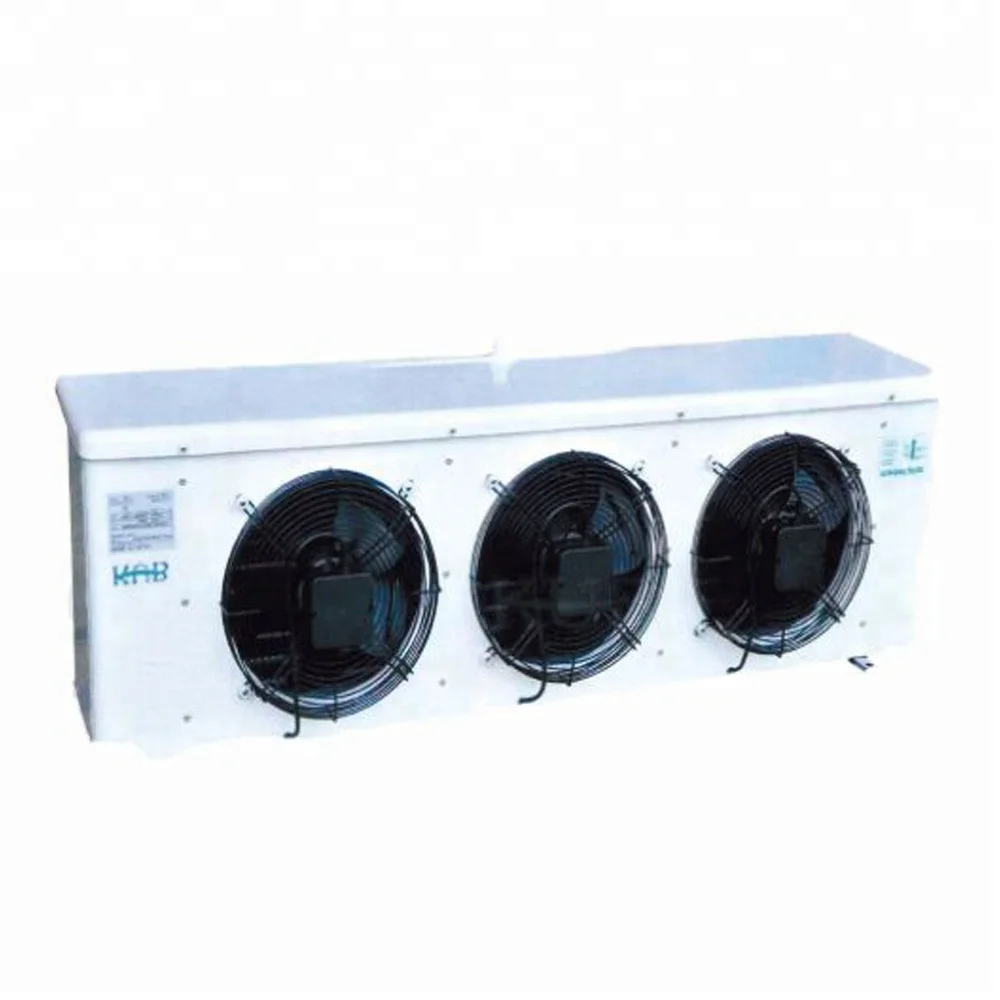

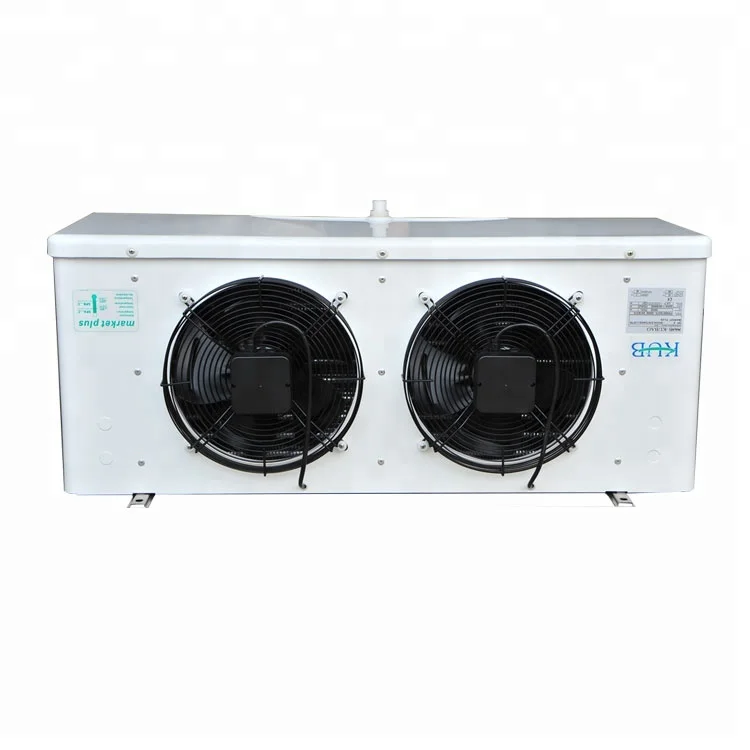

SPBE041D Fin spacing 6mm low temperature cold room evaporator 220v fan air cooler for cold room
- Category: >>>
- Supplier: Shanghai KUB Refrigeration Equipment Co. Ltd.
Share on (62096395600):
Product Overview
Description
Product Description

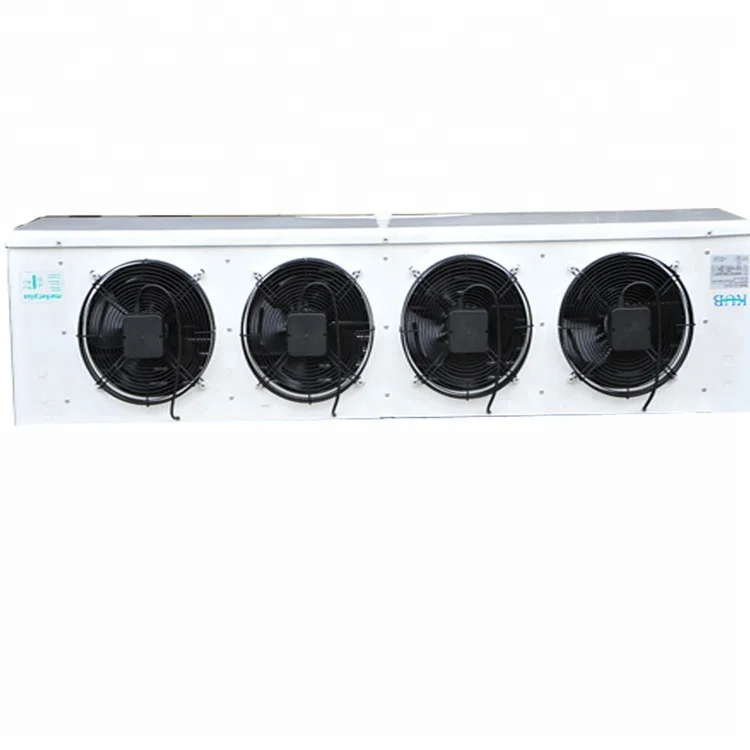

SPBE041D Fin spacing 6mm low temperature cold room evaporator 220v fan air cooler for cold room
| model | (R404A/R507A)(Kw) | Surface | Tube volume (dm³) | size (mm) | N.W (Kg) | Connection (Φmm) | ||||
| te=-8 C DT1=8K | Te=-25 C DT1=7K | L | W | H | IN | OUT | ||||
SPAE041D SPAE051D | 4.63 6.75 8.97 11.32 18.73 | 3.33 4.92 6.46 8.15 13.49 | 20 31 40 54 81 | 3.5 5.5 7.2 9.6 14.4 | 884 1094 1486 1878 2662 | 460 460 460 460 460 | 565 635 565 565 565 | 30 41 57 73 109 | 12 12 12 15 15 | 18 22 22 28 35 |
Fin spacing 6 mm,with heater, Rt≥-18°C:
| model | (R404A/R507A)(Kw) | Surface | Tube volume | size | N.W | Connection | ||||
| (dm³) | (mm) | (Kg) | (Φmm) | |||||||
| te=-8 C DT1=8K | Te=-25 C DT1=7K | L | W | H | IN | OUT | ||||
| SPBE041D | 3.89 | 2.8 | 13 | 3.5 | 884 | 460 | 565 | 28 | 12 | 18 |
| SPBE051D | 5.67 | 4.13 | 20 | 5.5 | 1094 | 460 | 635 | 38 | 12 | 22 |
| SPBE052D | 7.53 | 5.43 | 27 | 7.2 | 1486 | 460 | 565 | 53 | 15 | 22 |
| SPBE053D | 9.51 | 6.85 | 36 | 9.6 | 1878 | 460 | 565 | 68 | 15 | 28 |
| SPBE054D | 15.73 | 11.33 | 54 | 14.1 | 2662 | 460 | 565 | 103 | 15 | 35 |
Fin spacing 9 mm,with heater, Rt≥-25°C
| Model | (R404A/R507A)(Kw) | Surface | Tube volume | size | N.W | Connection | ||||
| (dm³) | (mm) | (Kg) | (Φmm) | |||||||
| te=-8 C DT1=8K | Te=-25 C DT1=7K | L | W | H | IN | OUT | ||||
| SPJE041D | 3.27 | 2.35 | 9 | 3.5 | 884 | 460 | 565 | 26 | 12 | 18 |
| SPJE051D | 4.77 | 3.48 | 25 | 5.5 | 1094 | 460 | 635 | 35 | 12 | 22 |
| SPJE052D | 6.33 | 4.56 | 18 | 7.2 | 1486 | 460 | 565 | 49 | 15 | 22 |
| SPJE053D | 7.99 | 5.75 | 24 | 9.6 | 1878 | 460 | 565 | 63 | 15 | 28 |
| SPJE054D | 13.22 | 9.52 | 36 | 14.4 | 2662 | 460 | 565 | 97 | 15 | 35 |
Electric data:

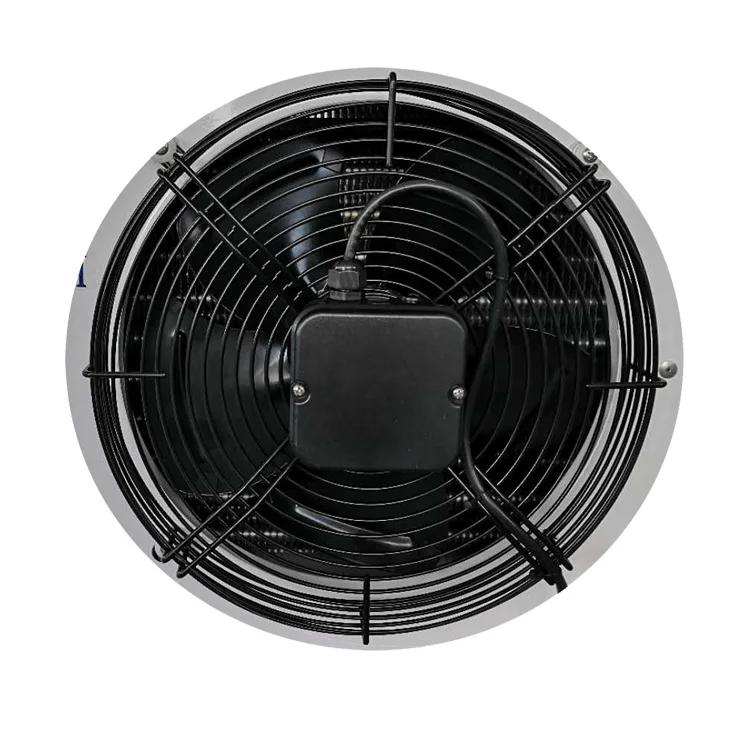

| model | External rotor fan | Electric defrost | ||||||||
| Diameter | Quantity | mains | power(W) | Electric current A) | Airflow (m³/h) | Range (m) | Coil (W) | Water tray W | power | |
| Φ(mm) | N | V,50/60Hz | (W) | |||||||
| SP041D | 400 | 1 | ~220 | 170/240 | 0.83/1.05 | 4235 | 7 | 4*550 | 550 | 2750 |
| SP051D | 450 | 1 | ~3800 | 230/310 | 1.08/1.40 | 5600 | 9 | 4*730 | 730 | 3650 |
| SP052D | 400 | 2 | ~220 | 340/380 | 1.66/2.10 | 8470 | 10 | 4*1030 | 1030 | 5150 |
| SP053D | 400 | 3 | ~220 | 510/720 | 2.49/3.15 | 12705 | 11 | 4*1310 | 1310 | 6550 |
| SP054D | 400 | 4 | ~220 | 680/960 | 3.32/4.20 | 16940 | 13 | 4*1890 | 1890 | 9450 |
Company Information
FAQ
Q1: Are you a manufacturer or trading company?
A1:This compressor we are agent , But we are factories that produce condensing units, chillers,Evaporator.
Q2: What about the shipping methods?
A2: By express/By air/By sea.
Q3: What about the payment methods &payment terms
A3: We accept T/T ,Paypal, Western Union, Cash and etc.After 30% deposit,and 70%balance before the shipment.
Q4: What's your delivery time?Where is the loading port?
A4: Usually within 35-60 days after receiving the payment. Loading port:Shanghai,other place in china according your requirement.
Q5:Can I have a sample first ?
A5:You have to pay sample cost.
Q6: How do you ship the goods and how long does it take arrive?
A6: We usually ship goods by LCL or FCL by sea, by air or express delivery. Usually it takes 30 days by sea, 5-7 days by air or express delivery.
The delivery time is according to the way of shipping.

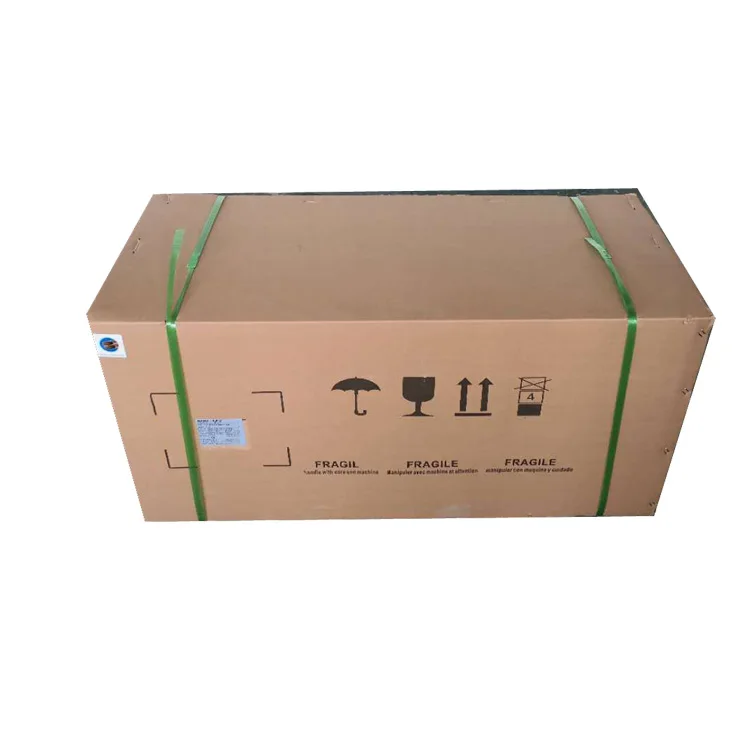

Packaging & Shipping
A. Individuation & Customization
Refrigeration industry, cold storage engineering;
Agriculture,food, restaurant, chemical industry; we can undertake designs according to customer's requirements.
B. Excellent warranty
KUB provides up to one year warranty period.
If there is any product quality problems, we will return processing, and is responsible in the end.
We provide excellent service to solve your worries.
