Laser Engraving Machine 40W CO2 Laser Engraver 300 x 200mm
Introduction
This CO2 engraving machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver. This brand new DC-KIII CO2 laser engraver is equipped with one 40W water cooling laser tube, high precise stepping motors, high quality control board. It employs an USB port and thus can be connected to your laptop or desktop. By the support of included software, Coreldraw, this machine can work well with multiple graphic formats including EMF/JPG/PLT/WMF. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.
The Computerized Mini Laser Engraving and Cutting Machine is suitable for various materials, such as bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, abrics, paper ,film, canvas , Acrylic and Plastics. If you want to make sure this laser engraver will engrave on a certain item or cut a certain item, you are welcome to send me a sample of that item and I will test it for you. Just email me for details.
1.Applicable Material:
Wood, paper, leather, cloth, Plexiglas, epoxy resin, density board, double-colored board, marble, plastic, rubber, ceramic tile, crystal, bamboo and other nonmetal materials.
2.Applicable Industry:
This machine is suitable to seal engraving, advertisement, art gift, garment, leather, toy, building upholster, computerized embroidery, packing and printing, paper product, garments sampling, large width tailoring, shoemaking, furniture, industry, craftwork, nameplates decorations, woodcut and other industries.
Features
This machine integrates the newest light, machine and electricity mechanical movement to design this high precise and high speed three generation modal CO2 LASER Engraver.

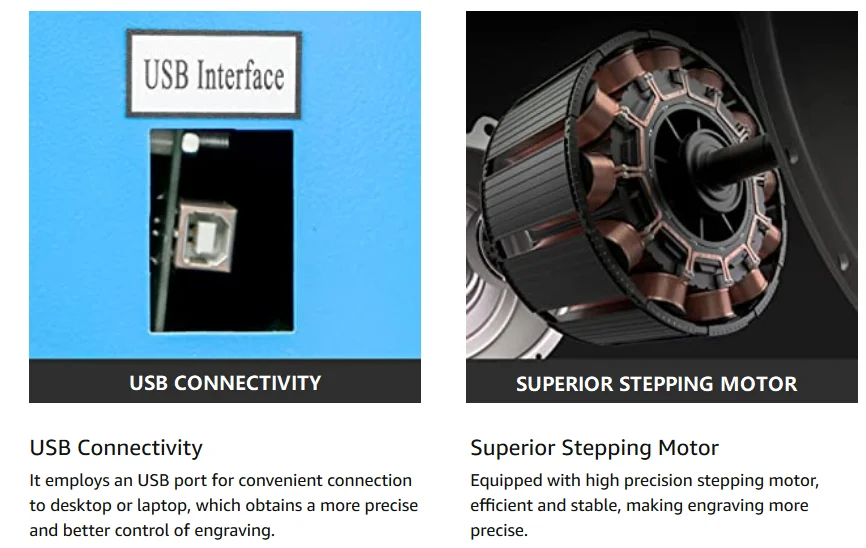

USB Port to Computer.
CorelDraw Software Included. CorelDraw has the ability of both NewlySeal and NewlyDraw and so it can be employeed in both carving and cutting works.

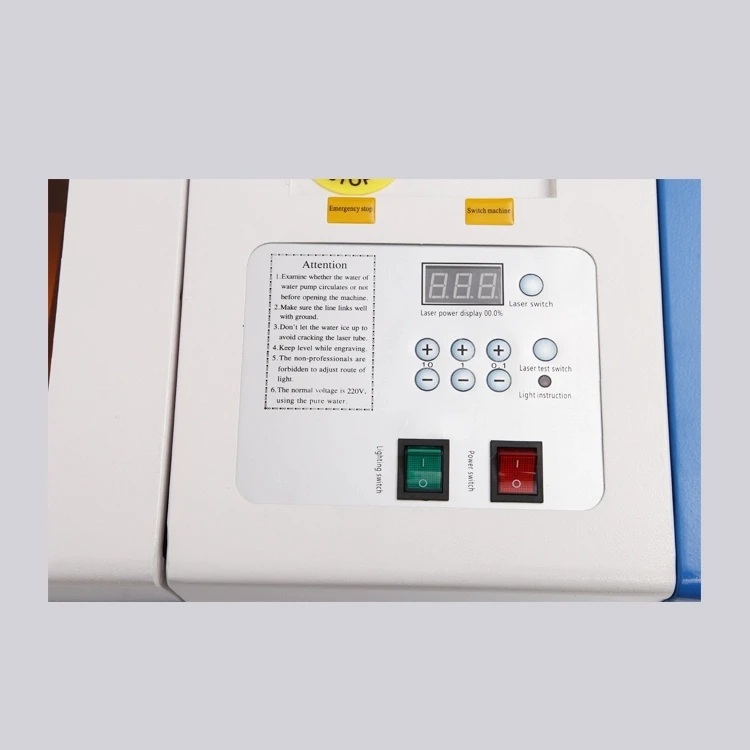

Adopt Japan imported mainboard and chip which can control the engraving more precise.
Adopt Germany imported bearing and high accuracy stepping belt which not only make the engraving more precise, also make the machine life time twice to three times than ordinary CO2 LASER Engraver.
The reinforced and thickened machine body make transportation absolutely to be safer and longer life time.

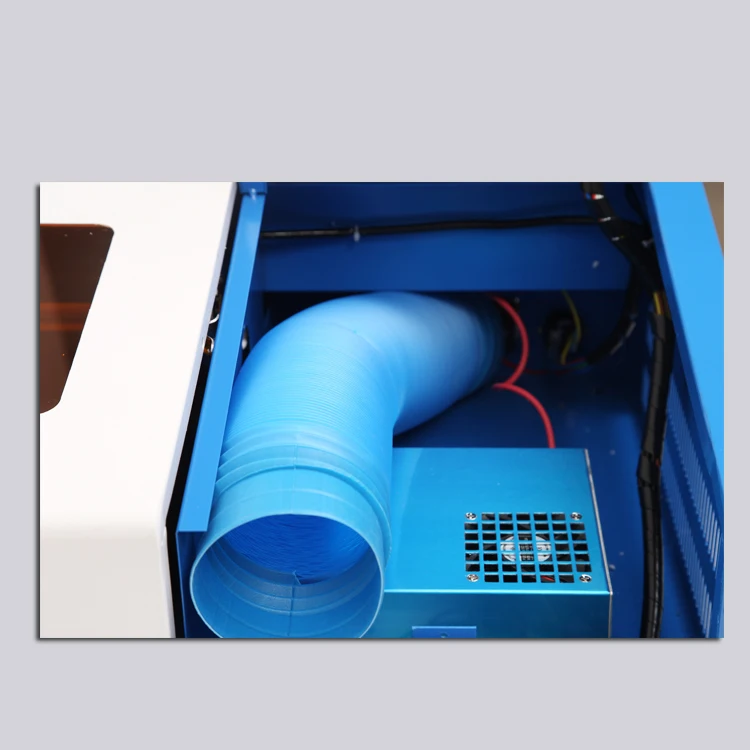

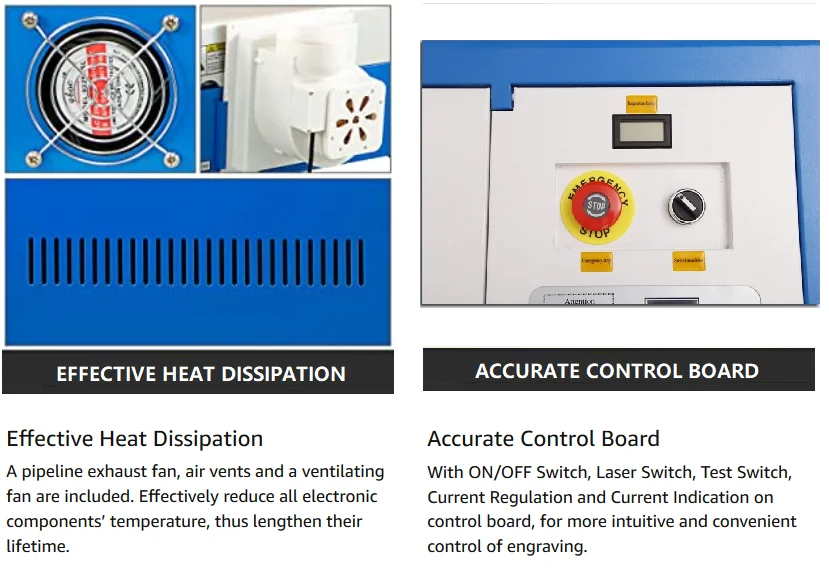

Built the heat dispersed fan to reduce all electronic component's temperature. Thus lengthen electronic component's life and the higher technical volatility.
High Precision Stepping motor makes engraving more precise.
This machine supports any kind of model printer, the scanner.Be compatible with TIF international standard fonts and BMP/JPG/JPEG/WMF/EMF/PLT.
Technical
Interface to Computer:USB Port
CE Certification:Yes
ISO9001 Quality Certification:Yes

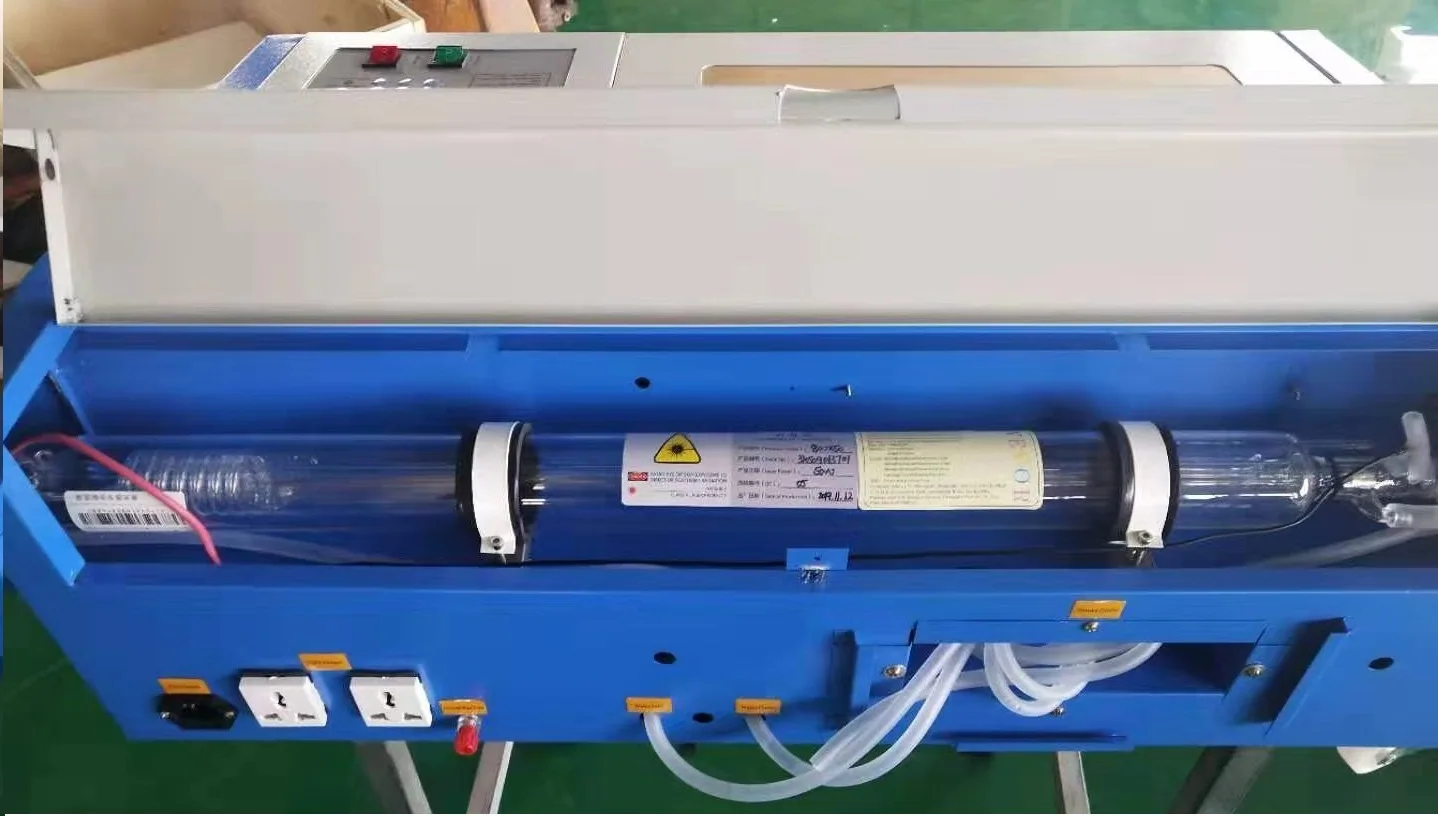

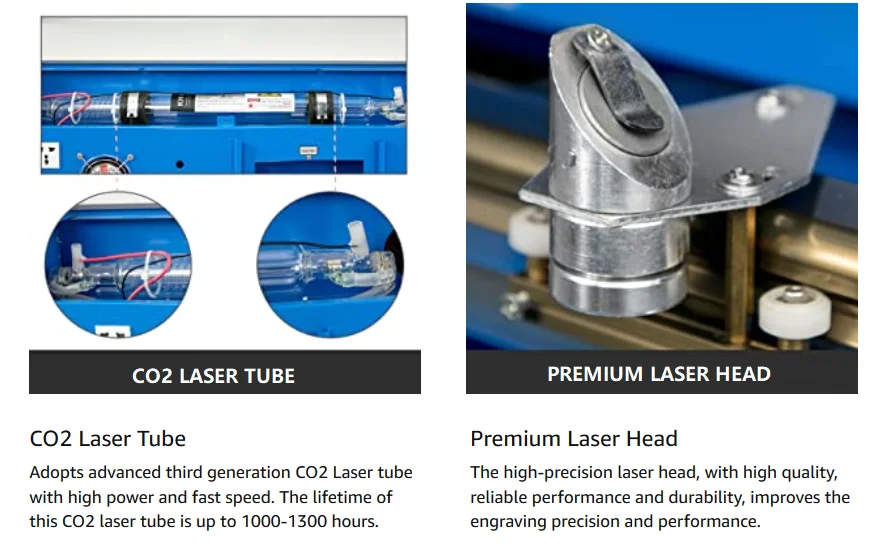

Laser Type:CO2 Gas
Tube Trigger Volt:20KV
Tube Operating Volt:15KV
Current:0~22mA
Engraving Area:12x8in (300x200mm)
Maximum Item Size to Engrave:10.25W x 8.75L x 2.85H in (260mm x 220mm x 70mm)
Laser Tube (life hours):1000-1300 Hours
Laser Power:40W
Engraving Speed:0-13.8 in./s (0-350mm/s)
Cutting Speed:0-1.38 in./s (0-35mm/s)
Minimum Shaping Character:0.04 X0.04in (1mm X 1mm)
Resolution Ratio:0.001 in (0.026mm) / (1000dpi)
Power Supply:110V/60Hz for USA, Canada, Japan etc. 220V~250V for other countries all over the world. Please tell us what voltage you want after you buy this item.
Resetting Positioning:≤0.0004 in (0.01mm)
Motor Type:Stepper Motor
Software Supported: CorelDraw software (both NewlyDraw and NewSeal function)
Product Dimensions:31.4 X 19.6 X 9.8in.(800x500x250mm)
Product Weight:30Kg/67lb (shipping 38kg/80lb)

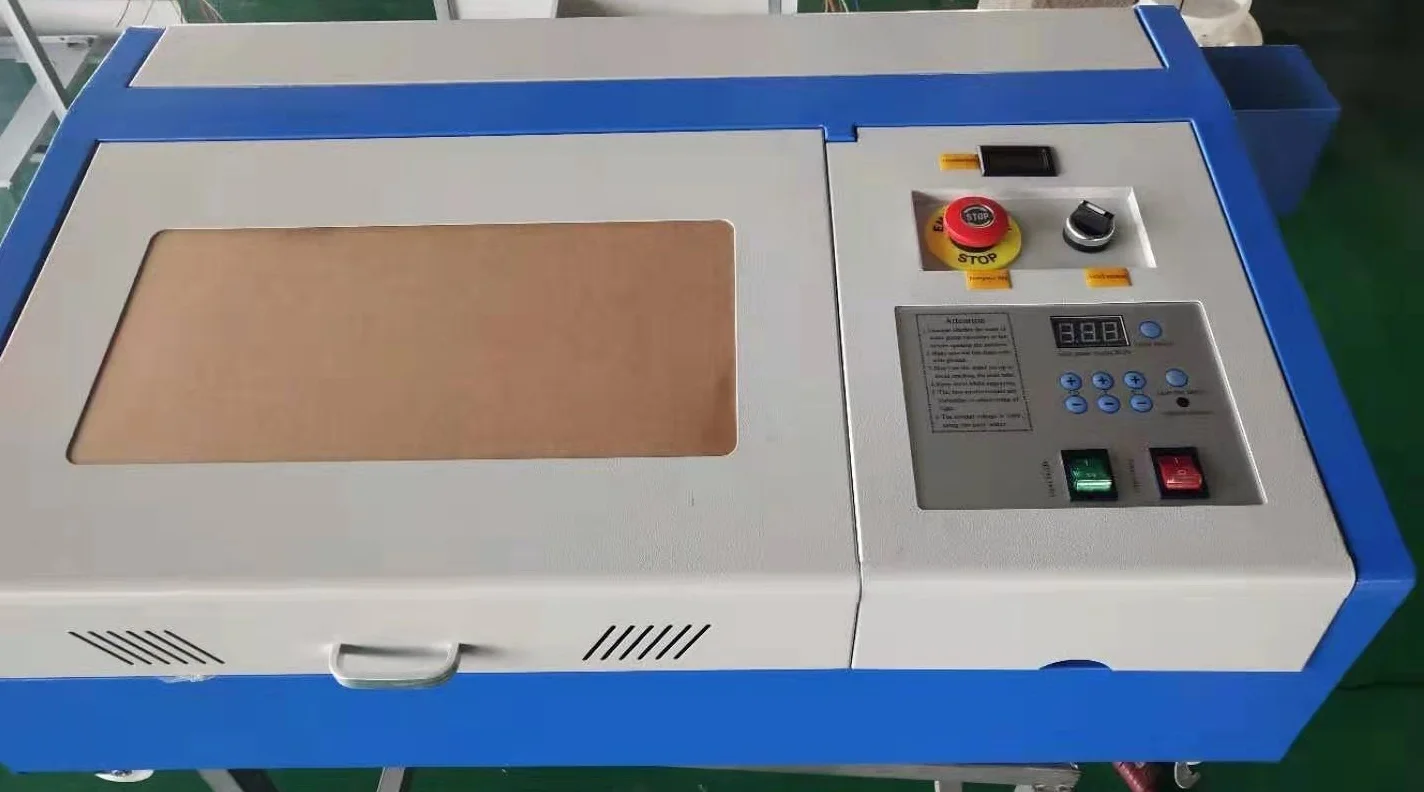

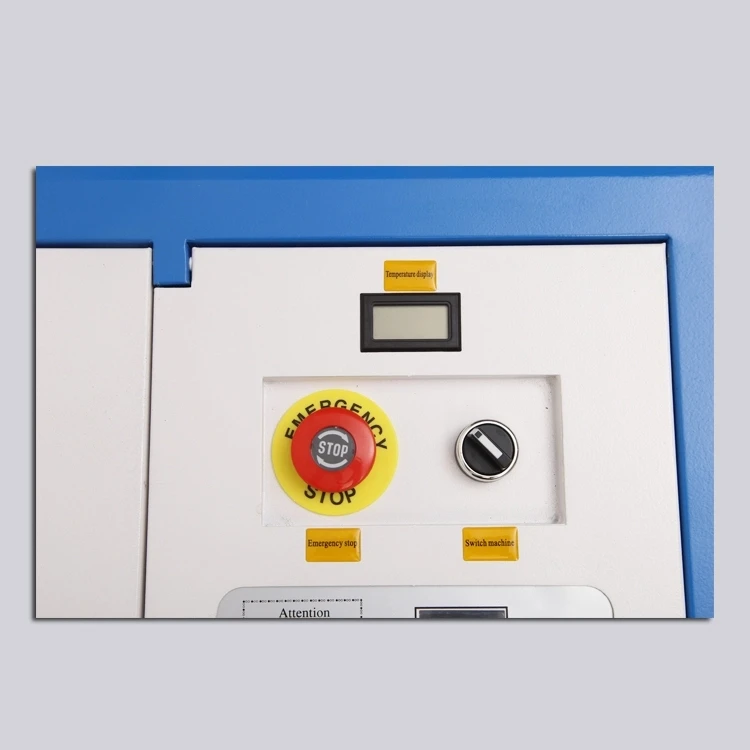

Pictures

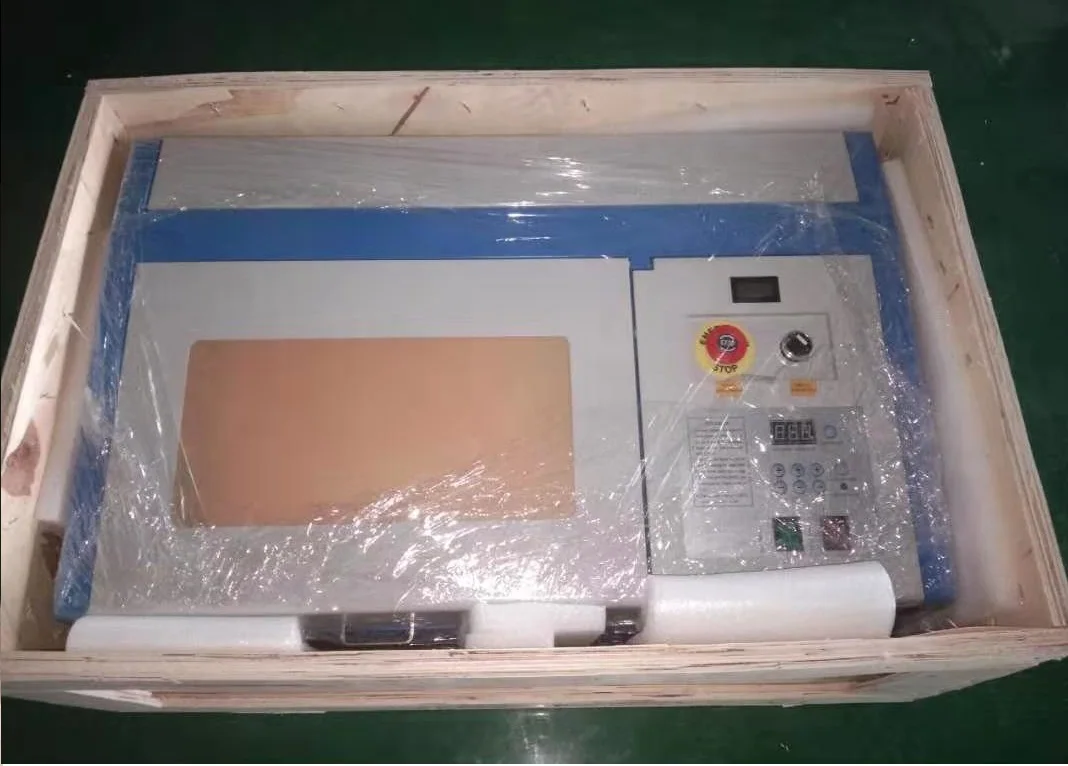

Packaging & Shipping
Package

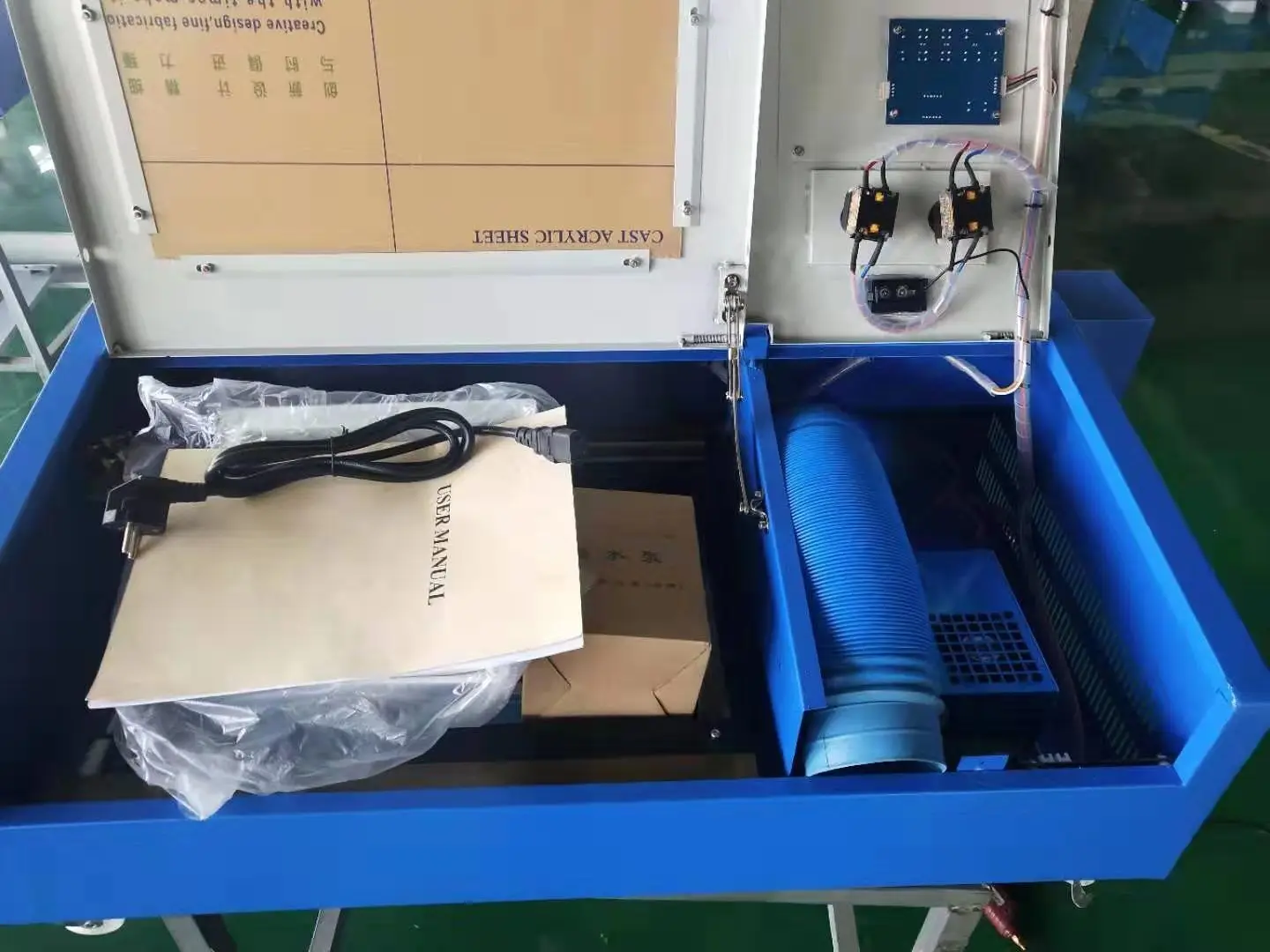

1 x CO2 LASER Engraver 1 x Water Pump 1 x Smoke Pipe 1 x Smoke Fan 1 x Power Wire 1 x USB Cable 1 x USB Key 1 x Accessory Bag 1 x Instruction Video 1 x English User Manual

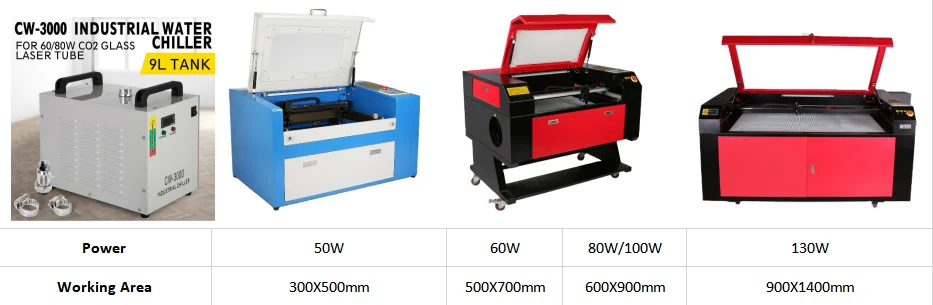

Related Products
Company Information
Business modle
Manufacture&Trading
Place of origin
Shanghai,China(Mainland)
Minimun order quantity
1 set
Payment
L/C;T/T
FAQ
Q:Are you trading company or manufacurer?
A:We are factory.
Q:How long is your delivery time?
A:Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.Yes,we could offer the sample for free charge but do not pay the cost of freight
