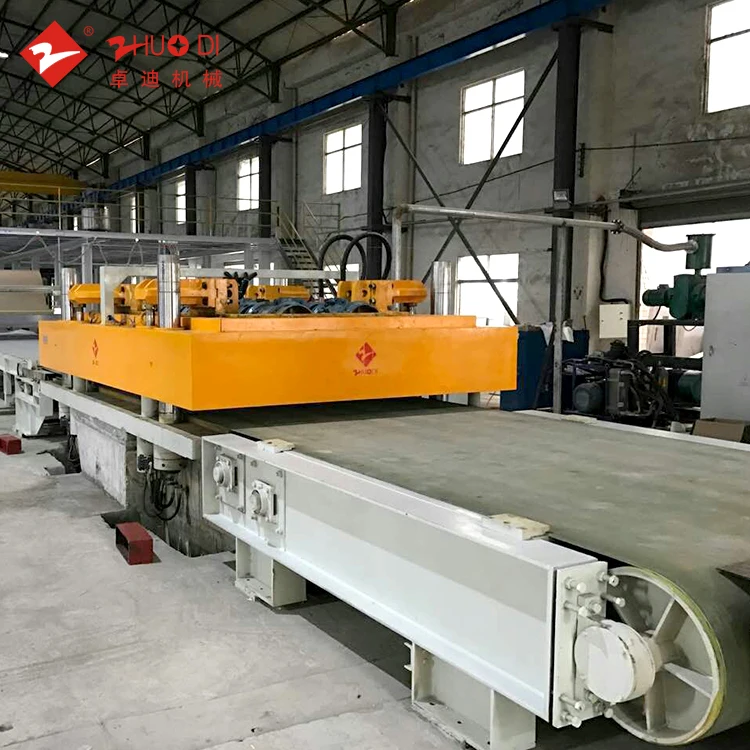

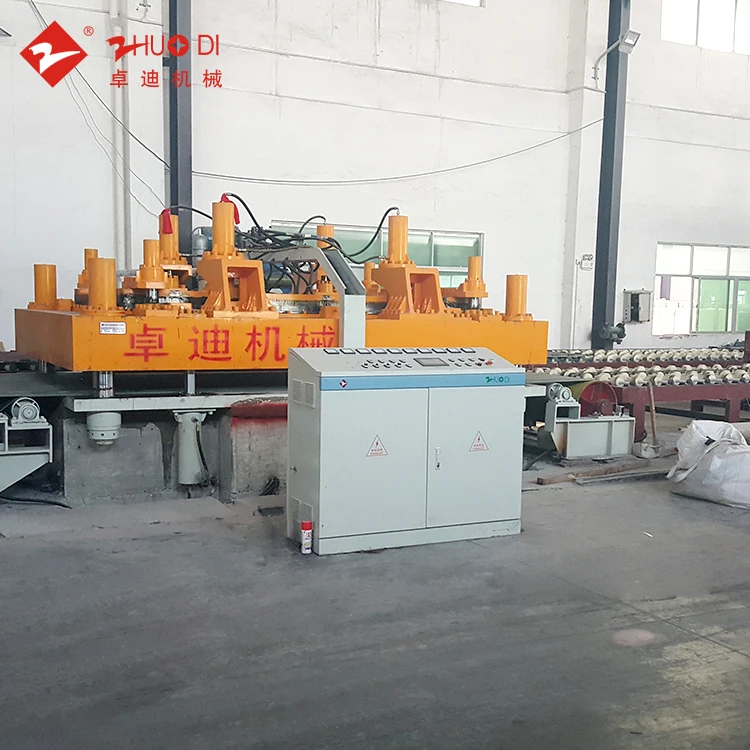

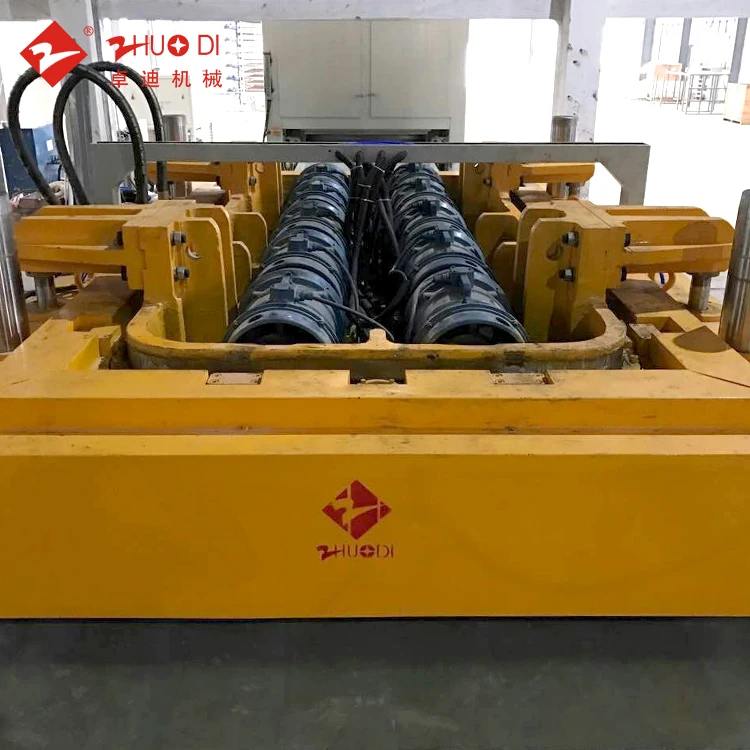

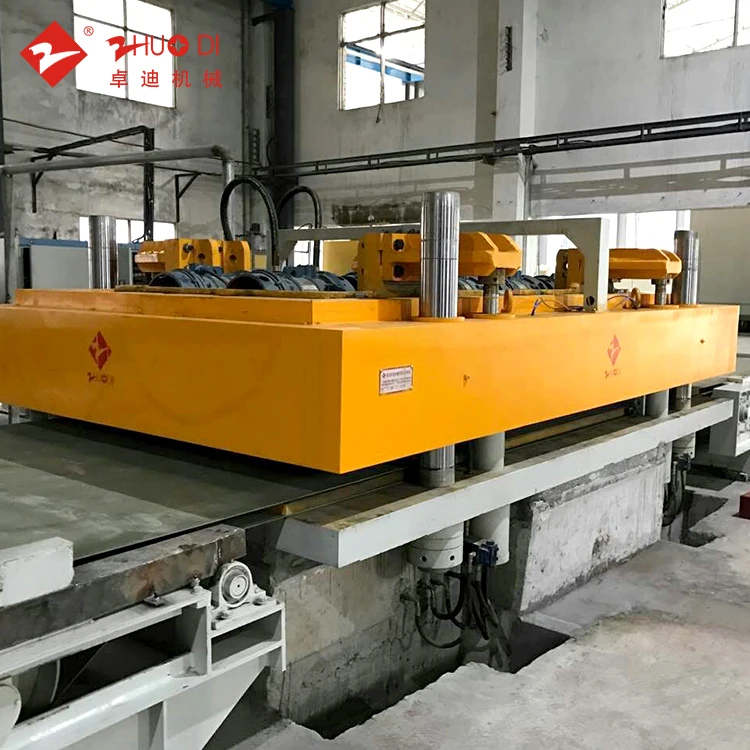

Beautiful Man made quartz stone pressing molding plate making machine

Product Overview

Description



PRESSING SYSTEM PARAMETERS

5th Generation Press Machine
Item Code	ZYJ1700
Motor	8*10kw
Power	4kw
Air Consumption	260L
Working Size	3250*1700mm
Weight	38Ton
Dimension	6950*3300*3000mm



Airbag Press Machine
Item Code	ZQNYJ1650
Motor	10*12KW
Power	5.5kw
Air Consumption	260L
Working Size	3250*1650mm
Weight	56Ton
Dimension	6950*3300*300mm















1. Can you provide me with the product parameters

one polishing line two press lines semi-Auto distribution.

full production line dimension:117800*76840*14300mm(L*W*H)

Final slab dimension:760*2440mm;800*3100mm

thickness:10-30mm

daily capacity:360 slabs/day(20 hours)

annually capacity:260.000sqm/year



3. What is the size of the whole factory



one polish line can support 2 press lines

whole line dimension:136250*98280*10500mm(L*W*H)

Final slab dimension:1600*3200mm

thickness:10-40mm

daily capacity:480 slab/day(20hours)

annual capacity:720.000sqm/year

4. Do you have a perfect after-sales service system

with professional R&D team,providing pre-sales services,and timely solution.

12 year in engineered quarts stone production experiences,we can provide full training and technical support for our customers.we will

grow with our customers and develop new products with our customers.

with zhuodi machinery ,it's possible to produce any design of quartz.we also can customize and design the machine according to the actual demand,

ensure the easy operation during the production with the low cost,high production and high quality.
