1.8m 2.5m excellent solvent photographic printer machines

Product Overview

Description

      1.85m 2.5m excellent solvent photographic printer machines



Technical parameters:

Product Parameters
Item Model		YH-1600W	YH-1800W	YH-1802W	YH-2502W
Print head		Using Epson Print head,including 180 nozzles/row*8*lines*1, high quality up to 1440dpi
Print resolution/speed		4pass:12m2/hour	4pass:15m2/hour	4pass:26m2/hour	4pass:36m2/hour
		6pass:8m2/hour	6pass:12m2/hour	6pass:18m2/hour	6pass:24m2/hour
		8pass:6m2/hour	8pass:9m2/hour	8pass:13m2/hour	8pass:18m2/hour
Ink	Sort	ECO-DYE-UV-RZR
		Water Based Ink/Eco Solvent Ink,Water Based ink;dye ink,Sublimation ink
	Capacity	4 Colors:1.5L*4/color;
Media	Maximum Width	1550mm	1850mm	1850mm	2450mm
	Thickness	1.5mm to 8mm adjustable
	Max.  loading Weight	75KG	85KG	95KG	150KG
	Sort	PP Sythentic paper,vinly sheet,film coated paper,Acid Proof paper banner,canvas, Adhesive Vinly sheet,Banner and so on.
High Printing quality		Three intelligent eclosion print function;VSD techology
Media Heater		Pre/Print/Post Heater(can be controlled separately)
Media Take-up Device		Strong Rolling take-up device with the automatic damper
Drying system		Drying system(option)
Interface		USB
RIP Software		Maintop V5.3/Photoprint/Wasatch
Powder		AC110V+/-10%,AC220V+/-10%,50/60+/HZ
Operation Environments		Temperature:20°C-35°C,Humidity:35%RH-65%
Powder		Front and back heatting with dryer
machine size(L*W*H)		2500×750×1500mm		2950×750×1550mm	4200×900×1660mm
Height of Workable		1050mm			1050mm
Packing size		2500*770*720mm	3030*770*800mm	3000*770*720mm	4300*900*800mm
Net Weight		190KG	200KG	230KG	340KG
Gorss Weight		220KG	230KG	260KG	380KG

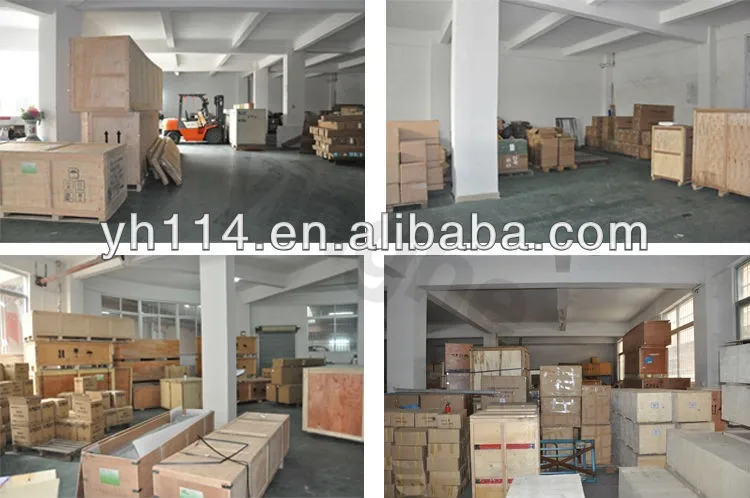

Company  photoes:
