2019 OEM lifting tripod rescue tripod with winch in hot selling
Product Description
Brief:
Item name :rescue tripod
Material is High strength Aluminum
134-214cm working scope
134cm Closed Height
Specifications:
Max. Opening Distance of Blades > 28mm Rated Working pressure :63Mpa
High quality and using long time
Relative datas:
Technical Specification
Rescue
Tripod
Model
MT-FT1 tripod with winch
Material
High strength Aluminum
Operating Load
300Kg
Breaking Force
22KN(Steel wire Rope)
Working Scope
134-214cm
Closed Height
134cm
Extend Height
214cm
Dimension for reference
177*25*28cm
Weight
16.5Kg
Winch
Length of Wire
25m
Operating Load
200Kg
Breaking Force
1800KN
2. Working Principle
MT-FT1 tripod with winch is the rescue tool specialized to used to prevent dropping from high place.
It has passed the EN795 inspection. It confirm to the B level standard.
It only can one person use.
3.Main Structure

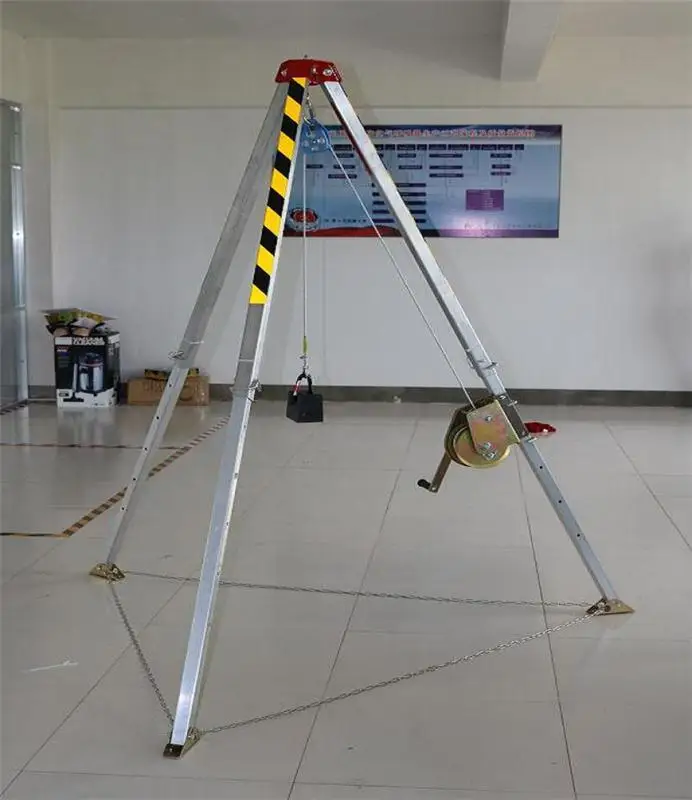

The structure of MT-FT1 rescue tripod is shown as Pic #1.
Pic # 1. Structure of MT-FT1 Rescue Tripod
(1)The top head
(2)Eyebolt
(3)Fastening handle
(4)Pulley
(5)Outer tube of the frame
(6)Handle control capstan
(7)Positioning pin
(8)Hook
( 9 ) Branch sleeve
(10) Chain-guard
(11) Working height: extension height: 214cm
Closed height: 134cm
4.Basic Configuration
The top head: High strength Aluminum.
Eyebolt:one is in the center, one is in the back, it's convenient to install equipment.
Frame:extension type frame equipped with propel rod, it can push the frame up and down. The bottom of the frame equipped steel support. Effective guarantee the equipment can use on the uneven ground.
Handle control capstan: 30 meters steel wire.
Chain:Safety chain can effectively reduce the horizontal force,prevent frame slide.
5.Specification
Technical Data of Rescue Tripod
Model
MT-FT1 tripod with winch
Material
High strength aluminum material
Operating load
200kg
Max. Prevent breaking force
22KN(Steel Wire Rope)
Height scope
134-214cm
Working height
Closed height
134cm
Extension height
214cm
Packing Dimension
177*25*28cm
Weight
30kg
Technical Data of Rescue Tripod
Model
MT-FT1
6.Operating Process
Fix The Tripod
1. Let the tripod keep flatting on the smooth and hard ground. Open the frame, use the positing pin to fix the length of tripod.
Set up the tripod, and fixed by bolt-locking.
Confirm Branch sleeve is steedy. Adjust teles copic frame to ensure that the three fulcrum in the same plane. To install the chain and lock the chain by the connection button.
Notes: don't stumble by the chain when install and use the chain.
Inspect if the positing pin is firm and if the position is right.
Confirm the chain install the bottom of the frame, and let it e ffectively prevent slipping caused by the horizontal force.
Pack up The Tripod
Press the lever connect with the lock, and contraction the frame.
Put the tripod lie flat on the surface, remove the positioning pin, then pack up the frame.
The rescue tripod must retract immediately after using, and as the manufacture request to inspect the equipment.
Can be inspected by the person:
Model Number
MT-FT1 tripod with winch
Brand Name
Medcare tripod with winch
Place of Origin
China (Mainland)
China (Mainland)
Jiangsu
OEM
avaliable tripod with winch
net weight
26kg
gross weight
29kg
packing size
177x25x29cm
Certificate
CE
material
Aluminum tripod with winch
stock
Yes
warranty
2 years tripod with winch
quality
high quality
price
competetive
Product Image
