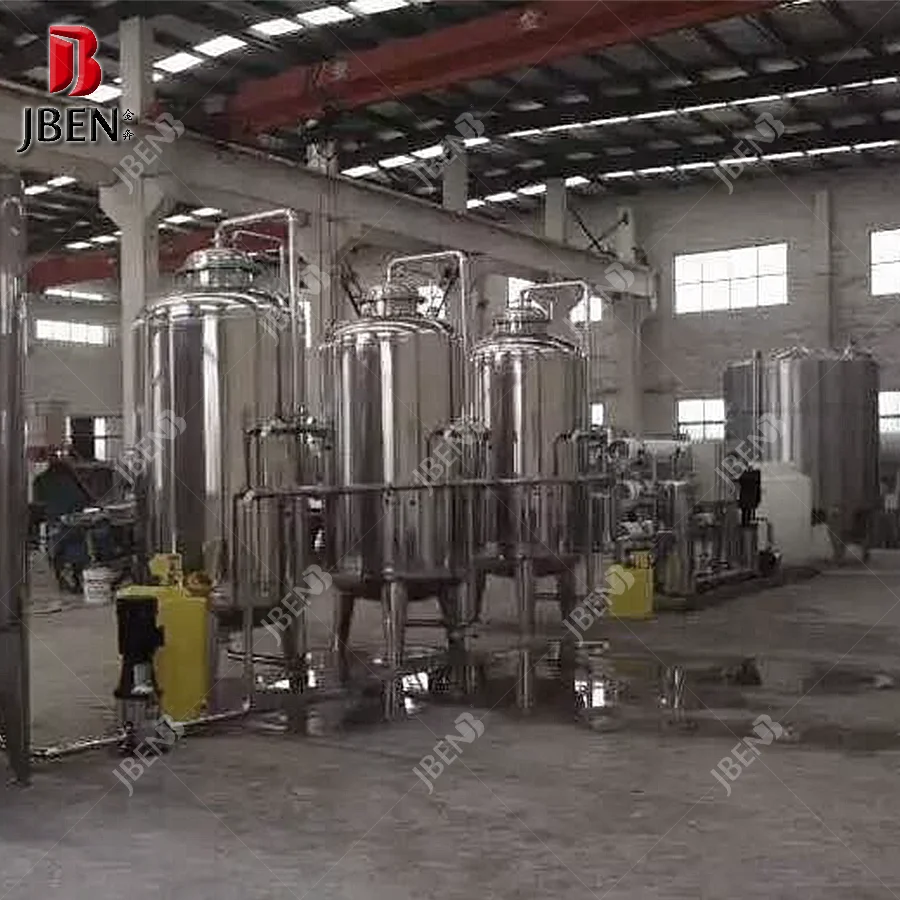

industrial RO water treatment plant/reverse osmosis water filter machine/waste water treatment system
- Category: >>>
- Supplier: Shanghai Jinben Industrial Co. Ltd.
Share on (62096628560):
Product Overview
Description
Product Description
| Water Treatment System |
∇ Description ∇ According to the condition of raw water, we adopt different plan and equipment to produce pure water and mineral water. It can effectively get rid of muddy matter, iron and oxide. Filter suspended substance, colloid, remained oxygen of microorganism and some of heavy metal ion in the water, reduce the hardness of the water to meet the standard of the purified water. This water treatment plants are used to treat the water from lake, spring, well and ground etc. The treated water can be widely used in drinking water, cosmetics products, pharmacy production, dye industry ect. The amount of water produced varies with the temperature of the incoming water and the aging or contamination of the reverse osmosis membrane.
Our water treatment machines’ Advantages:
|
| Water Treatment Machine |

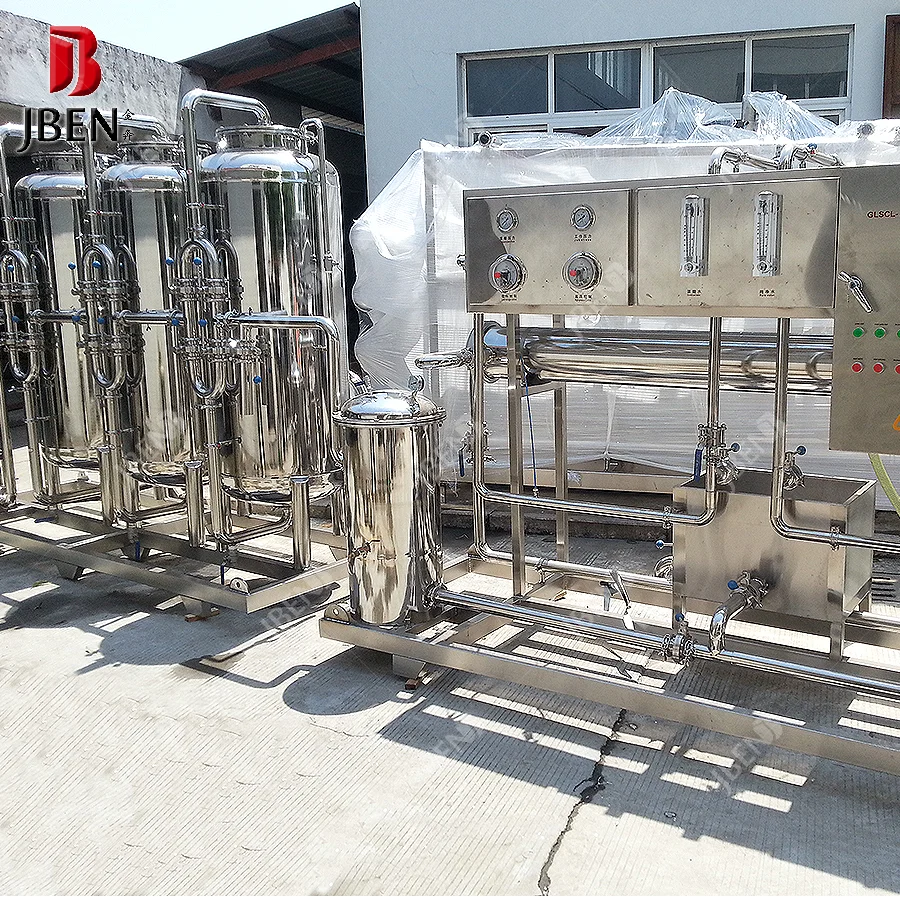

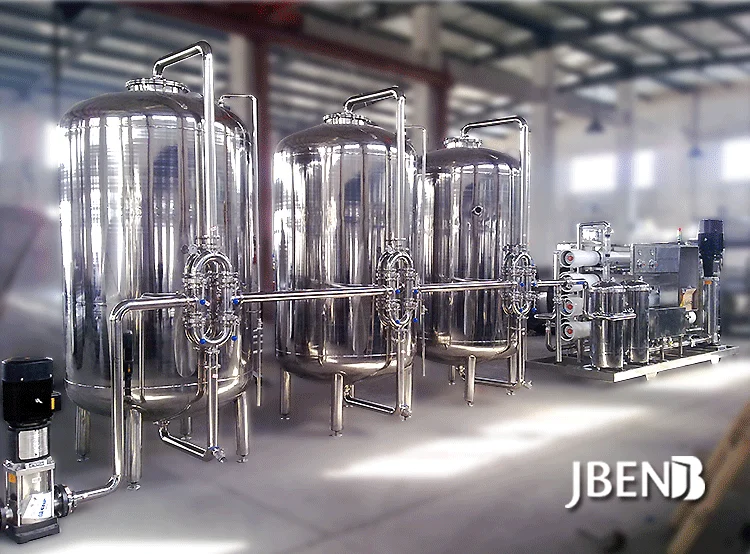

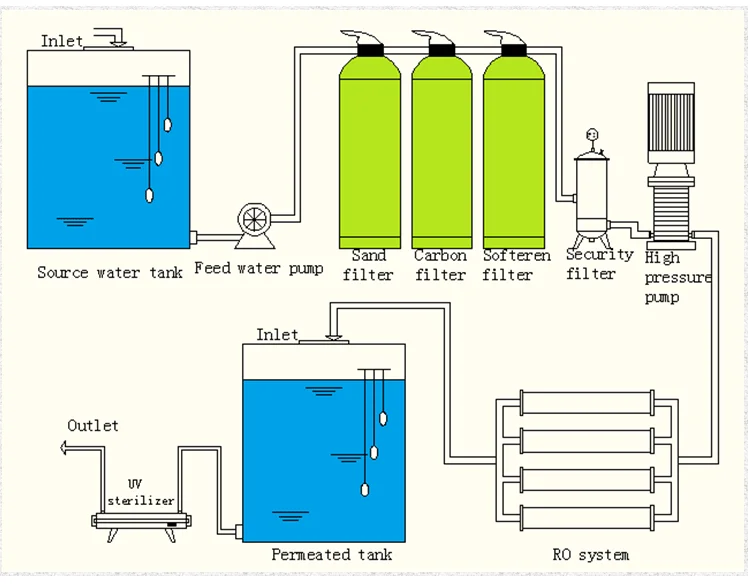

The Whole Water Treatment System including the water tank, water pump, pre-treatment system, reverse osmosis, Ultraviolet Sterilizer, Ozone generator, Ultra filter and so on.
|

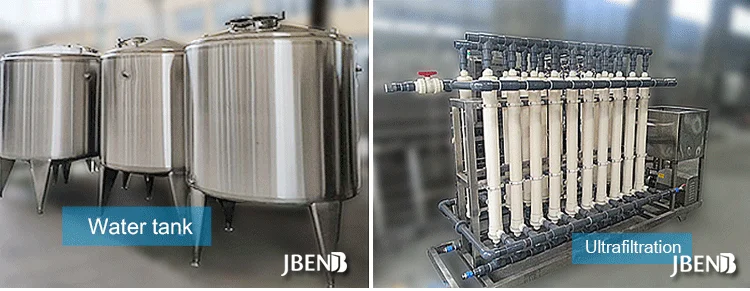

1. Water tank: storage of tap water, to solve the problem of insufficient tap water pressure and the back booster pump due to the impact of insufficient water, reduce the failure rate |

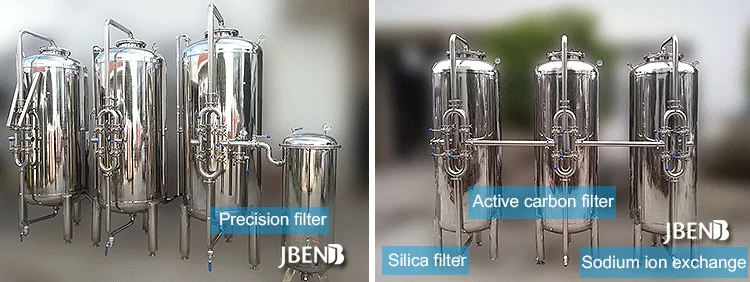

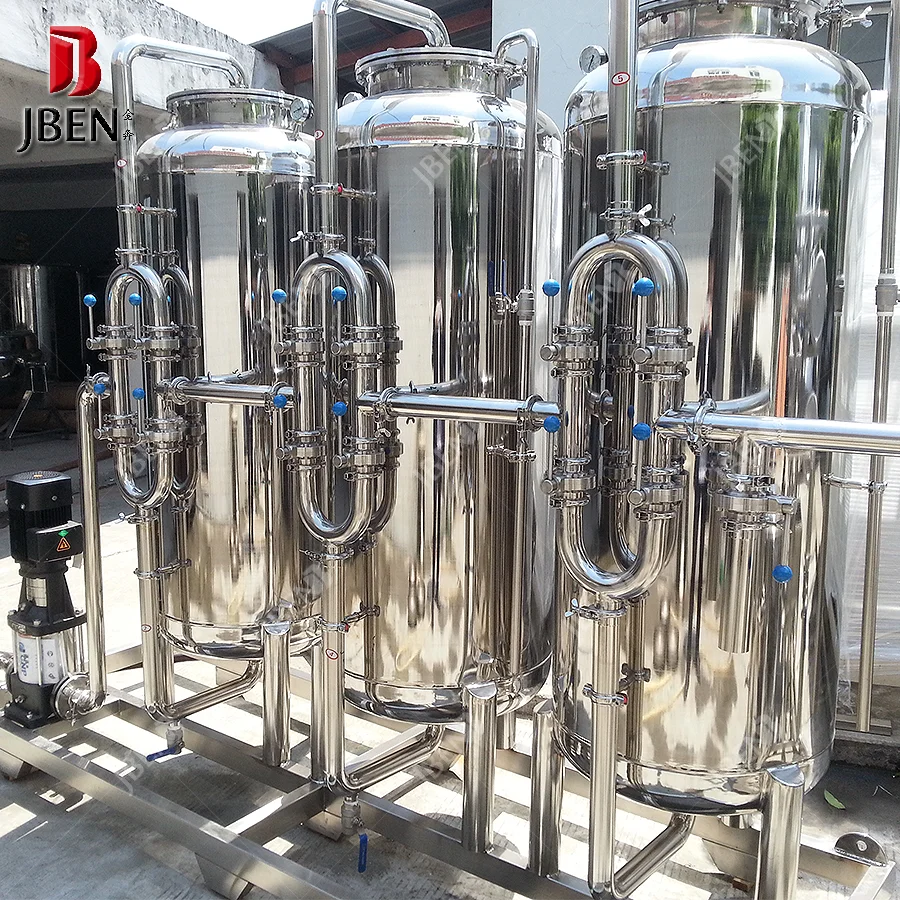

3. Quartz sand filter: mainly remove the mud, suspended solids and large particles in the tap water 4. Active Carbon filter: mainly remove organic substances, residual chlorine and odor in tap water 6. Security filter: further filtration, protection of reverse osmosis membrane
|
| 7. High pressure pump: provide enough pressure for reverse osmosis system |

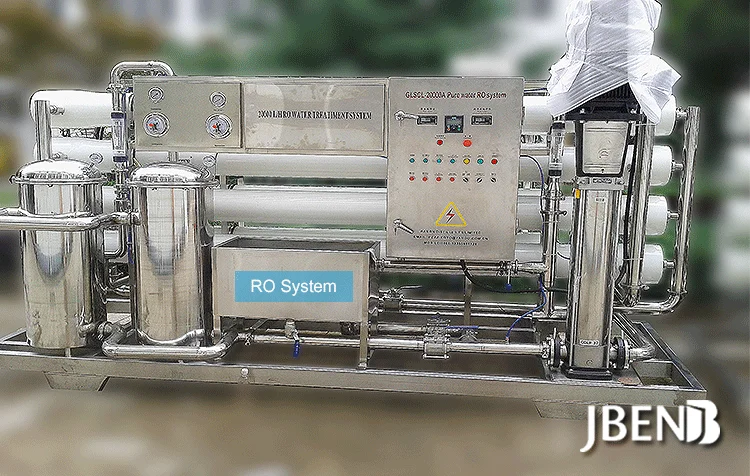

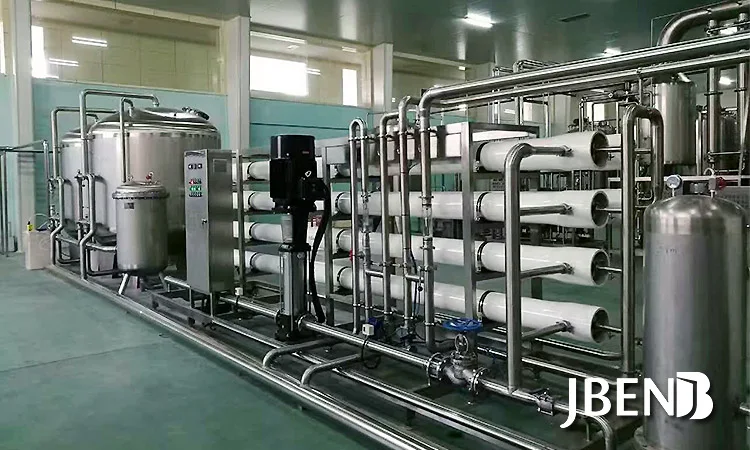

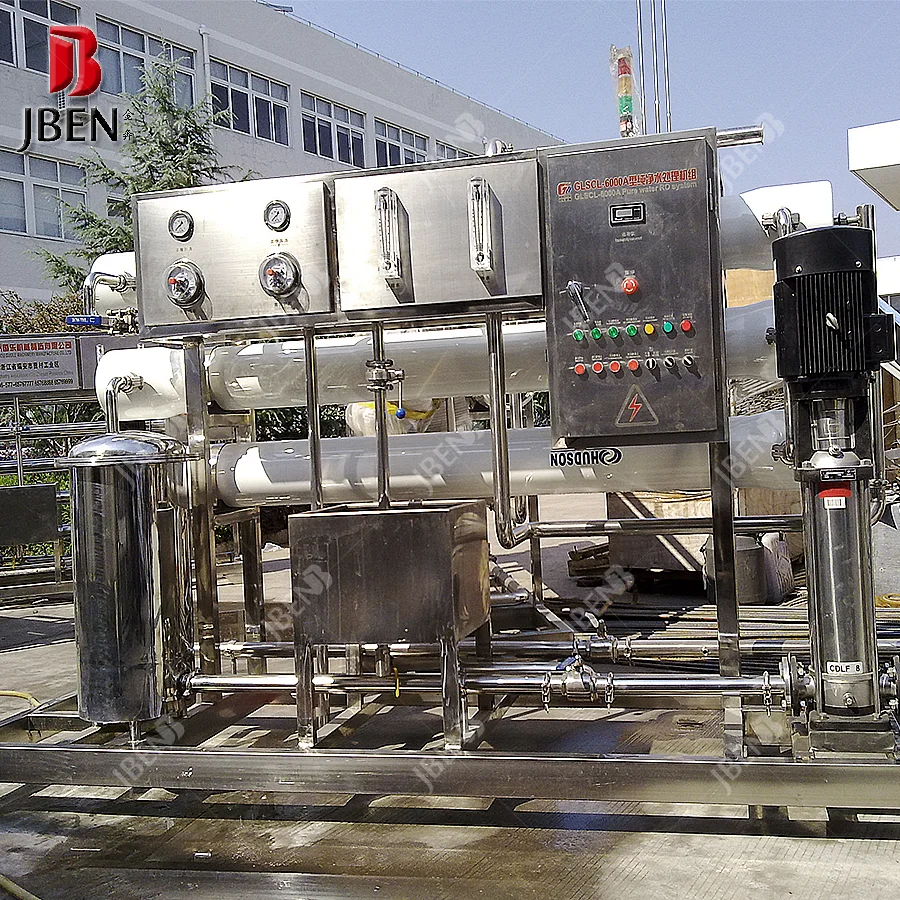

8. Reverse osmosis unit: the core part of pure water equipment, the production of high-purity water.
|
9. Pure water tank: storage pure water, can change the size of the water tank,after the below process,The water result is pure enough for different application. 10. Ozone Generator:Four connections installed on the ozone generator: air inlet:/Ozone outlet/chilling water inlet/chilling water outlet 11. UV Sterilizer:The products adopt a high-intensity,long-lived UV germicidal lamp,the device is reasonable, compact, and adopts the structure of secondary disinfection,so health indicators completely according to the state standard.
|
| Main Technical Parameter |
Model | Capacity of water (Ton/hour) | General Power (Kw) | Size (L*W*H) ( mm) | Weight (Kg) |
RO-100L/H | 0.1 | 0.75 | 690*570*1490 | 100 |
RO-300L/H | 0.3 | 2.75 | 1550*900*1820 | 150 |
RO-500L/H | 0.5 | 2.75 | 1550*900*1820 | 250 |
RO-700L/H | 0.7 | 4.25 | 1550*900*1820 | 350 |
RO-1000L/H | 1 | 4.75 | 1980*900*1940 | 500 |
RO-2000L/H | 2 | 4.75 | 4800*700*2050 | 700 |
RO-3000L/H | 3 | 5.75 | 6000*800*2200 | 800 |
RO-4000L/H | 4 | 7.5 | 7000*900*2400 | 1000 |
RO-5000L/H | 5 | 12.5 | 8000*1000*2700 | 1500 |
RO-6000L/H | 6 | 15 | 4300*1000*2300 | 1700 |
RO-12000L/H | 12 | 19 | 8500*1600*1920 | 2500 |
RO-15000L/H | 15 | 19 | 10100*1870*3000 | 4000 |
Our Services
| What Can We Do For You ? |
∇ Project Install Case ∇
We have professionl installation team, they have rich experiences in foreign installation. such as Congo, Pakistan, India, Thailand, North Korea, Myanmar, Netherlands, Australia, Spain and so on.
Company Information
| Know More About Us |
Delivery
| Packing And Shipping |
PACKING: Normally the inner package ,we will packed by the stretch film ,outpackage we will use the export woodencas if you have special requirment of the package pls let us know in advance. |  |
| SHIPPING: Mostly we send the goods to you by sea,as in this way the freight is most reasonable ,if you need the goods urgently ,We can also send by air. | |
 | |
FAQ
| Q: What types of water sources does it treat? |
| A: Reverse Osmosis is an ideal water treatment solution in most types of water.tap water, also known as municipal sources, under-ground water, which includes brackish water, and salt water. |
| Q: Is pretreatment necessary? |
| A: It is very important that feed water be preconditioned to protect the membranes from fouling causing premature failure.The membrane is constructed of a porous material that allows water to pass through, but rejects up to 99% of the dissolved solids at the surface. |
| Q: Is it necessary to get a water analysis? |
| A: A detailed chemical analysis (LSI, SDI, or CFI) of the RO feed water is an absolute necessity for identifying potential foulants. we wil according to this to make solution for you. |
| Q: How long Is the warranty period ? |
| A: 1 years |
| Q: What is payment terms ? |
| A: T/T usually. L/C we also can do. |
Q: Are you are trading company or a factory?
A: We are both factory and company.
Q: Where is your factory? When can I visit your factory?
A: In Zhejiang Provice. Welcome to our factories at any time! Pls contact our sales first.
Q:What is your main products?
A: We are professional in making automatic water production line, bottle washing filling sealing machines, beverage/juice/milk/yogurt production line and machines, bottle blowing machine, bottled filling machine, sterilizer/sterilization machines, tanks, labeling machine, shrink sleeve labeling machine, trapping label machine, PE film packing machine, cup filling machins etc.
Q:How do I know your machine works well?
A: You are welcomed to send your co-workers to check it in our factory.If you do not want come to our factory, we will use quality control engineer to test on the working machine for you. We will send video to you.
Q:Do you provide overseas services?
A:Yes. For more details pls ask our sales.
Q:Do you have any training for Customers?
A:Yes. We have on field training, live broadcast training and recorded video training. We will provide the best aftersales for each customer. For more information pls ask our sales.
Q:How to place my order?
A:Just contact our sales.
